16 42mm 12V DC brushless planetary gear motor / 12 volt planetary gearbox with brushless dc motor
- Category: >>>
- Supplier: Shenzhen Tronsun Motor Co. Ltd.
Share on (60399508889):
Product Overview
Description
16-42mm 12V DC brushless planetary gear motor / 12 volt planetary gearbox with brushless dc motor
Product Description
Model No.: 28PA395

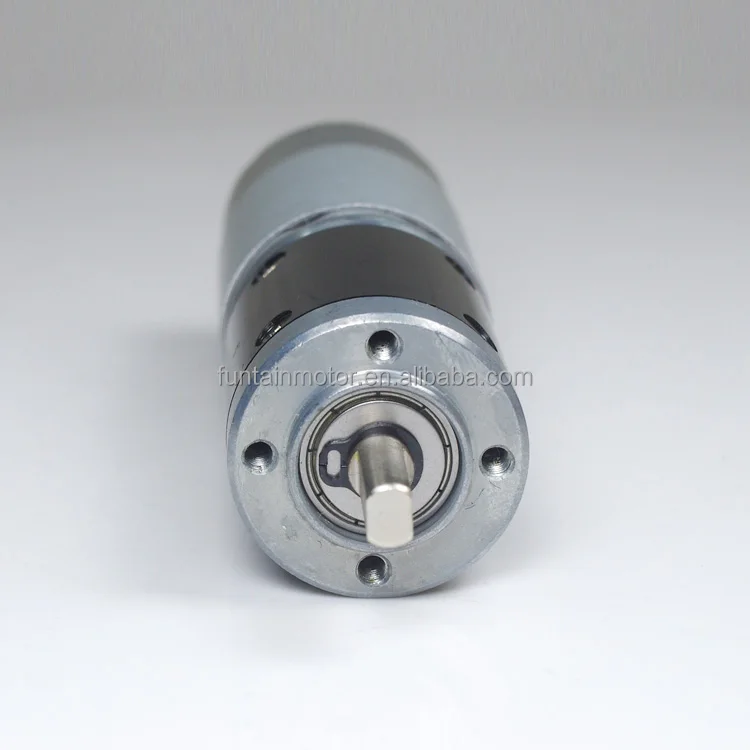

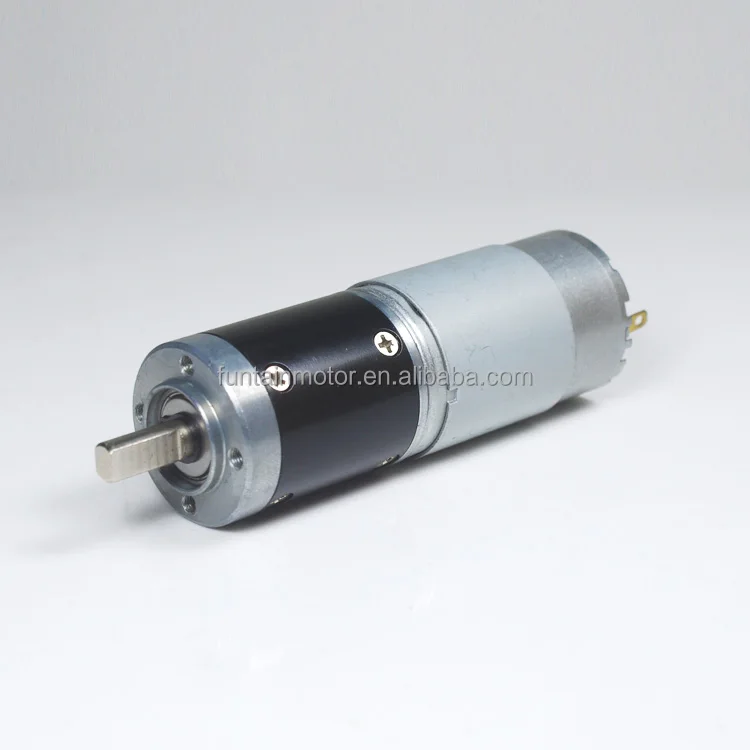

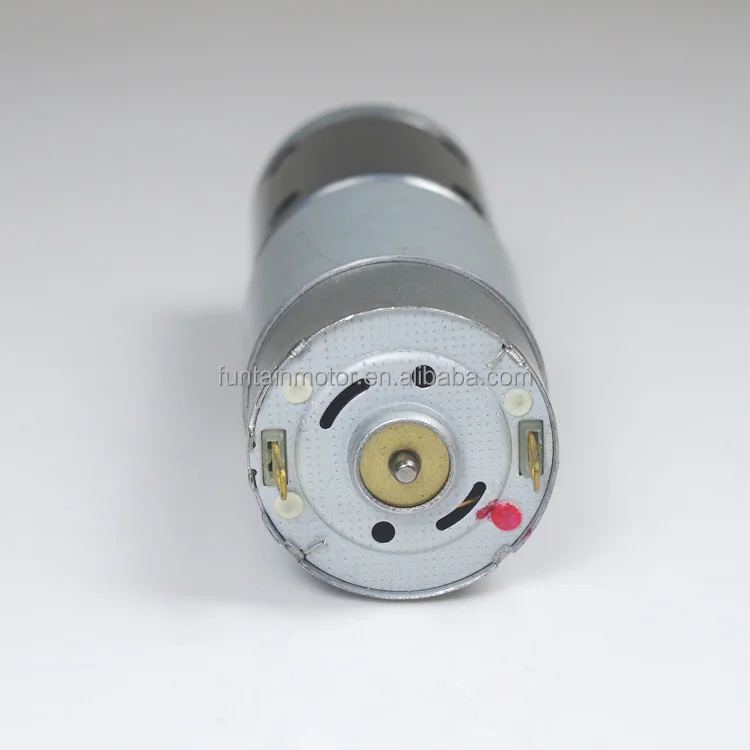

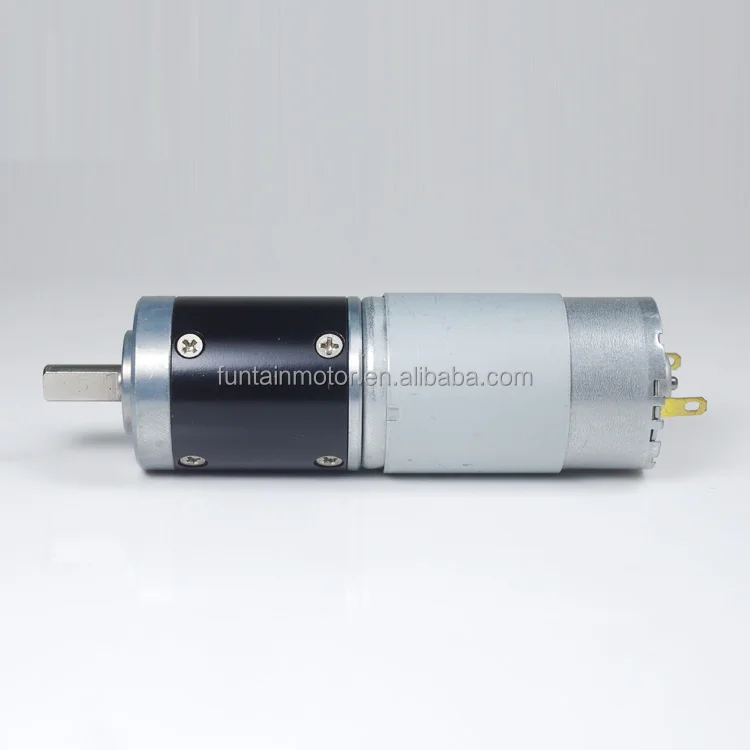

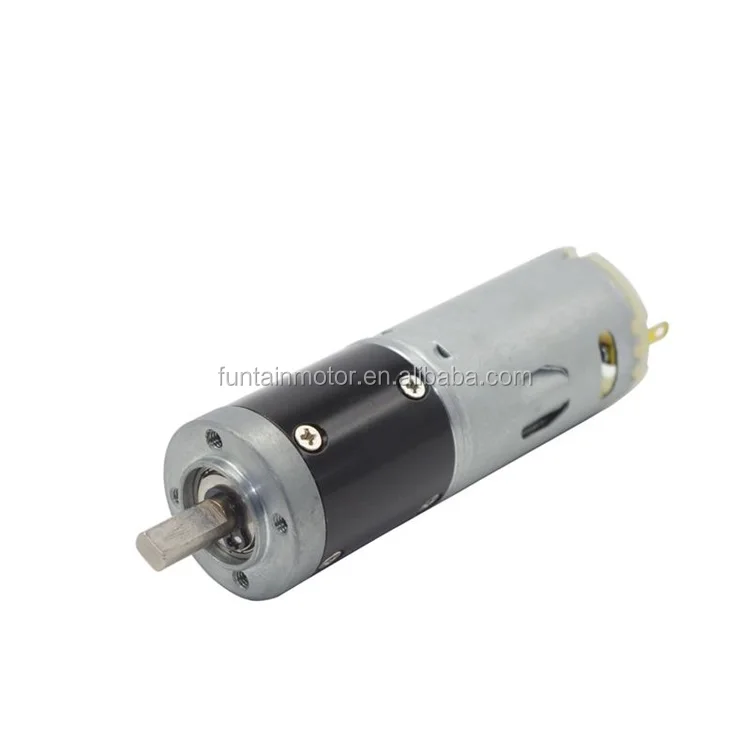

Product showcase:

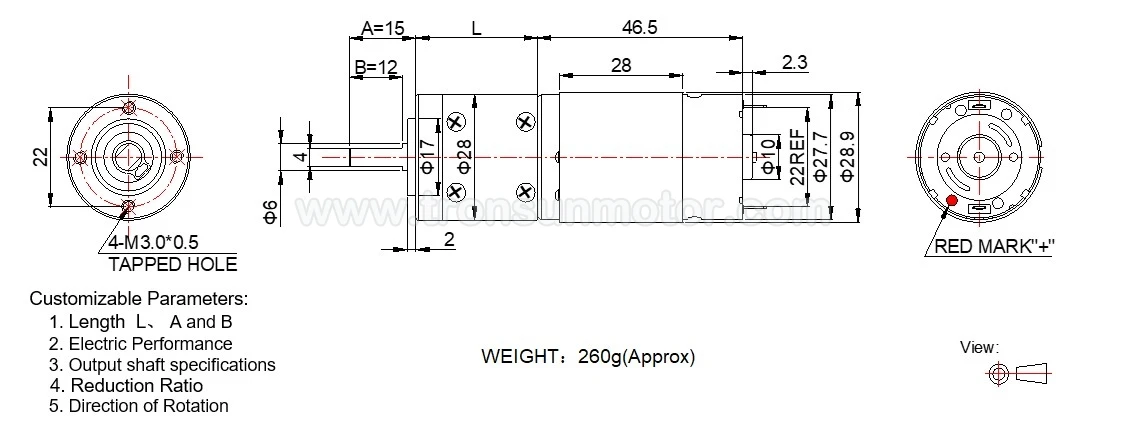

2D drawing:
Motor Performance ( Customization available ):
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque | ||||||||
| kg.cm | ||||||||||||
| 27.5 | 1 | 3.7/1 | 5.2/1 | 5.0 | 10.0 | |||||||
| 35.5 | 2 | 14/1 | 19/1 | 27/1 | 8.0 | 20.0 | ||||||
| 43.5 | 3 | 51/1 | 71/1 | 100/1 | 139/1 | 15.0 | 30.0 | |||||
| 51.5 | 4 | 189/1 | 264/1 | 369/1 | 515/1 | 721/1 | 20.0 | 40.0 | ||||
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A | ||||
| 28PA395-5.2-121200 | 5.2/1 | 5.0~13.0 | 12.0 | 1200 | 0.15 | 1000 | 0.78 | 0.7 | 7.18 | 3.5 | 3.96 | |
| 28PA395-51-12120 | 51/1 | 5.0~13.0 | 12.0 | 120 | 0.16 | 96 | 0.92 | 5 | 4.92 | 25.8 | 3.96 | |
| 28PA395-100-1262 | 100/1 | 5.0~13.0 | 12.0 | 62 | 0.16 | 49 | 0.92 | 10 | 5.03 | 49.8 | 3.96 | |
| 28PA395-264-2446 | 264/1 | 6.0~25.0 | 24.0 | 46 | 0.27 | 42 | 1.1 | 25 | 10.77 | 238.5 | 7.8 | |
| 28PA395-369-2432 | 369/1 | 6.0~25.0 | 24.0 | 32 | 0.28 | 29 | 1.0 | 30 | 8.92 | 328.5 | 7.8 | |
Related Products
FAQ
- Q: Can I get some samples first ? How soon can I get the samples ?
- A: Yes,we can make samples, but normally sample is not for free (sample fee is charged varying from 3usd/pc -40 usd/pc). And the sample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor should be about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is not for free too.
- Q: Are these motor's parameter from the above list can be modified ?
- A: Yes,motor's parameter can be customized. We can modify the motor's working voltage,rated speed, torque etc, and motor's shaft dimension can be modified too. We are pleased to make those modification, the more details you provide, the more fluent our cooperation will be.
- Q: What parameter should I provide before the sample making ?
- A: Good question. Normally we need to know the Nominal Voltage, Free-load Speed, On-load Torque, On-load Speed, Rotation Direction, Shaft Diameter and Length. If there is other special requirment, please let us know in advance,such as working current limits,EMC limits,noise limits,expected lifetime and shaft process(D-shape, multy-knurls,mounting holes etc).
- Q: Sometimes I dont know the exact required parameter, how should I choose a suitable model ?
- A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will be this model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor's expected lifetime ? etc. Then we can a make full assessment according to that.
- Q: Is there any Testing Report or Motor Specification when I get the sample ?
- A: Yes, we can provide the Testing Report and Specification after the sample is ready. We will send a PDF file to you. By the way, Motor Specification will be availabe 3-5days later after sample is ready.
