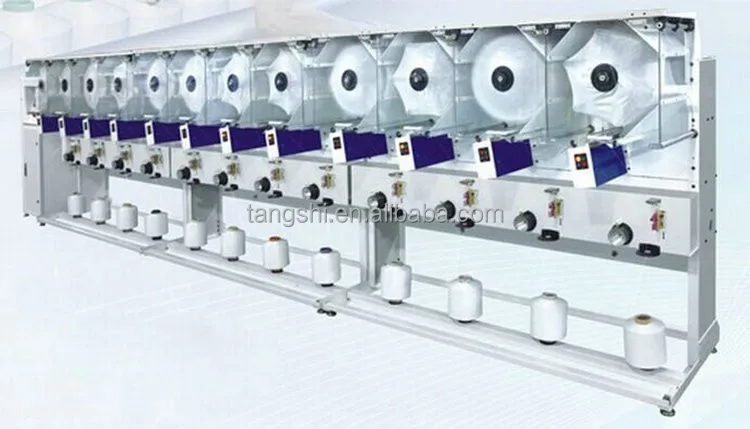

china manfacturer of high speed Hank yarn rolling machine for yarn dyeing

Product Overview

Description

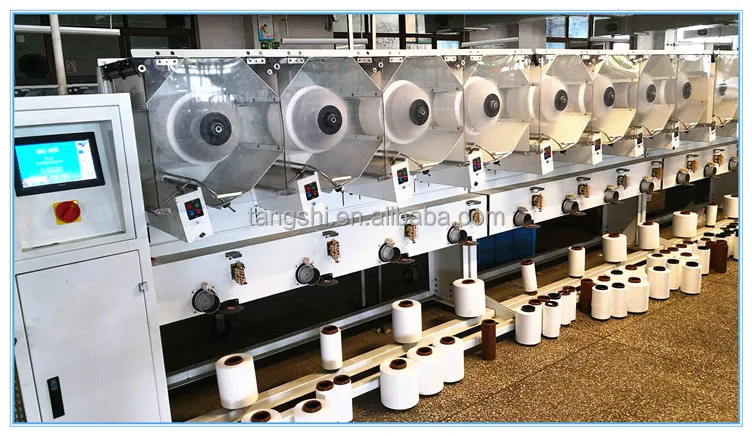

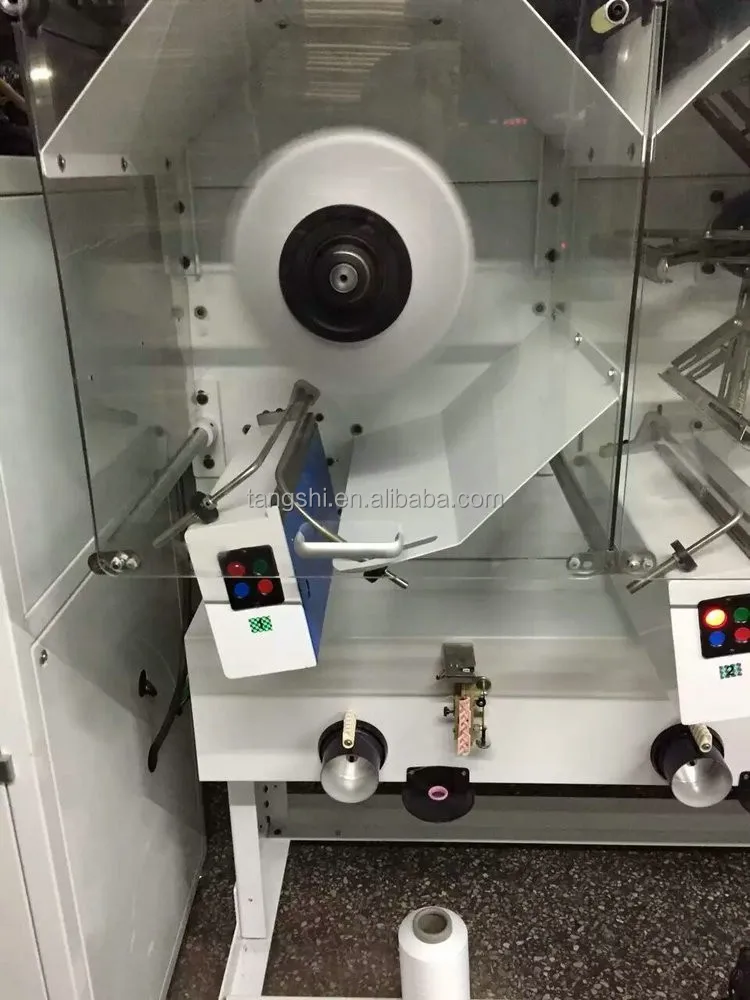

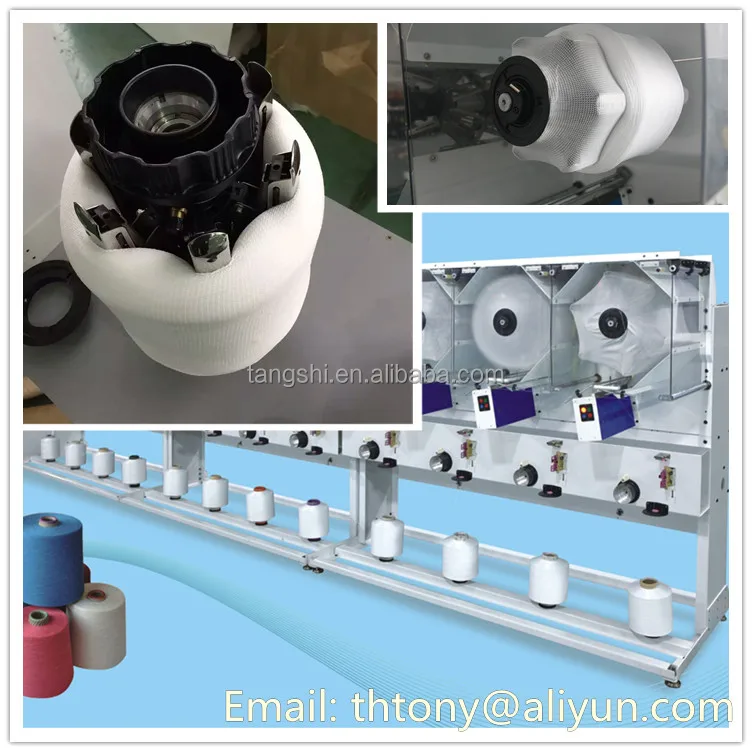

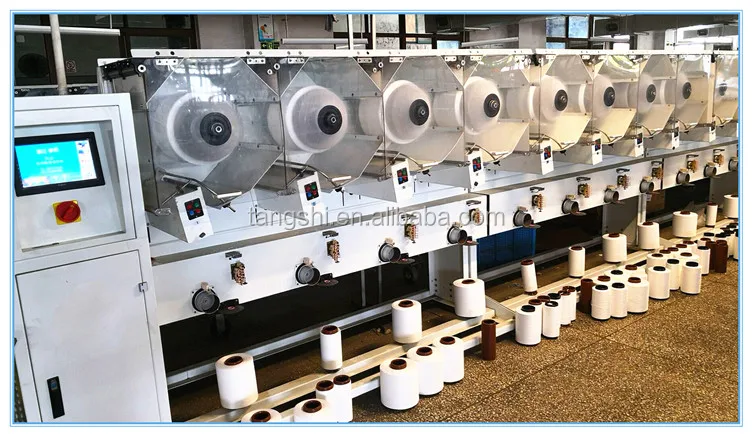

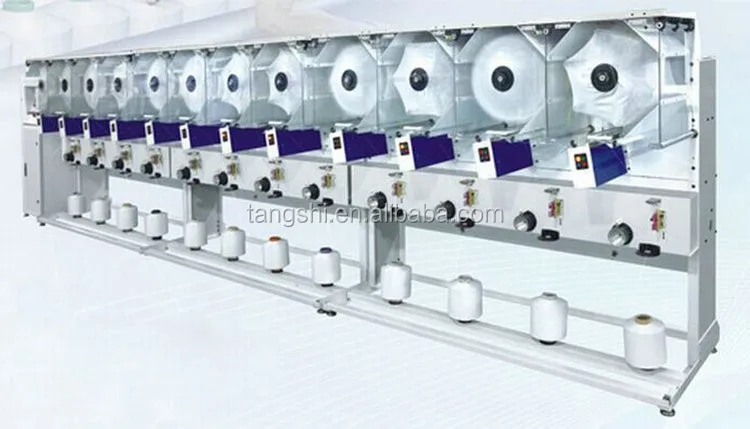

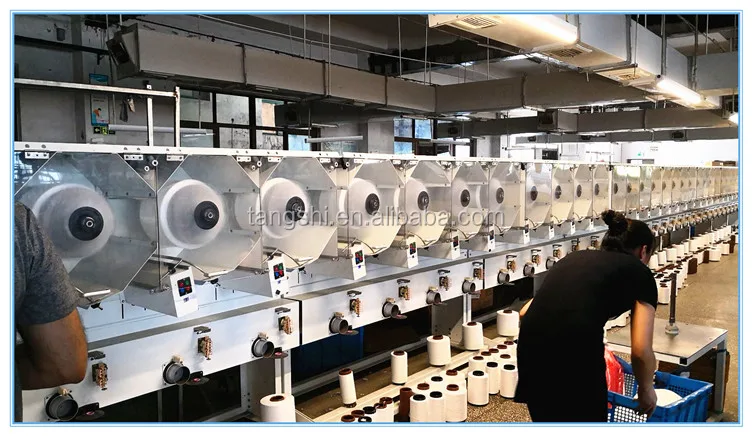

TH-12A Hank reeling machine(Cone to Hank winding machine), Innovative scheme, advanced technology and application. The winding speed of this machine is controlled by computer, which has the maximum of 1200 m/min. Precise and sensitive speed testing system can even ensure the winding length (weight). It is quite suitable for winding yarn of cotton, flax, silk, and chemical fiber.





Type of winding	Precision winding
Speed	Max 1200 Meter/min(depend on process parameters)

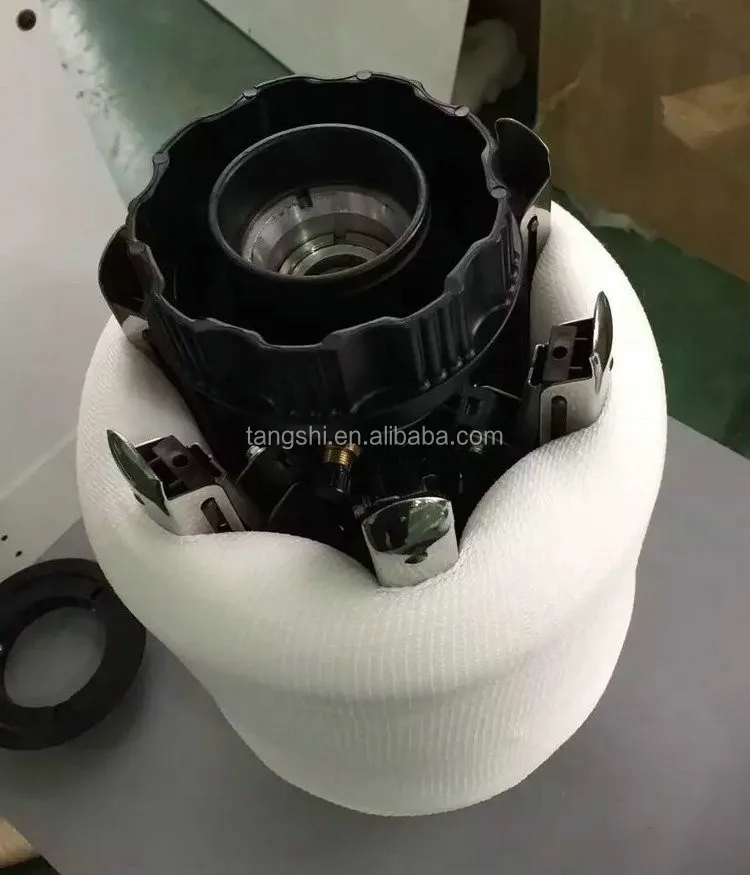

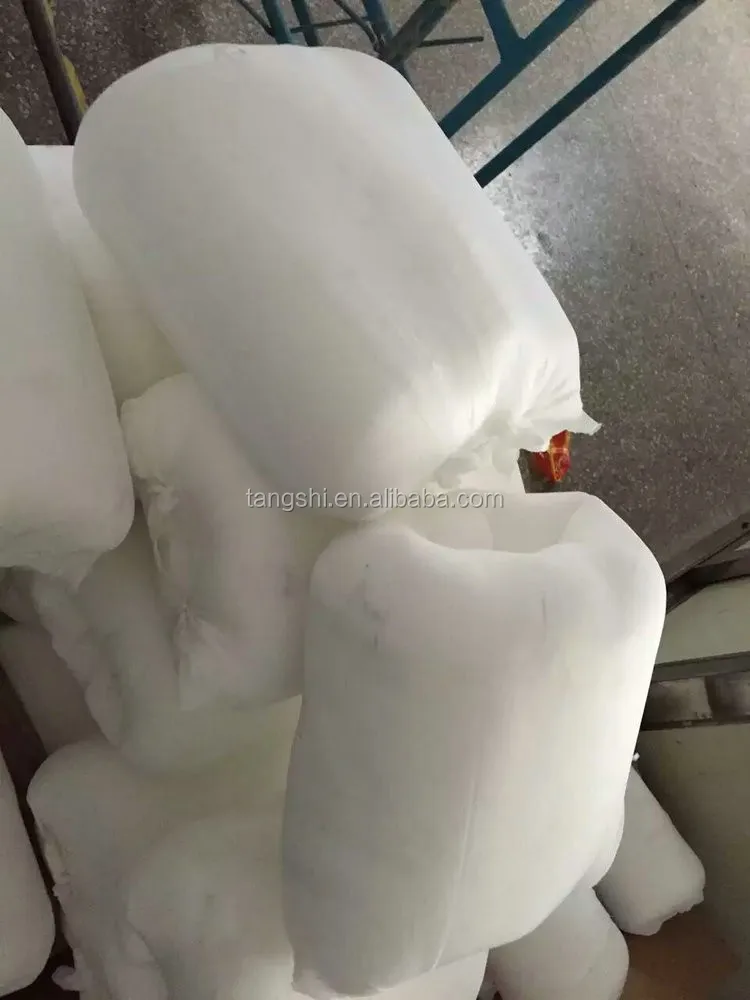

Package shape	Tubular or skein shape hank yarn
Traverse length	0-300 mm
Take-up package diameter	180-450mm
Package weight	Max 2 kgs
Supply Package Diameter	Up to 300mm
Suit Yarns	High textured yarns, fiber yarns, staple yarns
layout	Single side
Spindle Nos. of each section	4 spindles
Min/max of spindles	4-32 spindles
Spindle Gauge	500 mm
Drive	Each spindle working separately
Installed power	500w per spindle
Power consume	About 200w per spindle
Machine size	2050 x 800 x 1700 mm(one section size)
