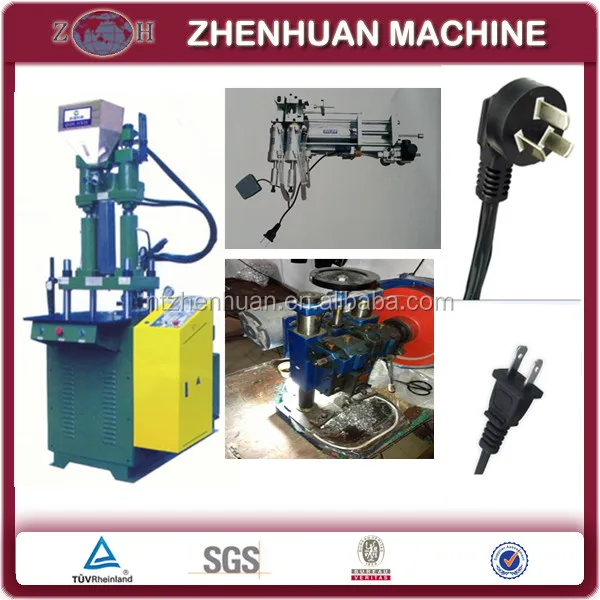

Electrical plug machine for two and three pin plugs

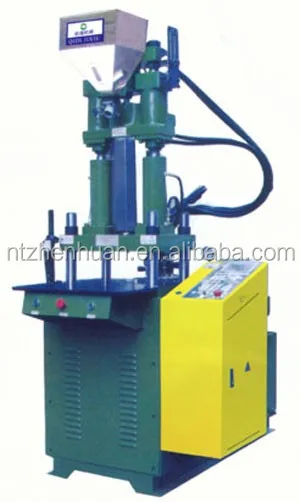

MODEL

Unit

ZH-400

Injection system

Screw diameter

mm

35

Injection pressure

kg/cm

1209

Max. shot weight(PS)

g

112

Max. shot weight(PS)

OZ

3.9

Injection rate

cm3/sec

173

Number of temperature control

-

4

Material hopper capacity

L

15

clamping system

Clamping force

tons

40

Mold opening force

tons

8.3

Upper plate size

mm

530 x 380

Lower plate size

580 x 430

Distance between the die-bar

mm

400 x 250

Min. mold height

mm

160/220

Opening stroke

mm

180

Max. opening daylight

mm

320/380

Ejector force

tons

1.1

Ejector stroke

mm

39

Hydraulic and power system

Max. hydraulic pressure

kg/cm²

140

Oil reservoir capacity

L

130

Cooling water consumption

L/h

400-600

Pump motor power

kW

5.5

Barrel heating power

kW

3.5

Total power

kW

9

Others

Machine weight

tons

1.2

Machine dimension (L×W×H)

m

1.7×1.1×2.3
