Product Overview

Description


Custom lcd 4 digit 7 segment display

Product Description



Applicaion

All kinds of meters to display

InterfaceTwo line serial interface
Color of BLWhite
Operating voltage2.7~5.5V

Operating current

20uA(3.0V),300uA(5.0V)

Digit height

25.4mm

Backlight current

<120mA

Operating temp.

-30~+70℃

Storage temp.

-40~+80℃

View direction6H
OEM/ODMAccecpted
System designLcd module related system software and hardware design accepted

Warranty

12 moths free, payed warranty lifttime

Packaging

One module in one bag, bags in foam box prorected, foam boxes in carton
carton size

41.5x36x50cm

Sample lead time

3-7 working days

Customize lead time15-30 working days
Production Lead time7 days for available designs,Customized: 35~40 days
CetificationISO,SGS

Mechanical Demesion






Pin Assignment



 Pin NO.Pin Name Pin Description
 1 BL-  Back light cathode
 2 BL+  Back light anode(+5V)
 3

 VDD

  Power supply anode
 4 DI

  Serial data in

 5 VSS

  Power ground

 6 CLK

 Serial shift pulse input

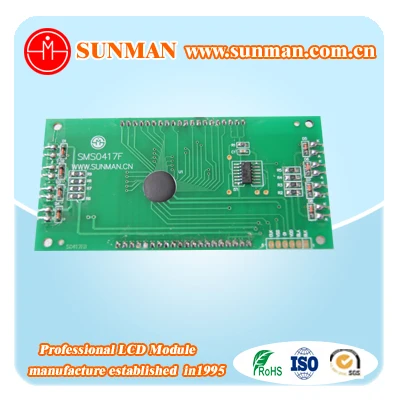

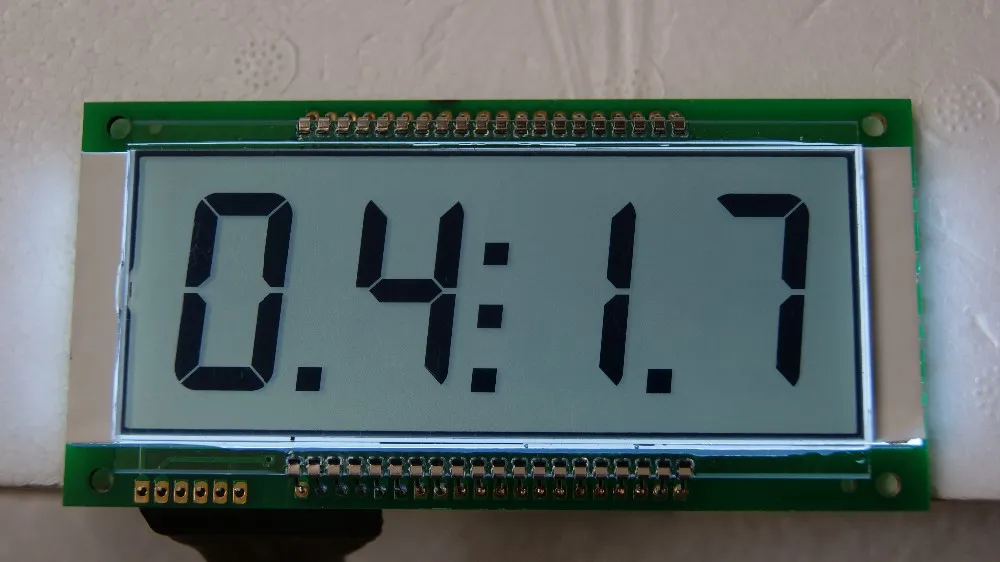

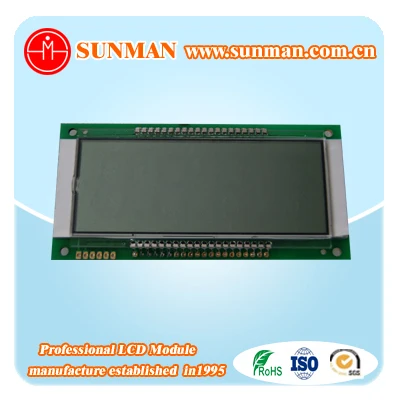

Product show






Click here for more information!

Related Product

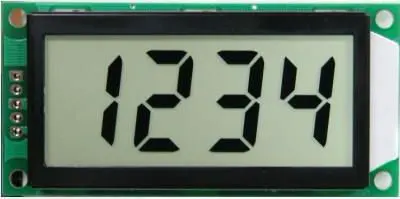

 0408G(



Click here to refer to more 4 digit lcd display module!

Hot Product

hot product

Product Application


Our Advantages



finial1 _0.jpg



INSPECTION PROCESS

Inspection display_f.jpg

CUSTOMIZATION

CUSTOMIZATION


Standard Set
Displaysegement,graphic,character monochrome lcd module&TFT accectpted
Display modeTN,STN,FSTN,HTN,transflective,reflective,transmissive,yellow green,blue,gray optional
Display typeCOB,COG,TAB
Lcd thikness(cm)2.8,2.0,1.7
backlight thickness(cm)2.3,2.8,3.3
InterfaceParallel(8bit,4bit,16 bit,80mode,68mode),serial(i2c,spi,uart,usb)
ControllerOptional
ICDie or packaged optional
Hardware or softwareAll accepted
Information givenAll idear,sample,photo,drawing,use manual and so on are OK


Related Items
Package

PACKING AND SHIPPING


PackagingPlastic bag +foam+cartom
Carton Size41.5cm*36.0cm*50cm  or customized,100-300PCS/ carton
Gross weight15.0 -20KGS
MOQ1 PCS for custom lcd 4 digit 7 segment display
Specitional packagingnegotiated

1 finial.jpg




Factory Show

FACTORY SHOW





Inspection display2.jpg

CERTIFICATION

CERTIFICATION


FAQ



  • QWhat is the MOQ ?
  •    A     No MOQ for custom lcd 4 digit 7 segment display
  • QCan I get  samples?
  •    A    Yes,just give us sample orders,and free samples for custom
  • QHow to customize an lcd module?
  • A Give us messages to design lcd modules and comfirm the drawings
  • QCan mould cost been returened ?
  • AYes, if quantity satisfied.
  • QCan I get a lower price if I order large quantities?
  • AYes, cheaper prices with more bigger size orders.

  • QWhen you ship my order?
  • ANormally 30-45days after receiving your payment, but it can be negotiated based on order qty and production schedule.
  • QHow about the quality guarantee period?
  • AOne year!
  • QHow can you guarantee the production quality ?
  • AOur production quality follow ISO9000 standard system, stable design team,22 years experience of QC team and strictly quality control system guarantee the production quality. accept third part inspection,we have mechanical checking,display checking,high&low temperature storage&operating test during high humidity condition,EMC test(optional) for every design .
