kiswel k 71tlf flux cored welding wire for shipbuilding

Product Overview

Description

kiswel k-71tlf flux cored welding wire for shipbuilding



Specifications

1.all position capability
3.good slag removabilty
4.less operater skill
4.ABS,BV,LR,GL,DNV,KR,CCS

1.Chemical Composition of Deposited Metal(%)

Item	C	Mn	Si	P	S	Cr	Ni	Mo	V	Cu
Standard	≤0.18	≤1.75	≤0.90	≤0.03	≤0.03	≤0.20	≤0.50	≤0.30	≤0.08	≤0.35



2.Mechanical Properties of Deposited Metal

Item	Yeild Point (MPa)	Tensile Strength (MPa)	Elongation (%)	Test Temp (°C)	Impact Energy	Average
Standard	≥400	≥480	≥20	-20	≥27



3.Recommended Current (DC+) and Voltage Range

Welding position	1.2 mm			1.6 mm
	Current Range	Voltage Range	CO2 Flow	Current Range	Voltage Range	CO2 Flow
Flat	120~320A	16~34V	15~25 L/Min	180~400A	22~42V	15~25 L/Min
Horizontal	120~280A	16~29V	15~25 L/Min	180~400A	22~42V	15~25 L/Min
Overhead	120~240A	16~28V	15~25 L/Min
Vertical Up	120~240A	16~27V	15~25 L/Min	180~260A	23~30V	15~25 L/Min
Vertical Down	120~260A	16~29V	15~25 L/Min	180~260A	23~30V	15~25 L/Min

4.Shielding gas :100%CO2

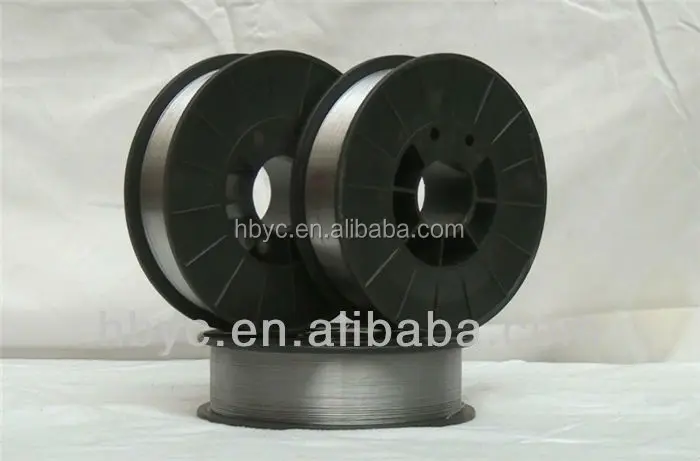

5.Diameter: 0.8mm,0.9mm,1.0mm,1.2mm,1.4mm,1.6mm

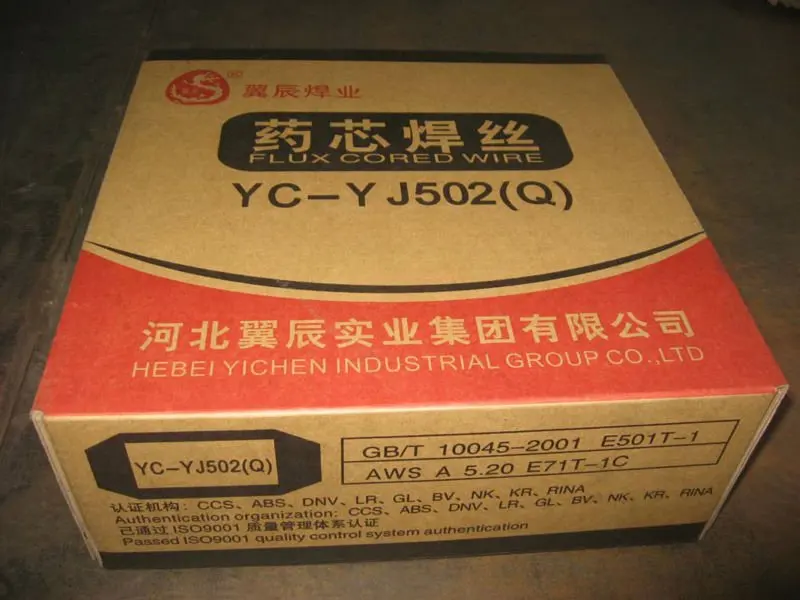

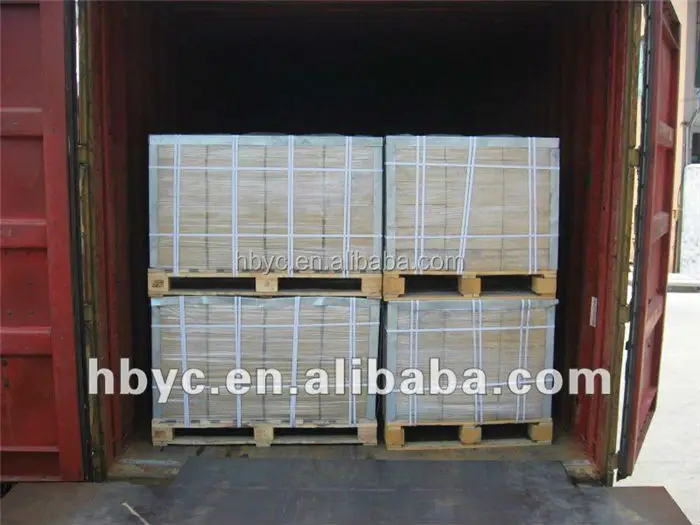

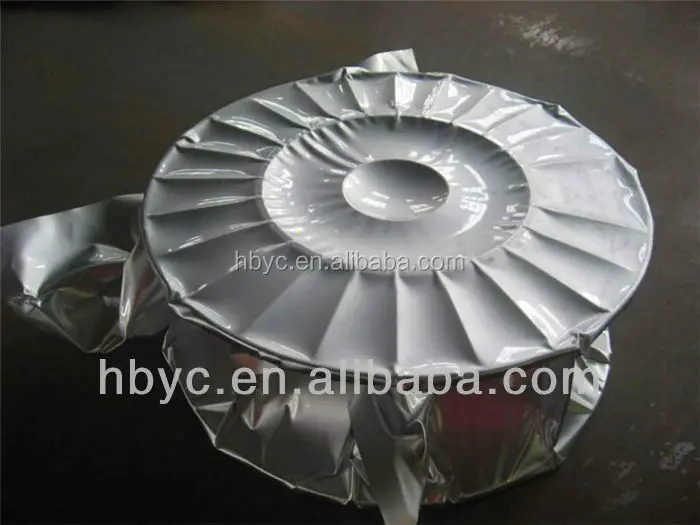

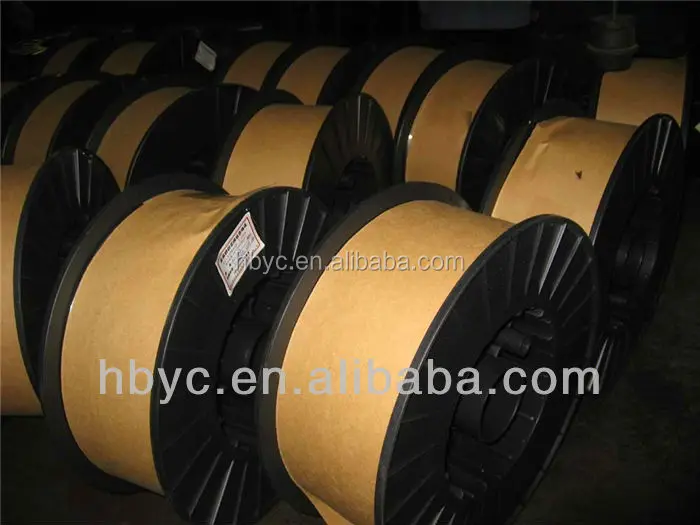

6.Packing: Precision layer winding,wrapped with volatile corrosion inhibitor paper,vaccum packed with aluminum foilbags further packed in seaworthy corrugated carton.











Hebei Yichen Industrial Group Co.,Ltd is a high-tech enterprise with strong R&D,manufacture and trating,Our corporation R&Dcenter works closedly with the professors from different universities and national research institutes.It contains the chemistry analysis laboratories,the physics laboratory ang weldinglaboratories.Our manufacture facility owns the advanced production equipments,up-to dated inspection/measurement instruments and perfect evaluation and quality control systems.We have ISO9001.2000 certificate.

 Also  we specializes in reseaching and manufacture of flux cored wire.We provide complete series of flux cored welding wireproducts with consistent quality,excellent performance and perfect process tunability to our customers with different welding purposes.

Address:NO.118 EAST DIETRICT, GAOCHENG CITY ,HEBEI PROVINCE,CHINA

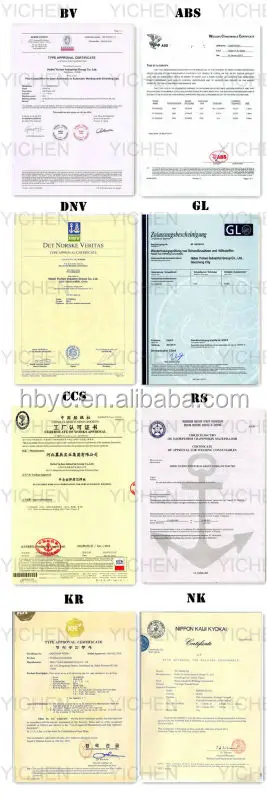

Certificates: ABS,CCS,BV,NK,GL,LR,DNV,RINA,KR,RS

,
