Nonwoven Fabric Production Line Non-woven Spunbond Machine Nonwoven Machine Price

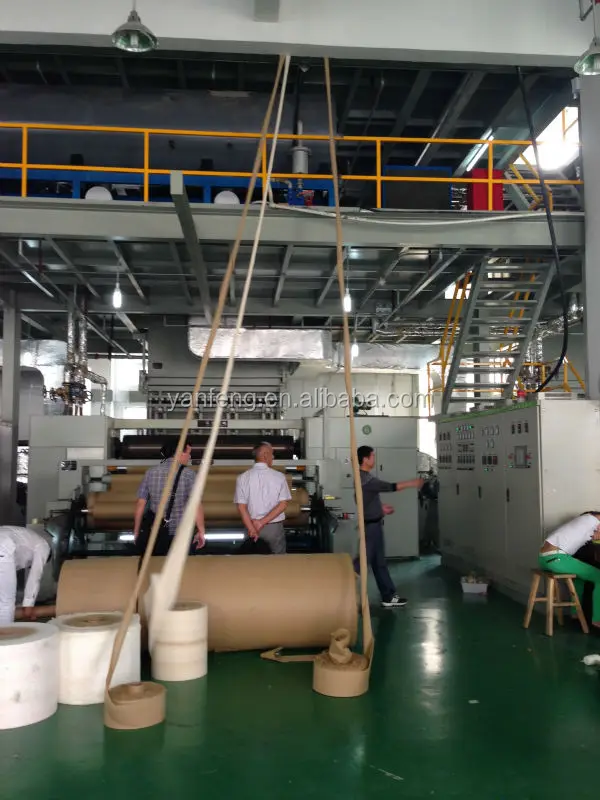

1. PP Spunbonded Fabric Production Line:

YF-S



2. More information for PP Spunbonded Fabric Production Line:

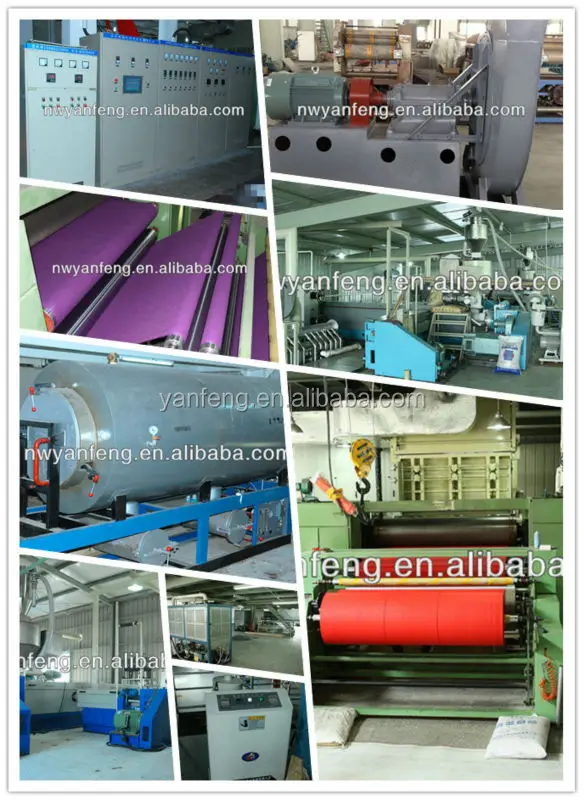

This production line is filament polypropylene fiber spunbonded non-woven fabric equipment. Its raw material is polypropylene(PP), take the principle of spinning man-made fibres, during polymer filature, continuous filament is extended into fiber, during which is finished by mechanical hot pressing.
The machine assembly we adopt is new advanced veneer integer slot air flow draw technology, the whole process from material feeding to cloth output is automatic control short production flow, high working efficiency. The non-woven fabric we produce has high strength, good softness, innocuity, acterium-proof, corrosion resistance, high-level draw strength and elongation rate.
They are widely used for dress, decoration materials, medical sanitation materials, daily life products and in the industrial, agricultural fields. In addition, this production line can produce non-woven fabrics of different color, differen grams, different lines according to users'demand.



3. Main Technical parameters:





Model	yf-s1600	yf-s2400	yf-s3200
Width of fabric	1600 mm	2400 mm	3200 mm
Daily output	5 Tons	7-8 Tons	8-9 Tons
Diameter of main screw	135 mm	150 mm	170 mm
L/D Ratio of main screw	30: 1	30: 1	30: 1
Screw for waste recycling	105 mm	105 mm	105 mm
L/D Ratio of screw for waste recycling	15: 1	15: 1	15: 1
Installation power	400 Kw	500 Kw	600 Kw
Installation dimension (L × W × H)	7 × 9 × 11 m	7.8 × 9 × 11 m	8.6 × 9 × 11 m
Remark: embossing rollers with point pattern, cross pattern, or line pattern can be made to order. Adjustable range of weight: 9-250gsm

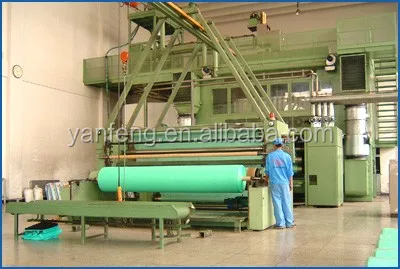

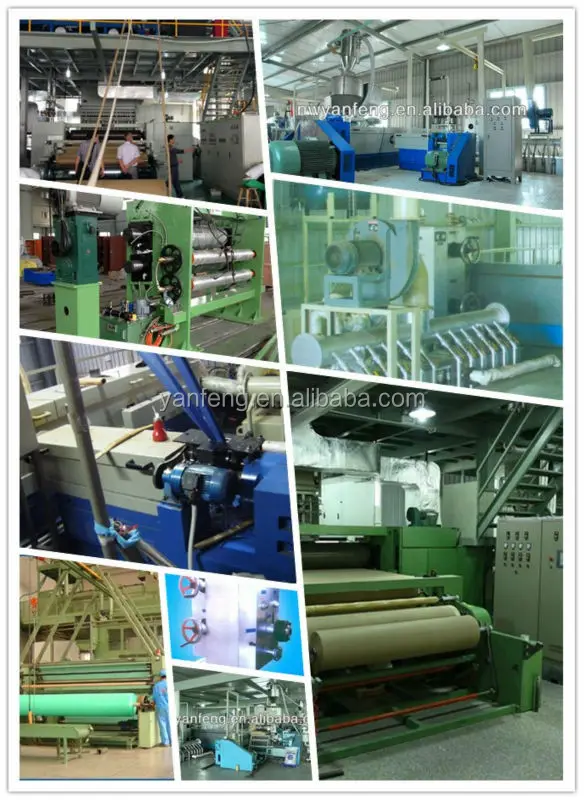

4. Pictures for other type of machines:

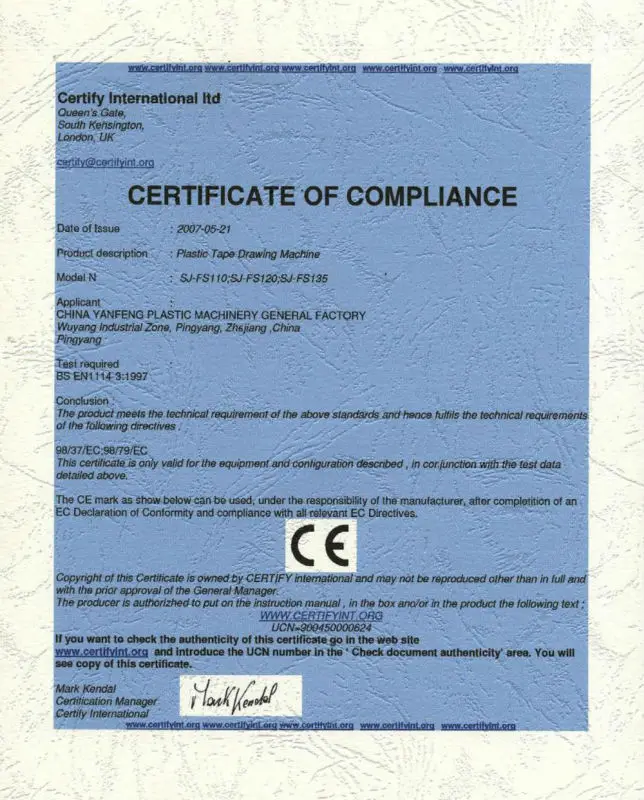

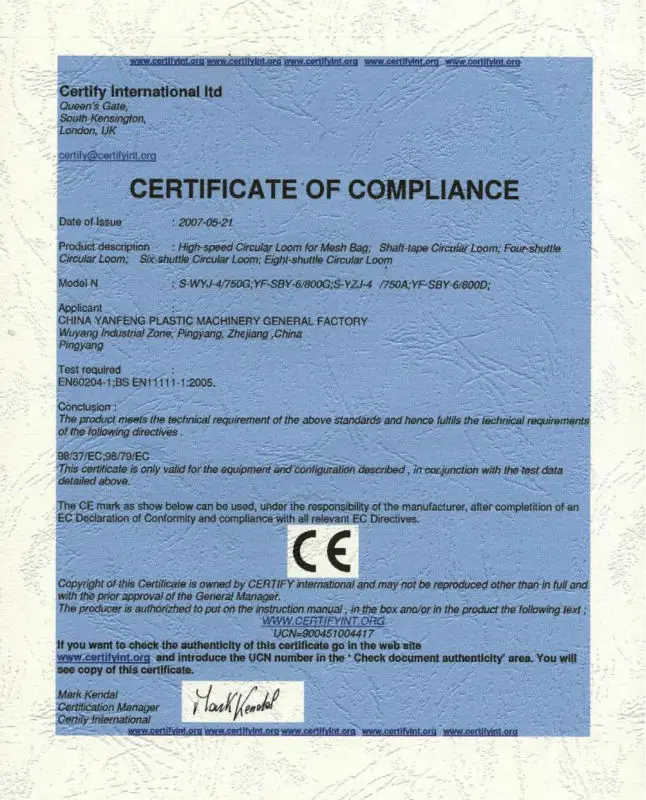

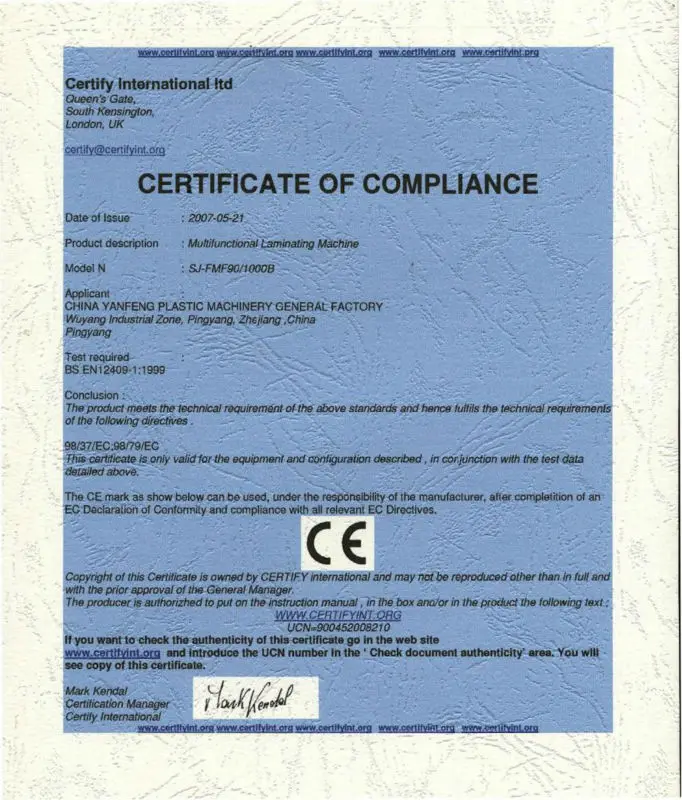

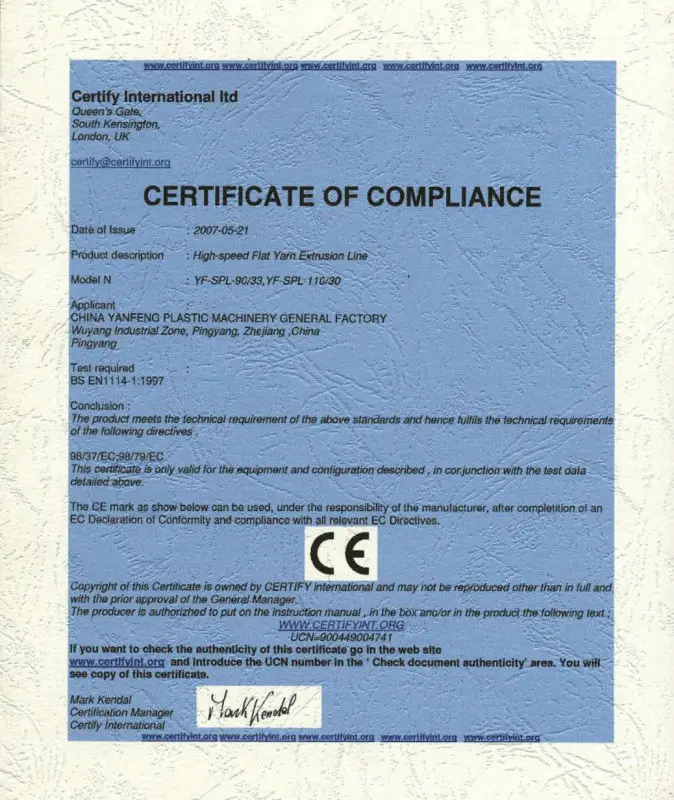

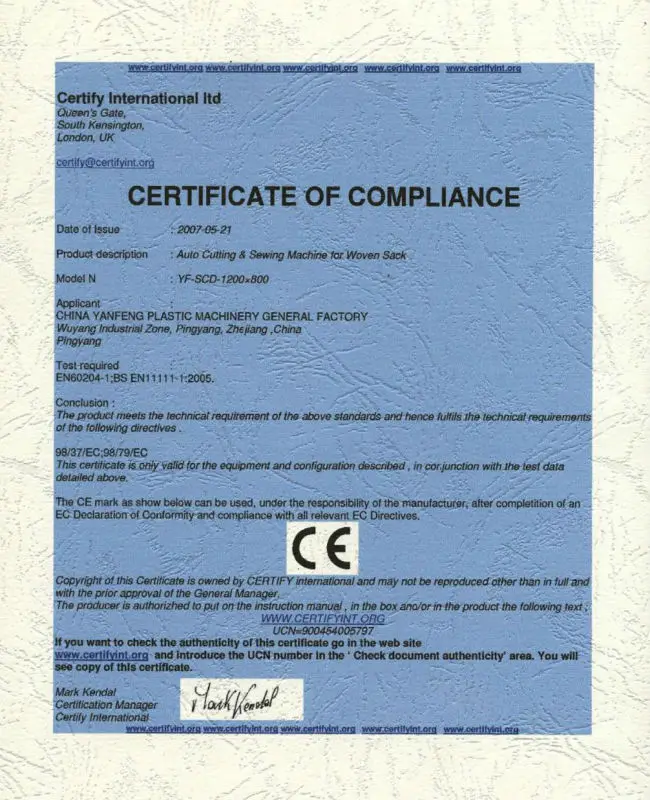

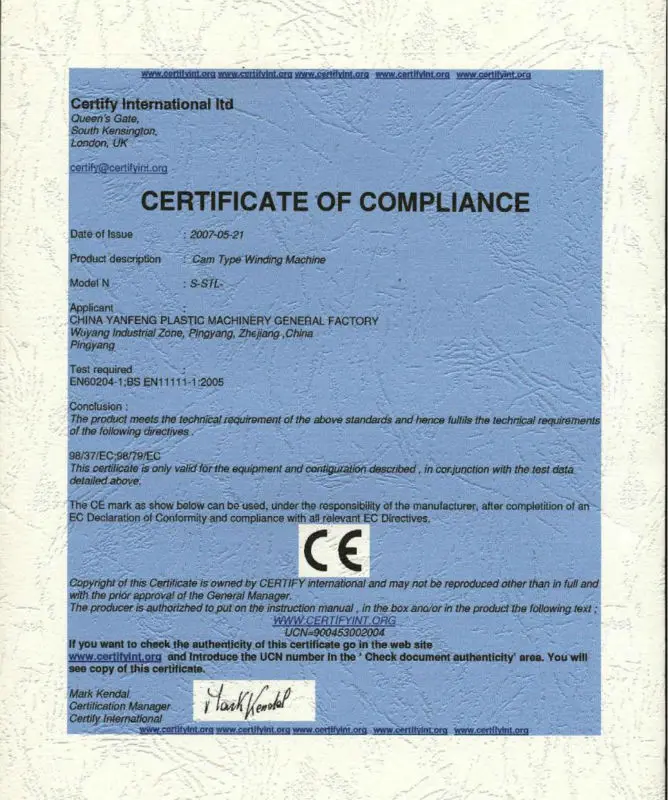

5. Certificate for our machines:

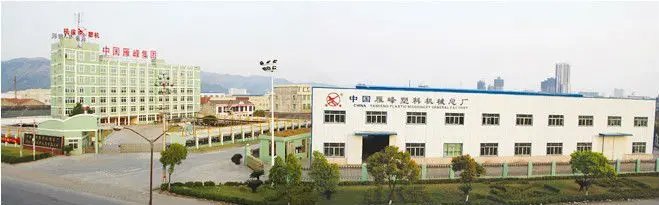

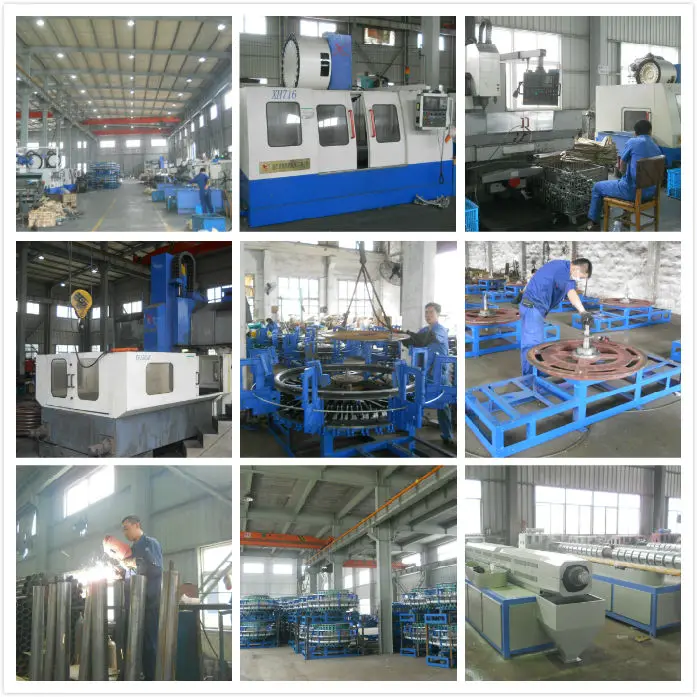

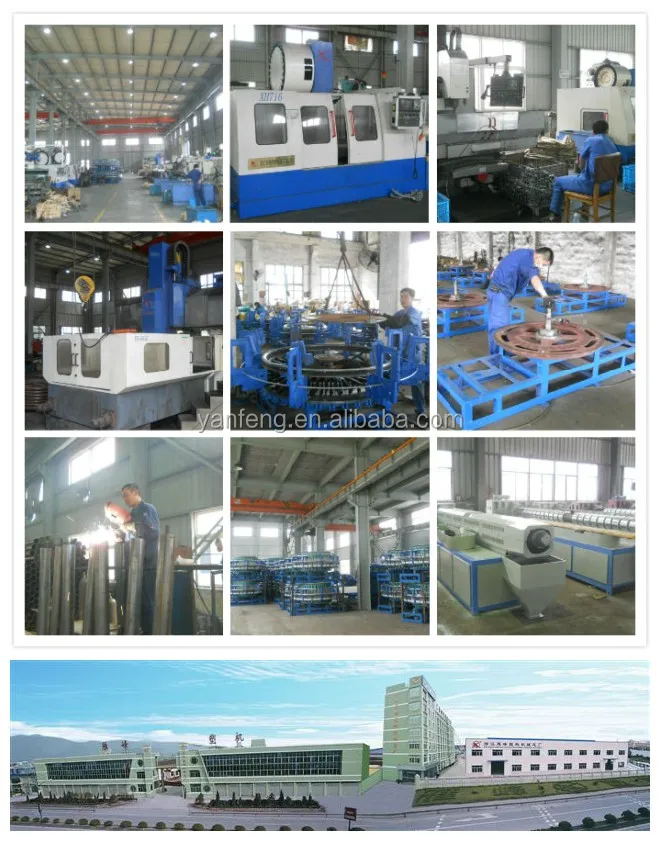

6. Factory Show:





7. The package:

packed in nude



8. The payment:

1) we accept T/T and L/C

2) the lead time is 60-90 days

3) the warranty time is 12 months
