mondo rubber track flooring surface, rubber running track
- Category: Artificial Grass & Sports Flooring >>>
- Supplier: Huadong Holding Group Wenzhou Sports Equipment Co. Ltd.
Share on (60400115251):
Product Overview
Description
mondo rubber track flooring surface, rubber running track
Product Description
CE,ASTM, SGS, IAAF product certified, IAAF class 1 athletics facility certified, ISO 9001, ISO 14001
We are the supplier of 2014 Incheon Asian Games rubber track and
2014 Sochi Winter Olympic Games rubber mat
HDDD/HDPD type Specification
EPDM synthetic rubber vulcanization of the further strengthen of the materials of polymer, the good performance for Aging resistance, weather resistance, electrical insulation, corrosion resistance, impact resistance etc.
Natural rubber has excellent properties of high elastic insulation, waterproof, low specific gravity, after appropriate treatment with alkali, heat, cold, pressure. Full solid be consistent from beginning to end, and has maximum compression deformation. Its advanced partition design maximizes absorption and recovery of energy.
HDPD-A
Professional type: for athletic field of Olympic, continental championship, professional training
HDPD-B
Standard type: for athletic field of high school, university, physical college, sports center, stadium
HDPD-C
Conventional type: for athletic field of primary school, high school, college, university, gymnasium
HDDD
Indoor, outdoor table tennis, basketball, badminton and other kinds of course
HDPD-F
Auxiliary Road venue ground
Product details
IAAF Certified
Properties | References | Standard data | Inspection result |
Tensile strength | IAAF | ≥0.5Mpa | ≥0.8Mpa |
Elongation at break | IAAF | ≥40% | ≥180% |
Hardness shore A | GB/T14833-2011 | 45-60° | 52° |
Fire Rating | GB/T14833-2011 | 1° | 1° |
Force reduction | IAAF | 35-50% | 45% |
Skid resistance value | IAAF | ≥47BPN20℃ | ≥49BPN20℃ |
Vertical deformation | IAAF | 0.6-1.8mm | 1.2mm |
Feature

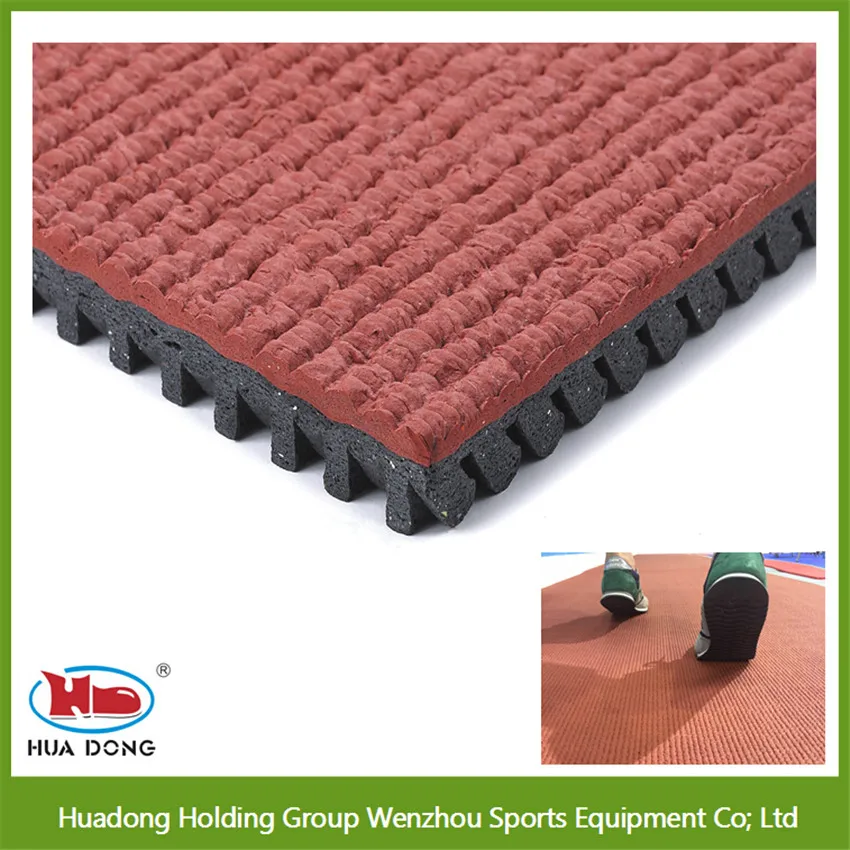

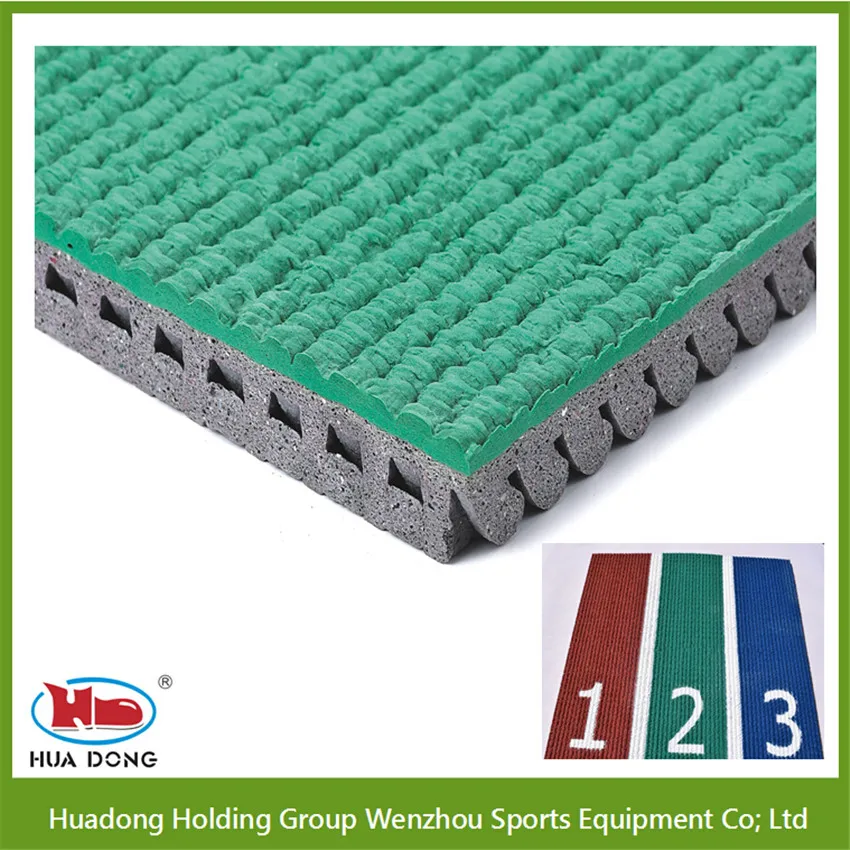

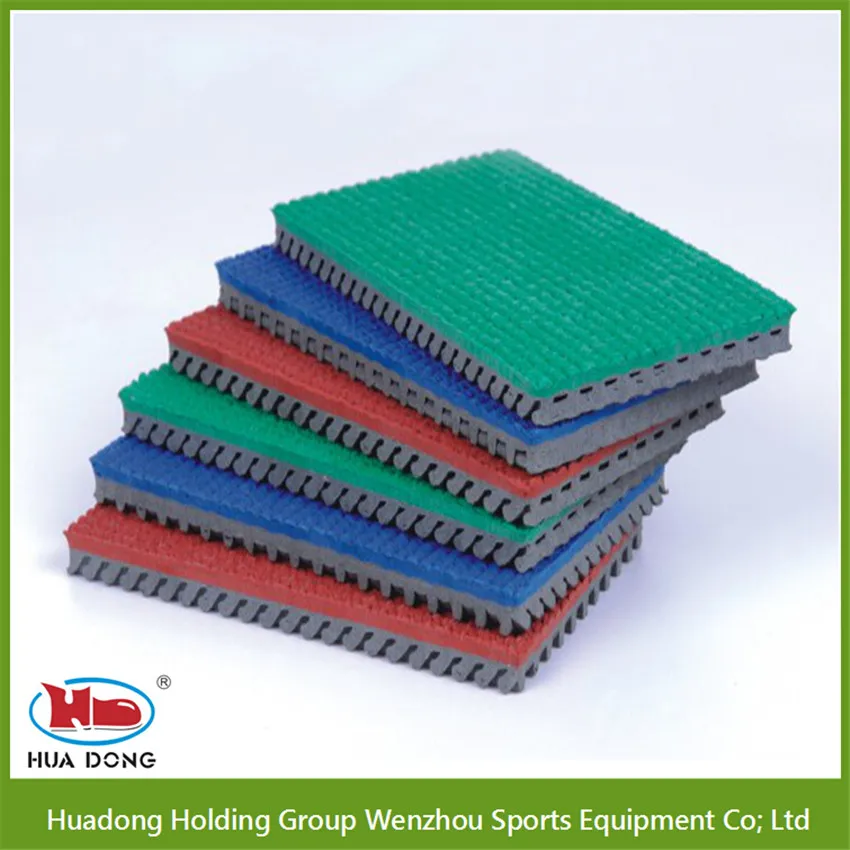

Prefabricated synthetic rubber running track
Material: Upper layer EPDM+ Bottom layer nature rubber

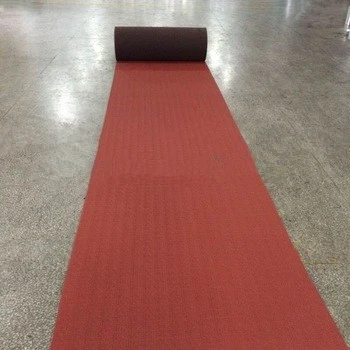

It is Roll Materials
| Thickness | 13 mm |
| Width | 1.22m |
| Length | 15m/roll |
| > > > thickness: 5-14mm; Customized Colors are accepted | |
Structure:
1. The upper layer is heat-vulcanized honeycomb base, with special structure angled in the direction of running, which differentiates the biomechanical responsedepending on the type stress generated by athletes.
2. The bottom layer has been specially designed to boost vertical deformation, giving athlete a sense of comfort while training.
Why choose us?
| Professional | IAAF certified, fully meet and reflect the athletes of the runway of the professional requirements. |
| Safey | unique surface ribs and the bottom of the concave nest design provides a suitable shock absorption & energy loopback system, improving performance and ensures the movement security. |
| Environmental protection | Eco-friendly, no smell, Non-Toxic, Recycled,the real physical and mental health of sports participants |
| Excellent weatherability | with good acid rain resistance, alkali resistance, anti ultraviolet radiation, anti mildew capability |
| temperature | -40℃ to 90 ℃ |
| Economic and durable | high cost can bring the maximum return, solid structure of the product provides guarantee to track and field of high frequency use |
| Multi color effect | not dazzling multi color combinations, adding to the movement of beautiful, bring participants in the sport of pleasure. |
| Convenient installation | prefabricated rubber track just need special adhesive |
| indoor or outdoor | All weather use, Indoor & Outdoor, Provides Great Traction In Wet Conditions |
| Maintenance free | no threshing off chip, with a self-cleaning performance, marking durability, just daily cleaning, no need of professional maintenance. |
| warranty | 10 years, Extremely Maintenance Friendly, Normal rainfalls carry away the surface dirt |
Customer Testimonials, no bad feedbacks

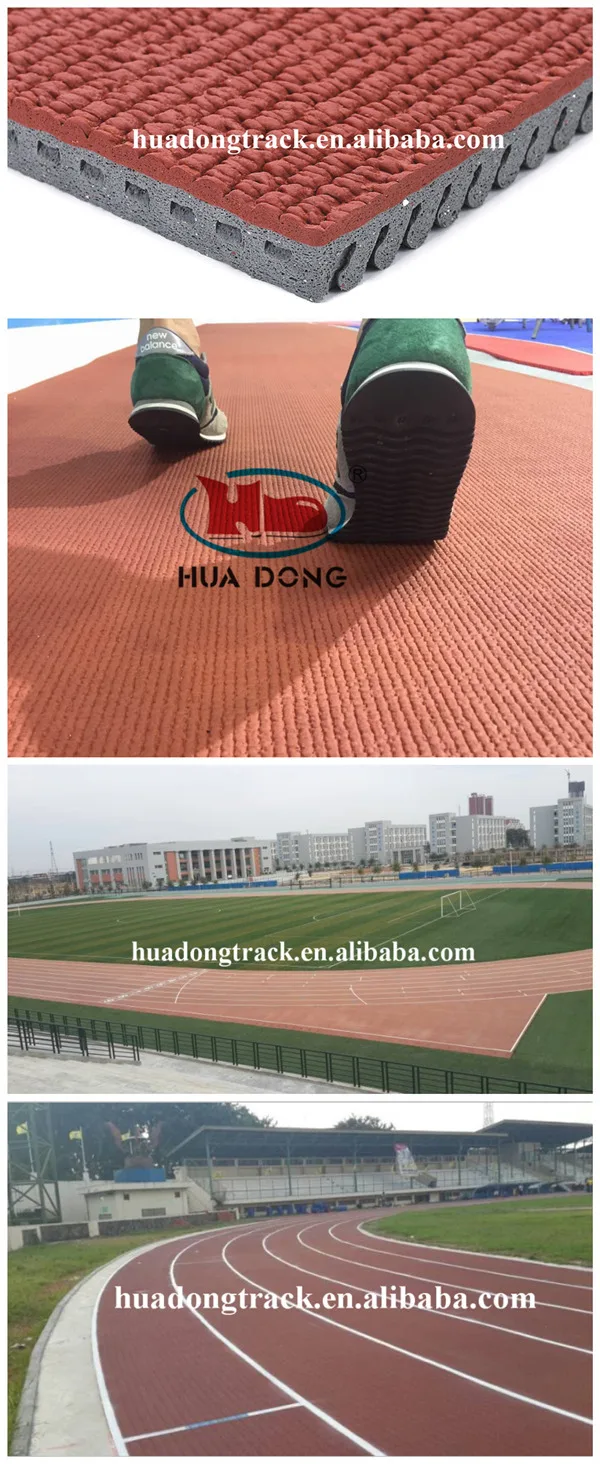

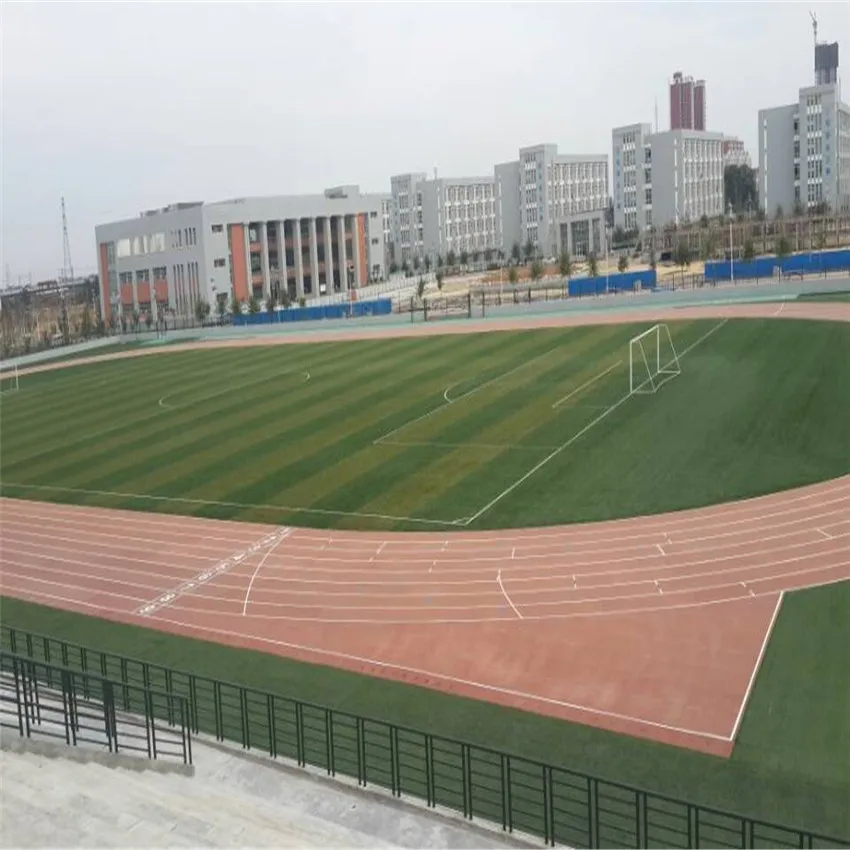

red colors courts

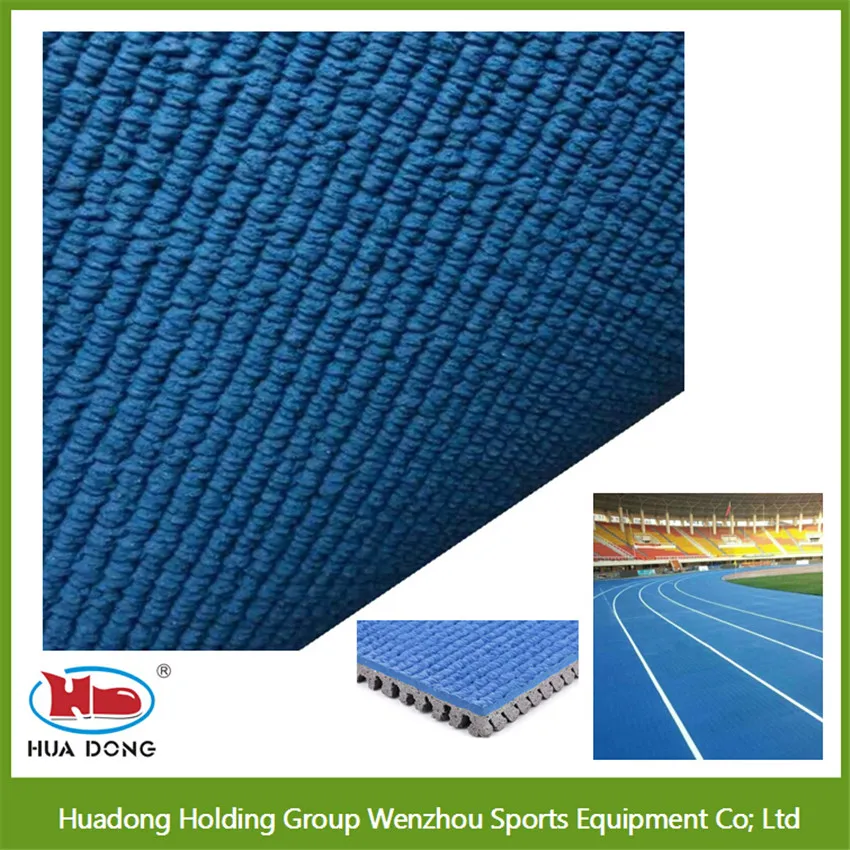

blue colors courts
green colors courts

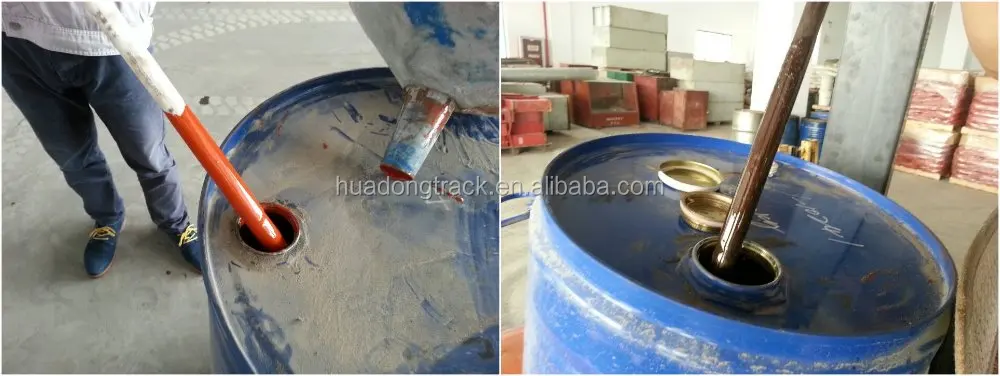

Two components polyurethane adhesive is needed to pasting the track surface to the foundation.
u can click Install Instrution
Company Information
Trade Show
Having attended Dubai, Hongkong, Germany China Fujian trade show
Certification
IAAF Class 1 certified, few cmpanies have it.

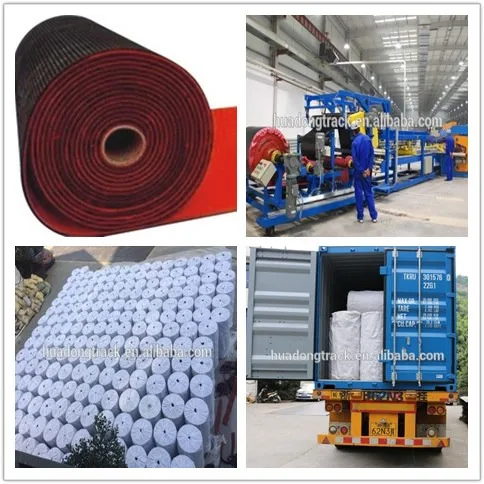

Packaging & Shipping
Our track is one-time forming, install no need big equipment
u can click Welcome to Our Factory
FAQ
Q1: What is the warranty and lifespan for the Running Track ?
A1: We have 5 years warranty and the lifespan of the running track is over 10 years.
Q2: What is standand size ?
A2: The International Standard thickness is 13mm. width is 1.22m, length 15m
Other sizes is also available as your request.
Q3:: Can we have samples?
A3: Sample is ok, but freight should be paid by u. If order is done, the fee will be sent back to u.
Q4: Can we get installation support if we have no own constructors ?
A4: Yes, we’ve technical staffs with passport and instruct on-the-spot.
Q5: why choose us?
A5: We have IAAF class 1 athletics facility certification, and supplier of 2014 Incheon Asian games rubber track, 2014 winter Olympic games ceremony rubber mat.
We can offer unique service after sale, such as maintance and check, delivery time is short, 2 weeks.
Q6: Are your running track safety ?
A6: Yes, Our materials are rubber running track instead of PU running track, safety, no-toxic & no smell, good for our kids.
Q7: What’s the subbase ?
A7: Concrete or Asphalt foundation.
Q8: What is the best price u can offer?
A8: We are the professional manufacturer, so we can give u the best factory price.
wear-resisting and well-set function let running track use for a longer time, high cost-performance.
