This machine can be used for large area product printing.
Model | LTA-50120 |
Max. Printing Size | 500x1200mm |
Printing Speed | 0~2500 print/hr. |
Max. Screen Frame Size | 800x1600mm |
Frame Adjusting Variable | 60mm |
Max. Substrate Width | 520mm |
Registration Accuracy | ±0.05mm |
Air Source | 0.4~0.6mpa |
Power | 220V, 3KW, 15A |
Printing Material Thickness | 0.02~0.5mm |
Weight | 1200kgs |
Overall Dimensions | 3960x1160x1650mm (L*W*H) |

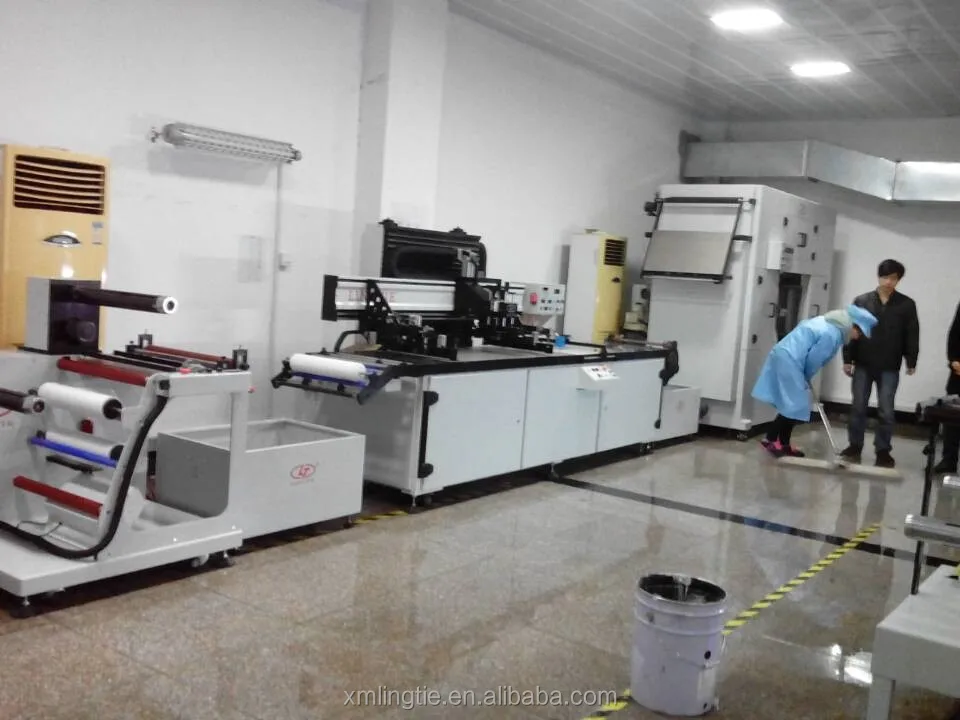

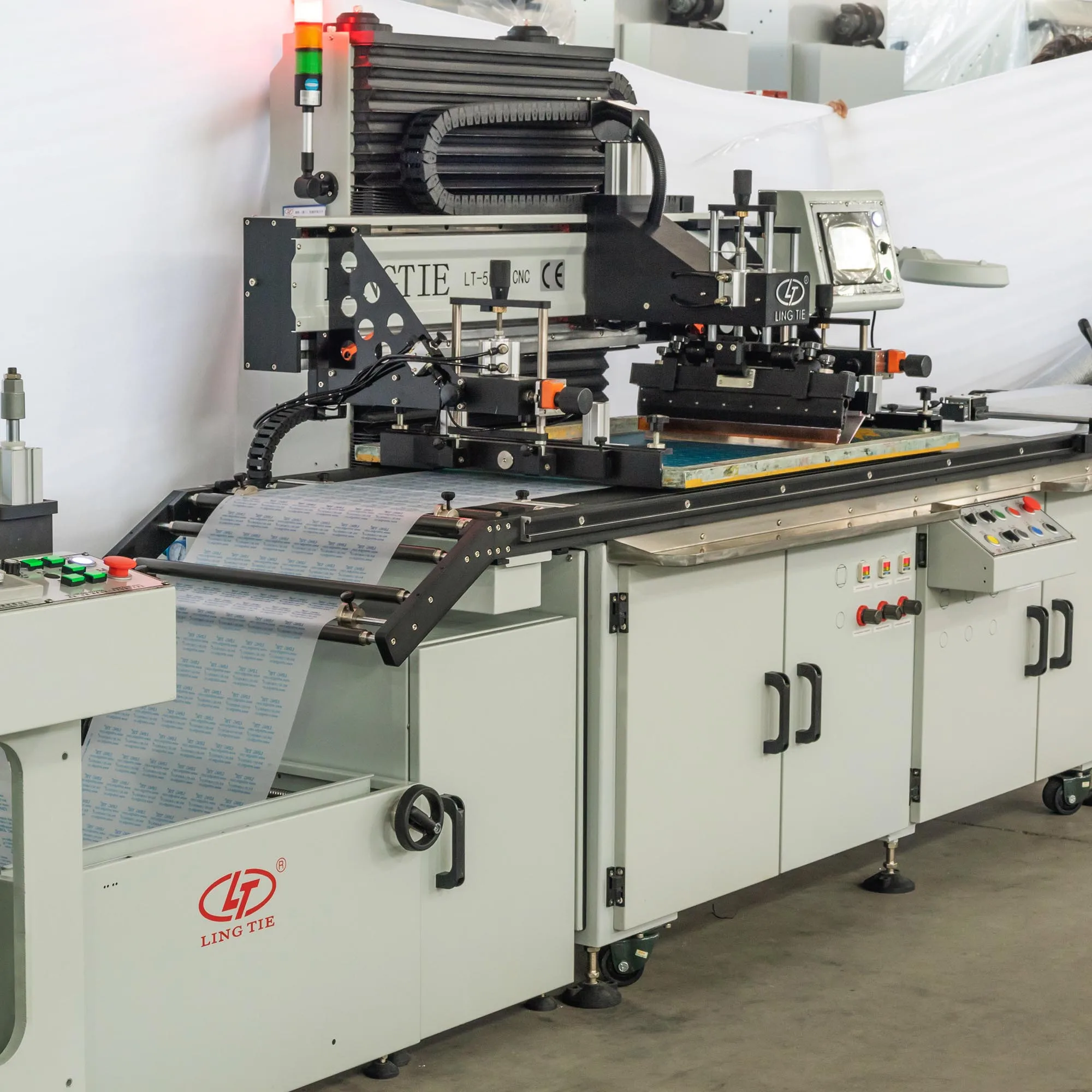

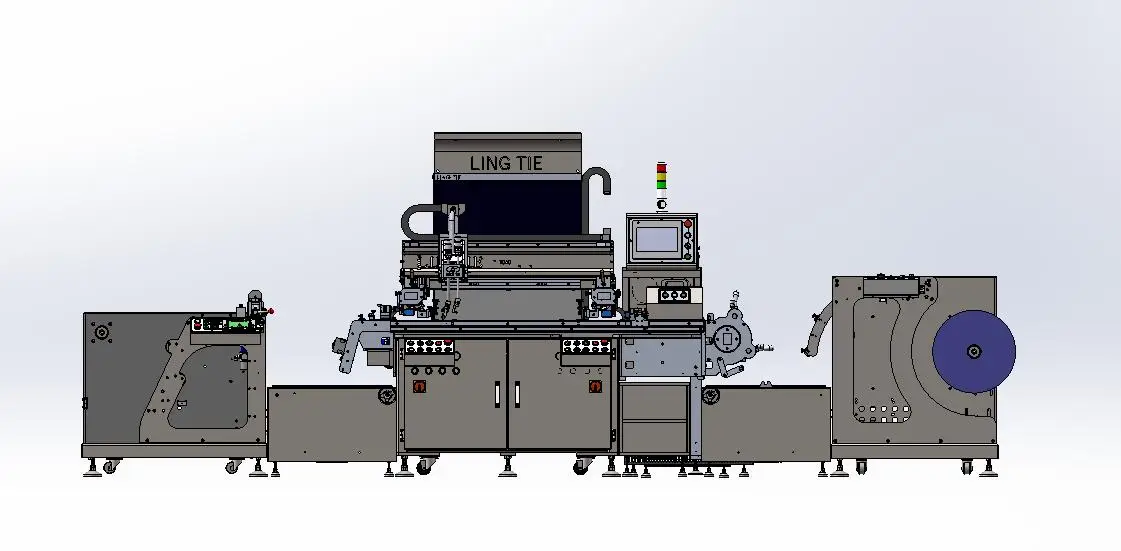

1) This screen printing machine is composed of a feeder, a printing unit and a hot air dryer.
①The feeder has dust removal rollers, it is able to alarm when the roll material runs out.
②The printing unit table has a vacuum to fix PET film in position to ensure printing accuracy. It is equipped with three photocell sensors for automatic registration.
③The hot air dryer has a 30M, 60M and 80M length pass for option. It is able to cool and wind cured film into a roll after being dried.
③The hot air dryer has a 30M, 60M and 80M length pass for option. It is able to cool and wind cured film into a roll after being dried.
motorcycle helmet decals, nameplate and non-woven fabrics, etc.
1-Automatic Feeding Machine
1. Equipped with photoelectric sensor, the sensitivity of induction is high, can sense any material, automatic control of feeding.
2. Equipped with no material sensor, the machine will automatically stop when there is no material.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device

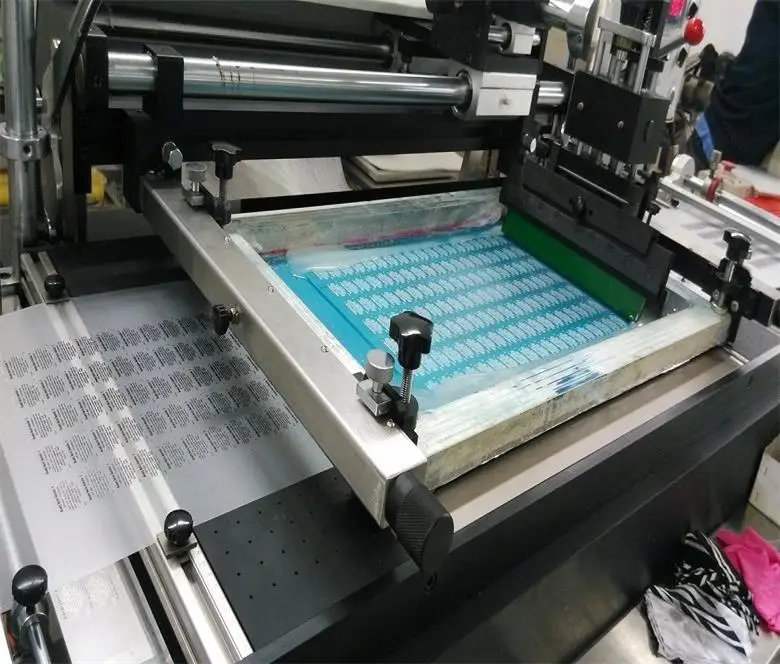

2-Automatic Screen Printer
1. The printing seat adopts 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and durability.
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.
4. Equiped with a man-machine system.
Optional functions:
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device
3-Hot Air Dryer
1. Oven with 4 sides, 4 sides heating, air circulation more smooth.
2. 4 independent digital display temperature controller respectively control the temperature, temperature control is more convenient, more accurate.
3. Imported photoelectric switch, can sense any printing material, and can automatically track the speed of the printing machine.
3. Imported photoelectric switch, can sense any printing material, and can automatically track the speed of the printing machine.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
Humanization Design
① Safety protection
1) Curved edge to avoid scratching
② Digitization information
2) Hidden wire to avoid injury
1) Precise engraved scale
2) Visual touch screen
3) Accurate trimming nut
4) 4 independent digital display temperature controller
1) The material is compact and hollowed out from a whole block of aluminum
2) Equipped with a man-machine dialogue system, easy to check the equipment and operation
3) Inlay type screw
4) Equip with a magnifying glass to see the details of printing
5) Equipped with an air gun, easy to use the inflating shaft

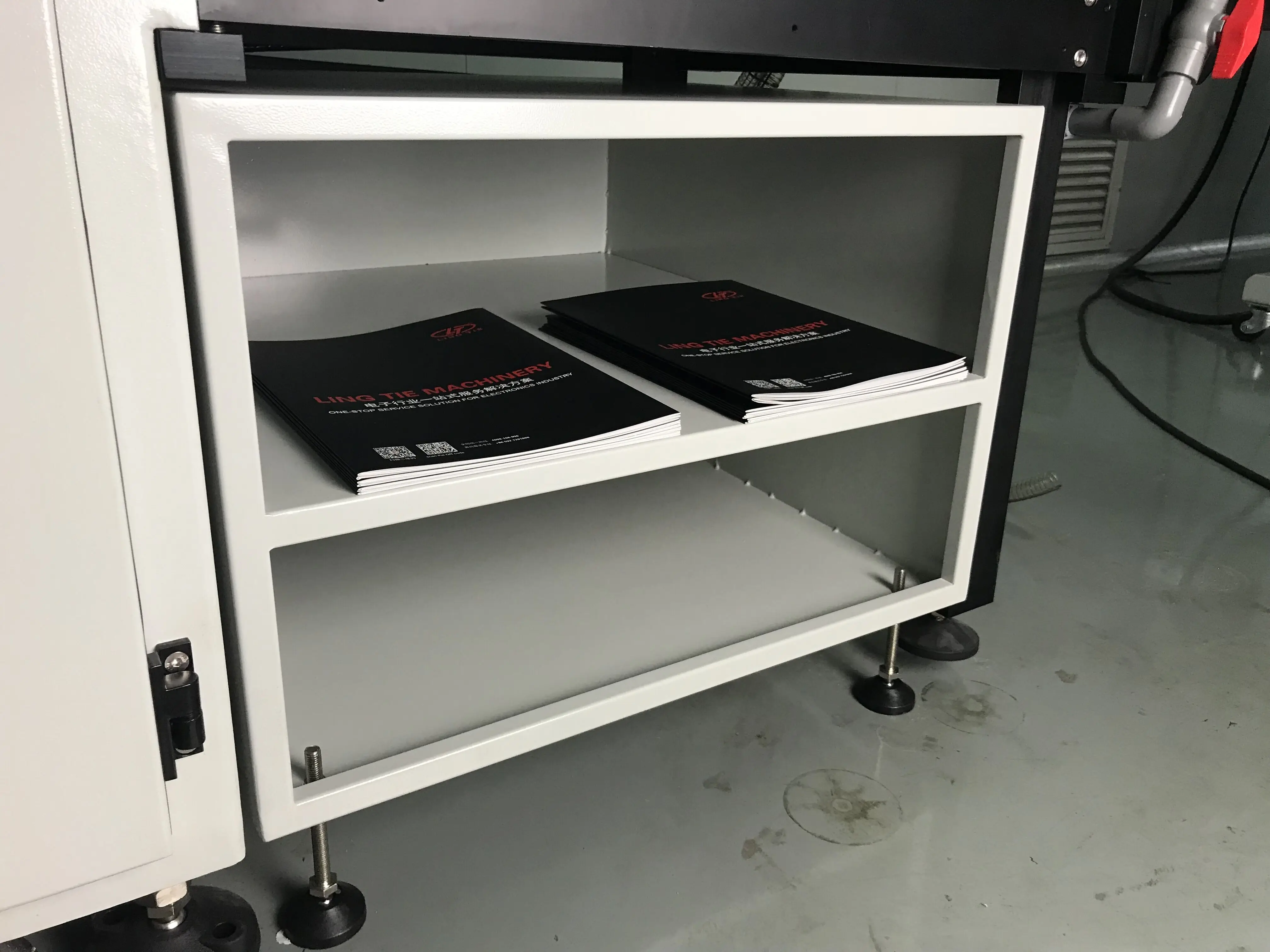

④ Utilization of space
6) Equipped with mobile guide rail, save time and effort
Our Services & Strength
1) Our machines are guaranteed for one year and maintained for life, and the engineers will visit the enterprises in person from time to time to understand the use of the machines.
2) Our machines are more than 6 times more efficient than semi-automatic/manual printing, and the printing accuracy is also higher than semi-automatic or manual printing. Only one operator is needed to handle the whole process.
3) We not only have a large standard assembly workshop, but also a machine processing workshop, a number of CNC machining centers and other processing equipment, so that the equipment of the machine is optimized, higher precision, faster delivery.

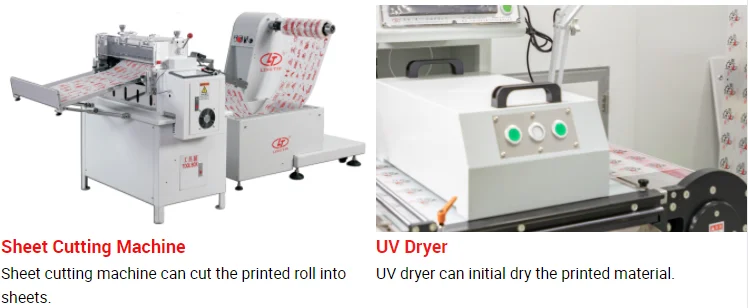

Optional Plug
4) Our company has been operating for more than 10 years and has a good reputation in the industry. Our company has strong strength, various specifications of dozens of stocks, and has a professional technology, business, and after-sales team.
