Product Overview

Description

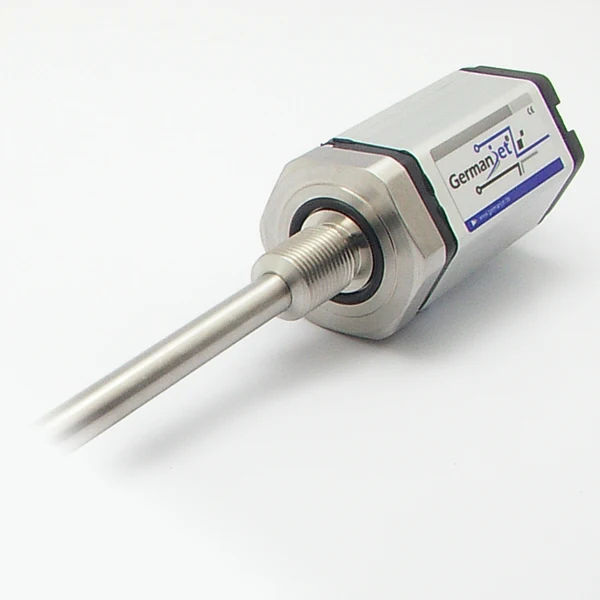

H model - Hydraulic Rod

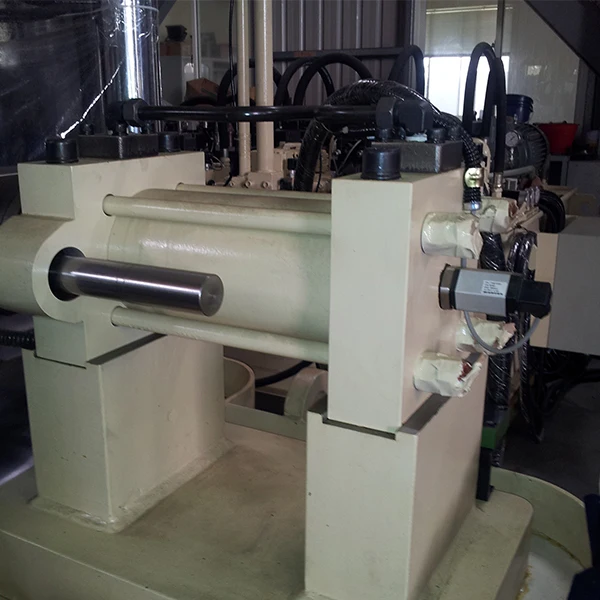

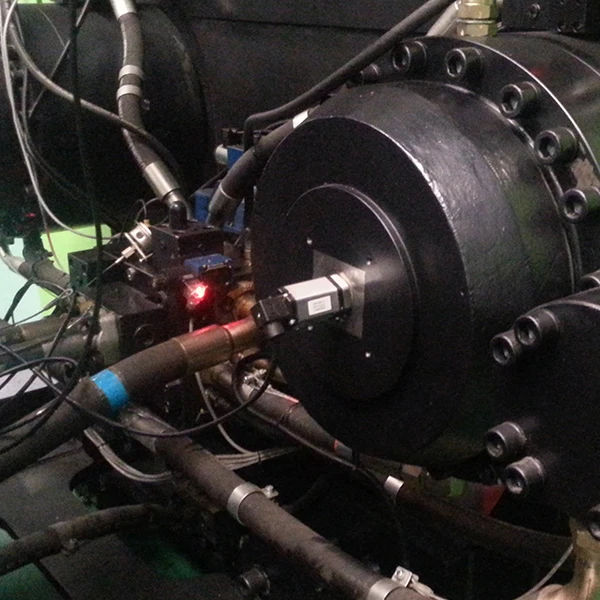

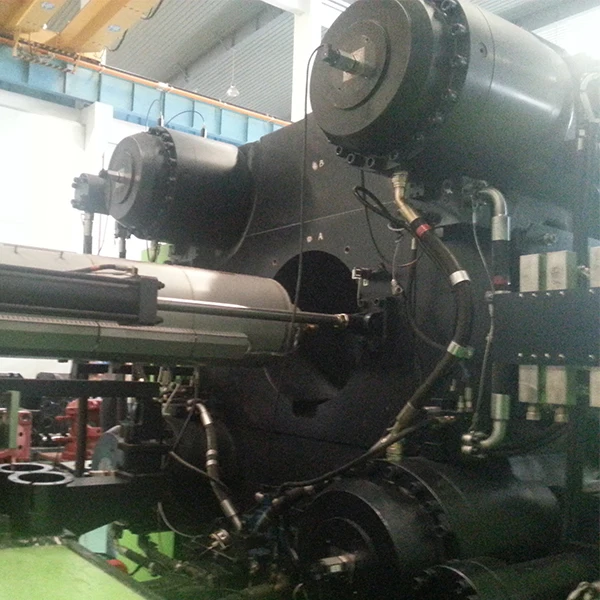

H model is designed for hydraulic cylinder. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily; Hydraulic fluid doesn't need to be withdrawn when doing sensor calibration or replacement. This design greatly reduces the down time and improves efficiency.



Order Code	190
Output	Voltage
Measurement Type	Linear displacement
Measured Variables	For dual magnets, kept minimum distance of 76mm in between
Resolution	16 Bit D/A, 0.0015% (minimum 1um)
Repeatability	< +/-0.001% of full scale (minimum +/-2.5μm)
Non-Linearity	< +/-0.01% of full scale (minimum +/-40μm)
Update Time	0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm
	2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm
Input Voltage	+24Vdc (20.4 - 28.8Vdc)
Input Protection	Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc
Power Consumption	100mA (stroke range dependent)
Dielectric Strength	500Vdc (DC ground to machine ground)
Connector Type	D60 Male
Operation Temp.	-40 to 75 °C, Humility 90% non-condensing
Sealing	IP67 (with connector)
Shock Rating	100g single hit per IEC standard 68-2-27
EMC	Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6
