Decal Silk Screen Printing Machine
- Category: >>>
- Supplier: Lingtie (Xiamen) Machinery Co. Ltd.
Share on (60400442071):
Product Overview
Description
Product Description
Model | LTA-6080 |
Print Area | 630*850mm |
Print Speed | 0-2500t/h |
Screen Frame Area | 900*1200mm |
Max. Paper Width | 620mm |
Inspection Table Max. Size | 700*800mm |
Air Source | 0.4-0.6mpa |
Power | 1P 220V 3KW/3P 380V 3KW(Customizable) |
Printing Material Thickness | 0.02-0.5mm |
Weight | 2000kg |
Machine Size | L3150*W1260*H1865mm |

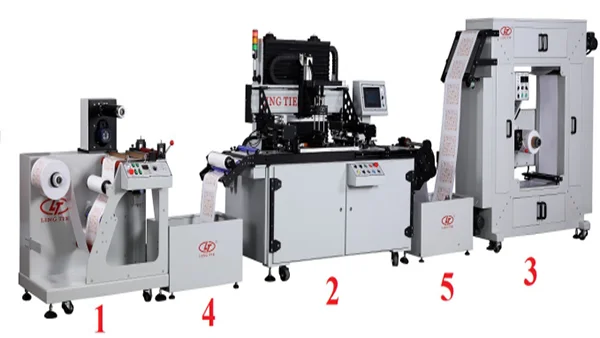

This machine is composed of 5 components
Automatic feeding machine → Feeding box →Automatic screen printing machine（LTA-6080)→Receiving box→Oven
Application
This machine adopts mechanical transmission, fast printing speed, high precision, suitable for decal, heat transfer film, electronic label, nameplate, film switch, electrical panel and other area products.
Detailed Images

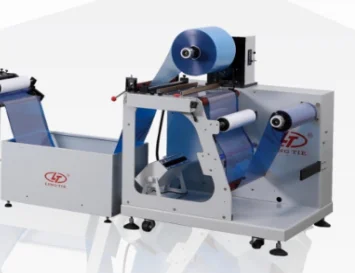

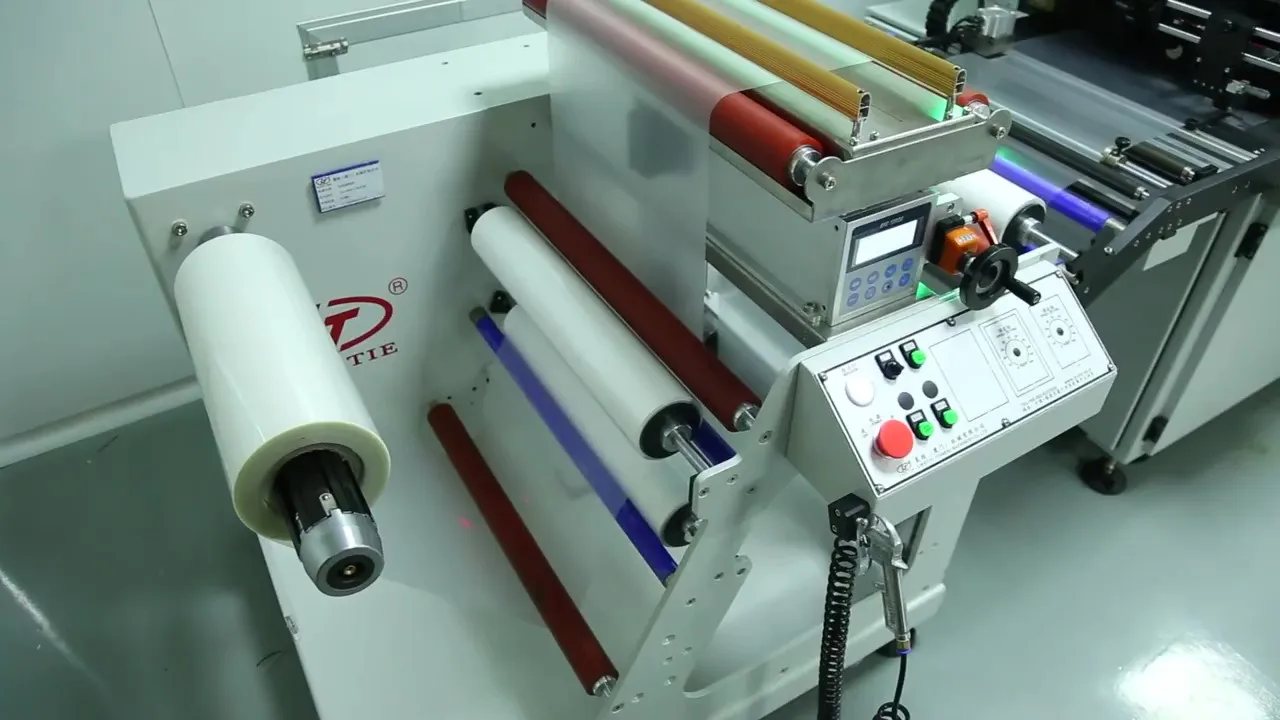

1-Automatic Feeder
1. Adopting Japan Mitsubishi frequency converter, automatic control of feeding speed.
2. Adopting German refined motor and reducer to ensure stable operation of the machine.

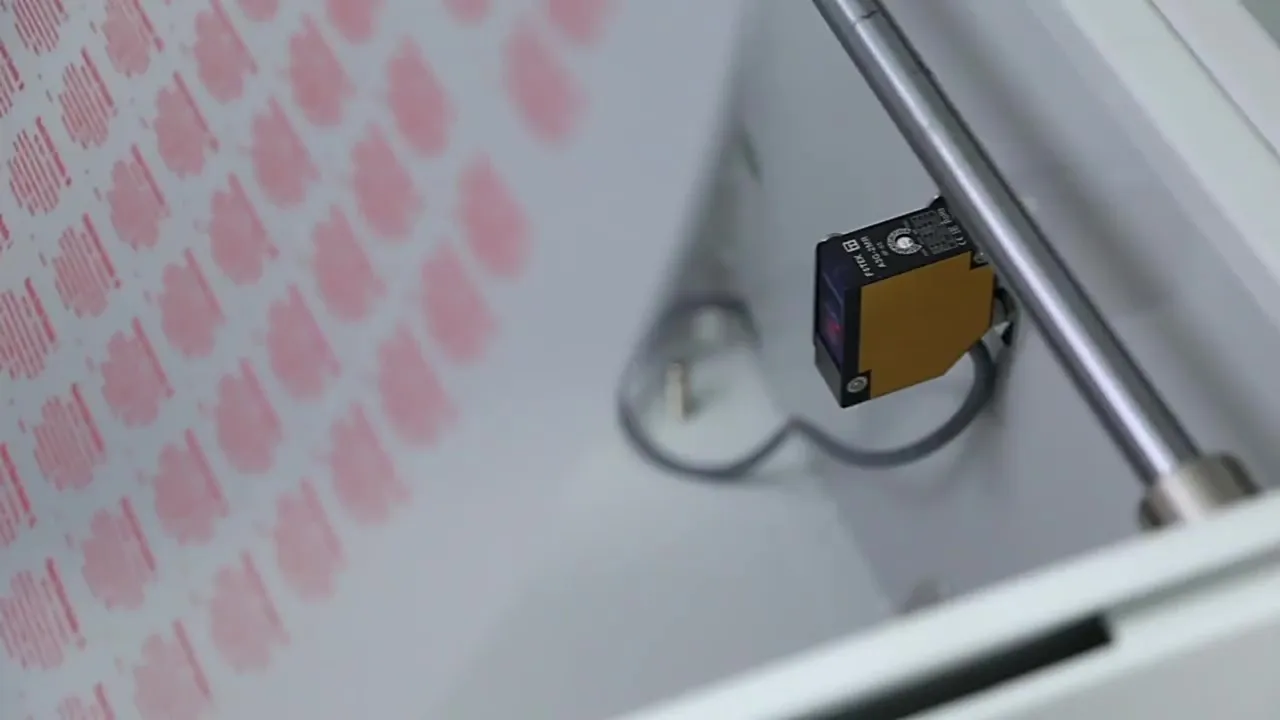

3. Adopting imported photoelectric switch control, avoid scratching material, can automatically adjust the feeding length.
4. Adopting electromagnetic tension control, tension size can be adjusted arbitrarily.
2. Adopting German refined motor and reducer to ensure stable operation of the machine.
3. Adopting imported photoelectric switch control, avoid scratching material, can automatically adjust the feeding length.
4. Adopting electromagnetic tension control, tension size can be adjusted arbitrarily.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device

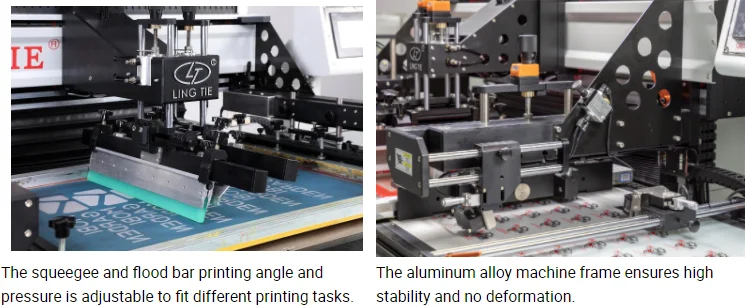

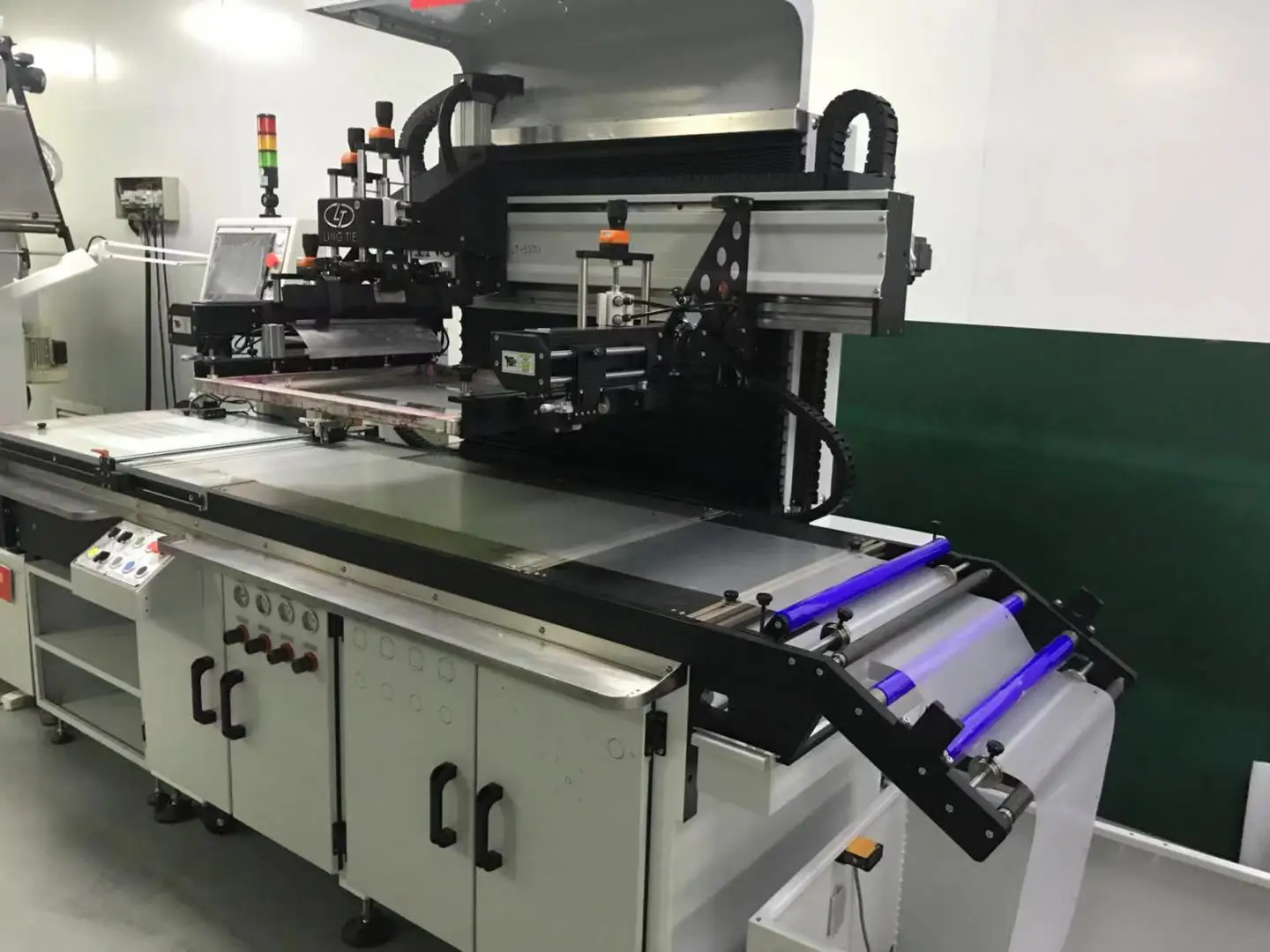

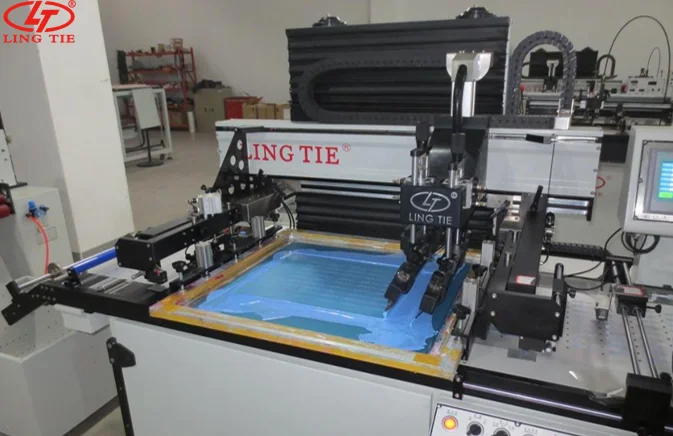

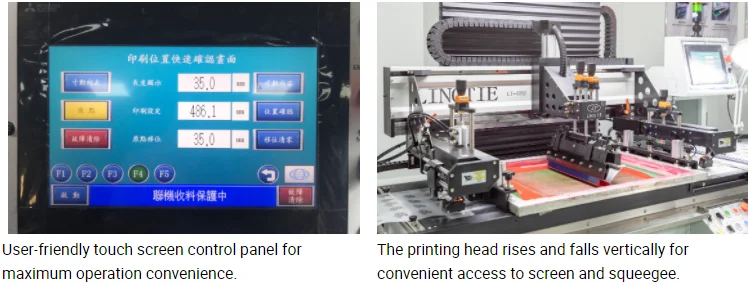

3-Automatic Printer
1. Adopt Japanese Yaskawa servo motor, good quality, high precision, the printing precision of the machine is guaranteed.
2. The bearings IKO, EASE imported from Japan and UBC imported from the United States, which have high precision, long service life and low maintenance rate.
2. The bearings IKO, EASE imported from Japan and UBC imported from the United States, which have high precision, long service life and low maintenance rate.
3. Adopt Taiwan brand reducer, big output torque, smooth operation, low noise.
Optional functions:
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device
Equipped with an induction device to transmit the information of no material to the printing machine and the information of material to the oven.

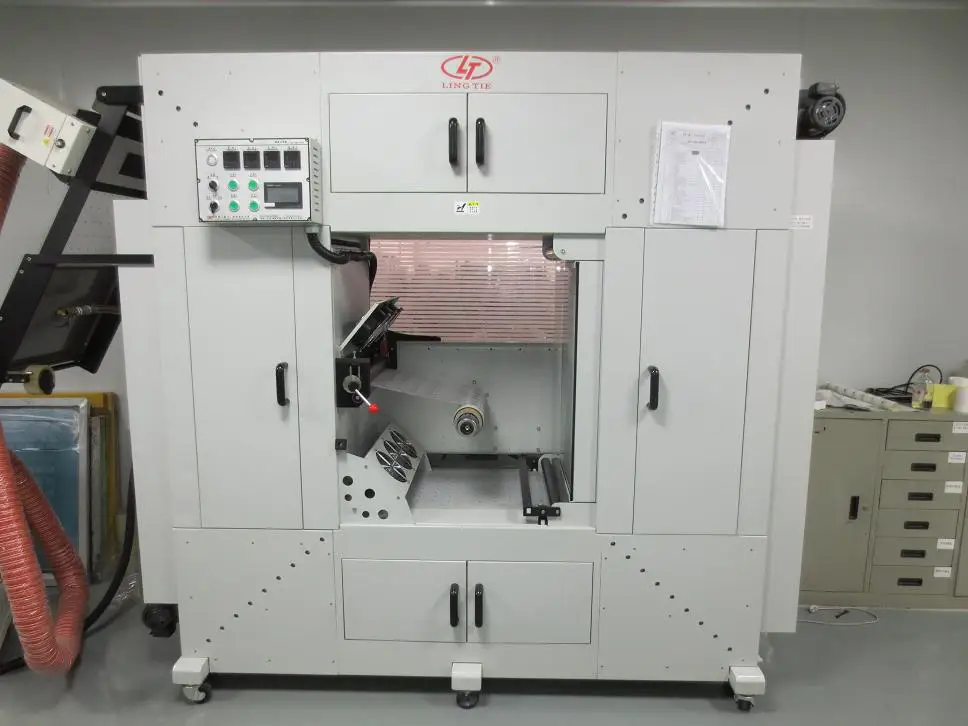

5-Oven
1. Adopt Japan Mitsubishi device, more energy saving, more accurate speed control.
2. Adopt uniform speed function to ensure that the material stays in the oven at any position for the same time and rewinding speed.
3. Adopt 4 independent digital displays
temperature controller respectively control the temperature, temperature control is more convenient, more accurate.
3. Adopt 4 independent digital displays
temperature controller respectively control the temperature, temperature control is more convenient, more accurate.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
