BD S2 trinocular inverted Biological Microscope phase contrast for living cell culture
- Category: >>>
- Supplier: Shenzhen Boshida Optical Instrument Co. Ltd.
Share on (60400545224):
Product Overview
Description

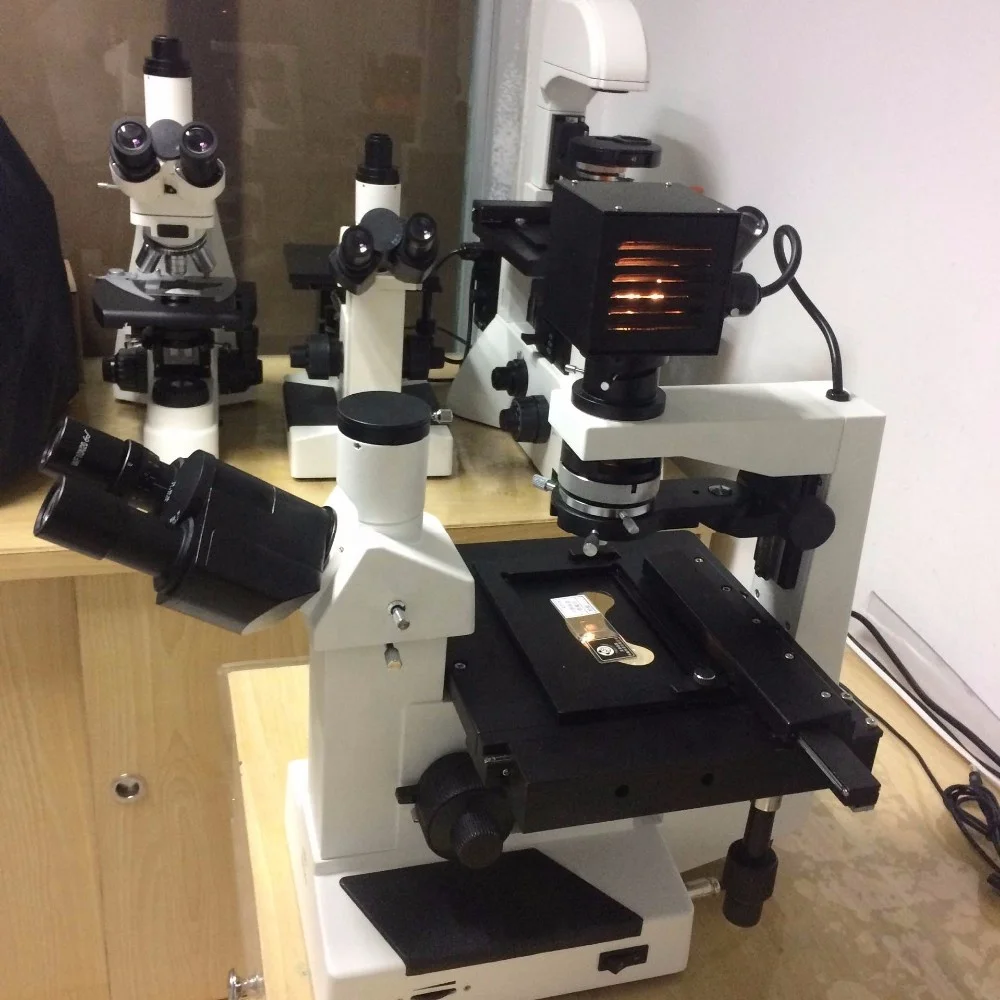

BD-S2 inverted Biological Microscope
Product Description
BD-S2 is a inverted biological microscope. It can be used to observe undyed biopsy specimen or transparent liquid in the petri dish or culture vessel.
| Optical system | Infinity Plan Achromatic optical system |
| View tub | Trinocular, 30 ° inclined. Splitting ratio: 100%:0, 0:100%, IPD adjustment: 54mm ~ 75mm Diopter adjustment: ± 5 Diopter adjustable. |
| Eyepiece | WF PL10 × (Φ20mm) |
| Objective(Optional) | Long working distance infinity plan achromatic objective: 10X/0.25, 25X/0.4, 40X/0.6 Long working distance infinity plan achromatic phase contrast objective: 10X/0.25, 25X/0.4, 40X/0.6 |
| Nosepiece | Four-position. |
| Stage(Optional) | Double layer mechanical stage. Stage size:224× 208mm. moving range: 112mm ×79mm Specimen holder: For Φ68 or 77X29 petri dish For 82X57mm petri dish For 128X85mm For 96 holes petri dish. |
Phase contrast device (optional) | Central telescope. N.A. 0.4 condensor, moving distance:50mm. Tension plate: 10X phase contrast annual plate 25X, 40X phase contrast objective |
| Focusing mechanism | Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy :0.002mm |
| Illumination | 6V/30W halogen lamp, brightness adjustable. Optional: LED |
| Filter | Blue filter,green filter and grand glass. |
| Camera adapter | 0.5X, 1X |
Our Services
Warranty
1). We provide one year warranty for whole machine, three month for consumable spare parts.
2). We will cover all cost due to quality problem during the warranty period.
3). For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
4). We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.
2). We will cover all cost due to quality problem during the warranty period.
3). For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
4). We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.
