Portable Ultrasonic Diagnostic Devices Type Laptop ultrasound scanner/ usb ultrasound probe for laptop

Product Overview

Description

Portable Ultrasonic Diagnostic Devices Type Laptop ultrasound scanner/ usb ultrasound probe for laptop

E9}TV`GFR9)(8ZTZVQTJ41_.png" ori-width="800" ori-height="213"/>

1.Product Information

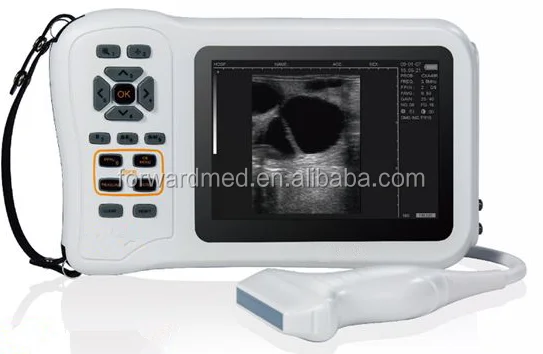

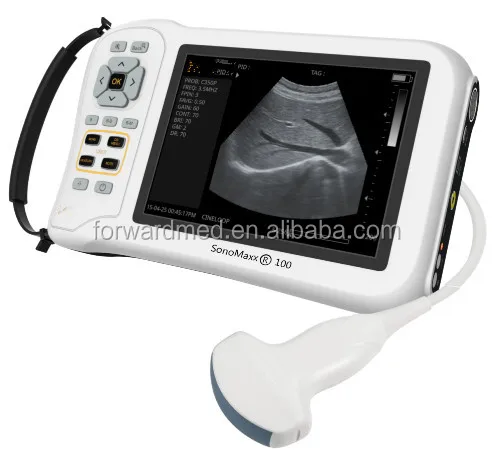

S100 is a handcart -type digital ultrasound diagnostic scanner, S100 is composed of main unit, monitor, ultrasound probe and related parts. The scanner adopts advanced beam forming and image processing technologies. The scanner software supports B-mode, M-mode, B/B-mode, 4B-mode,B/M-mode, M-mode imaging, measurements, markers,annotations , reports, image storage and management, biopsy guideline function and so on.

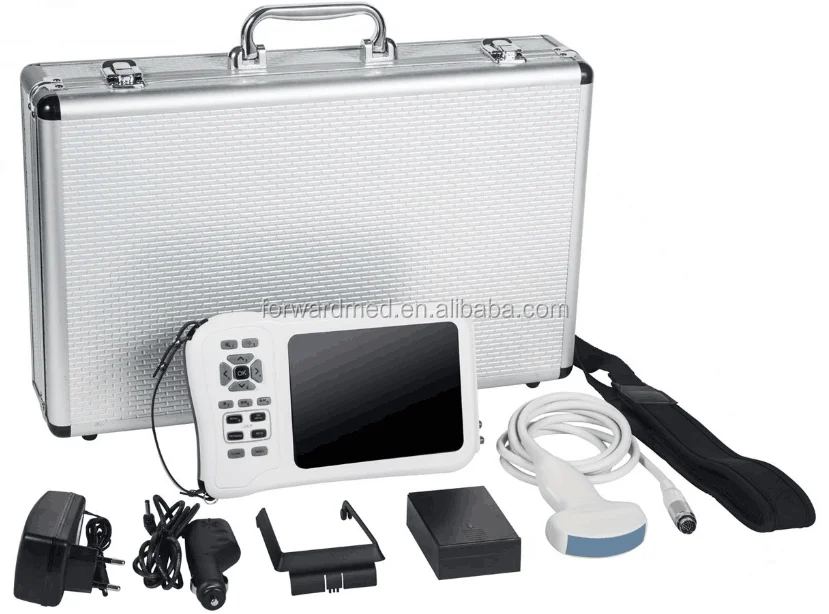

2.Product Composition
The product is composed of the main set, monitor, ultrasound probe.

3.Scope of Application
This instrument is applicable to medical and clinical diagnosis

4.Multi Language Support
The system application software and control panel overlays support English and Chinese,other languages such as Russian, Spanish, French, German, etc. can be tailored according to customer demand(usually need a period of 15 working days)

5.Probe
Probe is the application of the system. The one probe can be connected to the ultrasound imaging system.

Model    Type    Description    Configuration
35C60H    Convex array    with a center frequency of  3.5MHz R=50mm    Standard
75L50S    Liner array    with a center frequency of  7.5MHz L=50mm    Optional


6.Intended Use
Note: This setup is only intended for doctors or professionals, or used under the guidance
of doctors.

The S100 digital ultrasound diagnostic system supports the following applications:
lAbdominal
lObstetrics
lGynecological
lUrological
lSmall parts
lOrthopedics
lVascular



7.Measurement Items
Measurement items        Gestational Age Table    Measurement methods
GS gestational sac    Tokyo,Hellman, Rempen,Hansmann,China    Line distance measurement
Crown- rump Length (CRL)    Tokyo,Hadlock,Nelson,Robinson,Rem- pen,Hansmann,Osaka,China    Line distance measurement
BPD    Tokyo,Hadlock,Jeanty,Kurtz,Merz,Hans- mann,Rempen,Chitty(O-I), Osaka,China    Line distance measurement
FL    Tokyo,Hadlock,Jeanty,Hohler,Merz,Hans- mann,Chitty,Osaka,China    Line distance measurement
HUM    Jeanty,Merz    Line distance measurement
HC    Hadlock,Merz ,Hansmann,Chitty(pltd)    Ellipsometry Measurement
AC    Hadlock,Merz    Ellipsometry Measurement
OFD    Hansmann    Ellipsometry Measurement
FTA    Osaka    Ellipsometry Measurement
FT    Mercer    Line distance measurement
CER    Hill    Line distance measurement
TTD    For the calculation of fetal weight    Line distance measurement
APTD    For the calculation of fetal weight    Line distance measurement

8.Technical Parameters

Scanning:     Electronic linear array & electronic convex array;
Scanning Angle :    30 ~ 145°;

Depth:    24cm; (convex array probe)

Frequency Range:    2.0 ~ 10MHz;

Probe Configuration:    Standard: large convex probe (frequency of 5.0 ~ 3.0 MHz);Optional:75L50S Liner probe (frequency :10.0MHz~5.5MHz);

Section thickness:    35C60H less than 8.0mm,;

Display Mode:    B, 2B, 4B,B/M, M;

Cine Playback:    480 frames, auto playback and manual playback;

Edge Enhancement:    Adjustable from 0 to 3 grades;

Dynamic Range:    30 ~ 150dB, stepping of 5dB;

Frame Correlation
Adjustable from 0 to 7 grades;
Gray-scale  Transformation
Adjustable from A to P grades;

Type of Focusing    Four types of focusing (4 focusing combinations, 16 focus positions respectively available);

Screen Reversing
Up/Down reversal;
Display Information    Trade name, Hospital Name, patient ID, date/time, probe information , focus marker, scale, direction signs, depth, gray bar;
Examination Subjects    Gynecology, obstetrics, orthopedic surgery, urology, cardiology;

B-mode Measurement    Distance, area/circumference, angle, volume, histogram;

 M-mode  Measurement    Time, heart rate, slope, distance;
The following are the special measurements for each examination subject
Gynecology    Uterus, cervix, left ovary, right ovary, left follicle, and right measurement  is  the  diameter);follicles (4 for each; the average of 3 diameters from each

Obstetrics
Fetal biometric parameters (GS, CRL, BPD, FL, HUM, HC, AC, OFD, Q4), nuchal translucency; FTA, FT, CER, TTD, APTD), amniotic fluid index (Q1, Q2, Q3,


Orthopedics    BL, ARL, IL;
Urology    Residual urine volume (long diameter, wide diameter, thick diameter), prostate volume (long diameter, wide diameter, thick diameter);
Storage    Image storage, image browsing, Video printer;
Monitor    standard 5.6 inches TFT LCD, screen resolution of 640 * 480
Cursor    Support USB mouse operation
External Interface    TF card, USB, TV-OUT (composite video), the probe interface, power input interface
Battery power    11V, 2600mAh
Adapter Model    SW-140300
AC input    100-240VAC to 1.5A, 50-60HZ
DC output    14VDC, 3000mA
Weight    625g
Volume    250x120x40 mm3
