XPS Insulation foamed Board Production Line
- Category: >>>
- Supplier: Ningbo Mengkwa Machinery Co. Ltd. [Zhejiang China]Ningbo
Share on (60400827586):
Product Overview
Description

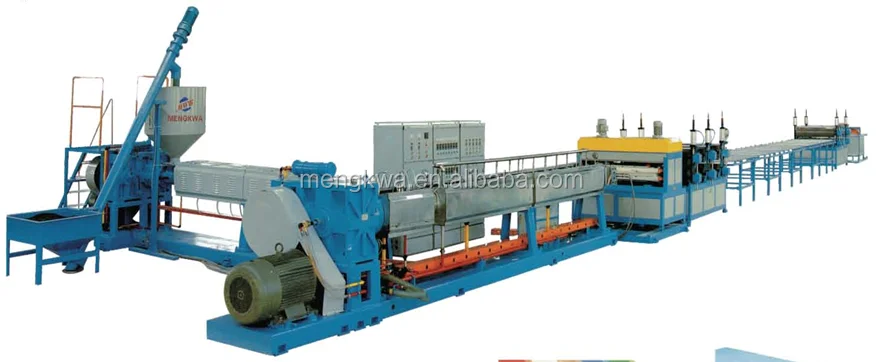

XPS Insulation Board Production Line
Applicatipon & Features:
Comparing with other traditional insulation materials, such as EPS, PU and rock wool,XPS is improved in insulation , moisture proof, compressive strength, durability, convenient installation and low cost.
As an ideal material, XPS id widely applied to heat preservation and insulation systems,moisture proof and obstruct systems,with promising potential market.
Main Configuration
Feeding system/first extruder/hudraulic mesh exhanger/second extruder/mould/calibrator/first haul-off unit/ longitudinal cutter/cross cutter/ second haul-off unit/controlling system/packaging system

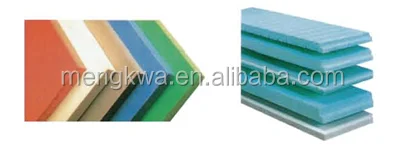

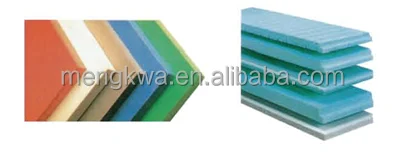

Detailed Images
Main Technical Specification:
| item | XPS250 | XPS500 | |||
| extrude system | set | 1st extruder | 2nd extruder | 1stextruder | 2nd extruder |
| screw diameters | mm | 135 | 150 | 165 | 200 |
| L/D radio | l/d | 27:1 | 33:1 | 27:1 | 33:1 |
| driving motor power | kw | 75 | 45 | 90 | 75 |
| heating power | kw | 110 | 110 | 160 | 160 |
| capacity | kg/h | 250-300 | 250-300 | 450-500 | 450-500 |
| product width | mm | 600(900) | 600(900) | 600(900/1200) | 600(900/1200) |
| product thickness | mm | 20-60 | 20-60 | 20-120 | 20-120 |
| density | kg/m³ | 33-39 | 33-39 | 33-39 | 33-39 |
| total power | kw | 280 | 280 | 350 | 350 |
