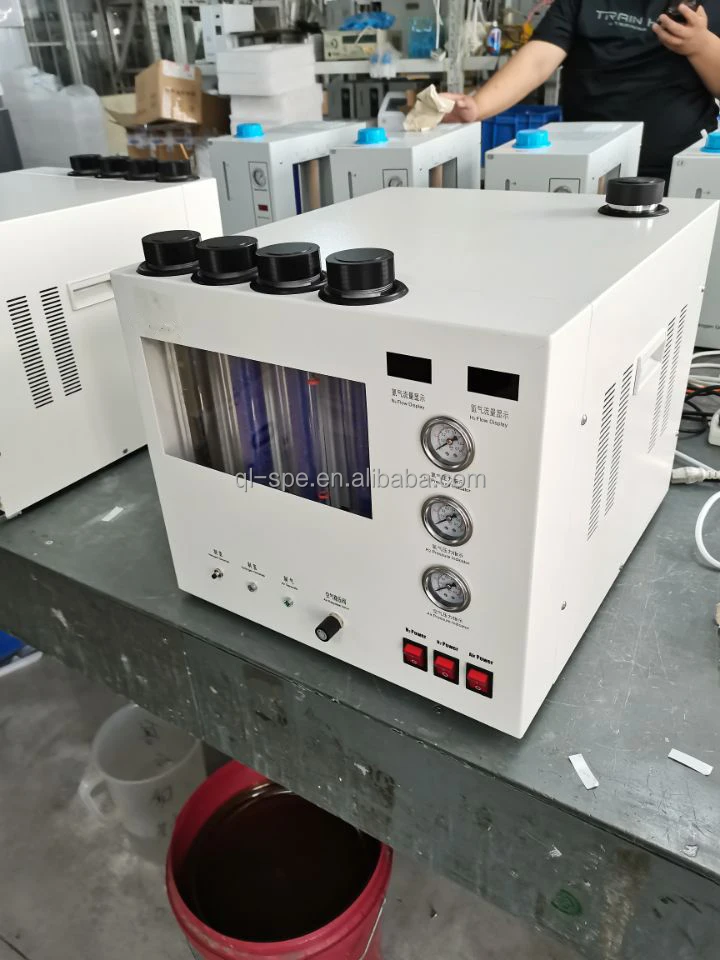

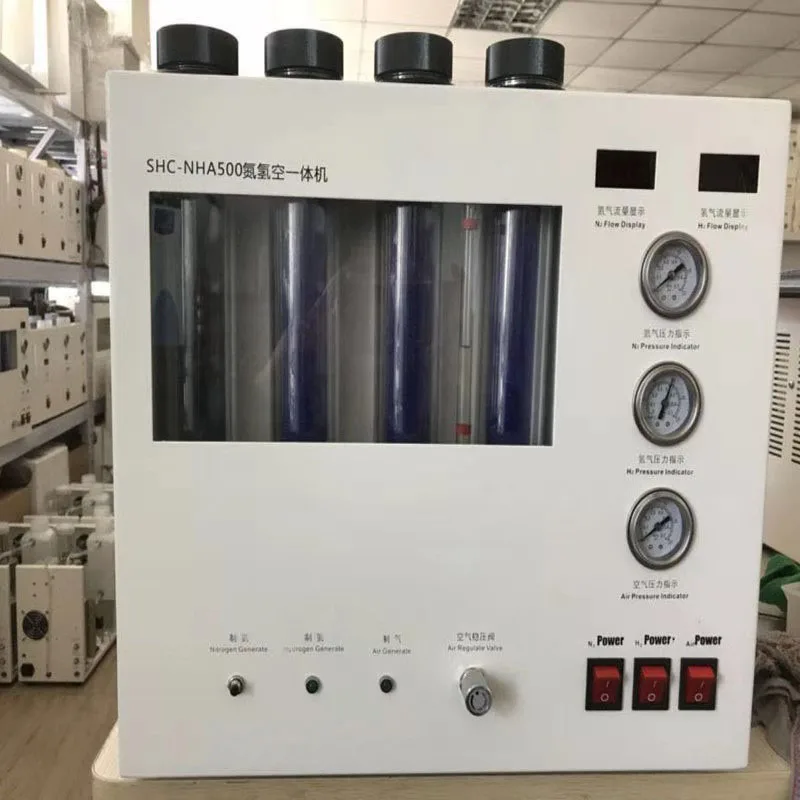

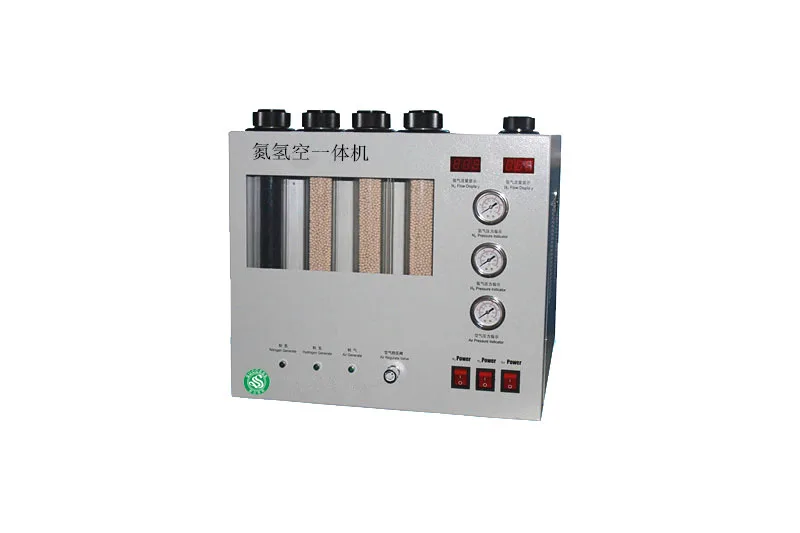

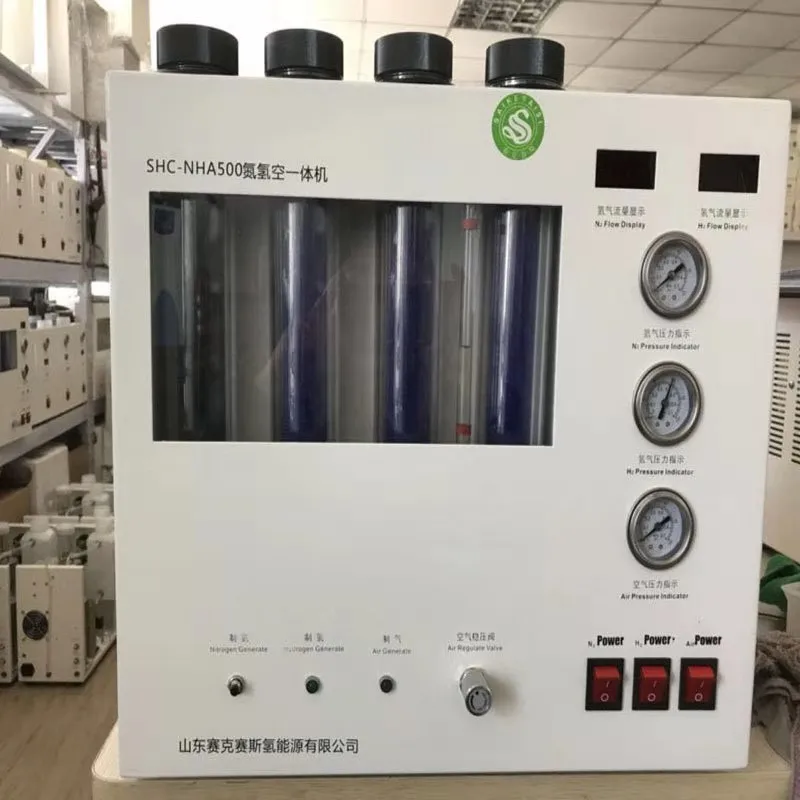

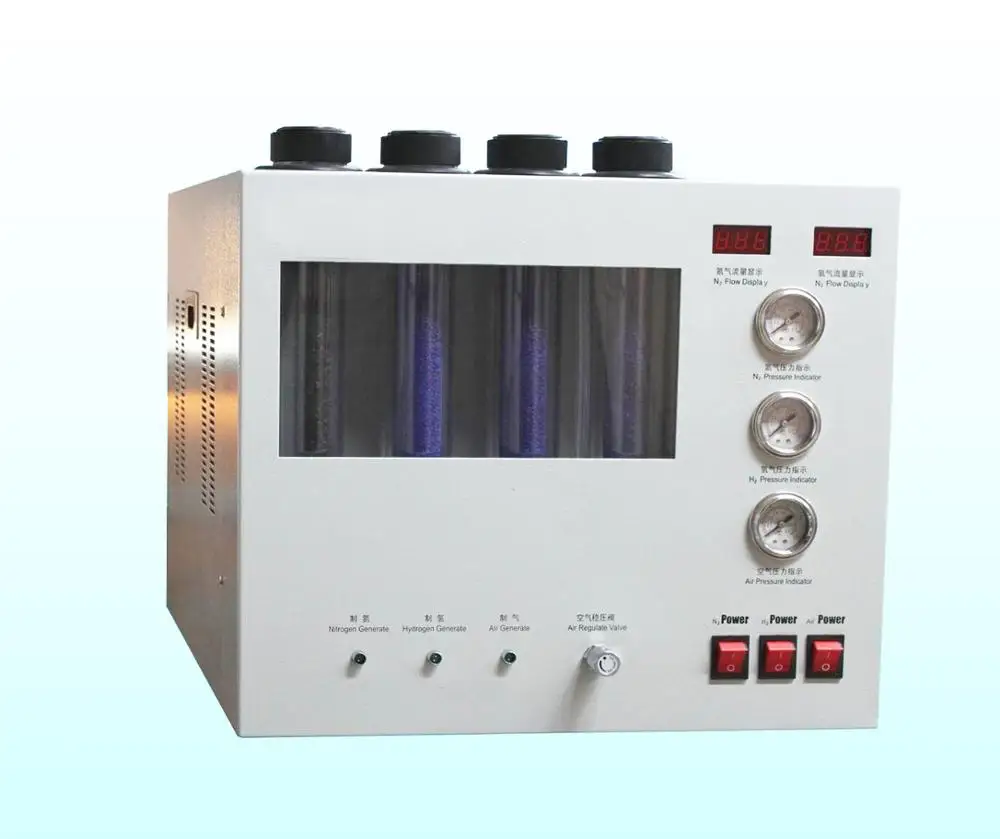

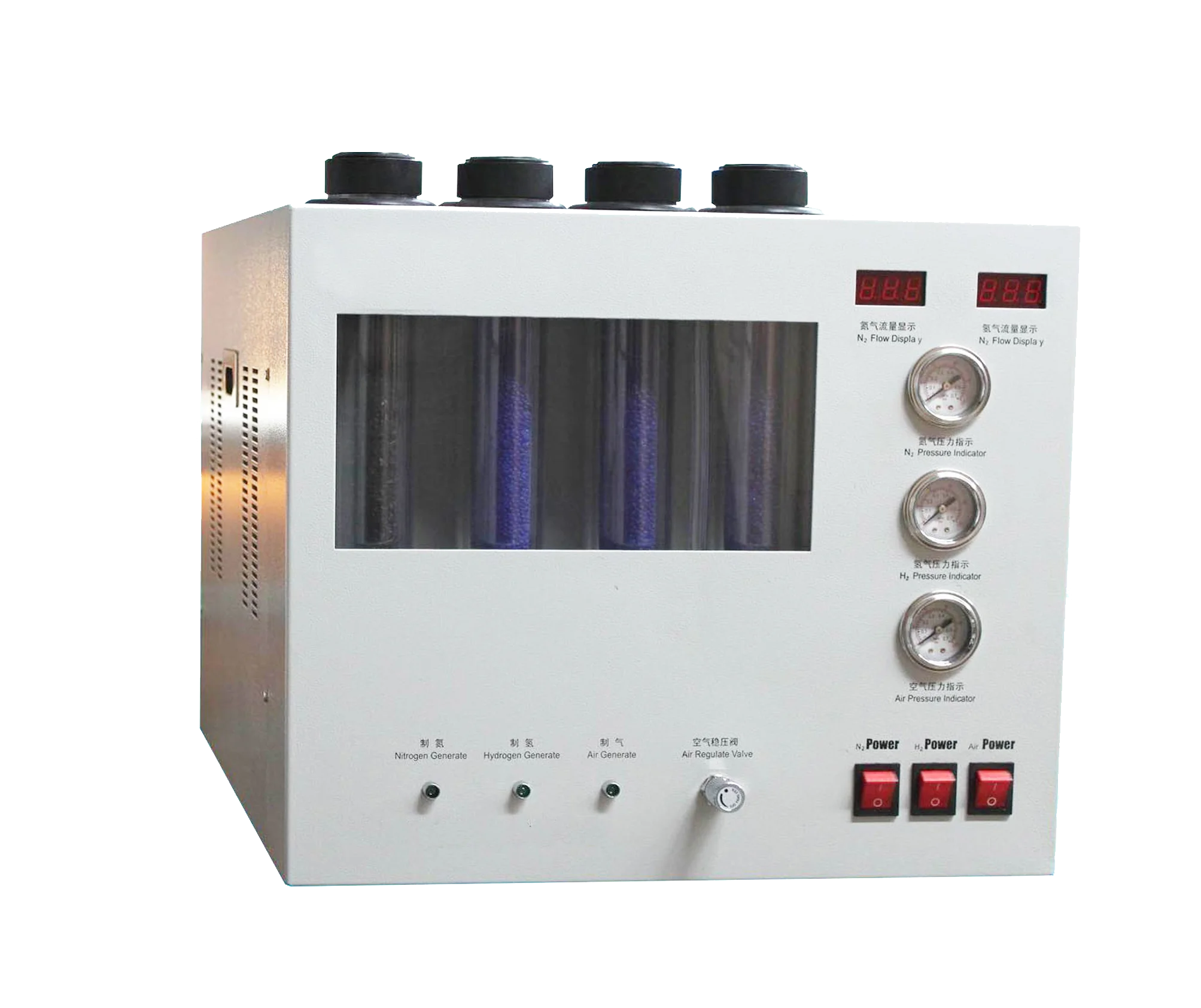

SHC NHA300 lab Gas Generation Equipment laboratory chromatography hydrogen nitrogen gas

Product Overview

Description

Product introduction:

SHC-NHA300 Gas Generation Equipment achieve the perfect combination of pure nitrogen, hydrogen, dry air three kind of gas.It also characterize compact size, low maintenance,simple operation.

It is an ideal gases source solution for various brand of Gas Chromatography and other instrument,such as AGILENT,SHIMADZU,THERMO FISHER etc.

Application:

1.GC carrier gas



2.GC fuel gas



3.GC Make up gas



4.ELCD (conductivity detector) reaction gas



5.AED (atomic emission detector) of the reaction gas



6.Other field which need pure N2 and H2

Product Feature:

1. SHC-NHA500 Gas Generation Equipment can replace the high pressure dangerous cylinder. Nitrogen ,hydrogen,dry air source can be used alone or simultaneously, and can be used continuously, and the purity of product is not attenuate.



2.The operation of SHC-NHA300 Gas Generation Equipment is simple, just start the power switch to produce gas, output flow stable, fully automatic tracking equipment.



3.The air compressor adopts a fully enclosed mute for power, the natural air after purification, remove the moisture in the air, dirt and impurities, the stable output voltage stabilizing device, clean air, low noise.



Technical Parameters





Model	SHC-NHA300
Gas Type	N2	H2	Air
Output Flow(ml/min)	0-300	0-300	0-1000
Output Pressure(MPa)	0-0.4
Purity(%)	99.99	99.999	Three-level Purification CO2:0.039% Oil: 0.54ppm
Power Consumption(W)	<500
Power Voltage(V)	AC 220 50-60Hz
Weight(Kg)	<50
Dimension(L×W×H)mm	500×440×380
