GK 1450PC Automatic Corrugated Cardboard Paper Board Gift Food Paper Box Making Machine
- Category: >>>
- Supplier: Ruian Gaoke Machinery Co. Ltd.
Share on (60401085942):
Product Overview
Description

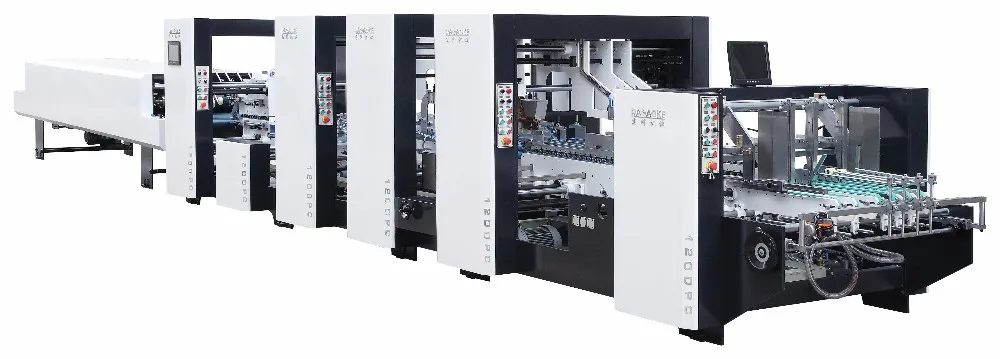

GK-1450PC Automatic Corrugated Box Making Machine
1.PC Series folding gluing machine ,adapt electrical plate adjustment,PLC and imported electrical components.
2.feeding section adopts independent electrical control,operation on rail with stable performance and easy to control and opreate.
3.This machine is specilized for cardboard and corrugated cartons, its correction function make corrugated cartons perfectly meeting the requirments of packaing industry.
(we can customized for other sizes)
Main Parameters
Name | GK-PC auto high-speed gluing folding machine | |||
Model | GK-1200PC | GK-1450PC | GK-1600PC | GK-1800PC |
Paper Material | Cardboaed210-800g A/B/E | |||
Max. Liner Speed | Max. 280 meter/minute | |||
Feeding Way | Automatically and continuously feeding | |||
Way of folding | Fold 1 and fold 3 are 180 degrees | |||
Glue Material | Water-base cold glue | |||
Power Supply | 3P380V50HZ | |||
Total Power | 19kw | 20kw | 20kw | 21kw |
Weight | 8T | 9T | 10T | 12T |
| Over Dimension | 16x1.85x1.6m | 16x2.1x1.6m | 16x2.3x1.6m | 16x2.5x1.6m |
Product Component
 |  |
Feeding Section Driven by independent motor, feeding belt has a function of air suction. | Aligner Section Equipped with auto-correction device to correct the obliquity and ensure the correct feeding. |
 |  |

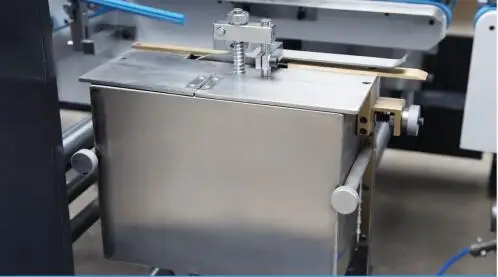

Bottom-lock Equipped with the upper and lower gluing tank. | Gluing Section Equipped with the lower gluing tank.
|
 |  |

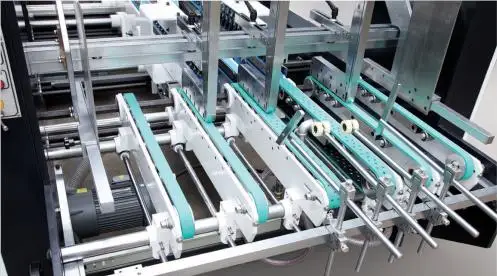

Folding Section Folding section equipped with cone pulley in left and right to adjust belt speed. | Trombone Fully press section continuous and automatic box collection mechanism that ensures a neat transfer to the press section guaranteeing a well aligned flow. |
Related Products
FAQ
1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirm to export packing standard.
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem as soon as possible.
8.Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
9.Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.
10.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspection the machine before shipping, to ensure there is nothing problem of the machine .
11.Q:What’s the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
We are professional manufacturer since 2005. We believe our products will provide
you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
If you have any inquiry, please don’t hesitate to contact us. We will reply to you
at the first time as we can.
