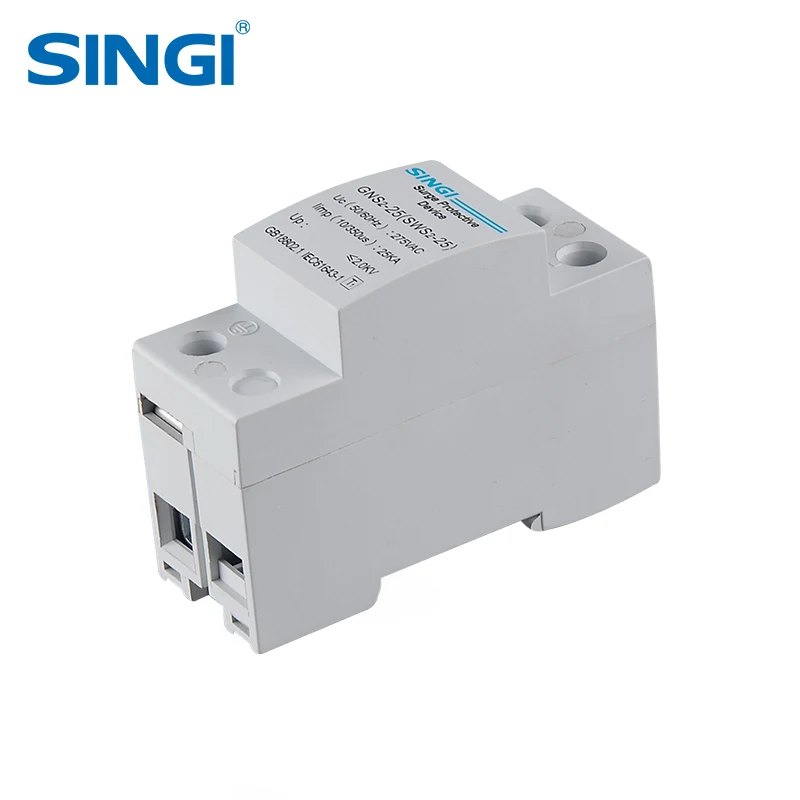

IEC standard New model First level 25kA surge protector device spd
- Category: >>>
- Supplier: ZHEJIANG SINGI ELECTRICAL LLC
Share on (60401165567):
Product Overview
Description

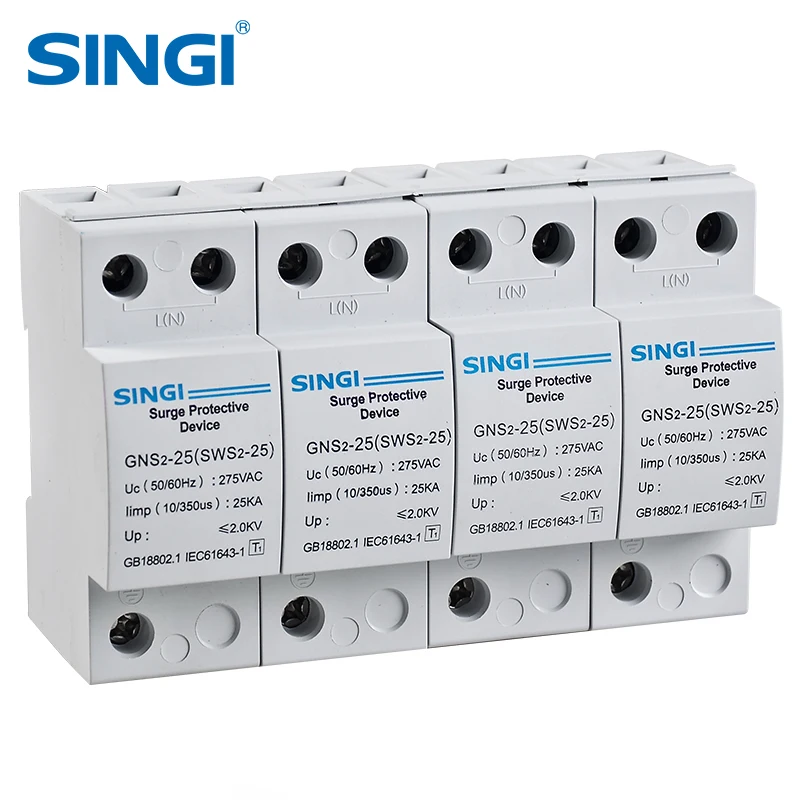

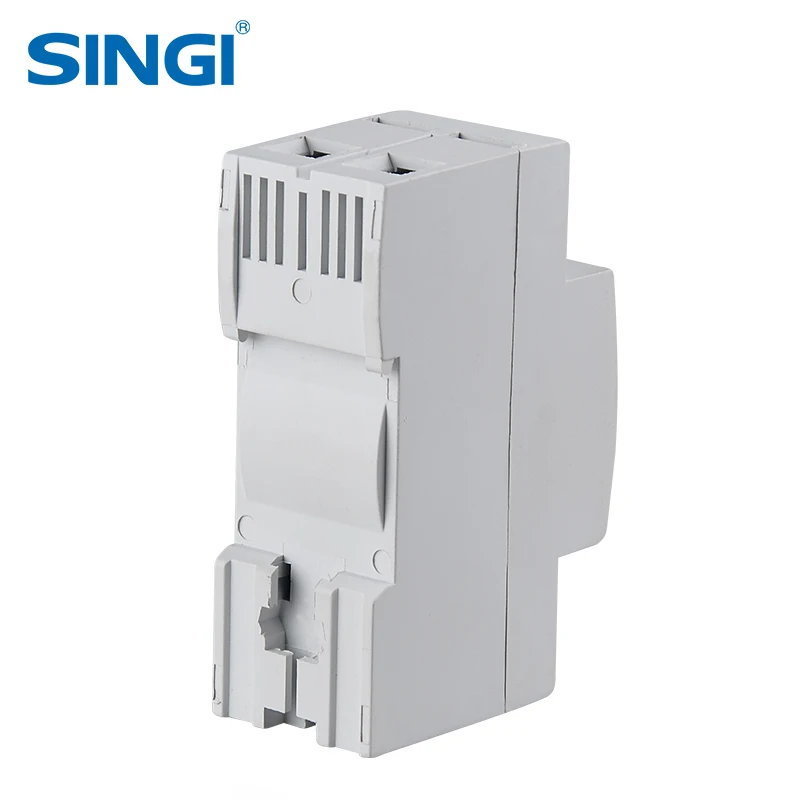

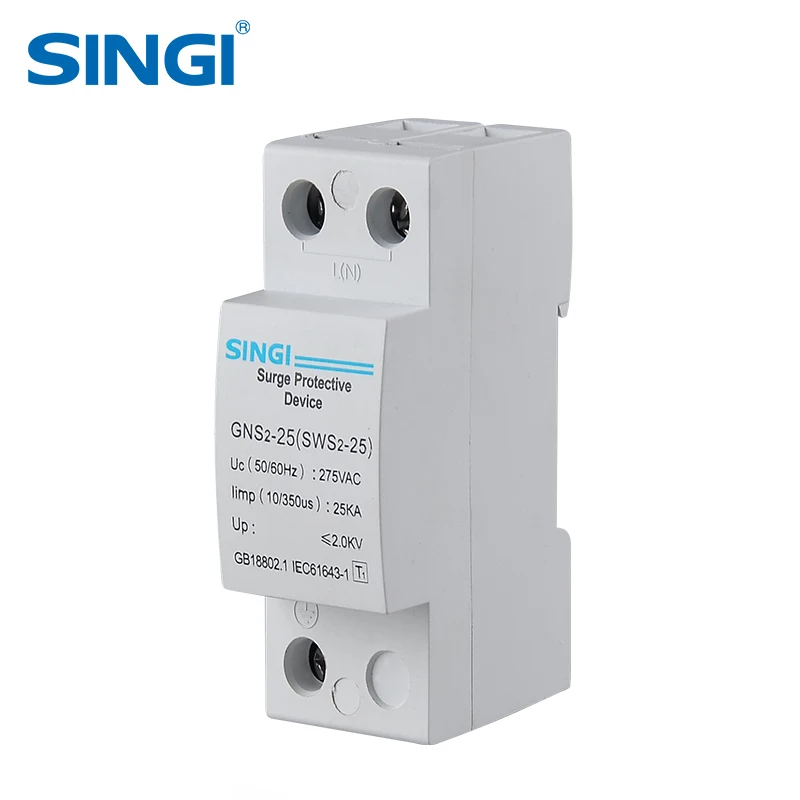

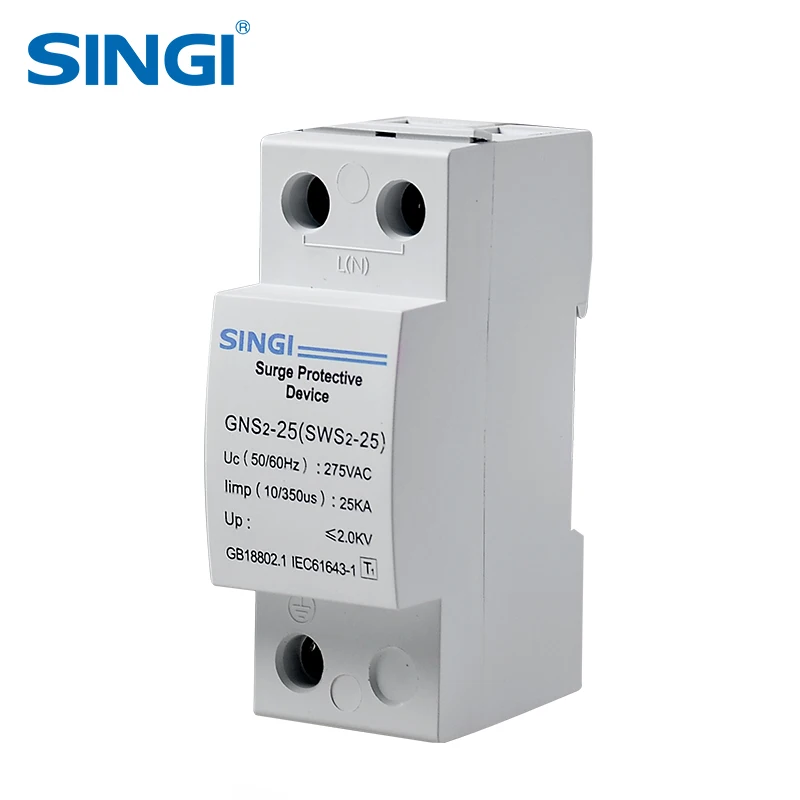

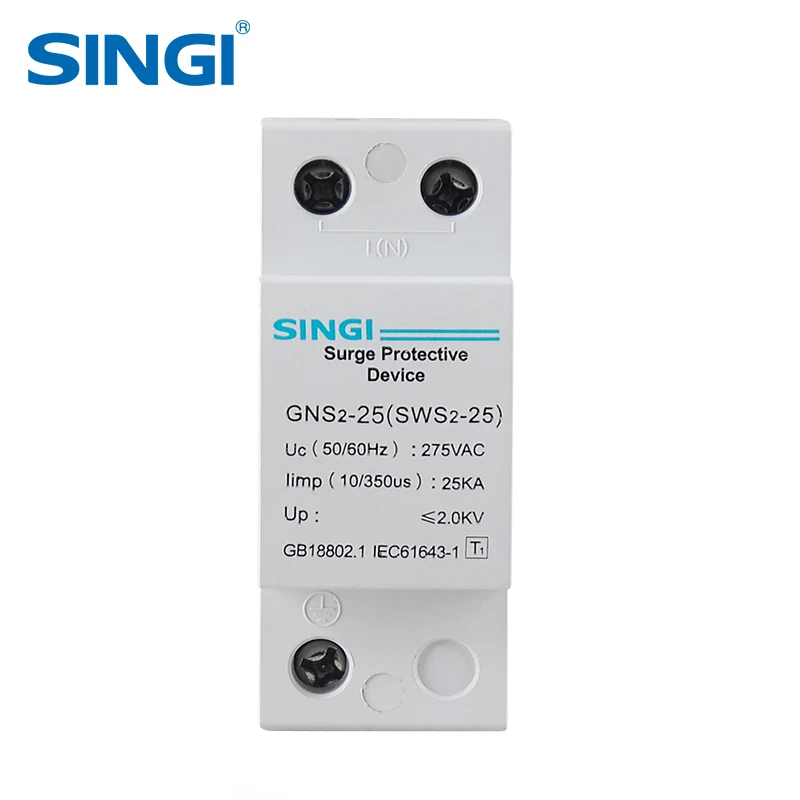

IEC standard New model First-level 25kA surge protector device spd
APPLICATION
The SPD normally is installed in the building power distribution box, computer center,telecom room, elevator control room, wiring tv room, building control room, security monitor center, fire control center ,industry
control room, frequency converter equipment control room, hospital surgery room, monitoring room and
the distribution box in whichelectronic mechanical equipment.
COMPONENTS INSTRODUCTION
- Invalid tripping device
There is invalid tripping device on the protector modular, when the protector is invalid cause of over thermal, breakdown, the invalid tripping device can separate from the power grid automatically and the indication signal is sent out. When the protector is normal, the green is displayed ,when invalid tripping,
red is displayed.
- Alarming apparatus
The alarming apparatus is power supplied by 220VAC,the indication lamp is green when the protector
work normally, normal open contact is closed and the normal closed contact is open. Audio light alarming function: when the protection modular is invalid , the alarm will be beeping ,the normal green lamp will be changed into red lamp at the same time. When the maintainer press the stop button, the buzz will stop ,but
the red lamp still is on, if the fault is not solved within 24 hours, the alarming apparatus will send out beep
once again.
- Remote signal contact
The protector can be with remote signal contact, the contact is normal open, if one or moremodular of protector is invalid, the contact will be closed and send out fault signal. The rated parameter of remote
signal contact isA C36V,1A.
| em | DC SURGE PROTECTIVE DEVICE | |||
| Code | FSP-D40 | |||
| Pole | 2P | 3P | ||
| Voltage | 500VDC,600VDC | 800VDC,900VDC,1000VDC | ||
| In(8/20)us(KA) | 20KA | |||
| Imax(8/20)us(KA) | 40KA | |||
| Standard | IEC/EN61643 | |||
| Type | II | |||
| Characteristic Curve | B,C,D | |||
| Working Temperature | “-5°”to +40° | |||
| Protection Degree | IP20 | |||
| Electrical life | More than 8000times | |||
| Mechanical life | More than 2000times | |||
| Dimension(W)X(H)X(D) | 36x90x68 | 54x90x68 | ||
| Installation | 35MM DIN RAIL | |||
| Accessory | Remote signal | |||
| Installation Altitude | ≤2000M | |||
Who We Are
SINGI established in1980, with annual sales amount more than 90 million USD,
presently we have three production bases located in Liushi town, Yueqing in Wenzhou and Shanghai.
l In Liushi, mainly terminal block is manufactured ;
l In Yueqing, mainly low voltage construction electrical products are manufactured,
like MCCB,MCB, Air Circuit Breaker, Switch &Socket, Distribution Box, ATS, Auto-reclosing etc. and the components which needed by above products;
l In Shanghai, mainly Household Telecom Cable Wire are produced.
All production and management are carried strictly according to ISO9001 and products have been certified CE,CB,UL,CUL,ETL,CETL.
Our Services
Singi Group aim to providing excellent quality,competitive price,fast delivery and considerate after-sales service.
Excellent Quality:
We approvals of CE,CB,UL,ETL,CCC and ISO9001 Quality System Certificate etc.Products being
popular around the world,such as Europe,America,Southeast Asia,Middle East,Africa,etc.
Competitive Price:
OEM or ODM projects are fully accepted,with the quantity added step by step,the discount will be
good.
Fast Delivery:
With the projects or order received,the order must to be discussed in the R & D section about 2
days to deal with the parameter,then pass the order to the production section.
After-sales Service:
All kind of products have quality guarantee,also after-sales worker 24h on line to solve the questions.
