High Quality Sandi Hybrid Low Frequency Solar Inverter With Built in Charge Controller

Model

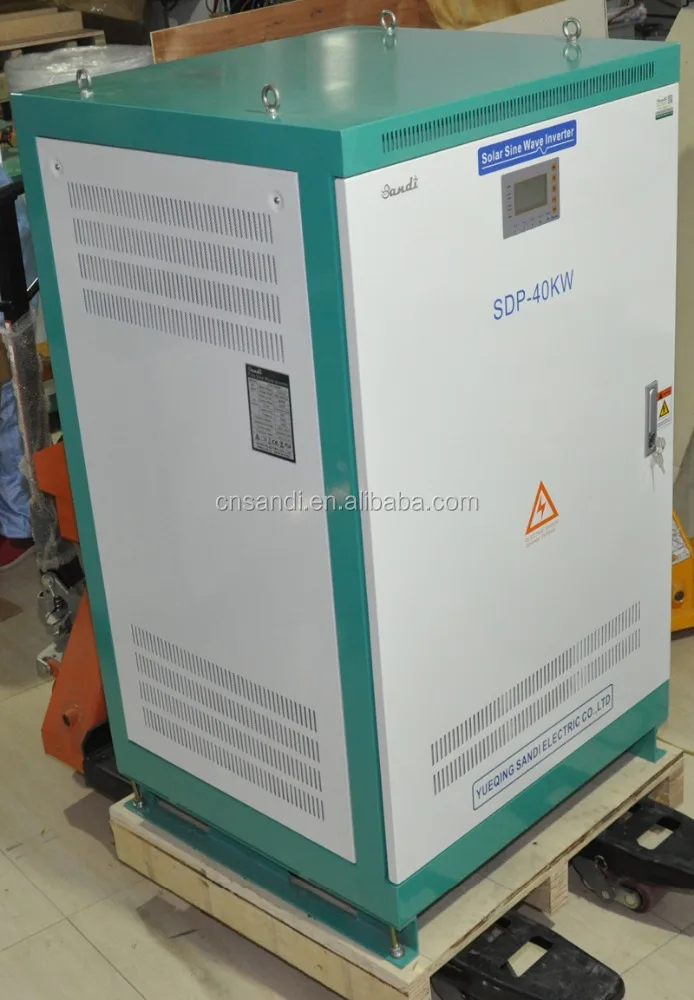

SDP-40KW

Isolation mode

Low Frequency Transformer

DC Input

Rated voltage (Vdc)

360V

Rated current(A)

111A

AC Output

Rated output power

40KW

Output waveform

Pure Sine Wave

Rated Voltage

220V±3%

110/220VAC±3%

380VAC±3%

Phases

Single phase

2 phase 3 wire

3 phase 4 wire

Rated current (A)

182A

182A (phase current)

61A (phase current)

Frequency

50Hz or 60Hz

Rated output voltage range (V)

110/120/220/230/240/380/400/415/440VAC optional

Phases

Single / Two/ Three phase optional

Power Factor (PF)

>0.95

Overload Ability

150%, 5 seconds

Efficiency

>94%

Waveform distortion rate (THD)

<3%(Linear load)

Dynamic Response

(0 to 100% load)

5%, ≤50ms

Display

LCD

Running mode

Working continuously

Electrical insulation properties

2000Vac, 1 Minute

AC Bypass Function

Optional

Solar Charge Controller built in

Optional

AC to DC battery Charger built in

Optional

RS485 remote monitoring

Optional

Wide voltage input 100-850VDC(optional)

Off grid inverter can work without battery

Protection Function

Protection

Input reverse polarity, under voltage, overvoltage,

output over-current, short circuit, overheating etc.

Cooling method

Fan-cooled

Short-circuit protection

No automatic recovery, need to restart the machine

Working environment

Noise ( 1 meter)

≤50dB

Degree of protection

IP20(indoor)

Working Altitude (m)

≤2000

Working temperature

-25~+55℃

relative humidity

0~90%,non-condensing

Mechanical dimension

Depth* Width * Height

700x750x1300mm

Weight (Kg)

360Kg

Certification

European CE(EMC & LVD), SAA
