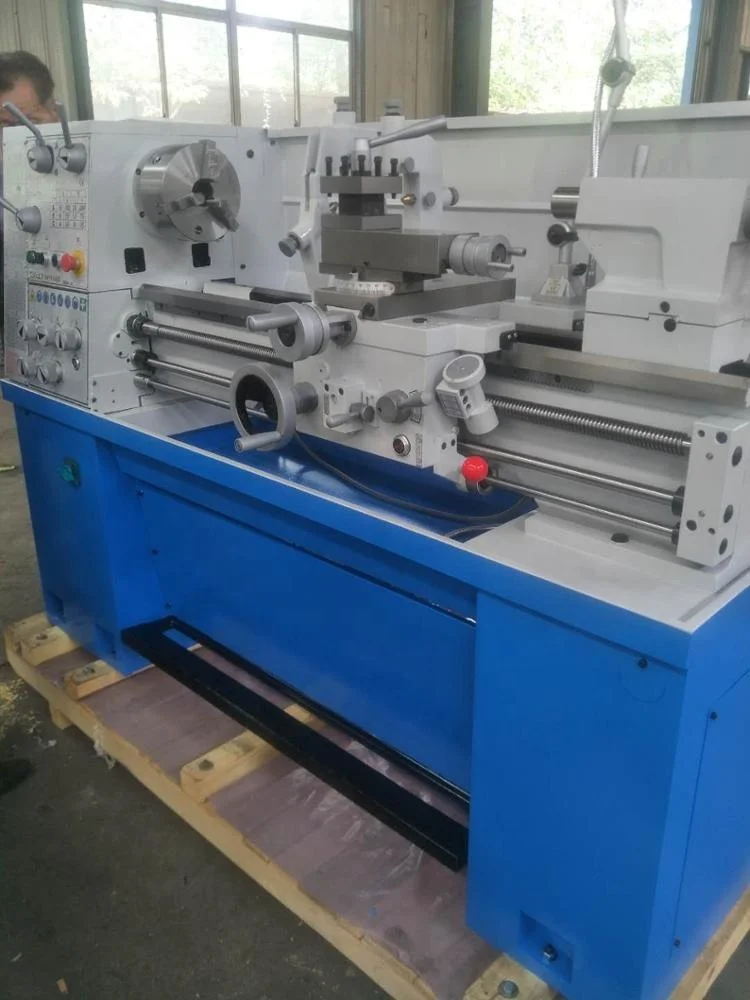

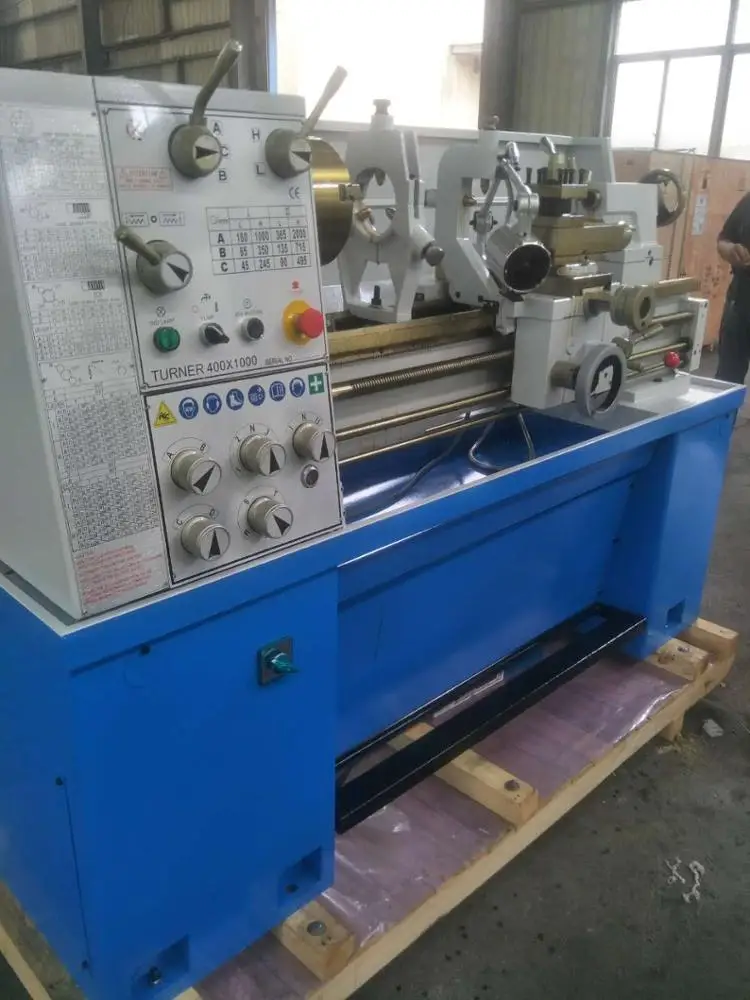

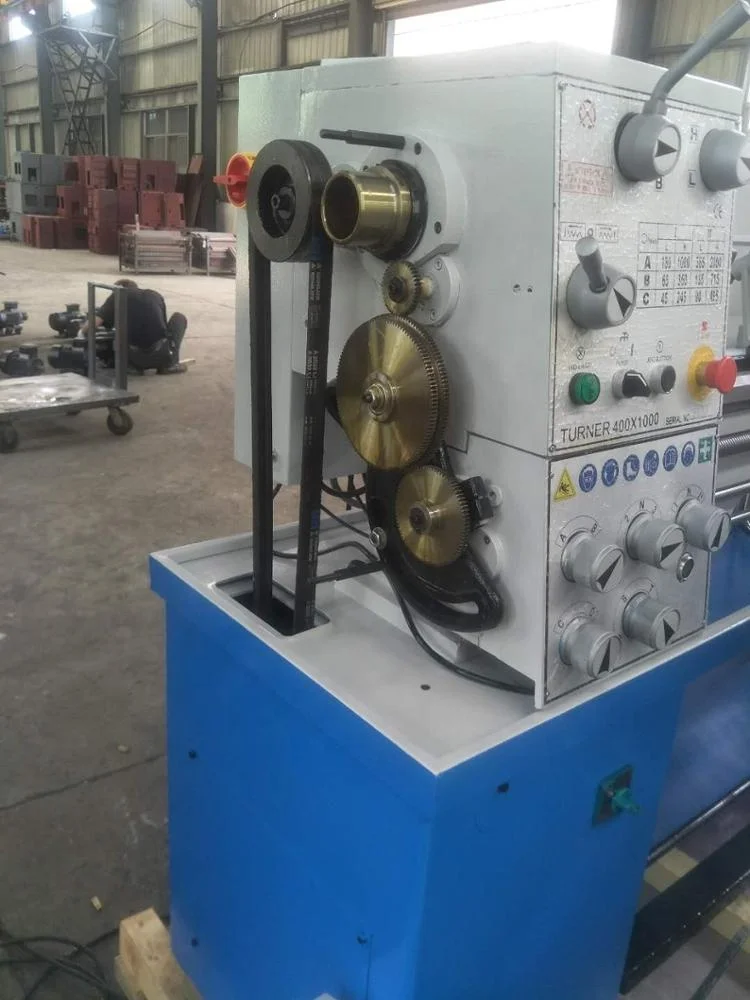

OC400*1000 engine metal lathe machine

Product Overview

Description

FEATURES:

* Induction hardened, precision ground V-way bed

* Hardened and precision ground gears in headstock

* D1-4 spindle supported by taper roller bearings

* Gap bed section provided for larger diameter work

* Gearbox has large feed and threading functions

* Carriage mounted spindle control lever

* Automatic feed and threading are fully interlocked





SPECIFICATIONS:

Distance between centers	1000 mm
Swing over bed	400 mm
Swing over gap	550 mm
Swing over cross slide	220 mm
Bed width	260 mm
Taper of spindle bore	MT6
Spindle nose	D1-5
Spindle bore	55 mm
Range of spindle speed	40-2000 rpm (12steps)
Range of cross feed	0.01-0.72 mm/r
Range of longitudinal feed	0.06-2.78 mm/r
Range of inch threads	2-28 T.P.I.
Range of metric threads	0.8-14 mm
Top slide travel	100 mm
Cross slide travel	180 mm
Travel of tailstock quill	120 mm
Taper of tailstock quill	MT4
Motor power	2.0 / 2.4 kw
Packing size	1950x750x1600 mm
Net weight	850 kgs



OC400 LATHE STANDARD ACCESSORIES:

1. with work light.

2. with cooling system.

3. with tailstock.

4. with operation instructions and spare parts list in english.

5. with 180 three jaws reversible chuck.

6. with 200 four jaws reversible chuck.

7. with face plate

8. with D5 camlock reception.

10. with magnetic quick brake motor.

11. with fixed steady.

12. with splash guard.
