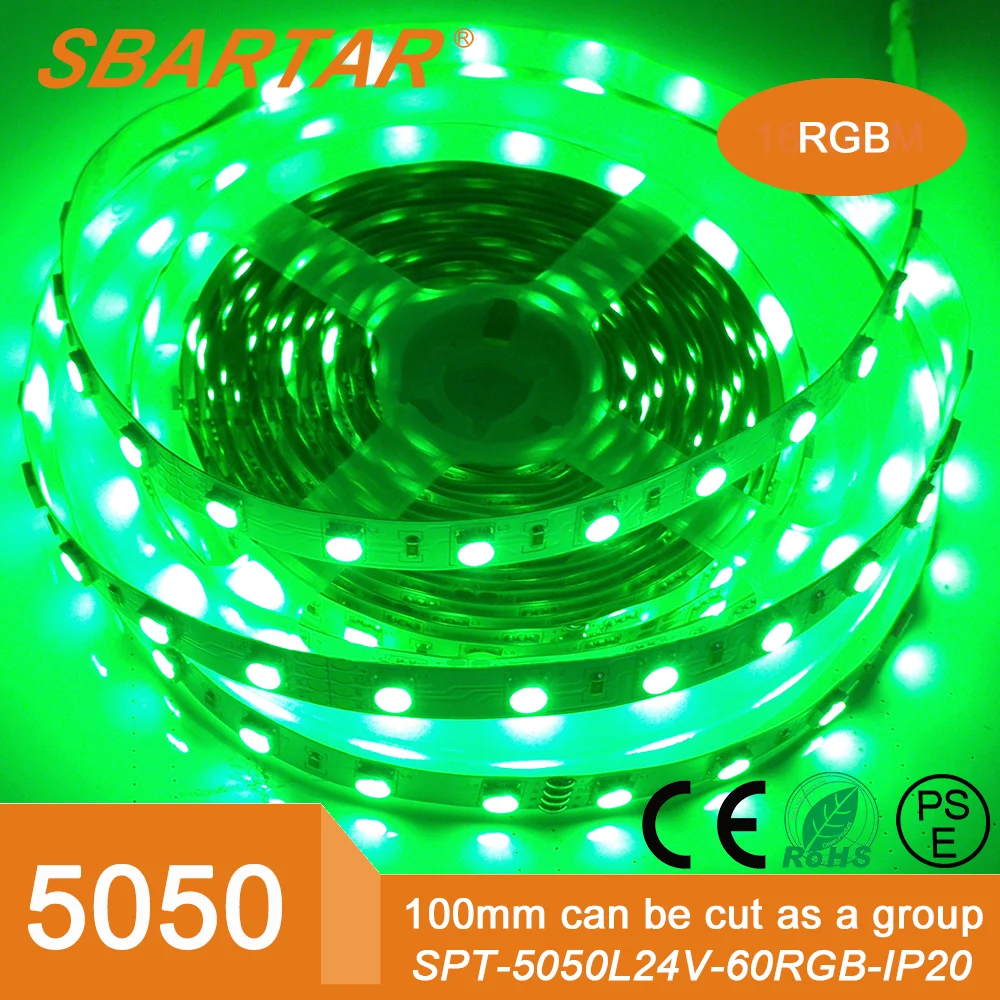

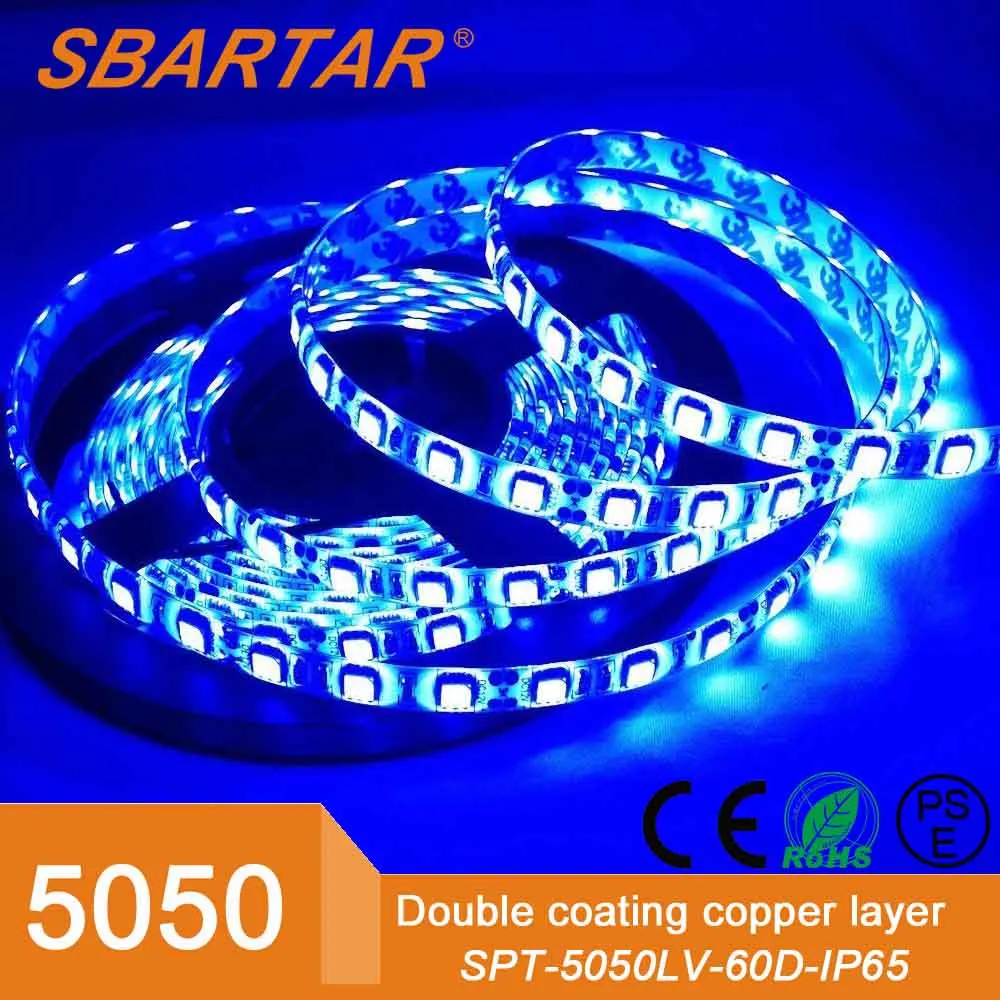

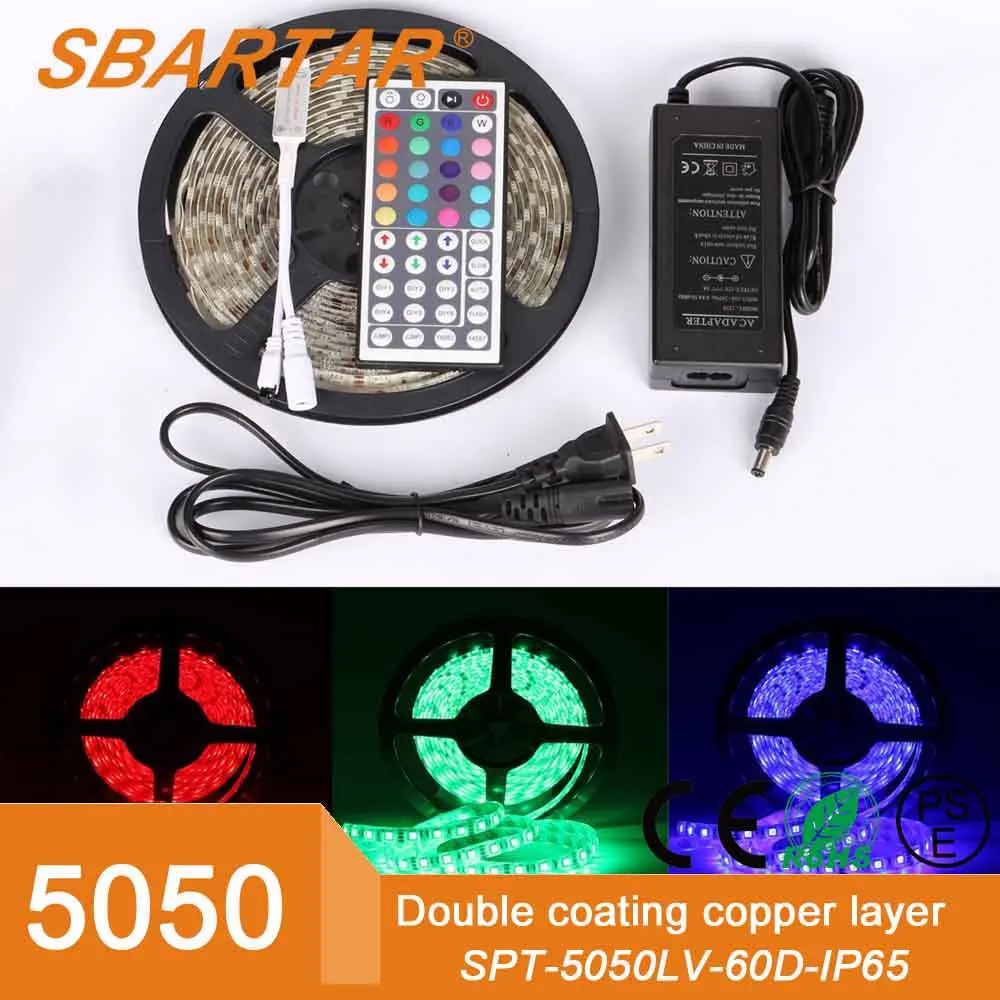

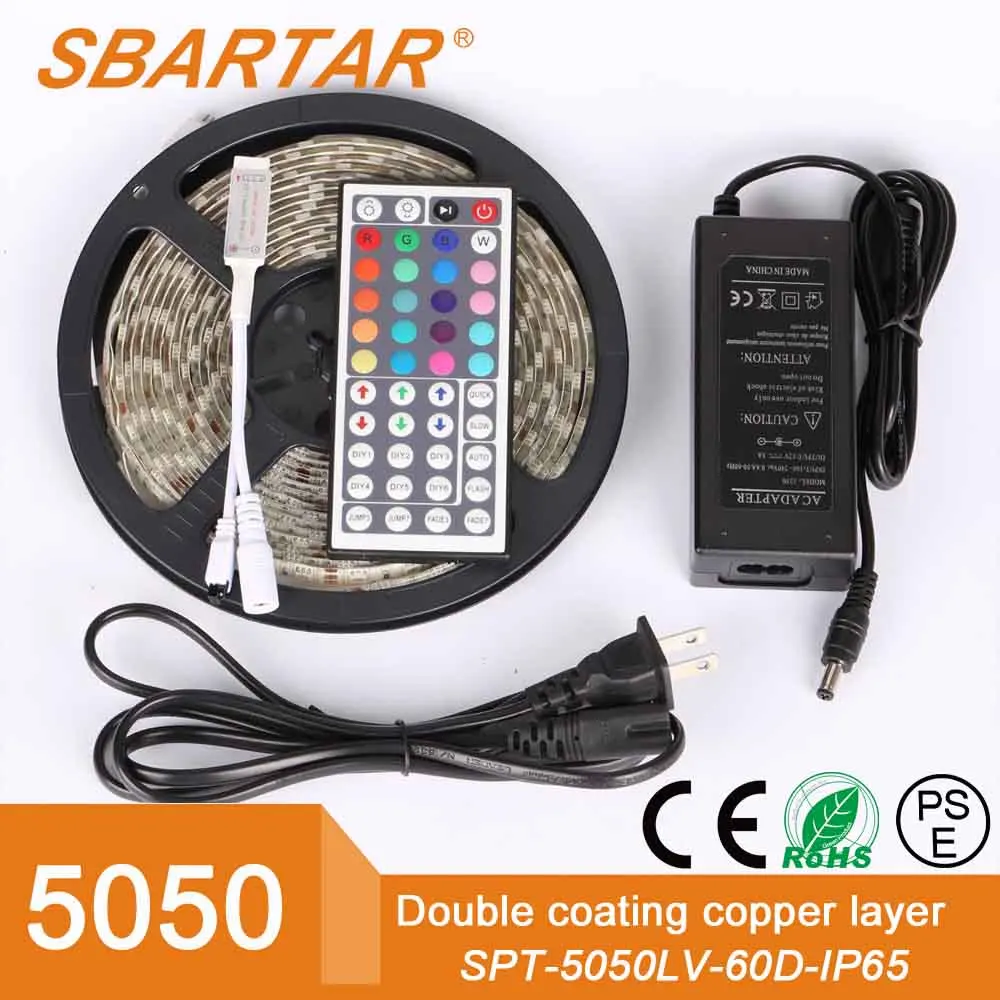

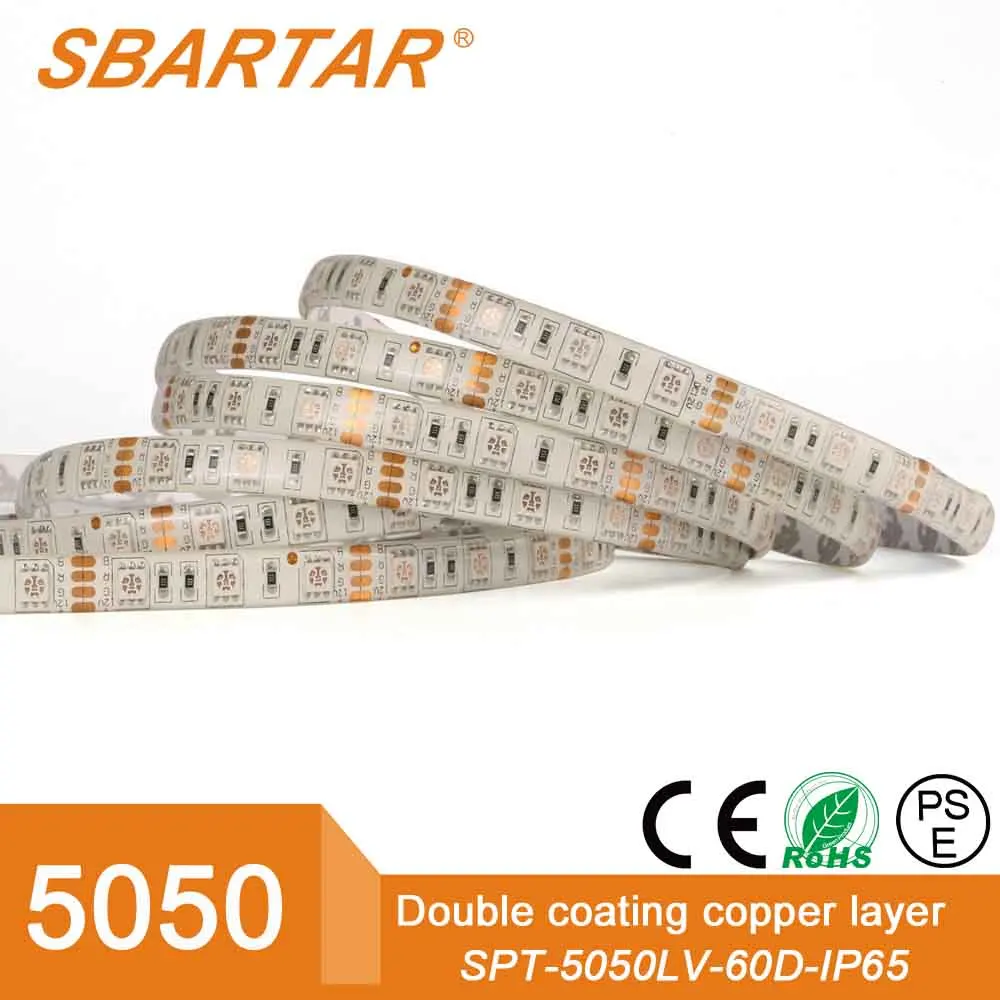

5Meter Waterproof Flexible Color Changing RGB SMD5050 300 LEDs Light Strip Kit with 44 Key Remote and 12V 5A Power Supply





Specification of     waterproof rgb led strip



Item	SPT-5050L12V-60RGB-IP65
LED type	SMD5050
LED chip brand	Epistar/Sanan
LED q'ty	60leds/M,300leds/5M
Input Voltage	DC24V (DC12V is optional)
Max. Power	14.4W/M
Current	0.6A (1.2A for DC24V)
PCB	10mm width double layer copper FPC
Dimension	W14.7*H7.5
Emitting color	Pink/Red/Green/Blue/Yellow/Purple/Cyan/White/Orange ect...
Beam angle	120 degree
IP grade	IP20, IP65 drop epoxy on surface
Minimum cuttable length	100mm can be cut as a group(along the cutting mark)
Working temperature	-20℃~+40℃
Working humidity	5%~95%
Material	LED+PFC+copper
Warranty	2 years



Features of    waterproof rgb led strip

• Superbright RGB strip light, high intensity and reliability

•   Every 3-LED cutable without damaging the rest strip

• Adhesive backing tape for secure and easy application to most surfaces
• Maintenance free, easy intallation


•   Highly quality control, five inspection process for the led







•  Double layer PCB board, FPC WIDTH:10mm



Application of     waterproof rgb led strip

• light up colorful home life,DIY household lights for hallways, stairs, trails ,windows,
•  Light up colorful life hotels decoration use,Theaters, clubs, shopping malls, festivals and performances
• Architectural decorative lighting,Archway, canopy and bridge edge lighting, Security lighting and Emergency,
• Extensively applied in Backlighting for signage letters, concealed lighting and advertisement sign lighting
• Applicable for automobile & Airplane model decoration, contour lighting or border.

Package of    waterproof rgb led strip

Item	Quantity	Meas.	G.W.	N.W.	Shipping Mark
SPT-5050L12V-60RGB-IP65	200 meters	44*24*28.5cm	9.5kg	8.5kg	LED FLEXIBLE STRIP



  Quality control of     waterproof rgb led strip

1. We check all the material before production with our advanced equipment, to ensure the specification of material meet our requirement or customer’s special requirement.
2. We do the red ink test and 24 hours aging test to make sure the LED is OK.
3. We keep sample of LED of each order, including detail specification, if customer require the same color temperature in different order, we can make it as request. If any problem happen, we can also check what the problem was.
4. We used automatic SMT machine to put soldering paste on the PCB, to ensure every soldering point has enough soldering paste, which can avoid miss soldering problem.
5. We use automatic computer controlled high temperature reflow soldering machine, to ensure all the LED and components well soldered on the PCB, and avoid miss soldering problem.
6. We will do the third QC of goods, check the soldering problem, outlook(clean or dirty), color consistence of LED, our QC will also do the beating test for the RGB Strip Light to avoid any soldering problem.
7. We do the temperture test(-20~50) for 48hours, most problems can be found here. We can fix them in this procedure. If many LED has problem, we will reject all the goods and make new one for our customers.





  Certificate of      waterproof rgb led strip
