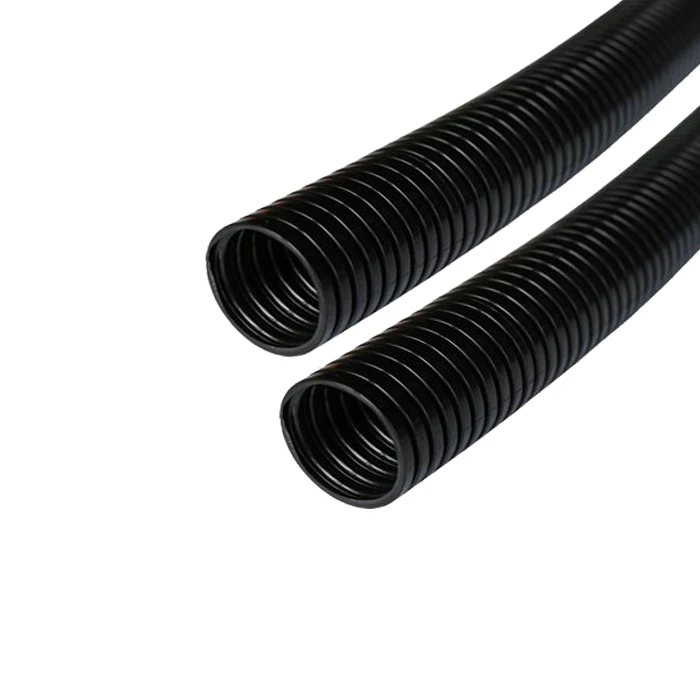

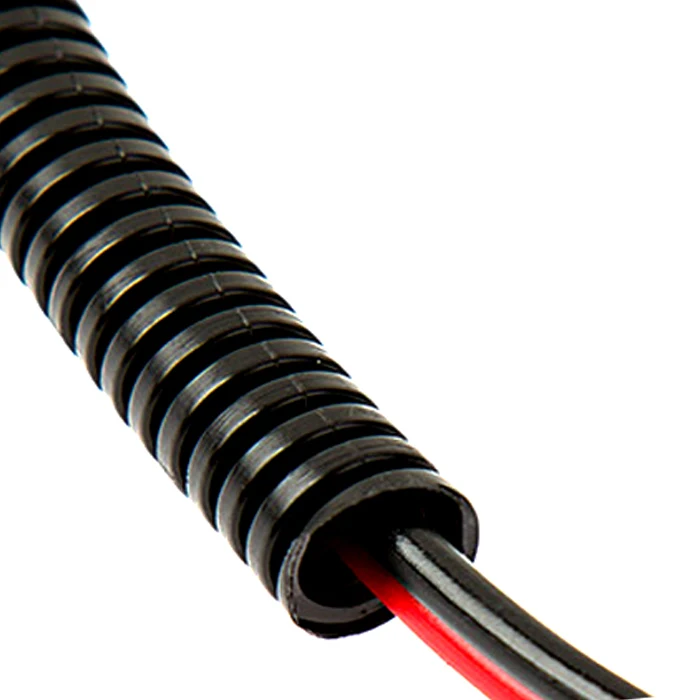

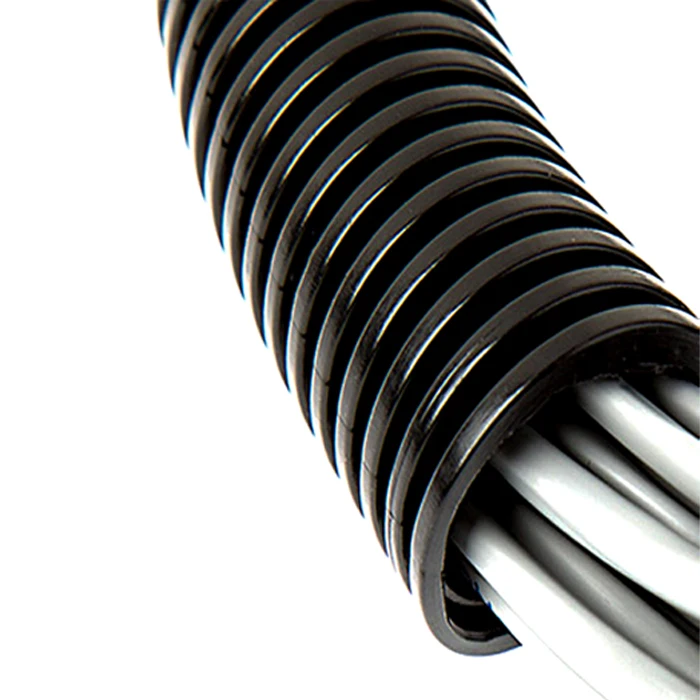

flexible waterproof electrical wire cable corrugate tube

Product Overview

Description

Specifications

1)Plastic PA6 Corrugate tube for Watersink comformed to ISO,ROSH ,TS16949
2)best quality &factory supplier

 size of  Corrugate tube

1)size:AD6.5--AD54.5 mm

2)used for watersink or liquid transport

3)can bears -40°c to +140°c

4)has long service life



Characterastic of  Corrugate tube
ΔPlastic curragate tube  material comprise    PA6  Plastic Nylon Corrugate tube

Δ has excellent flxcibility ,corrosion resistance .

Δ hight tempeture resistant,abrade resistance

Δ good anti-beveling,anti-water,excellent self-extingguishing.

Δ conform to the ROHS environmental protextion requirement.



use of Plastic Nylon Corrugate tube

1.machanical building;electric equipment;track locomotive,etc

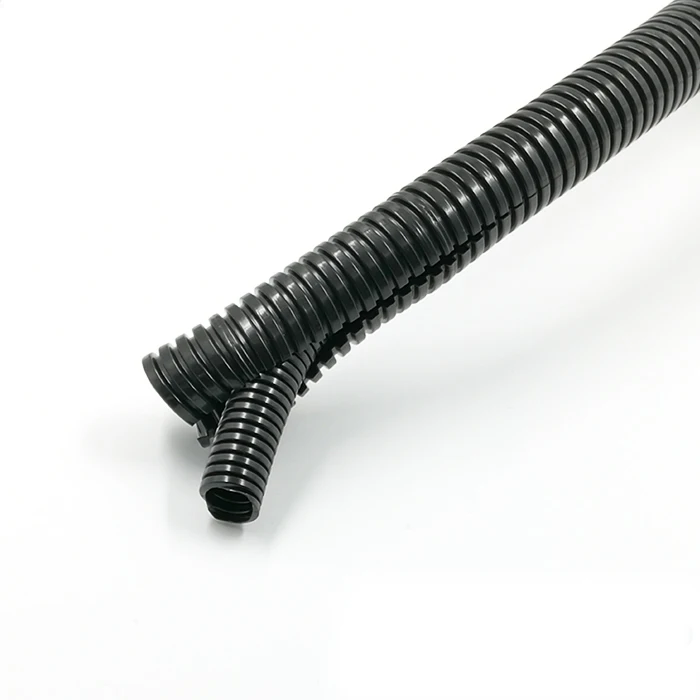

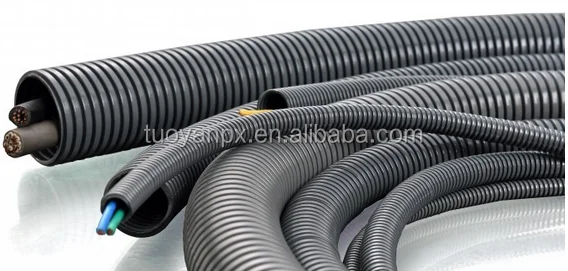

2.Corrugate tube is common in many applications where a light weight, protective covering is desired and flexibility is of primary importance. It offers protection against abrasion, puncturing, UV, weather, heat, and more. Its unique character and colorability (including clear) also make it desirable as a decorative covering for appliances, toys, and other applications. For use as wire conduit, corrugate tube is available slit to permit easy installation over completed electrical wiring.



PAY ATTENTION

◊ we can make all kinds  Corrugate tube  size according to your requst

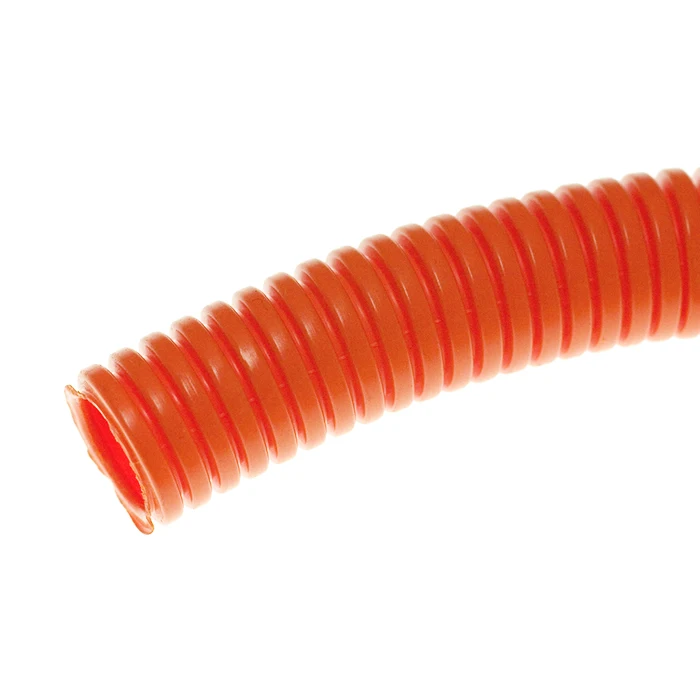

◊ Plastic curragate tube color is doable.

 Nylon corrugate  tube
1.Material:PA
2.Flammability:UL-94V0
3.Protection degree: IP68

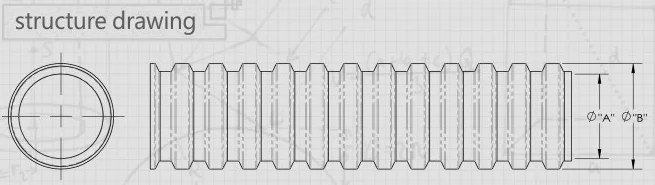

Specification of  flexible pipe	Inner diameter  d(mm)	Outer diameter  D(mm)	Curved radius (mm)	Packing (M)
AD10.0	1/4"	6.5	16	100
AD11.6		8.0	16
AD13.0	5/16"	10.0	20
AD15.8	3/8"	12.0	30
AD18.5		14.3	40
AD21.2	1/2"	17.0	45
AD25.0		20.0	45	50
AD28.5	3/4"	23.0	50
AD34.5	1"	29.0	60
AD42.5	1 1/4"	36.0	70
AD54.5	2"	48.0	90	25





 Certificate
