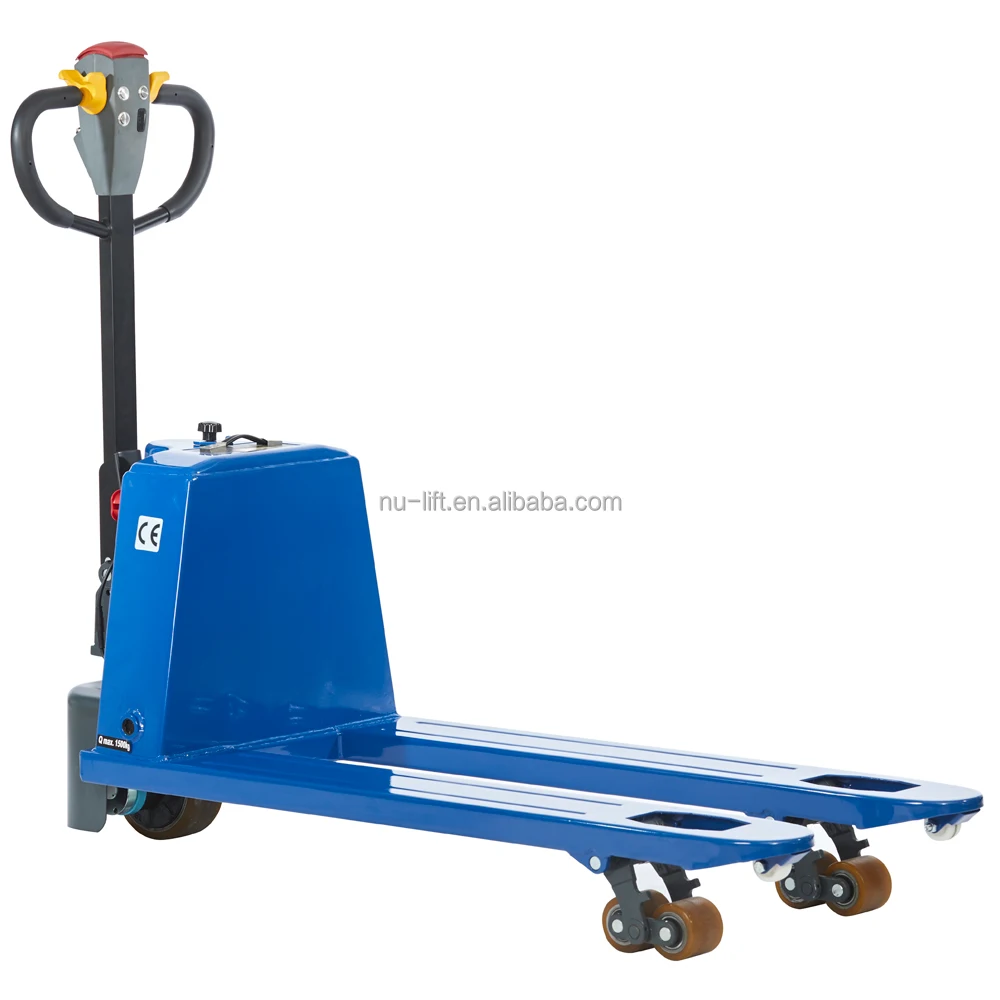

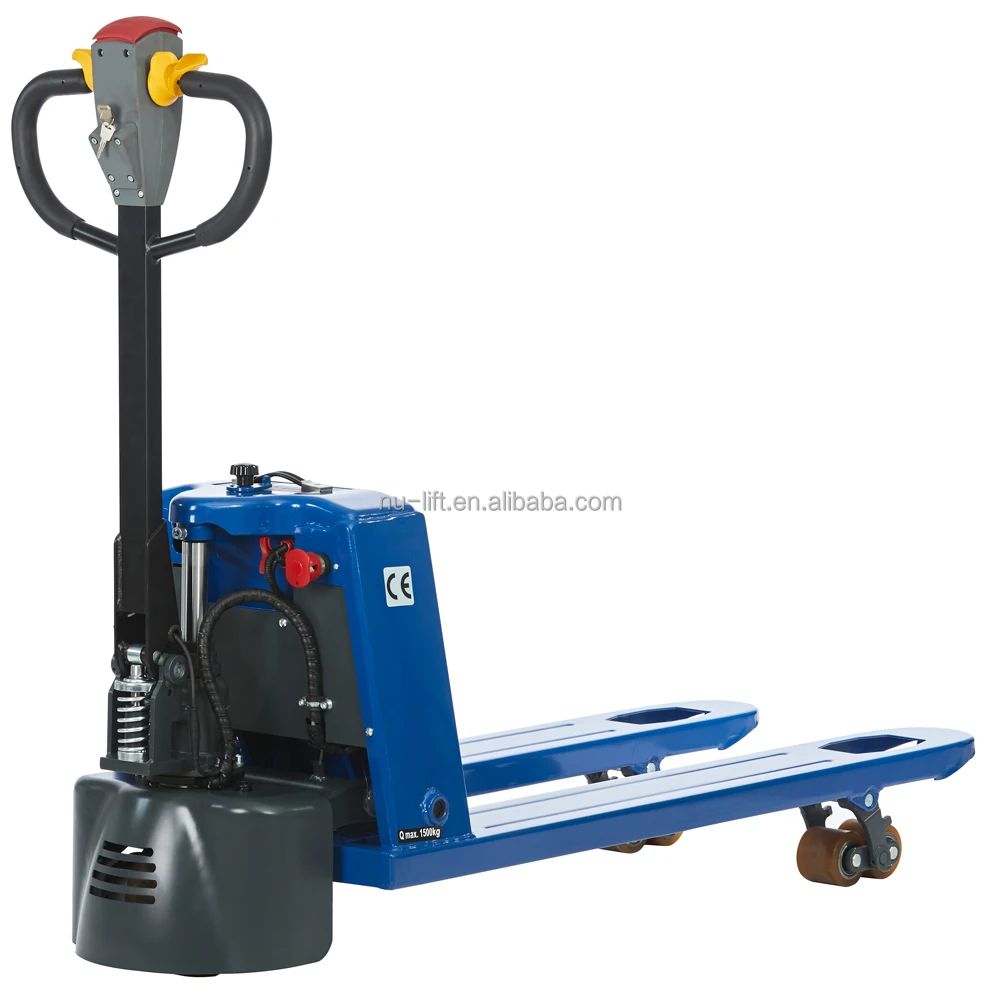

Electric Pallet Truck with lithium battery 2000Kg

Product Overview

Description

Product Description

•Capacity:2000Kg
• Electric drive and electric lift, increase productivity.

• It also combines the compact size of a hand truck with ease of movement to make it well suited for small spaces .It is easy to use and requires virtually no maintenance.

• This truck will eliminate the strain from pulling and pushing a hand truck.This 2000kgs capacity machine is another step towards an ergonomic workplace.

• Suitable for indoor applications such as stores,back of store, supermarkets,light industry,hospitals,phamacies,libraries etc.

• Equipped with maintenance-free lithium battery 48V/15AH for easy replacement.

• Equipped with electromagnetic brake, it can stop on the slope.

• Tandem fork rollers as standard configuration , and with additional supporting wheels.

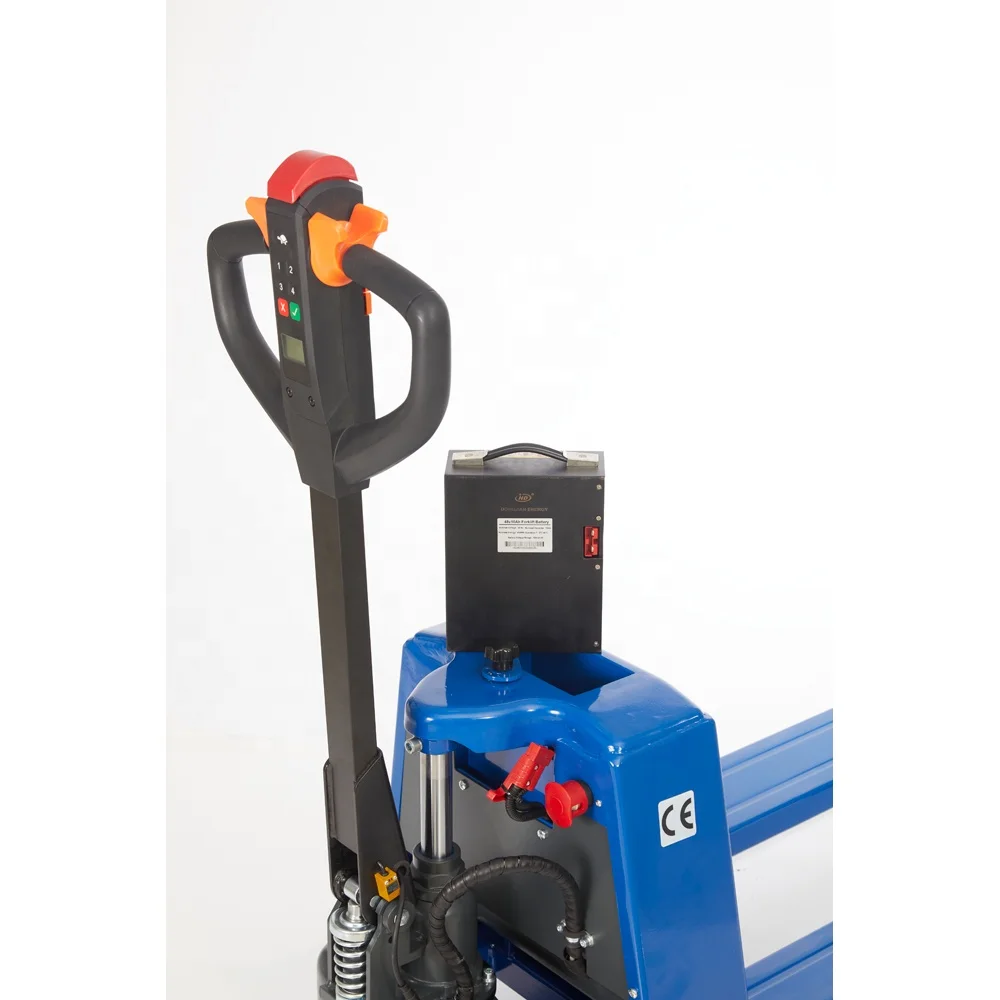

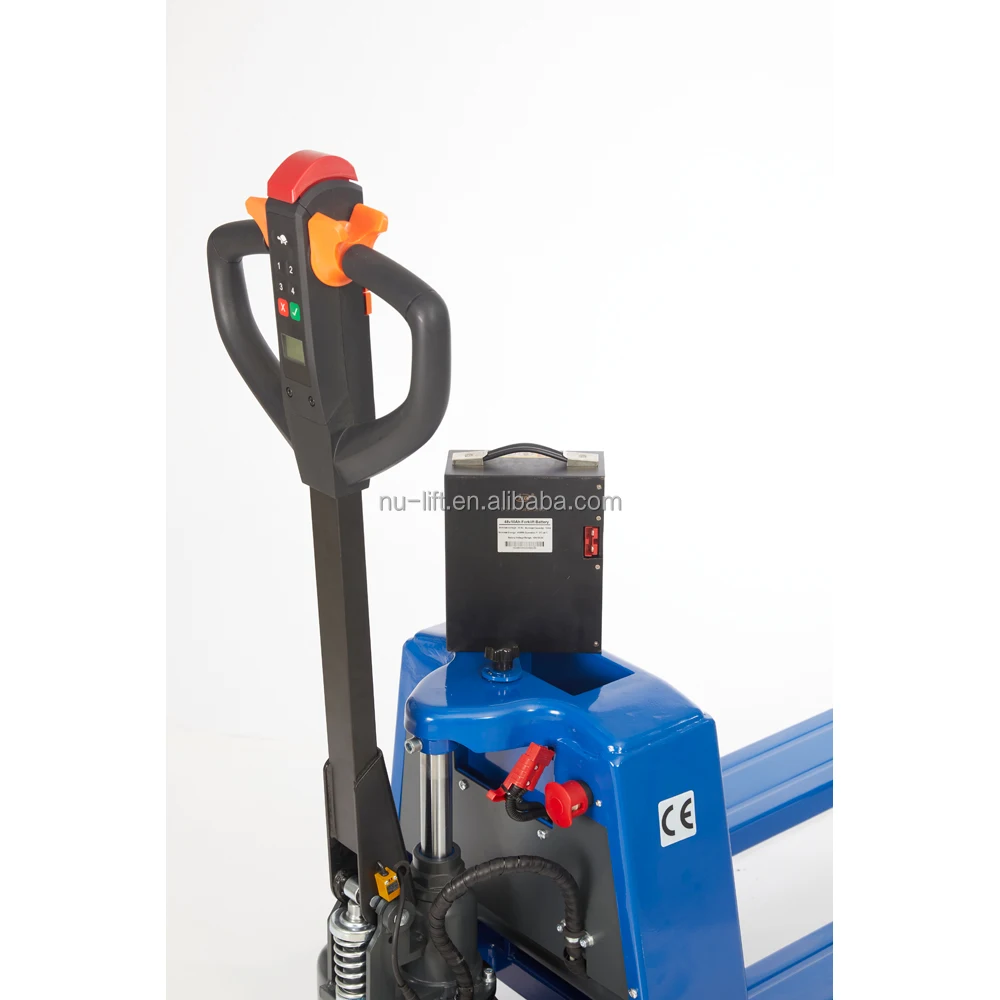

                                                                                Quick-replaceable lithium battery

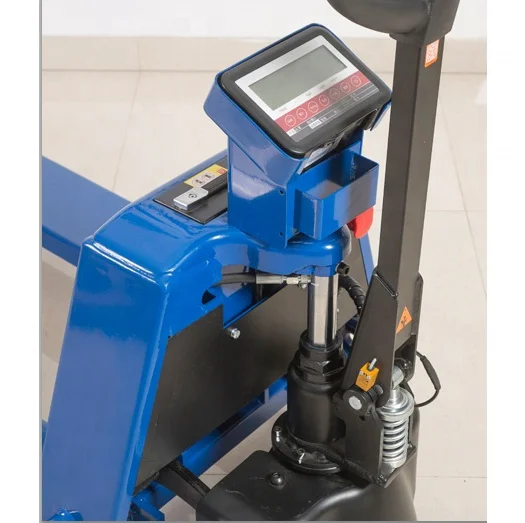

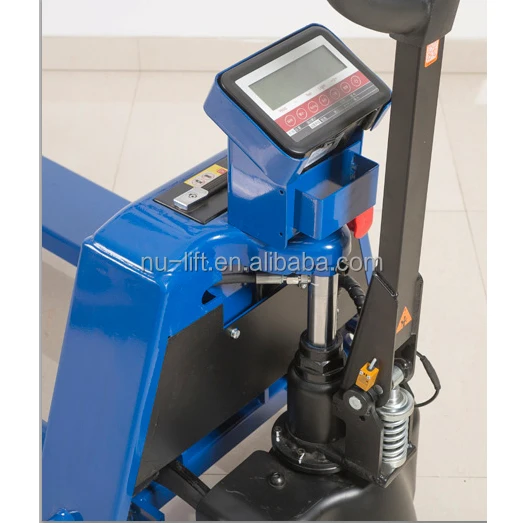

                                                                                         with SCALE





Model		EPT20E	EPTP20E
Drive		Battery type	Battery type with SCALE
Operator Type		Pedestrian
Capacity	(kg)	2000	2000
Load Centre	(mm)	600	600
Wheelbase	(mm)	1220	1220
Wheel Material		PU	PU
Drive Wheel	(mm)	210x70	210x70
Load Roller	(mm)	80x70	80x70
Lifting Height	(mm)	110	110
Height of Tiller in Drive Position Min/Max	(mm)	1200	1200
Min Fork Height	(mm)	85	85
Totally Length	(mm)	1540	1540
Totally Width	(mm)	560/680	560/680
Single Fork Dimensions	(mm)	160x1150	160x1150
Ground Clearance	(mm)	30	30
Turning Radius	(mm)	1350	1350
Drive Speed with/without Loading	(km/h)	4.5	4.5
Lifting Speed with/without Loading	(mm/s)	22/17	22/17
Lowering Speed with/without Loading	(mm/s)	26/30	26/30
Drive Motor	(W)	750	750
Lifting Motor	(W)	500	500
Battery	(V/AH)	48v/15Ah	48v/15Ah
Battery Weight	(kg)	4.5	4.5
Charging Time	(hr)	3	3
Working Time after Full Charge	(hr)	1.5	1.5
Net Weight	(kg)	132	140
