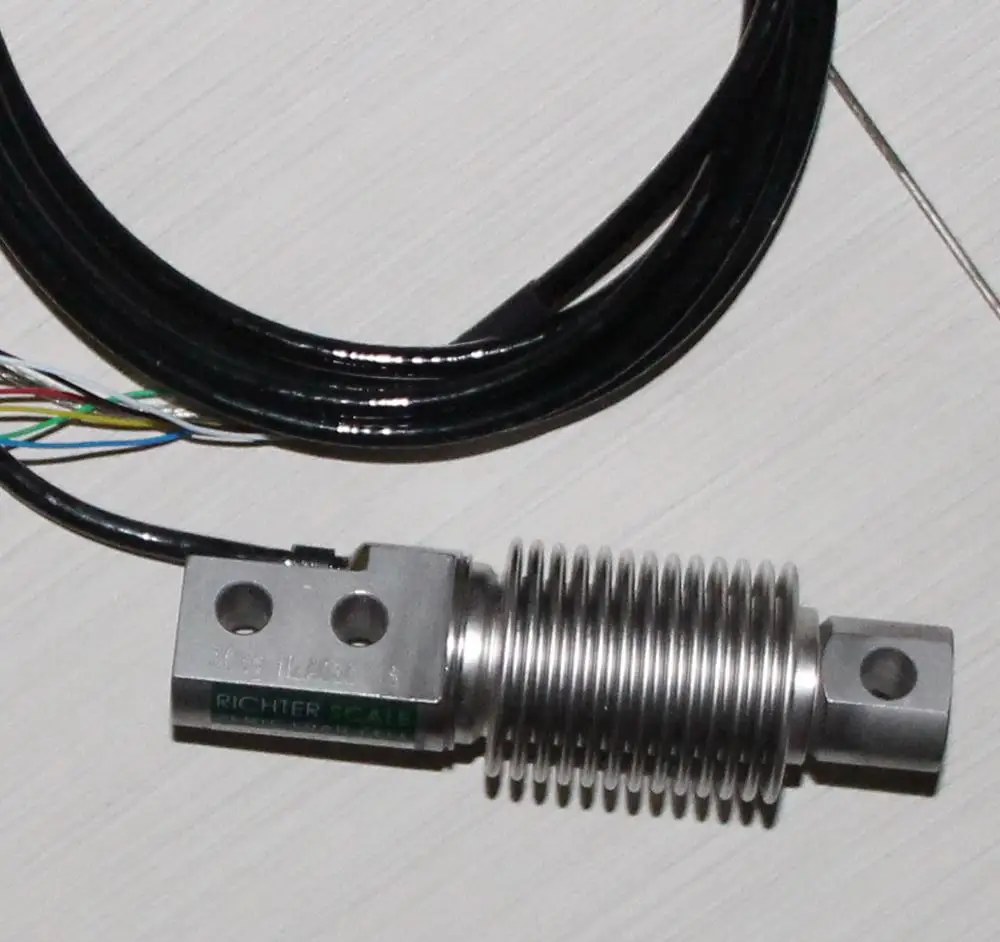

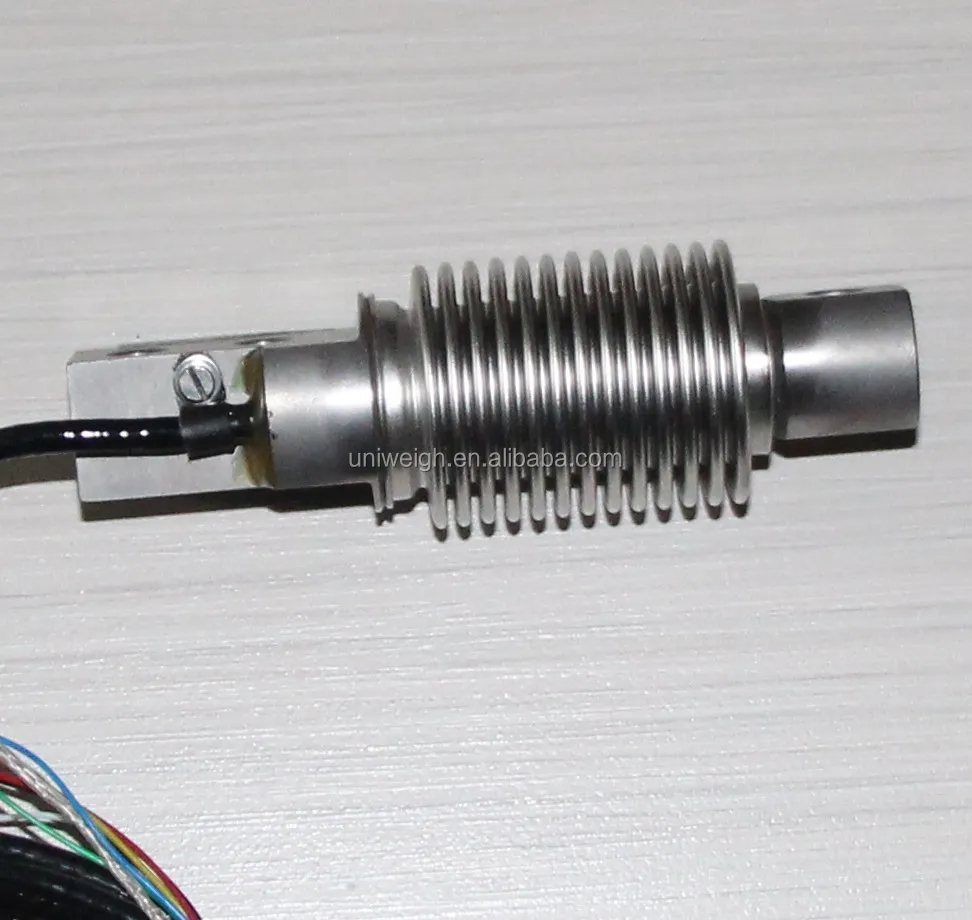

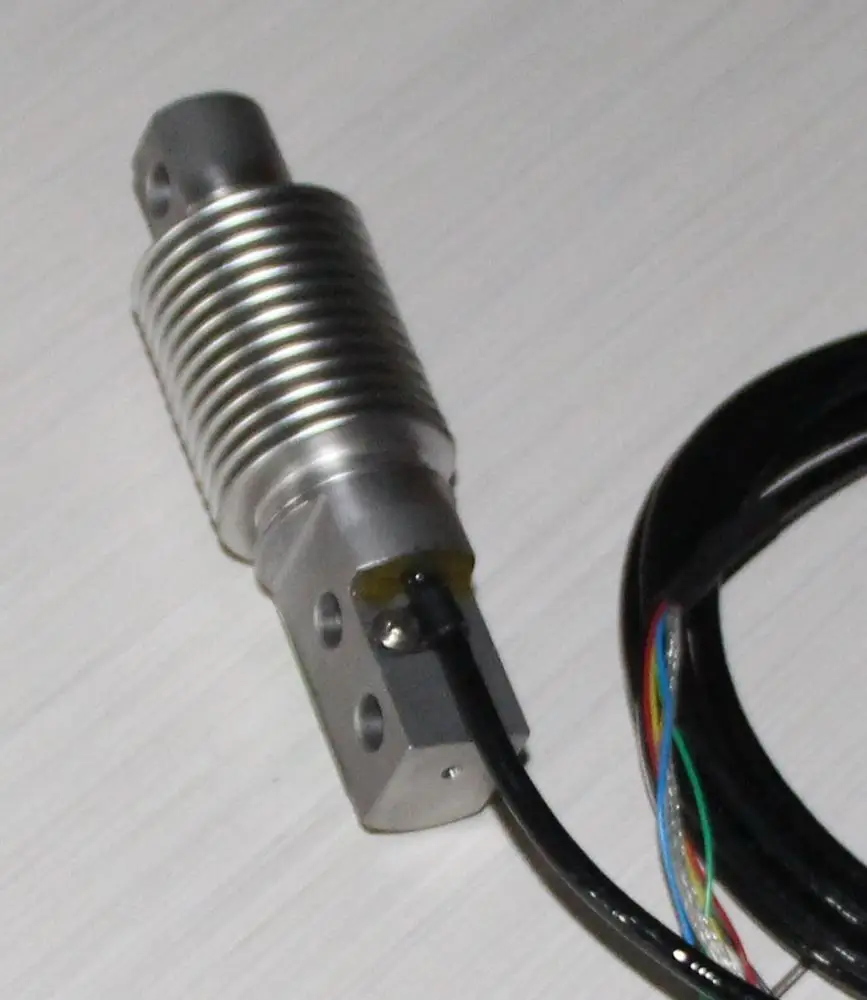

5 500kg stainless steel single point BM11 loadcell for electronic weight machine

BM11 load cells are available in the capacities 5kg to 500kg. Strainless steel construction,welded with bellow,potted by adhesive inside,oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments. Single point with bellow, easy installation,suitable for crane scales, mechanical conversion scales,hopper scales and other electronic weighing devices. Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.

kg

5/10/20/30/50/100/200/250/300/350/500

Accuracy class

C2

C3

A5S

A5M

B10S

B10M

Approval

OIML R60 C3

III 5000 multiform

III L10000 multiform

Maximum number of verification intervals

n max

2000

3000

5000

5000

10000

10000

Minimum load cell verification interval

v min

Emax/5000

Emax /10000

Emax /15000

Emax /15000

Emax /10000

Emax /10000

Combined error

(%FS)

≤±0.030

≤±0.020

≤±0.018

≤±0.026

≤±0.035

≤±0.050

Creep

(%FS/30min)

≤±0.024

≤±0.016

≤±0.012

≤±0.017

≤±0.030

≤±0.040

Temperature effect on sensitivity

(%FS/10℃)

≤±0.017

≤±0.011

≤±0.009

≤±0.013

≤±0.030

≤±0.040

Temperature effect on zero

(%FS/10℃)

≤±0.023

≤±0.015

≤±0.010

≤±0.014

≤±0.030

≤±0.020

Output sensitivity

(mv/v)

2.0±0.02

Input resistance

(Ω)

460±50

Output resistance

(Ω)

351±2

Insulation resistance

(MΩ)

≥ 5000(50VDC)

Zero balance

(%FS)

1.0

Temperature, compensated

(℃)

-10~+40

Temperature, allowed

(℃)

-35~+65

Excitation, Recommended

(V)

5~12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimate overload

(%FS)

300
