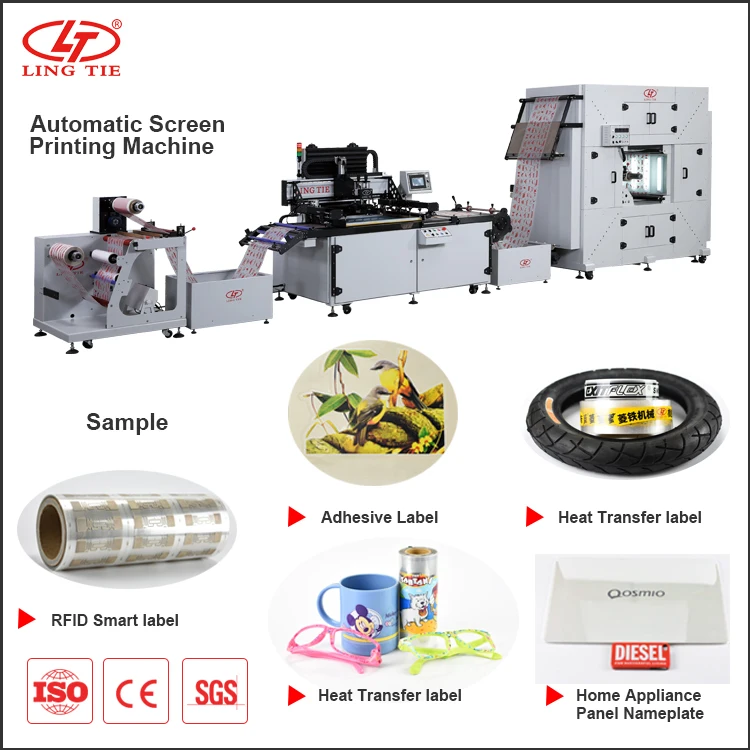

Label Ribbon Automatic Silk Screen Printing Machine
- Category: >>>
- Supplier: Lingtie (Xiamen) Machinery Co. Ltd.
Share on (60401597006):
Product Overview
Description
Best Selling
Product Description
The squeegee and flood bar printing angle and pressure is adjustable to fit different printing tasks.
The aluminum alloy machine frame ensures high stability and no deformation.
User-friendly touch screen control panel for maximum operation convenience.
The printing head rises and falls vertically for convenient access to screen and squeegee.
Technical Parameters | ||
Model | LTA-5070 | |
Print Area | 530*750mm | |
Print Speed | 0-2500t/h | |
Screen Frame Area | 800*1100mm | |
Max. Paper Width | 520mm | |
Inspection Table Max. Size | 600*600mm | |
Air Source | 0.4-0.6mpa | |
Power | 1P 220V 3KW/3P 380V 3KW(Customizable) | |
Printing Material Thickness | 0.02-0.5mm | |
Weight | 1700kg | |
Machine Size | L2950*W1160*H1865mm | |

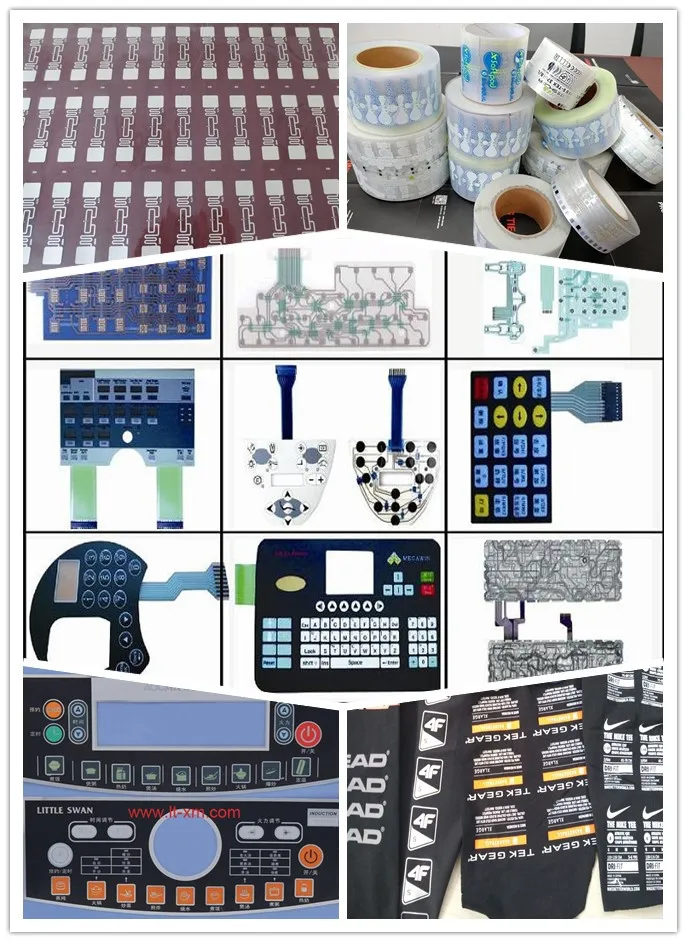

Application
heat transfer/water transfer labels and stickers, blood glucose test paper, membrane switches, IMD, IML, FPC, RFID, graphic overlay, nameplate and non-woven fabric, PVC, PET, PP, PC, PE, BOPP, etc.
Components

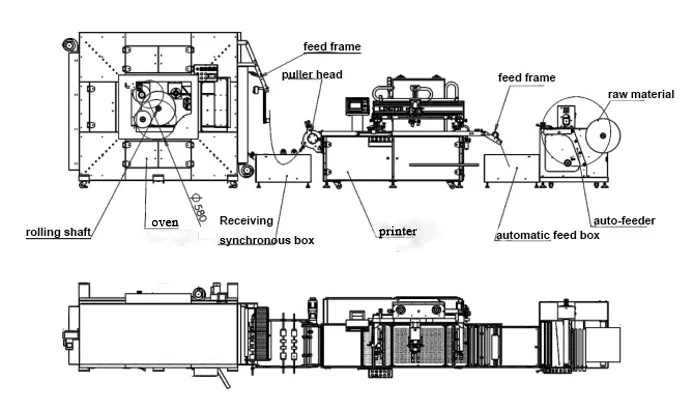

The Automatic Screen Printing Machine is composed of an automatic feeding machine, automatic printing machine and automatic oven.
Introduction of the Three Components

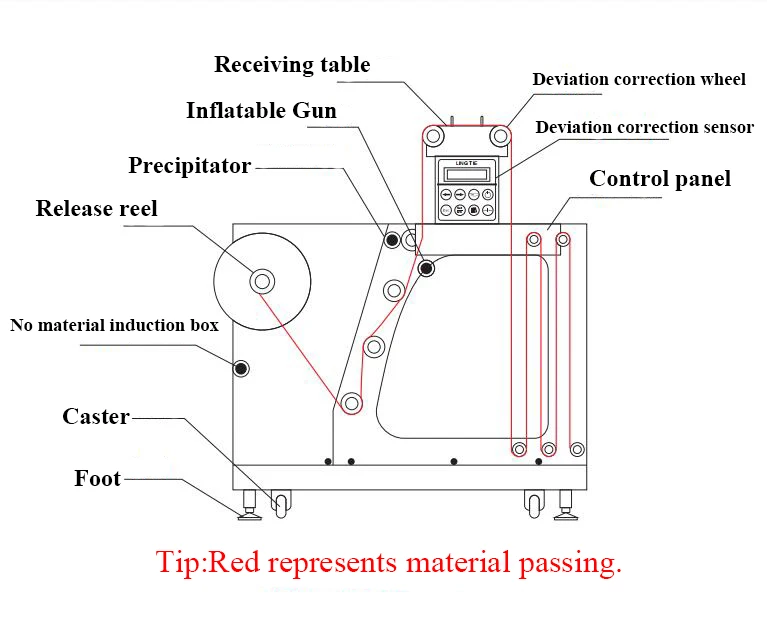

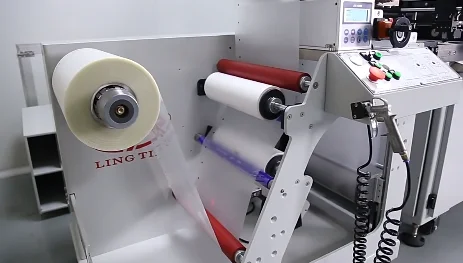

automatic feeding machine
1. It is mainly used to feed all kinds of roll material and cooperate with automatic screen printer.
2. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
3. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
The feeding machine adopts imported photoelectric switch control, avoid scratching material, and can automatically adjust the feeding length.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device
2. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
3. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
The feeding machine adopts imported photoelectric switch control, avoid scratching material, and can automatically adjust the feeding length.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device

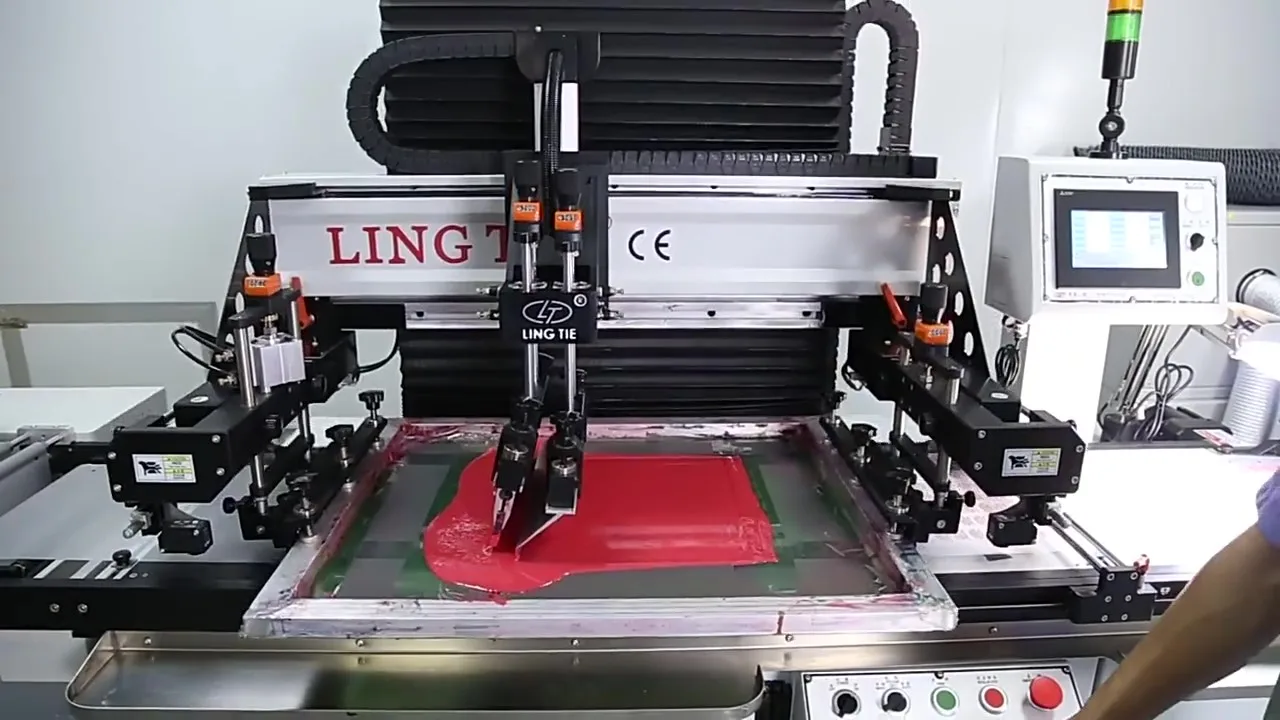

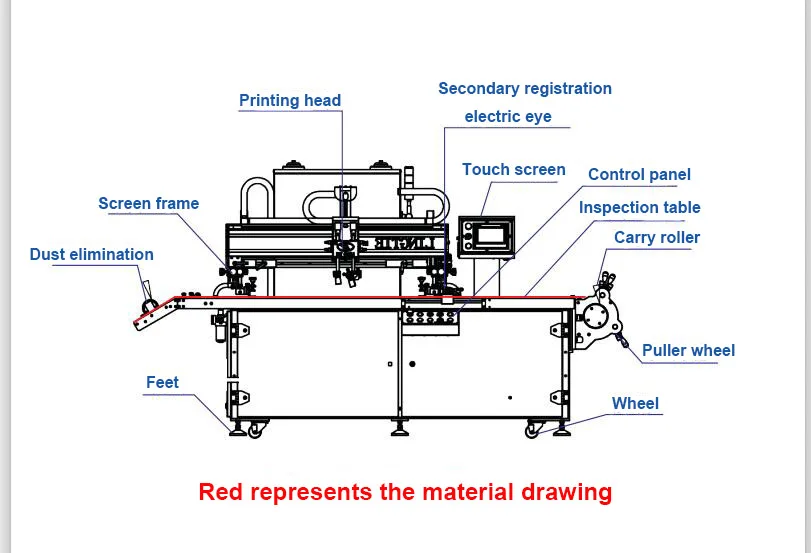

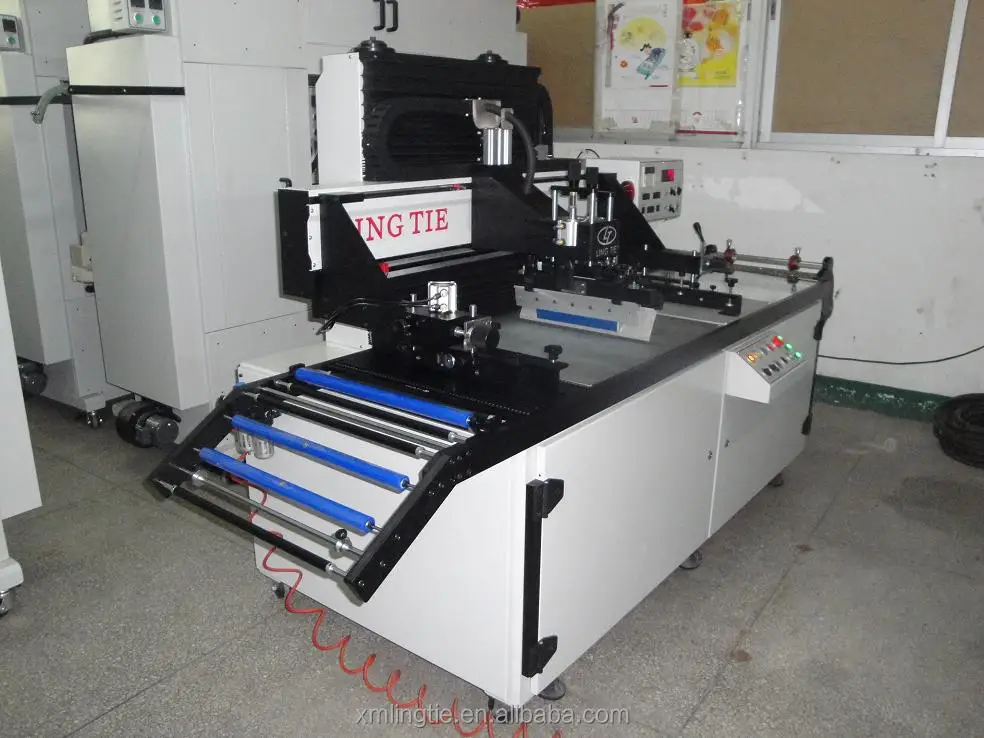

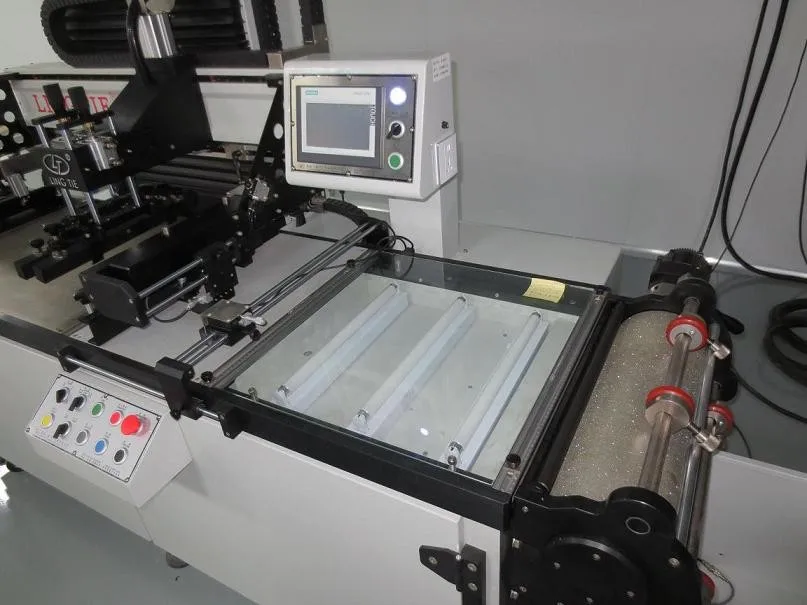

automatic printing machine
1. The printing seat adopts 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and durability.
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.
4. Equipped with a man-machine system.

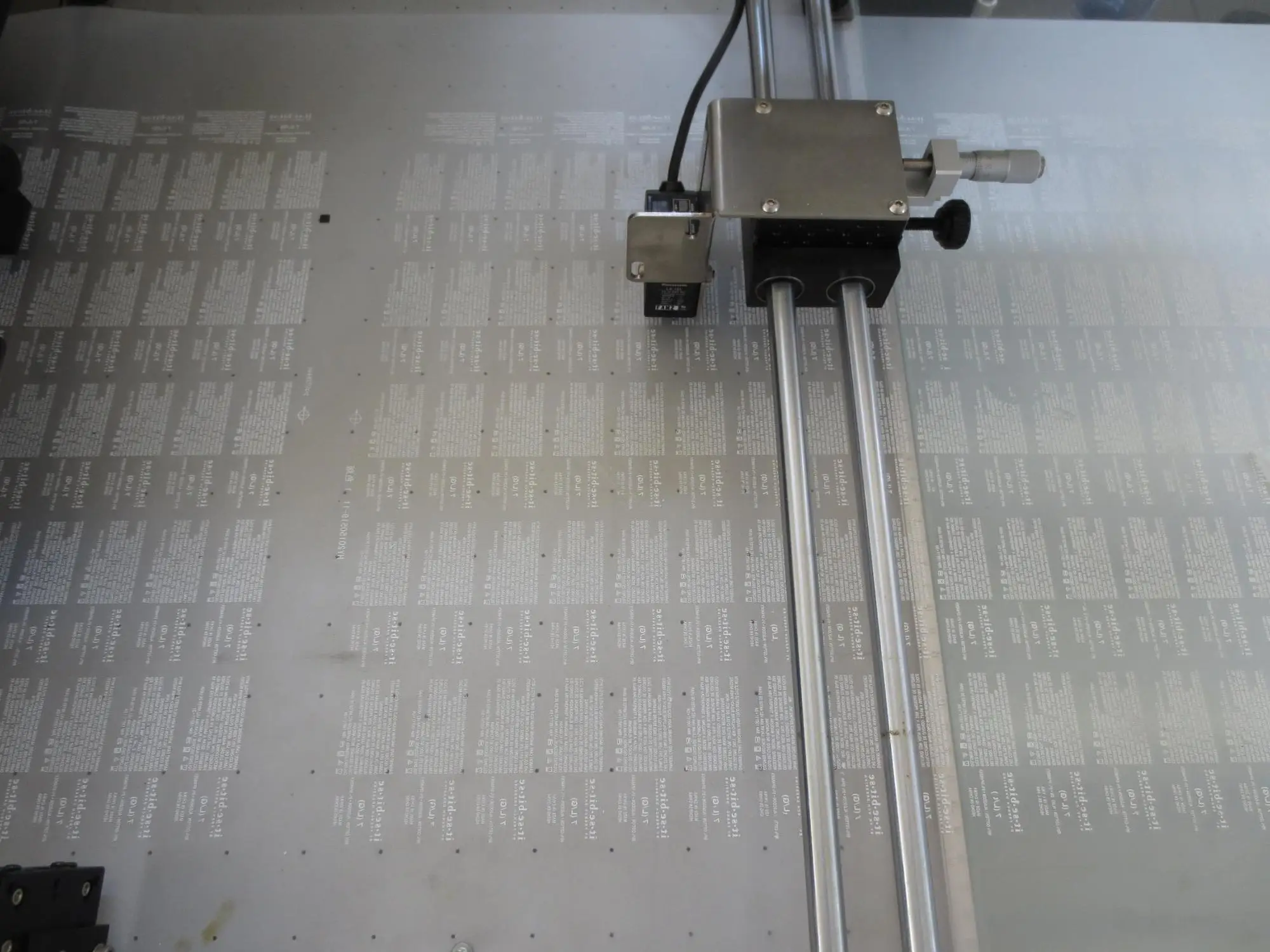

5. It features an automatic registration system with three sensors to ensure high printing precision for multi color overprint.
Optional functions:
1) Automatic punching function
2) automatic register system
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.
4. Equipped with a man-machine system.
5. It features an automatic registration system with three sensors to ensure high printing precision for multi color overprint.
Optional functions:
1) Automatic punching function
2) automatic register system
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device

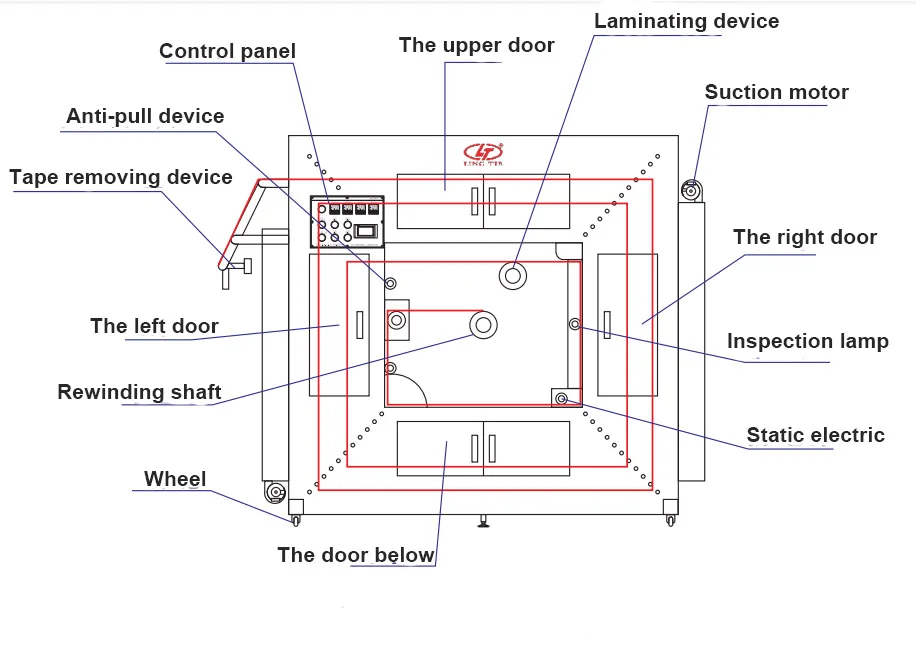

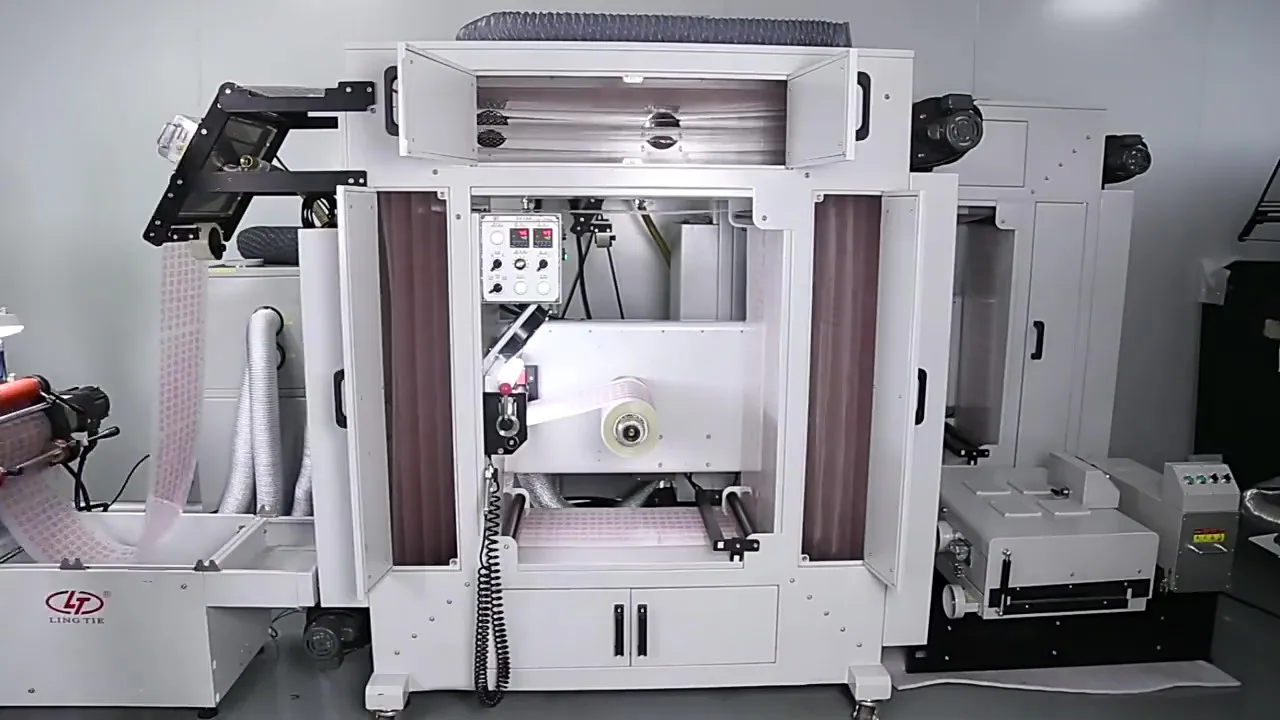

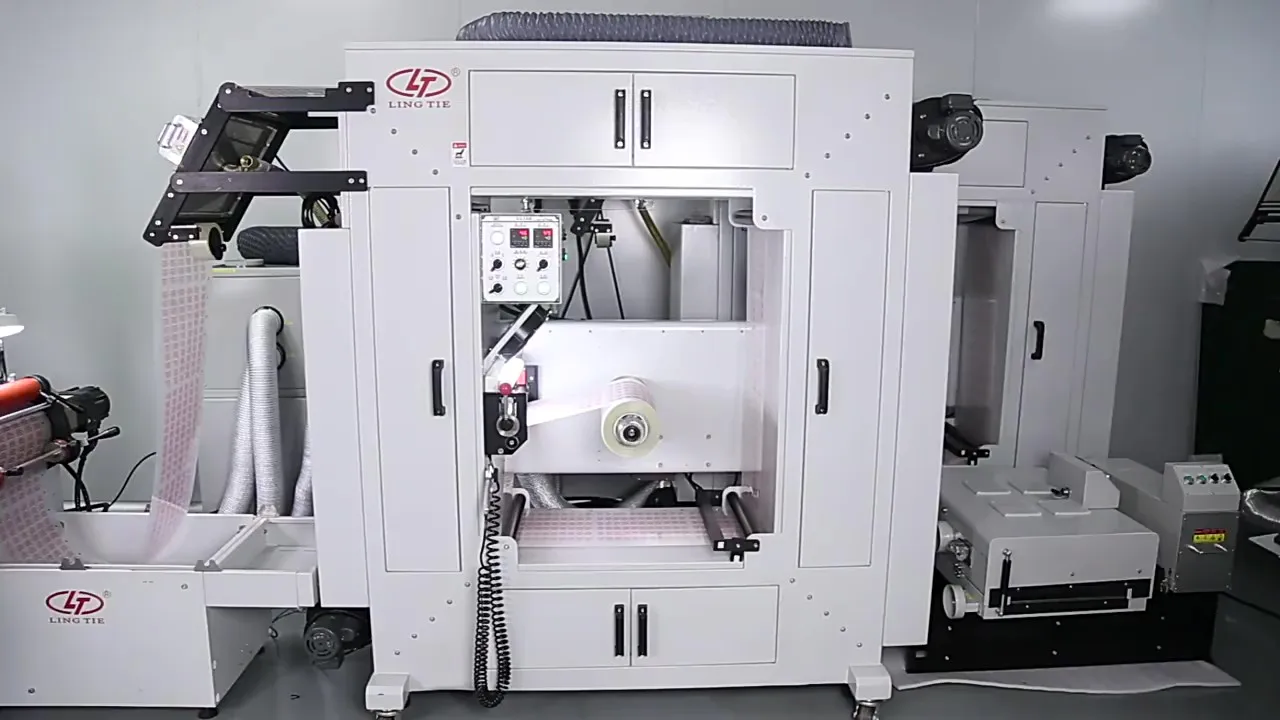

hot air dryer
1. Adopts uniform speed function to ensure that the material stays in the oven at any position for the same time and rewinding speed.
2. Oven with 4 sides, 4 sides heating, air circulation more smooth.
3. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
4. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
6) Laminating device
2. Oven with 4 sides, 4 sides heating, air circulation more smooth.
3. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
4. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
6) Laminating device
