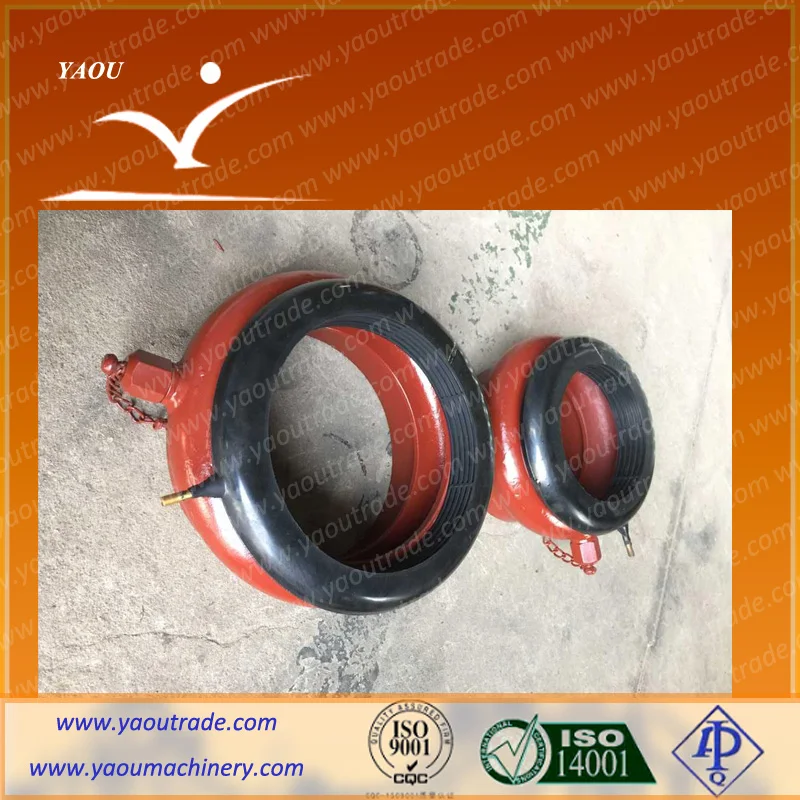

Pipe Clamps Oil Drilling Rig Pipe Parts weco Hammer Unions

 1.oil field hammer union types:

The Hammer Union type mainly consists of Figure 100, Figure 200, Figure 206, Figure 400, Figure 600, Figure 602, Figure 1002, Figure 1003, Figure 1502 and Figure 2002.

2.Application of oil field hammer union:

The Hammer Union can be used for cementing trucks, all kinds of manifolds and other high pressure equipment, and pipes. It is an important part for transporting oil. Water, fracturing fluid and mixed fluid.

3.Featue of oil field hammer union:

1) These products are all made of high quality steel by forging and finishing cut.

2) They have good Mechanical performance and sealing property. Especially they can operate under the bad weather condition

3) They can be assembled fixed easily and conveniently.

4) Main technical parameter model number collecting norm working pressure, structural length drift diameter

5) The product adopts some end connections of pipeline thread, tubing thread, butt-weld.

FIG 100

FIG 200, 206
* socket weld and butt weld are also available

FIG 602
*SCH 160 and SCH XXH butt weld are also available
