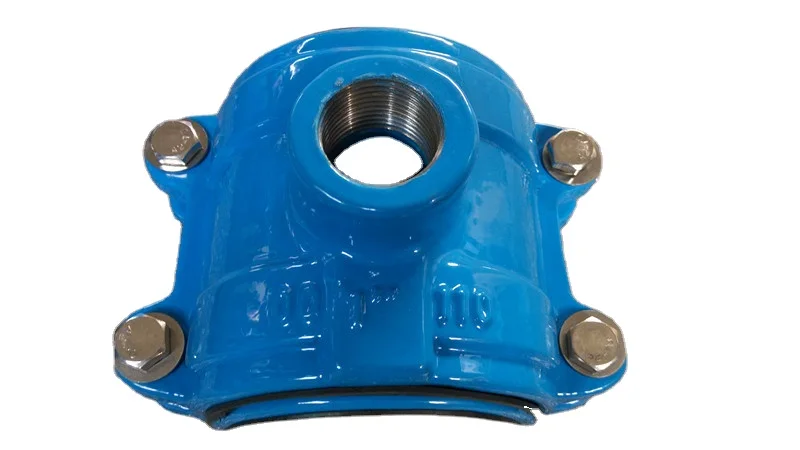

ductile iron saddle clamp for pvc pe pipe
ductile iron saddle clamp for pvc pe pipe
ductile iron saddle clamp for pvc pe pipe
ductile iron saddle clamp for pvc pe pipe

ductile iron saddle clamp for pvc pe pipe

Share on (60401795629):


Price:$6.00

Quantity:


Product Overview

Description

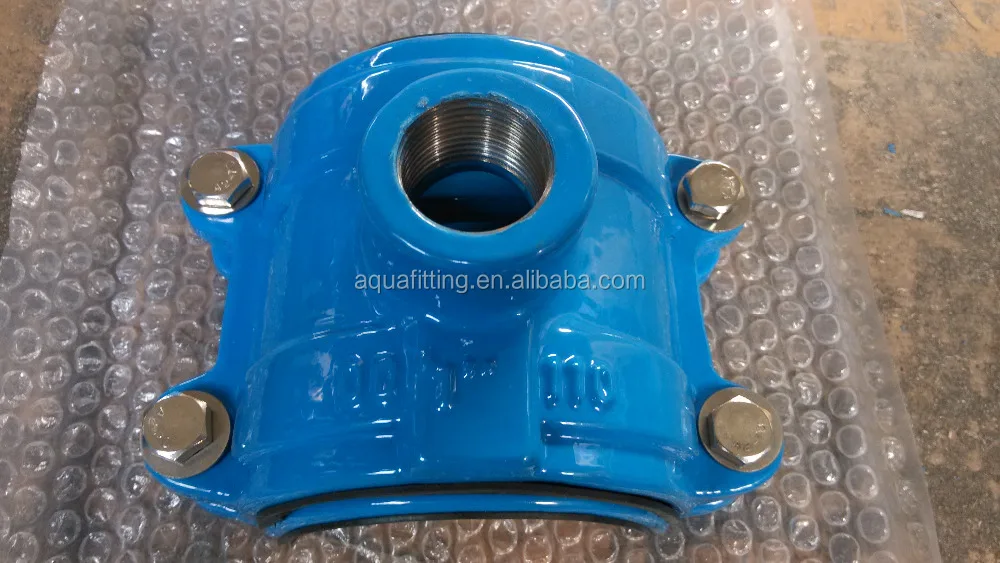

TAPPING SADDLE FOR PVC/PE PIPE






  • APPLICATION


Tapping saddle is for connecting pvc and pe pipe.the outlet can be thread or flanged

to connect with pipes,valves etc.


We also develope other kinds of saddle for DI pipe.


Size from DN40-DN350











  • PRESSURE


 PN10, PN16, PN25. Flange according to ISO2531/ EN545,/EN1092






  • MATERIAL





























Body





      Ductile Iron  GGG50/40

Gland





      Ductile Iron  GGG50/40

 Gasket





      EPDM according to EN681-1

 Bolt &Nut





     Stainless steel A2-70

 Coating





     Fusion boned epoxy more than 250 micron/ Rilsan Nylon





  • SPECIFICATION


saddle PVC2

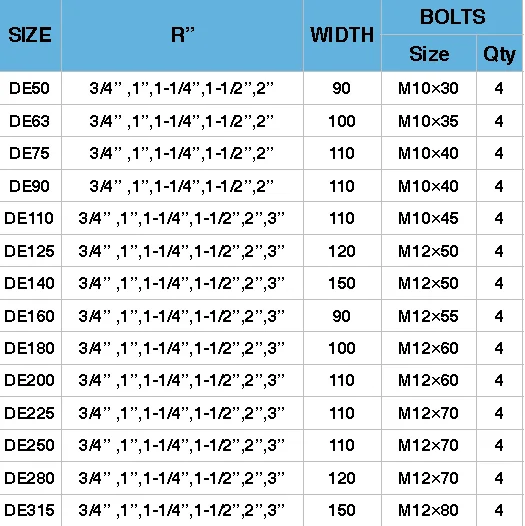

saddle PVC
















  • TEST STANDARD


1. Mechanical and  Chemical Test





















2. Pressure Test


Test pressure shoud be more than 1.5 times than the working pressure level.













3. Visual Test





The suface of product  should be smooth, no pores, no bears.


The thinkness of coating should be more than 250 micron.B%S2%BESMY)AD(4DK17$UO1.png

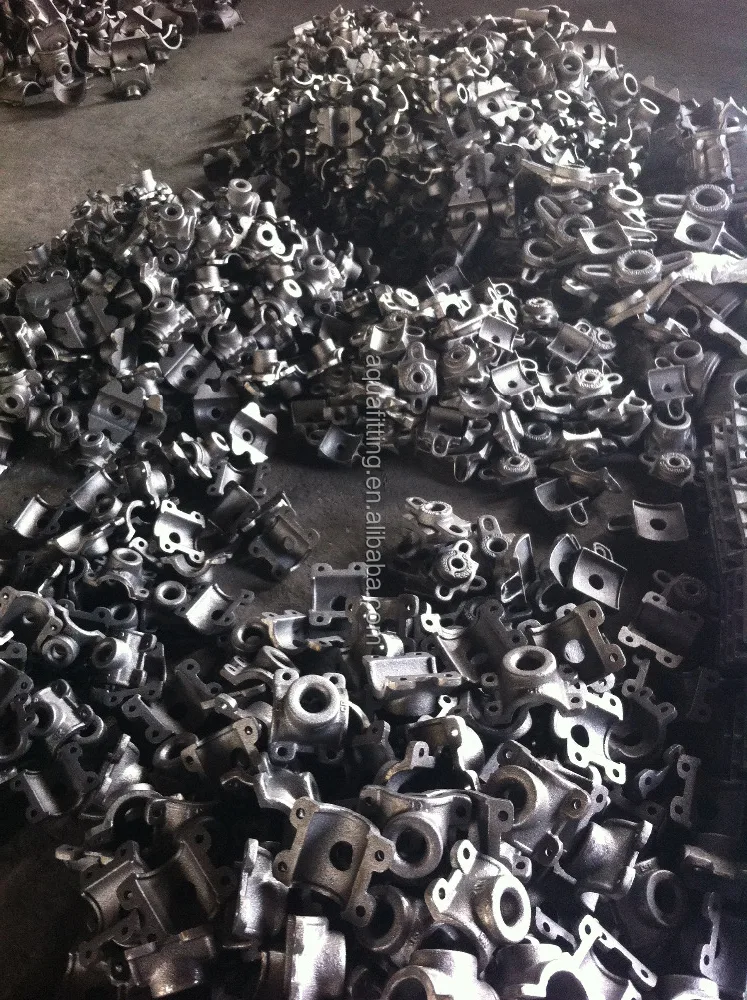

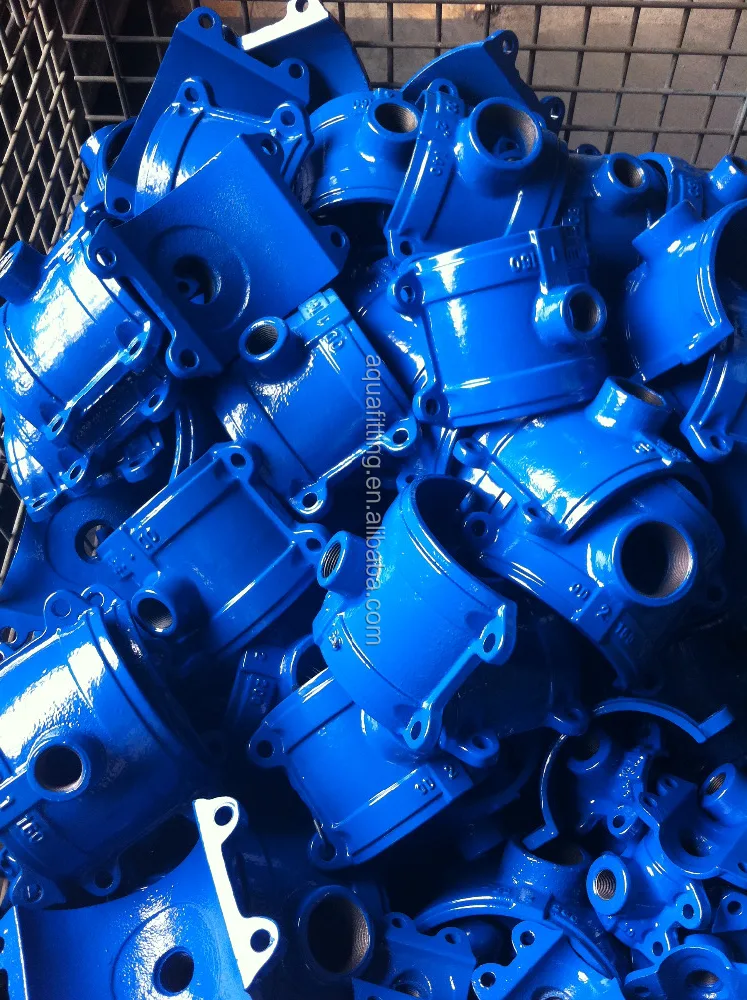

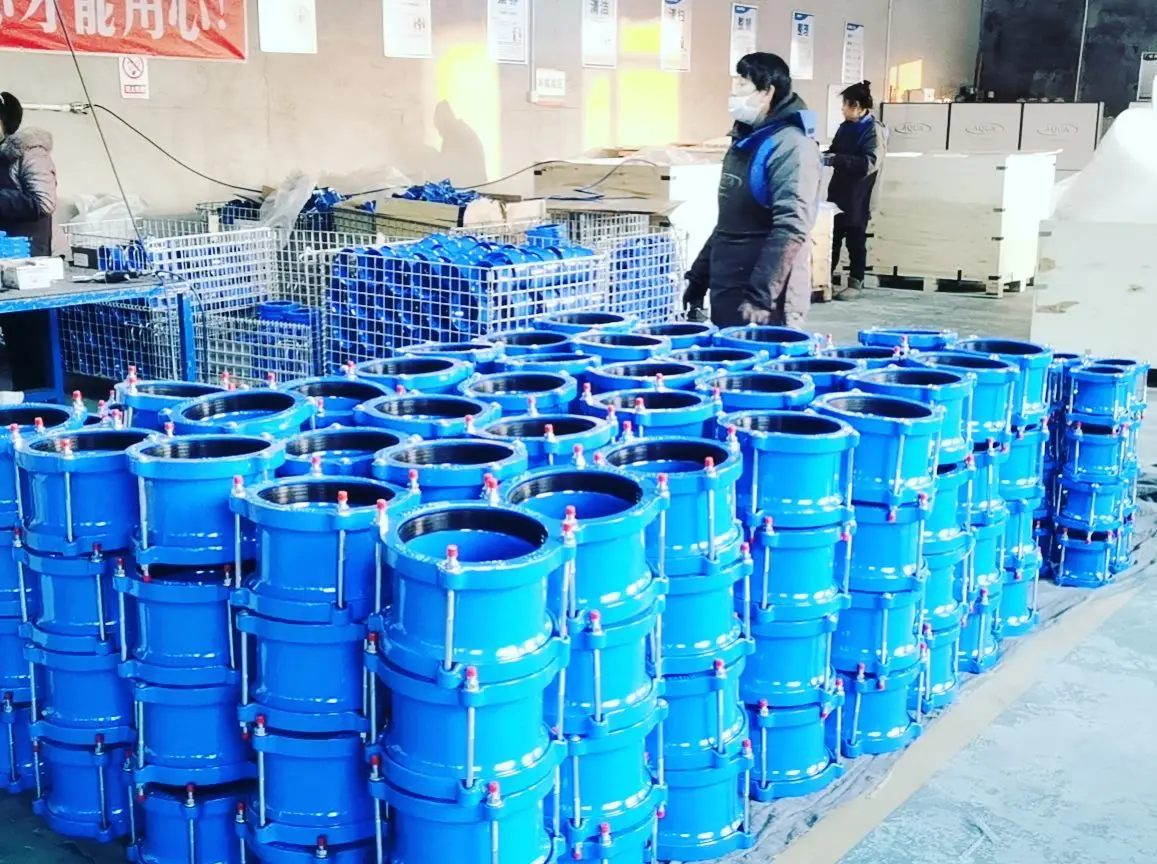

  • PLANT VIEW

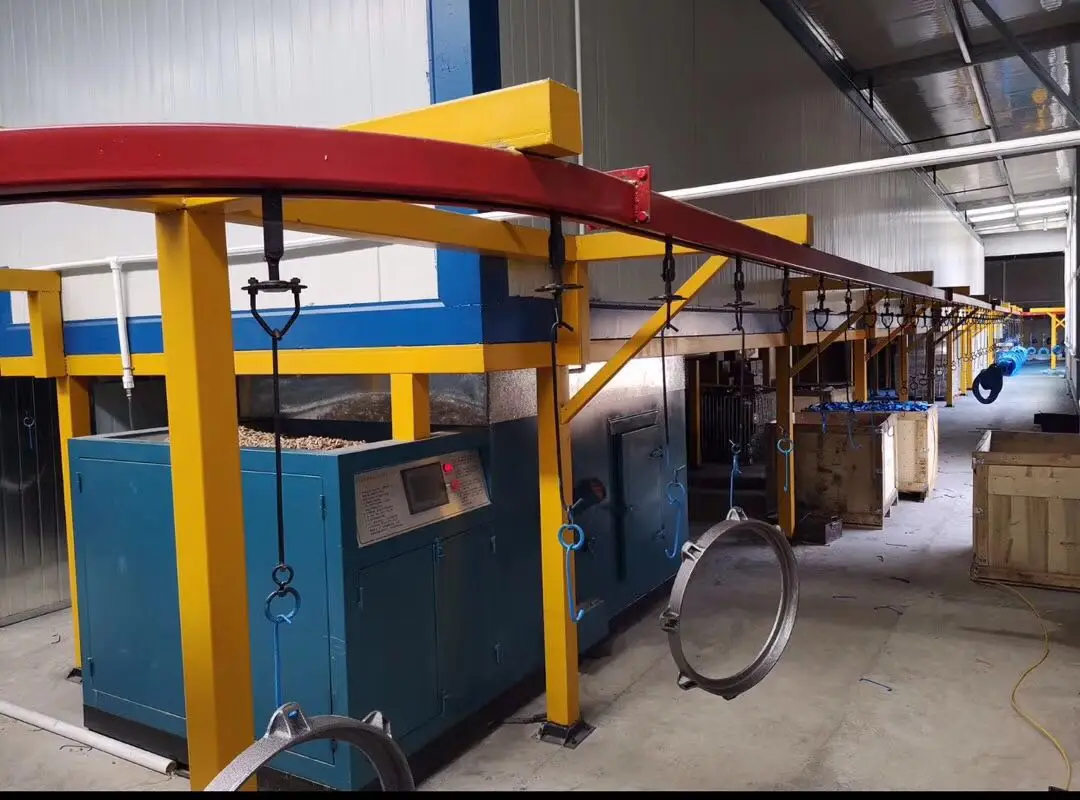

2161840674509548041 (3)
















OUR MAIN PRODUCT LINE
















CONTACT DETAILES:


WEB:www.aquafitting.com


EMAIL: info "at"aquafititing.com


TEL: 86 13904264994


SKYPE: audrey19909
