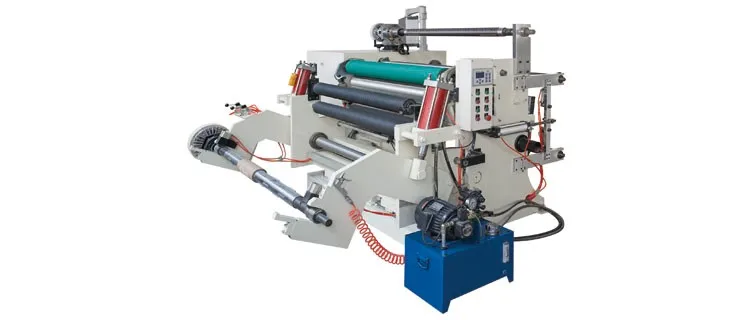

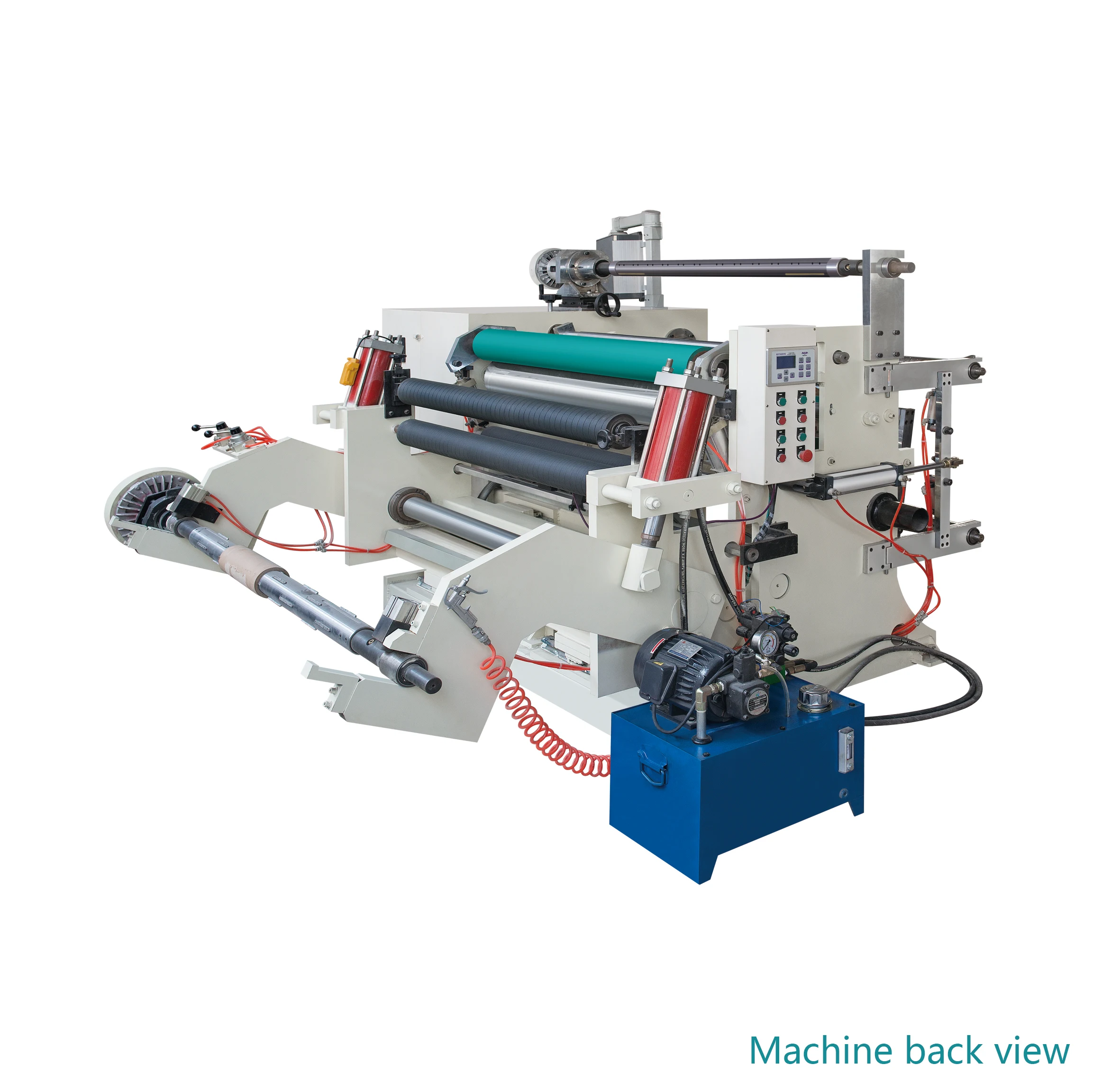

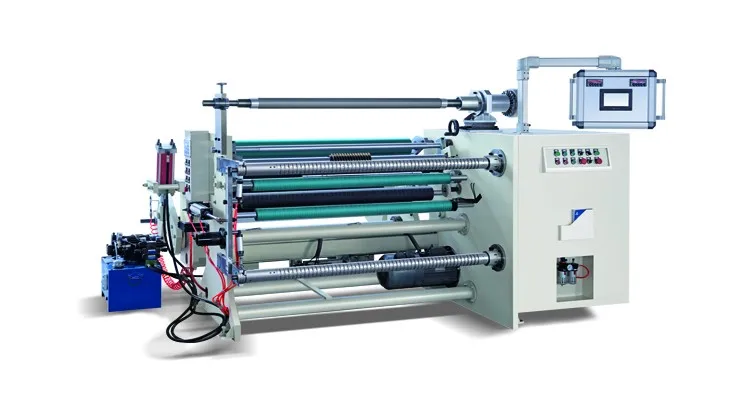

FQ series slitting rewinding machine is mainly use for slitting and rewinding paper,sticker and other lamination materials.
Equipped with photoelectric tracking web-guide system,tension control,operate easily,running smoothly.
SPECIFICATIONS FOR FQ-1650MM Slitting machine
Unwinding unit
Max.unwinding width
mm
1550
Max.unwinding diameter
mm
1000
Unwinding shaft
inch
3
Electric control
Independent operation cabinet,micro computer centralized control
Rewinding roll length auto-counting and auto-stop function.
Auto-unwinding function
Rewinding unit
Max.rewinding width
mm
1550
Max.rewinding diameter
mm
600
Rate flow
inch
3
Main Features
1)Photoelectric web-guide,improved the slitting precision,and save more waste.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3)Wall plate made of high quality steel,make sure machine running smoothly in a high speed.
4)Max. speed:350m/min
Certifications
Detailed Images
Machine Parts

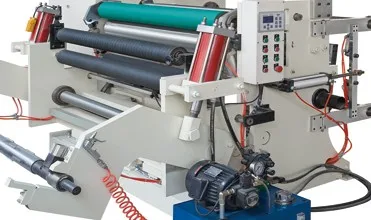

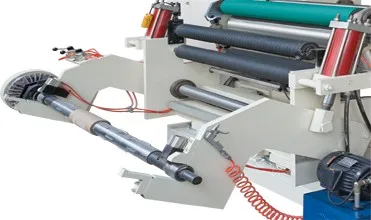

Name: Unwinding unit
Air shaft diameter:76.2mm
Max.unwinding width: 1550mm
Air shaft centra unwinding mode,make tension evenly.
Main Features
Name: Auto-loading system Mode: Oil hydraulic system Improve production efficiency.
Machine Parts

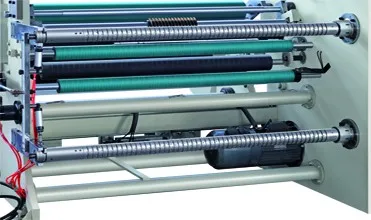

Name: Rewinding unit Rewinding shaft: Differential shaft for rewinding Improve rewinding precision,improve rewinding speed.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
2800(L) * 2.500(W)* 1600mm
Weight
1.9 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
2800(L) * 2.500(W)* 1600mm
Weight
1.9T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
