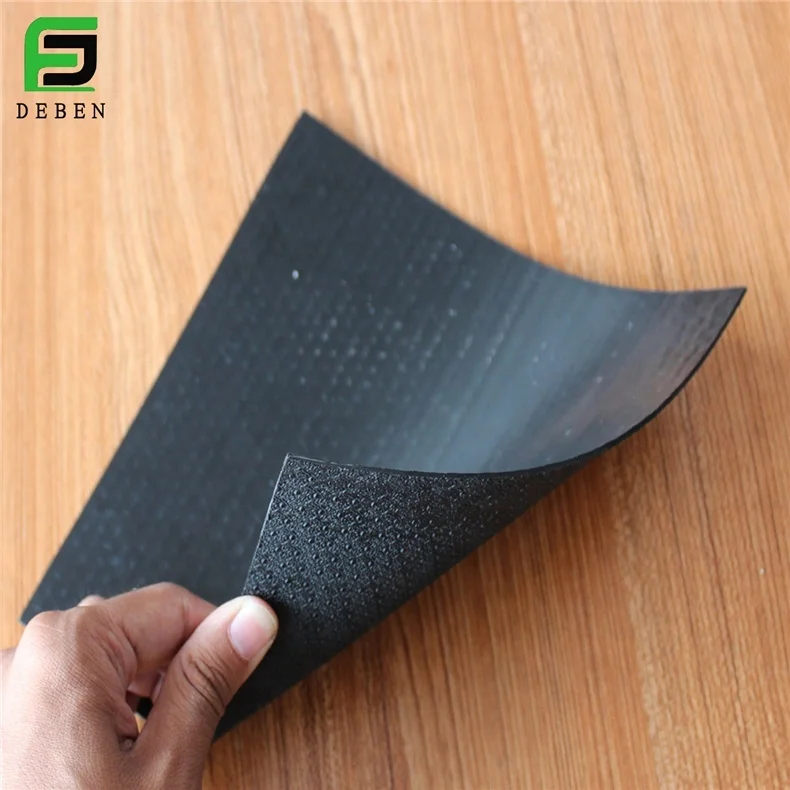

Waterproof Membrane,Geomembranes Type and EVA,HDPE,LLDPE,PVC,LDPE Material waterproofing membrane

Share on (60402036471):


Price:$0.35 - $0.80

Quantity:


Product Overview

Description


  Waterproof Membrane,Geomembranes Type and EVA,HDPE,LLDPE,PVC,LDPE Material waterproofing membrane



  Product Description


a09
Product description
Type:HDPE geomembrane
Material: High-density polyethyle
Thickness:0.1mm~3.0mm
Roll width:1m~8m  Roll length:50m~100m
Color:Black or at your request
Density: 0.94g /cm3
Temperature range: -60oC -- +60oC
Life time: more than 50 years
Executive standard: GB/T 17643-2011





  Specification



NO



Item

                                    Value
0.75mm1.00mm1.25mm1.50mm2.00mm2.50mm3.00mm
1Density (g/cm2)0.939
2Tensile propeties
 Yield strength (N/mm)    11    151822293744
 Break strength (N/mm)20273340536780
 Yield elongation (%)12
 Break elongation (%)≥450
3Tear resistance (N)93125156187249311374
4Puncture resistance (N)240320400480640800960
5Stree crack tensistance (h)≥1500
6Carbon black
 Carbon black content (%)2.0-3.0
 Carbon black dispersionCarbon black dispersion   (only near spherical agglomerates)fo r10 different
 views 9 in categories 1   or 2 and 1 in category3
7Oxidative induction time(OIT)
 Standard OIT(min)100
 High pressure OIT(min)400
8Oven aging at 85°C
 Standard OIT-% retained after 90 days (%)55
 High pressure OIT-% retained after 90 days (%)80
9UV Resistance
 Standard OIT retained after 1600 hrs (%)50
 High pressure OITretained after 1600 hrs (%)50
10Low tempreture impact brittle property at -70°CPass
11Premeability ( g.cm/(cm2).Pa)1.0×10-13
12Dimensional stability (%)±2







  Product Description


    HDPE geomembrane to plastic film as the backing material, seepage control and non-woven composite geotechnical seepage control material, its seepage control performance mainly depends on the seepage properties of plastic film.Seepage control of the application of plastic film, both at home and abroad are mainly polyvinyl chloride (PVC) and polyethylene (PE), EVA (ethylene/vinyl acetate copolymer), tunnel in the application and design using the ECB (ethylene vinyl acetate modified asphalt blending geomembrane), they are a kind of high polymer chemistry flexible material, the proportion of small, extensibility, adapt to the deformation capacity, high corrosion resistance, good low temperature resistance, frost resistance performance is good.The main mechanism is a plastic film impervious partition earth dam leakage channels, with its larger tensile strength and elongation under pressure and adapt to the deformation of dam body;And non-woven fabric is a kind of high polymer chemical short fiber material, through needle stick or hot forming, has high tensile strength and extensibility.






  Production liner

13

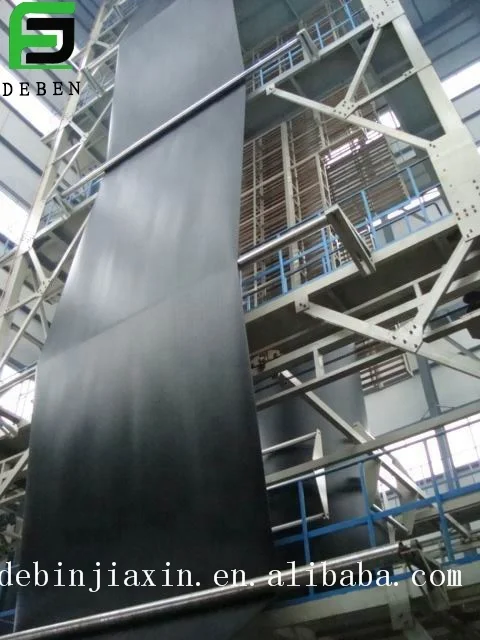

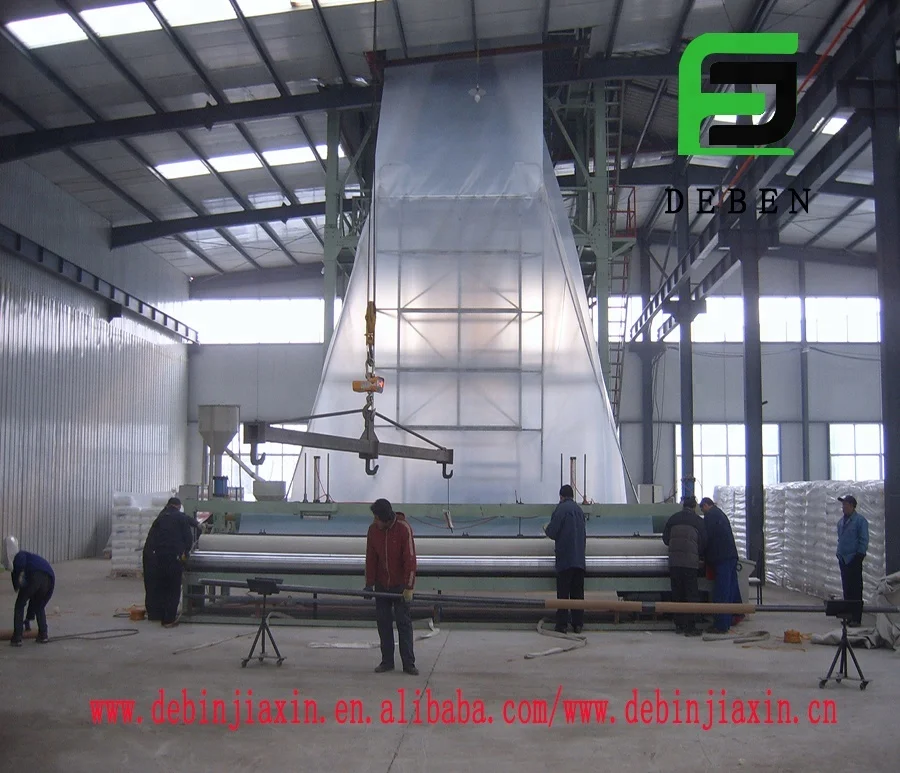

 Blow molding process

High-density polyethylene geomembrane is MDPE, HDPE as raw materials, production from the geomembrane blow molding.

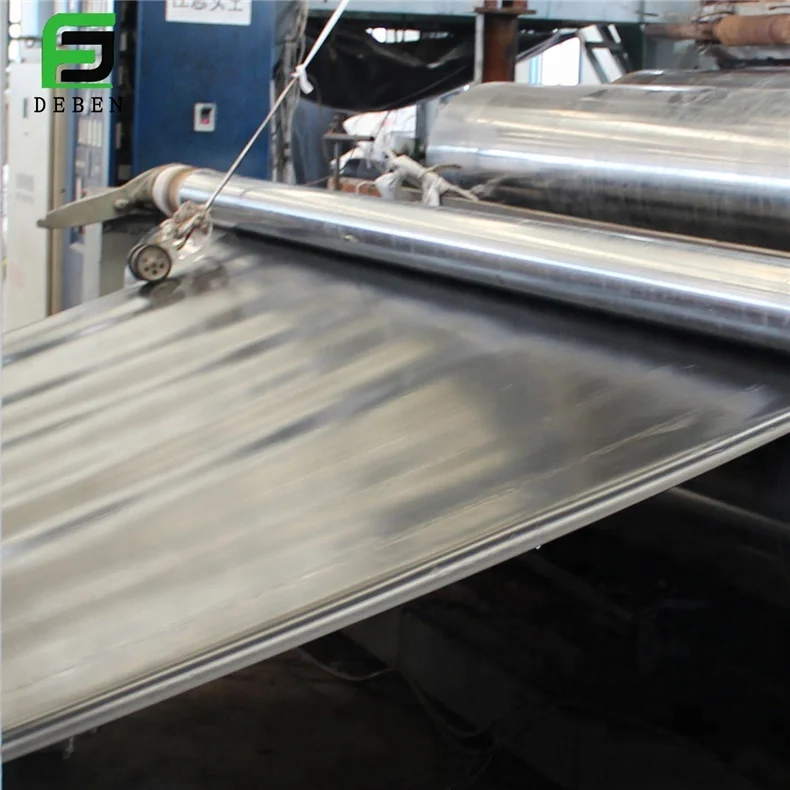

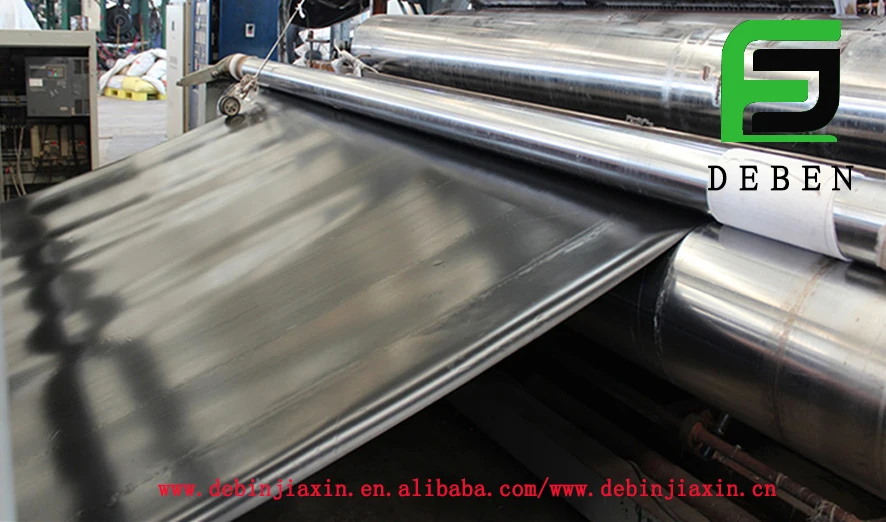

Flat Extrusion process
11

HDPE geomembrane using a special extrusion process to produce flat high density polyethylene geomembrane

  Application



1, HDPE geomembrane for environmental protection, sanitation, such as landfill, sewage treatment plant, power plant regulation pool, industrial, hospitals, solid wastes, etc.;


2, HDPE geomembrane suitable water conservancy projects, such as rivers and lakes of reservoir dam seepage and leakage, reinforcement, the canal seepage control, vertical wall, slope protection, etc


3, HDPE geomembrane in municipal engineering: the subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control;


4, polyethylene anti-seepage film applicable garden: artificial lake, river, reservoir and golf course of the bottom of the pond, slope protection, green lawn waterproof, etc;


5, high density polyethylene geomembrane for petrochemical, chemical plants, refineries, storage tanks, seepage control, chemical reaction pool, sedimentation tank lining and secondary lining, etc.


6, polyethylene geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, the bottom line of the yard, tailings anti-seepage, etc;


7, low density polyethylene film applicable traffic facilities: highway foundation reinforcement and culverts of seepage control;


8, HDPE geomembrane suitable agriculture: reservoir, drinking pool, XuShuiTang of seepage control, irrigation system;


9, HDPE geomembrane suitable aquaculture: intensive, factory breeding pool, fish pond, shrimp ponds circle of lining, sea cucumber, slope protection, etc.;


10, HDPE geomembrane suitable salt industry: saltworks crystallization pool, halogen pool plastic film covering, salt film, salt pond Shan membrane.

full_0312_wv_2





  Projects Display

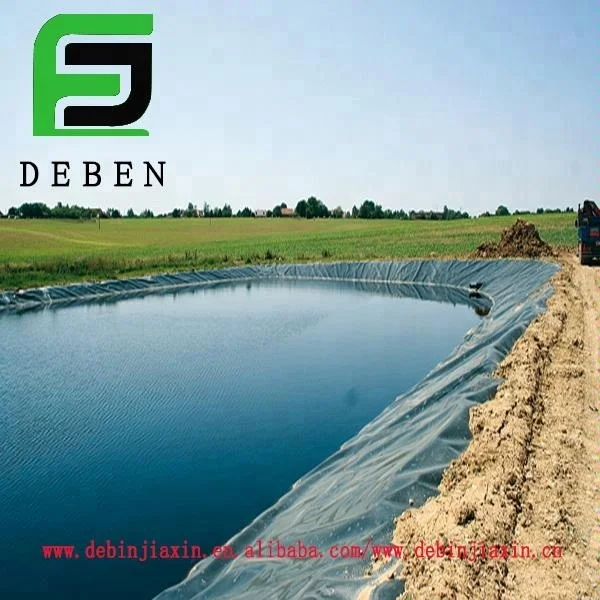

liner1_2345.jpg Pond liner

HDPE geomembrane has High chemical Hydrocarbon resistance.Can withstand constant exposure in the Sun.

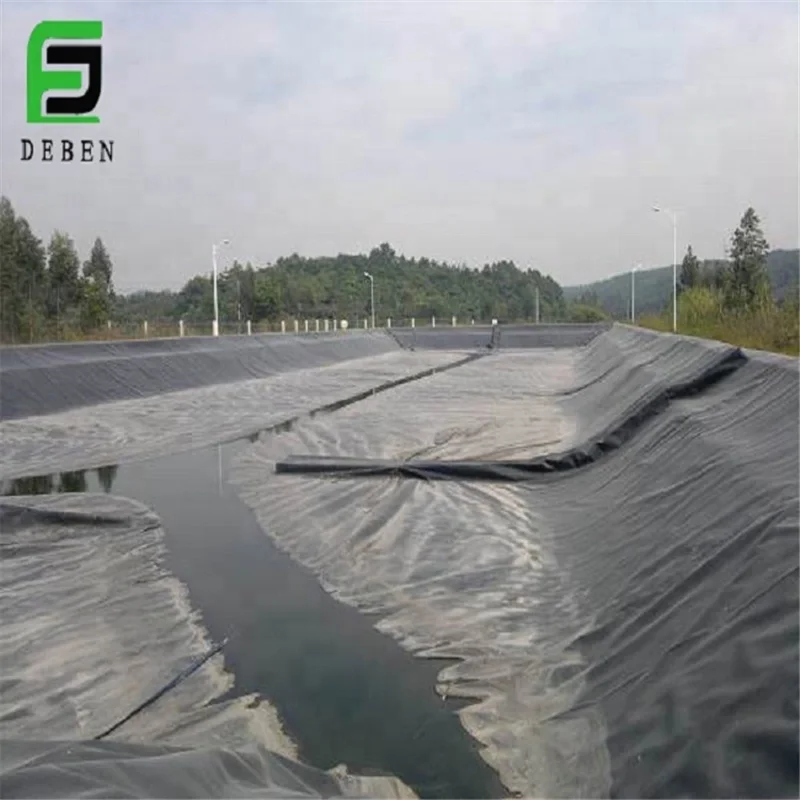

Landfill pl553654-hdpe_geomembrane_for_landfill.jpg

HDPE geomembrane can Prevent leakage disposal in waste burying field.

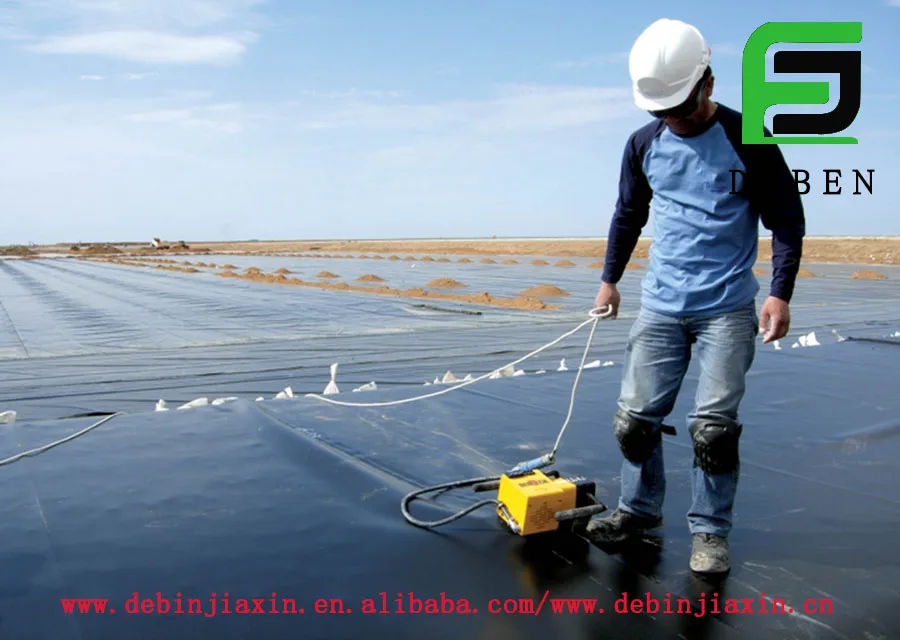

  Welding service



We can provide the most professinal technical guidance and service!





Welding machineProfessinal guidingTechnical person
