Product Overview

Description

  high quality low price KX-5188A45 induction welding machine

Technical Features

Based on the principle of electromagnetic induction,our machine could make induced current generate inside the metal material,which is in the alternating magnetic field.Then this current could heat the material up to the melting state.

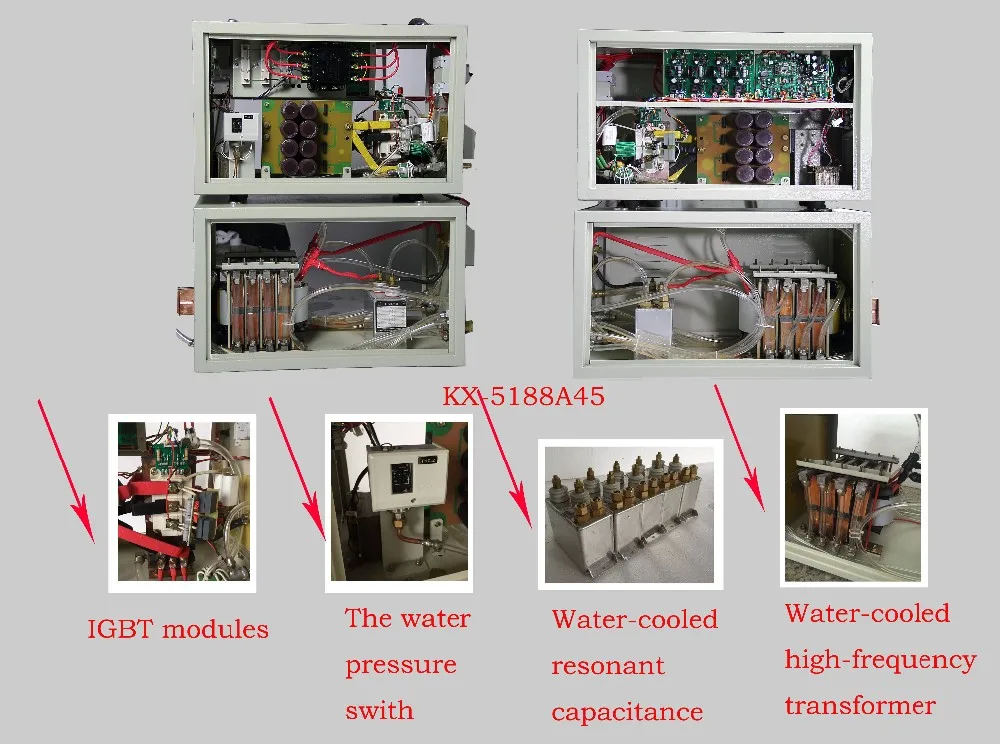

High frequency circuit are all worked as following:



Technical Parameters

Model	KX-5188A45
Rated Power output	45 KW
Frequency rang	30-80 KHz
Three- phase input	Three-phase 380V /50HZ
Current input	5-55A
Efficiency	95%
Duty cycle	100%
Volume(mm 3)	660 mmx290mmx410mm  740 mmx340mmx380mm
Net  Weight	65KG
Gross weight	80KG
Cooling water flow	hydraulic pressure≥0.2MPa,flow rate:5-20L/Min
Cooling water temperature	≤ 40°C
Waterway of power supply	Control box: 2 inlets ,2 outlets
Application	Quenching, annealing, conditioning saw blades, drill, turning welding standard parts of axial etc  fastener local heating, forging, melting, high frequency induction heating equipment.

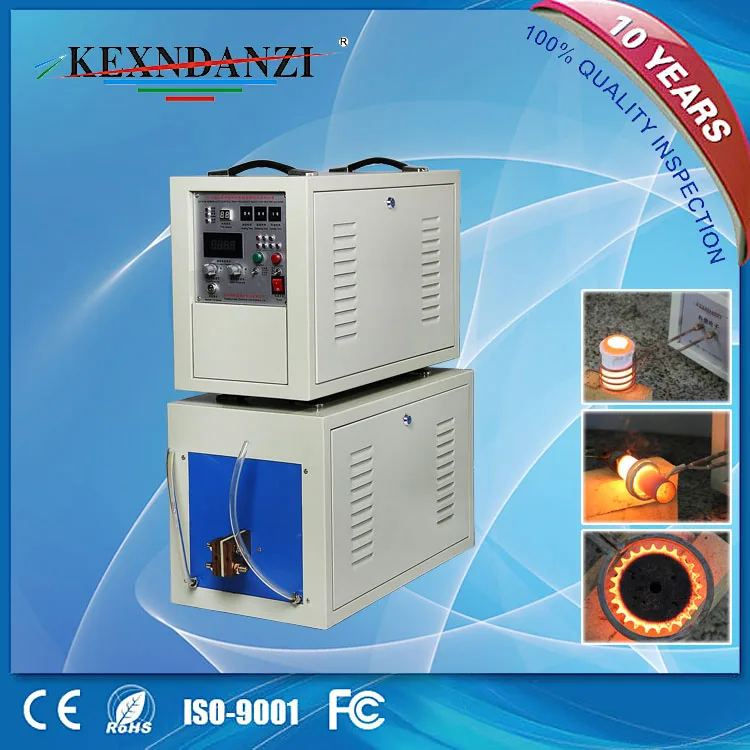

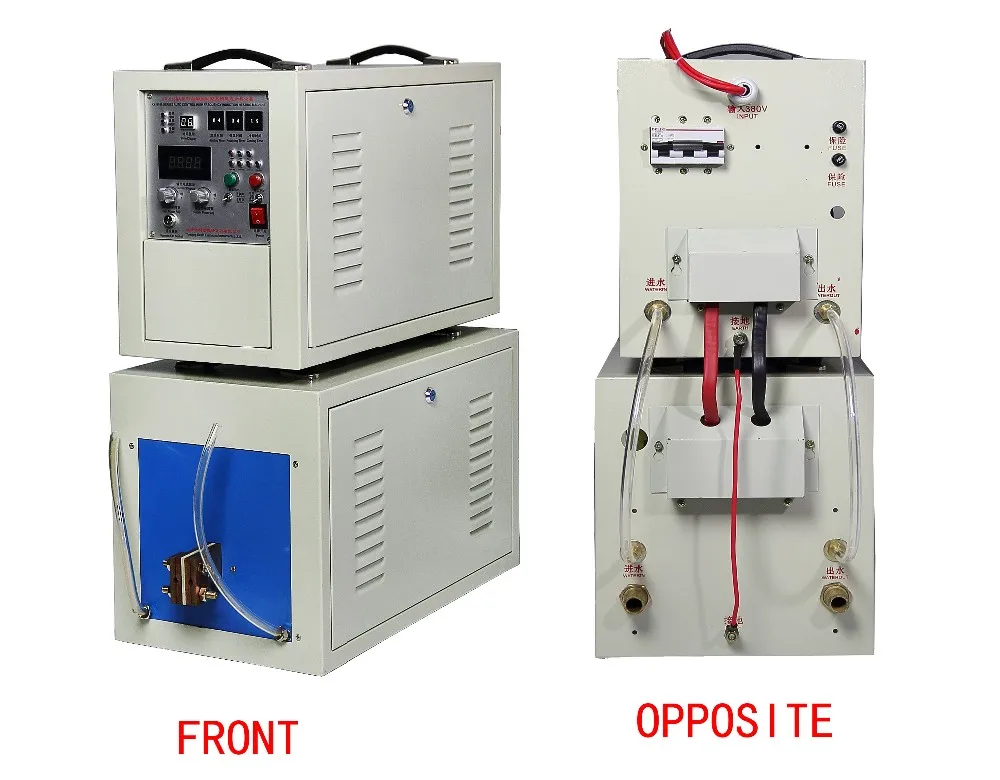

  Photo of  high quality KX-5188A45 high frequency induction metal melting equipment

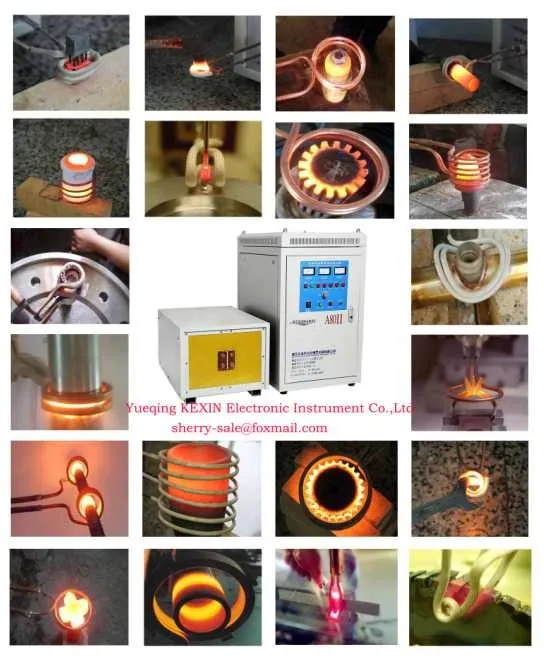

Applications of induction metal melting equipment



Non-ferrous and ferrous metals melting



Precious metal melting, like gold, sliver, platinum,etc.



Semiconductor material melting



Specialized steel, iron, copper melting



Metal alloy melting, like aluminum alloy, zinc alloy, copper alloy,etc.



Sawtooth weld,cutting tools aiguilles weld,heat treatment for small components.

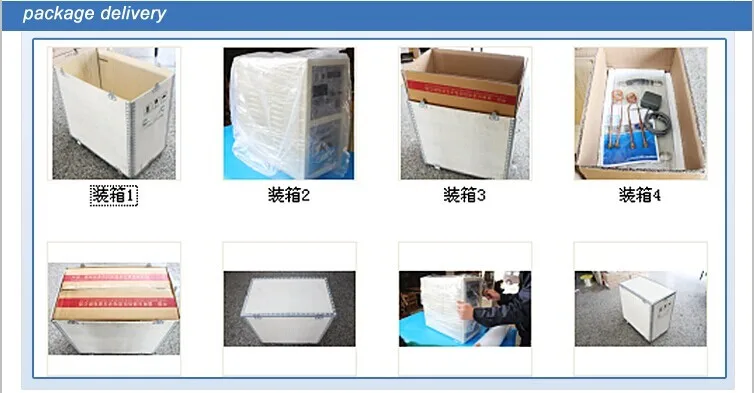

Packaging & Shipping



Our Services



Pre-sale service:



We will recommend the most suitable machine for customers according to their requirements



 In-sale service:



(1) We will strictly manufacture the machine according to relevant technical standards.



(2) We will take run test according to relevant equipment test run regulations.



(3) We will strictly check up the machine, before delivery, only good machine will be sent to customers.
 (4) We will delivery on time.



After-sale service:
(1)We will be free to guide the installation, commissioning and test run, by sending the installation drawings, and sometimes to call or send e-mail.
(2)We will carry out a one-year warranty period (e.g. excluding normal wear and tear parts and parts damage compensation caused by improper operation.
(3)We will be free to replace all equipment components during warranty period. The potential problems of customer service and customer service after sales.
(4)Provide long term technical support. Also for different work pieces, to guide and help to produce the inductor.
(5)After the warranty period, the customer can buy from us the cost of machine parts is very low.



Our exhibition



Public welfare charity

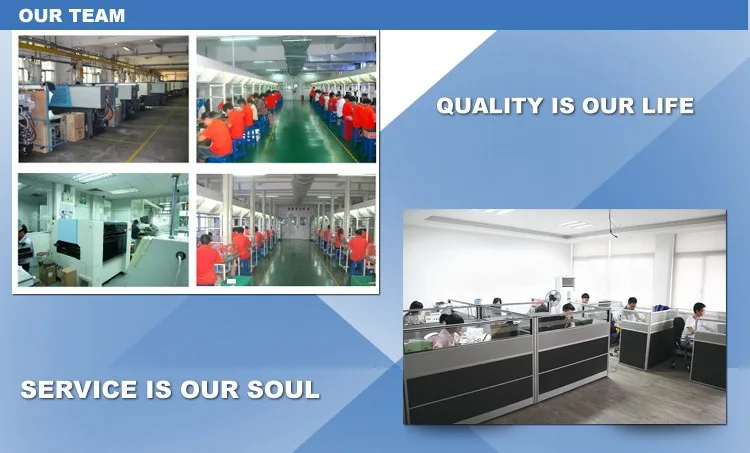

Company Information



FAQ



1. Which countries your products are exported to?



Our products have been sold all over the world and with related certifications.







2. How about the warranty?



All our products have one year quality warranty, during the warranty period, the spare parts for replacement are free. And we provide life long technical support and other assistance.







3. How to install your machine?



We have installation instruction papers and videos, we will teach till you can do it yourself.







4. What about delivery?



We offer assistance on seeking best shipping way and suitable forewarder .



Any loading port and any destination city address are both ok for us







5. How about the payment terms and delivery time?



Payment terms for any machines: 100% T/T/ Western Union/ESCROW with buyer protection.



We have machine in stock,so we surly will send out the machine after geting payment in one day ,if no any special adjustment requirest from clints.







6. If I have paid but can not receive the goods, how should I do?



Alibaba international website is a famous trade website and it has run very well these years.



Every supplier on it has paid a large amount membership fee, and spare much effort to manage their business well



we have Chinese business licenses which can be checked  on Chinese official website or we can show it to you,and these licenses are also kept back-up on Alibaba



if we do anything illegal without honest,we would get punished very badly after you Sued us.so that your concern will never appear, please do not worry







7. Is your goods has CE certificate?



Yes, all our goods has CE certificated. All machines are high quality goods.





8. What is your company: Trader or Manufacturer ?



We are manufacturer and have a big factory , warmly welcome to visit our factory and contact us.
