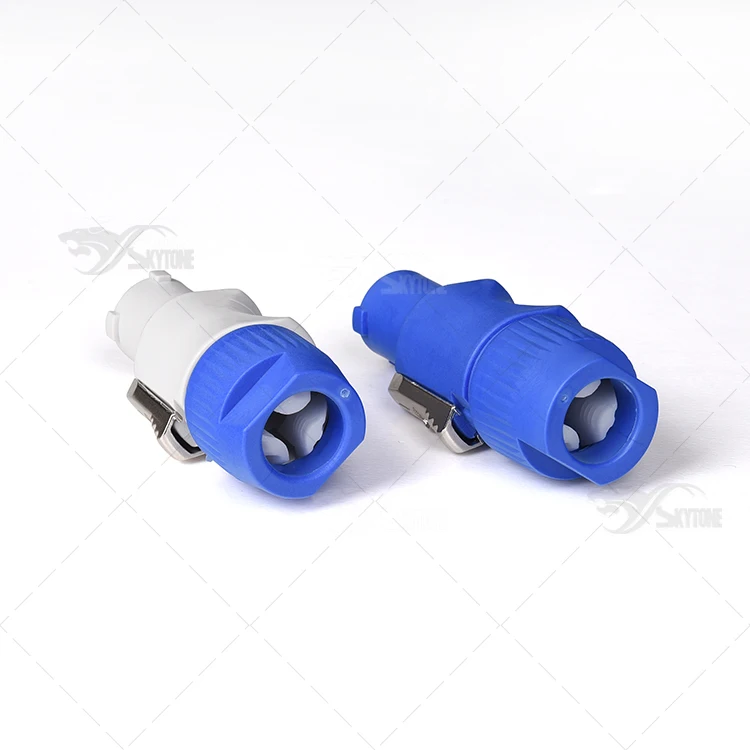

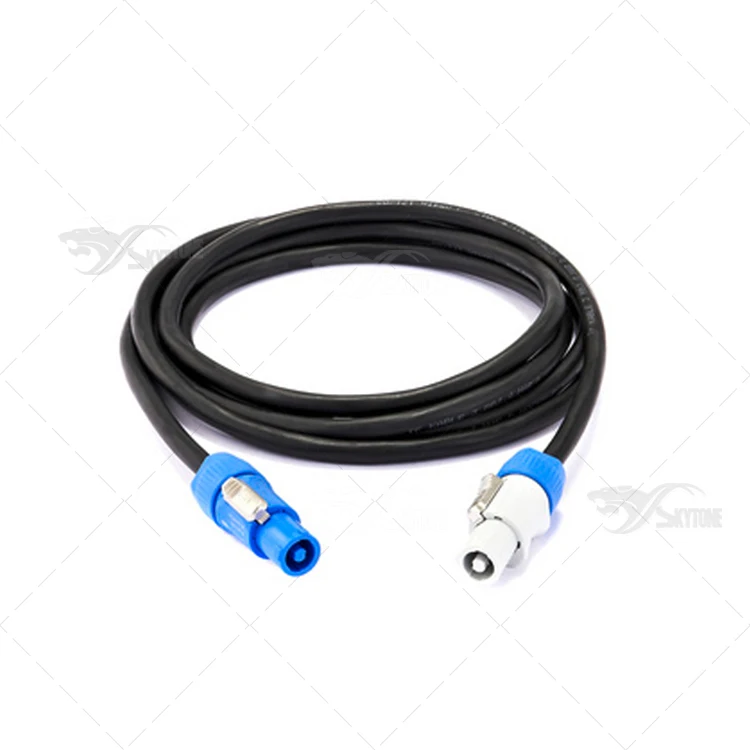

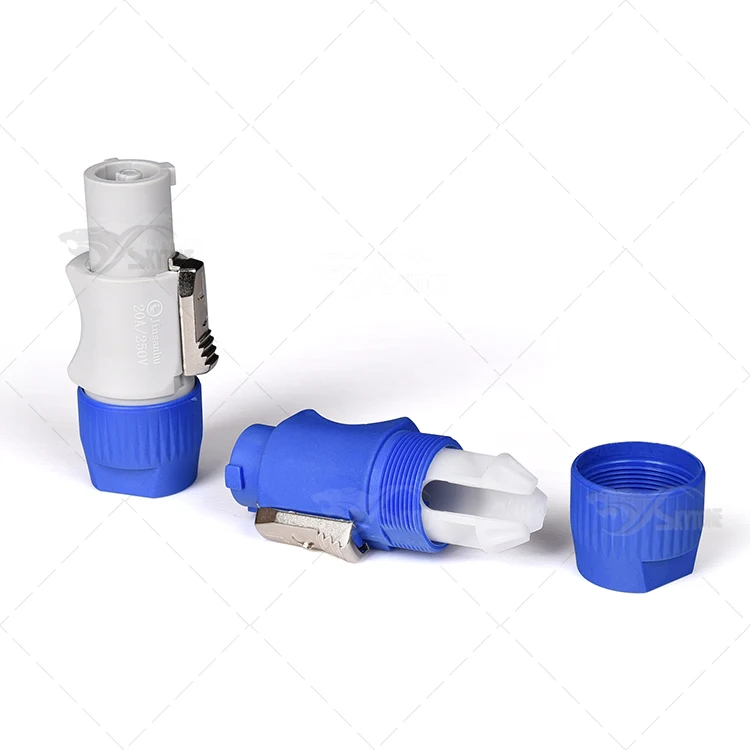

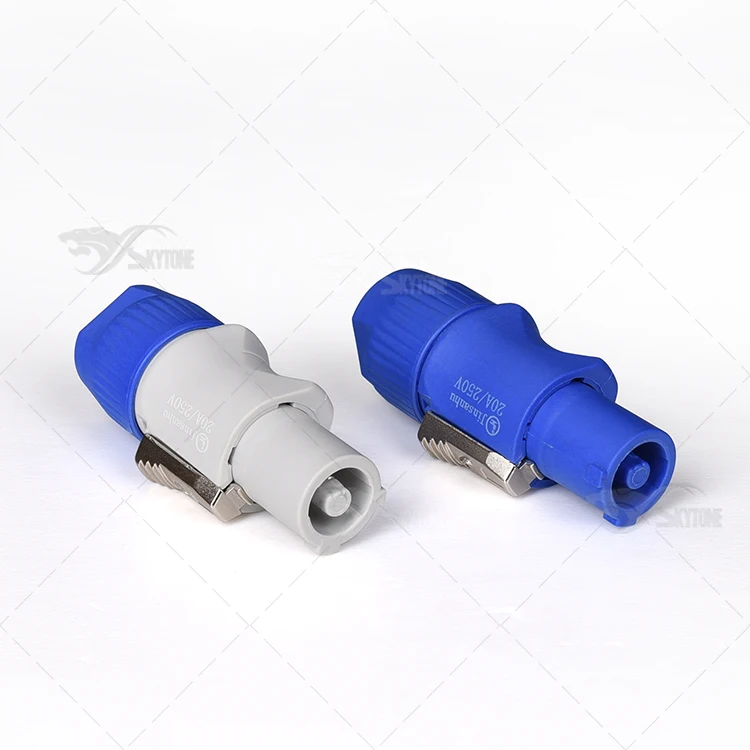

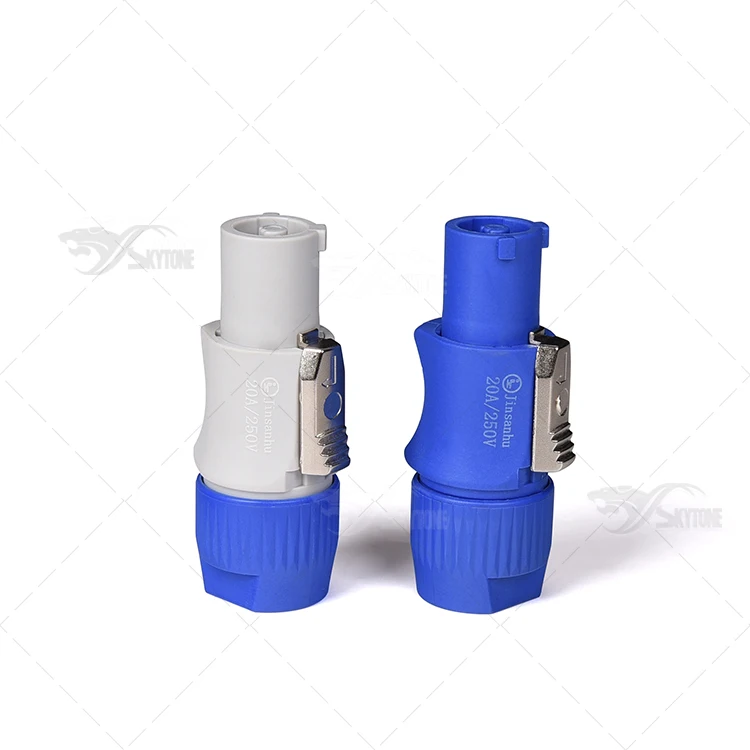

PA speaker link lead powercon in and out connector
OverView:
Lockable cable connector, power-out, screw terminals, grey
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Lockable cable connector, power-out, screw terminals, grey
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i. E. The powerCON should not be connected or disconnected under load or live!
Features & Benefits
--Locking 20 A / 250 V ac appliance coupler
--3 contacts for line, neutral and premating safety ground
--Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
--Fast and easy twist lock latching system
--Extremely robust and reliable
--Ergonomic design
--User friendly latch design for easy handling
--Unique Neutrik chuck type strain relief
--UL, cUL recognized components
--VDE certified
--SEV approved
--Branded with unique hologram - guarantees genuine and authentic product
Specification
| Model | NAC3FCA | NAC3FCB |
| Gender | female | female |
| Contact resistance | ≤ 3 mΩ (inner) | ≤ 3 mΩ (inner) |
| Dielectric strength | 4 kVdc / 2.8 kVac | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0.1 GΩ (after damp heat test IEC 68-2-30) | > 0.1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electronical contacts | 2 + PE | 2 + PE |
| Rated current per contact | 20 A rms | 20 A rms |
| Rated voltage | 250 V ac | 250 V ac |
| Cable O.D. | 6 - 15 mm | 6 - 15 mm |
| Lifetime | > 1000 mating cycles | > 1000 mating cycles |
| Wiresize | 2,5 mm² | 2,5 mm² |
| Wiresize | 14 AWG | 14 AWG |
| Locking device | Quick Lock | Quick Lock |
| Contact plating | 4 µm Ag | 4 µm Ag |
| Contacts | Bronze (CuSn6) | Bronze (CuSn6) |
| Insert | Polyamide (PA 6 30 % GR) | Polyamide (PA 6 30 % GR) |
| Locking element | Zinc diecast (ZnAl4Cu1) | Zinc diecast (ZnAl4Cu1) |
| Shell | Polyamide (PA 6 30 % GR) | Polyamide (PA 6 30 % GR) |
| Strain relief | Polyacetal (POM) | Polyacetal (POM) |
| Temperature range | -30 °C to +80 °C | -30 °C to +80 °C |
| Coding | A-type for power inlet (color coding blue) | B-type for power outlet (color coding gray) |
Applications:
VRX932LAP line array speaker
VRX918SP line array subwoofer speaker box
Power cable is available, we can help to connect based on your requirements.
