Hydraulic Roll Over Furrow Plow
- Category: >>>
- Supplier: Yucheng Dadi Machinery Co. Ltd.
Share on (60402428960):
Product Overview
Description
modern deep plough machine with high quality
Hydraulic Roll Over Furrow Plow
Product Description
The modern agriculture requirement is lower cast and higher volume output.The cost for cultivation is paid more and more attention by the customers and to meet this requirement.Our company developed the series of reversal plough.The plough camber camber is deeply prefer by the customer all over the country in recent years particularly,the working speed is 8-10km/h. Series of 1LF reversal plough can be mounted to 15-120HP tractors with 2 ways of reverse-mechanical(J),and hydraulic(Y).Hydraulic reversed plough can be adjusted for the different width and different tractors,the hydraulic system is automatically and the operation is smooth without any troubles.
Specifications:
Type | Furrow width(mm) | Working depth(mm) | Flip mode | Whole series | 2 Boards | 3 Boards | 4 Boards | 5 Boards |
20A 20 | 200 | 180-250 | Mechanical | Type/Width | 1LJF/400 | 1LJF/600 |
|
|
Matched power | 15-20 | 25-40 |
|
| ||||
25 | 250 | 180-250 | Mechanical | Type/Width | 1LJF/500 | 1LJF/750 |
|
|
Matched power | 25-35 | 40-50 |
|
| ||||
27 | 270 | 160-220 | Hydraulic | Type/Width |
| 1LF/810 | 1LF/1080 | 1LF/1350 |
Matched power |
| 50 | 55-65 | 80-180 | ||||
30 30G High speed | 300 | 240-300 | Hydraulic | Type/Width |
| 1LF/900 | 1LF/1200 | 1LF/1500 |
Matched power |
| 55-65 | 80-100 | 100-120 | ||||
30-30G High speed | 350 | 270-300 | Hydraulic | Type/Width |
| 1LF/1050 | 1LYF/1400 | 1LF/1750 |
Matched power |
| 65-90 | 80-110 | 120 |

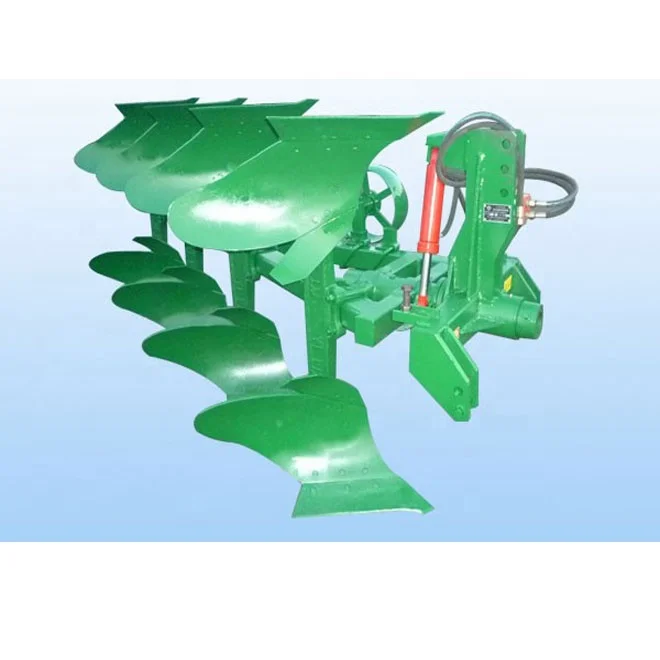

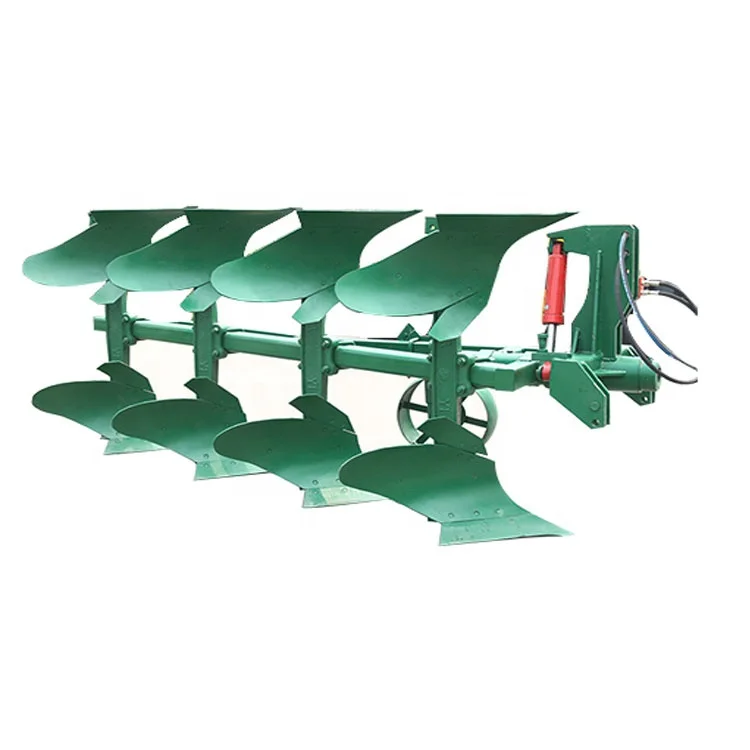

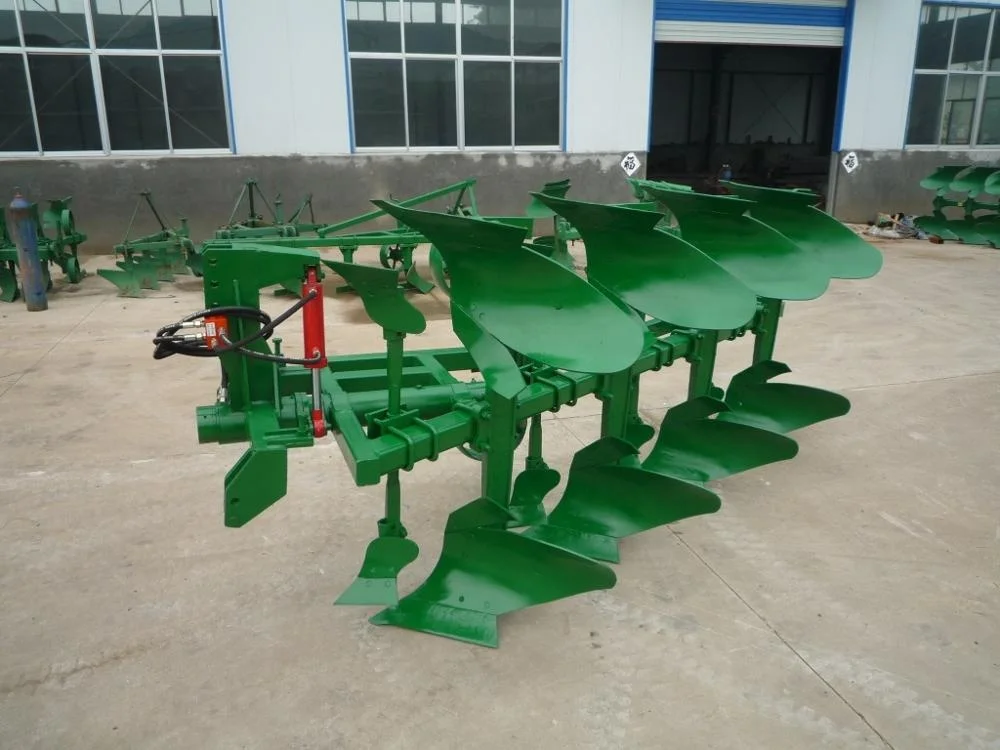

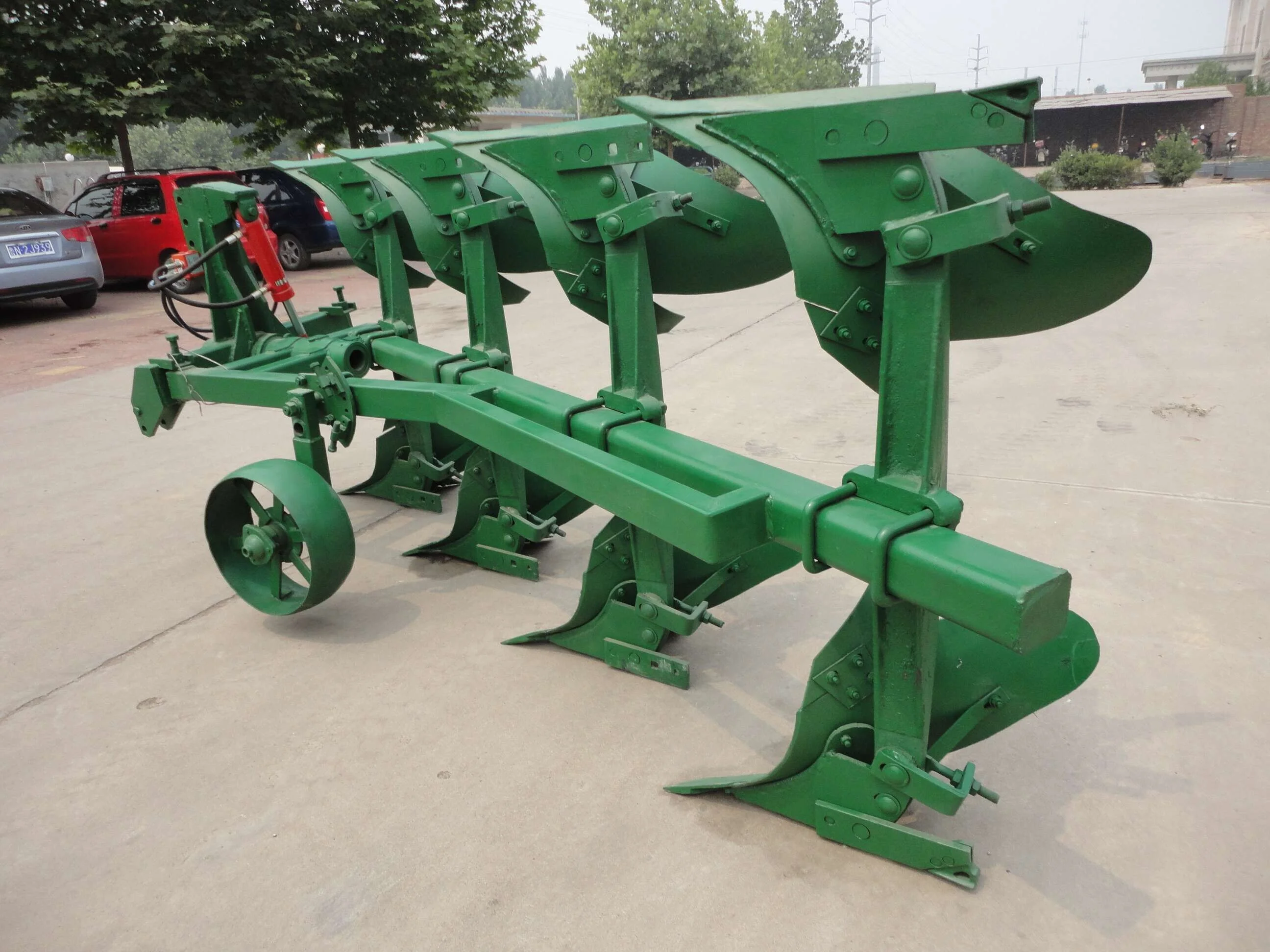

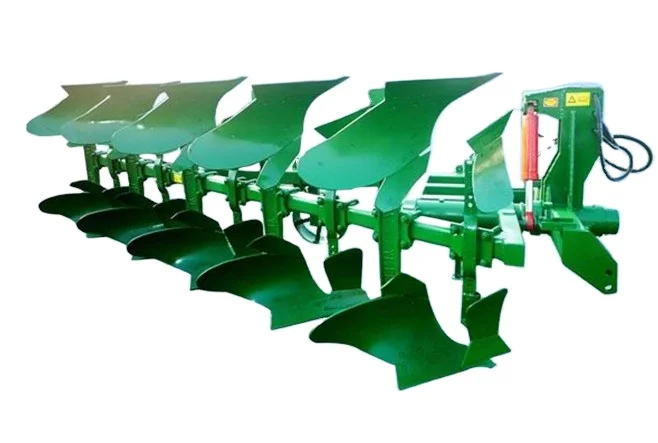

Product show
