12 14% manganese steel mn13
- Category: >>>
- Supplier: Tianjin Teda Ganghua Trade Co. Ltd.
Share on (60402683395):
Product Overview
Description
12-14% manganese steel mn13
Product Description
Basic Introduction of 12-14% manganese steel mn13
Mn13 manganese steel is the best choice for resist-high impact ,the material of big stress in wear resistance.The high manganese steel have two biggest features: one is external impact more bigger ,the wear-resistance of appearance is more higher ; another is with the gradually abrasion of densified laminated appearance, new densified laminated process is formed continually.
Mn13 manganese steel plate have wonderful abrasion resistance of high impact abrasion and big stress abrasion, when using it will not appear crash.It also has the excellence of easy for cutting ,welding ,curving and other mechanical properties for process.The traditional used high chrome forging only have the good wear-resistance of moving abrasion.
Mn13 manganese steel is reduced the cost of using for quick wear part of low equipment and save the overhaul fee of equipment,so it improves the competition.
Characteristic of 12-14% manganese steel mn13
•Fully austenitic
•Quench annealed
•Non-magnetic
•Work-hardening steel with an exceptionally high level of wear resistance when subjected to work
•Hardening by shock or high impact pressure in service.
Advantage of 12-14% manganese steel mn13
Severe wear on the surface has a work–hardening effect on the austenitic structure of this steel which leads to an increase in hardness from 200HB up to in service hardness of at least 600 Brinell.
Chemical composition (%)
Grade | C | Si | Mn | P | S |
| Mn13 | 0.90-1.20 | 0.30-0.80 | 11.00-14.00 | ≤0.035 | ≤0.030 |
Mechanical properties
Grade | Tensile Strength Rm(Mqa) | Reduction of area A(%) | Impact property20°C | Initial hardness value(HB) | Hardness value after hardnening(HB) |
| Mn13 | ≥800MPa | ≥40% | ak≥90(J) | 200-250 | >300 |

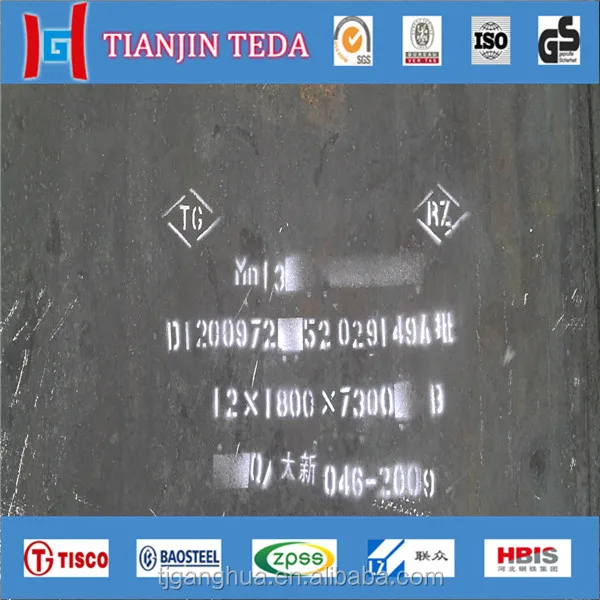

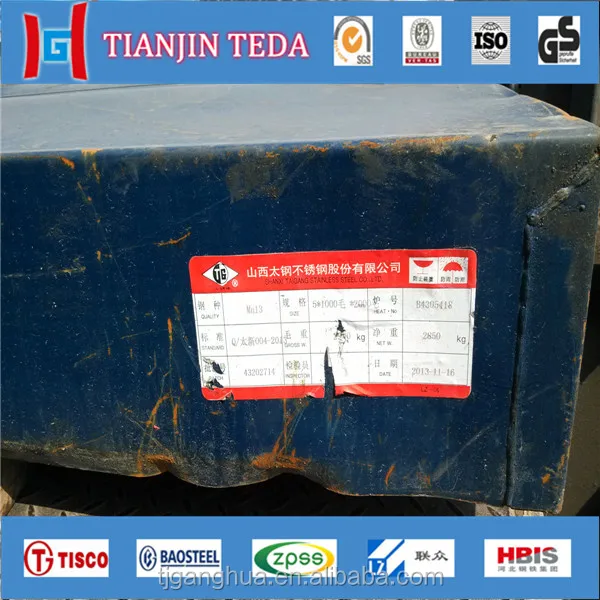

detail of 12-14% manganese steel mn13

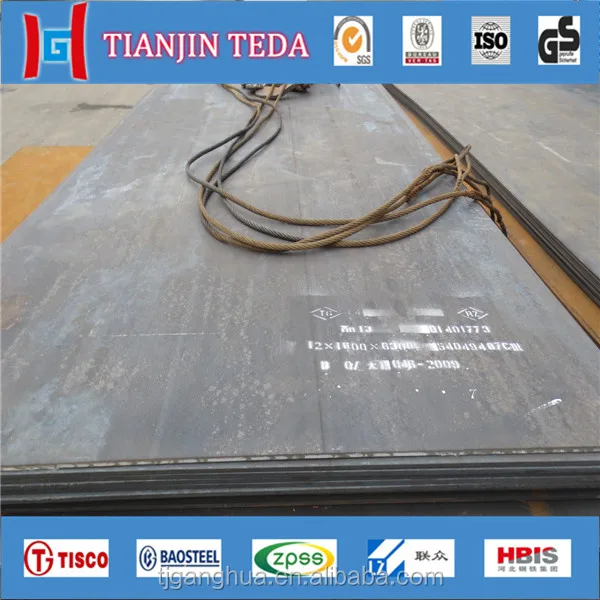

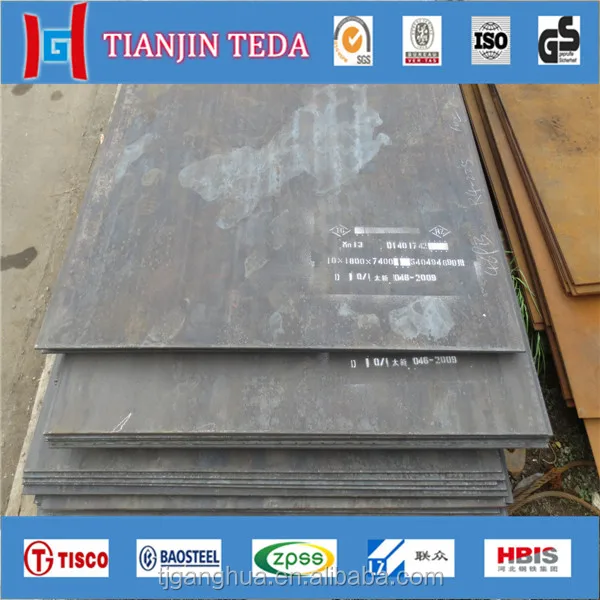

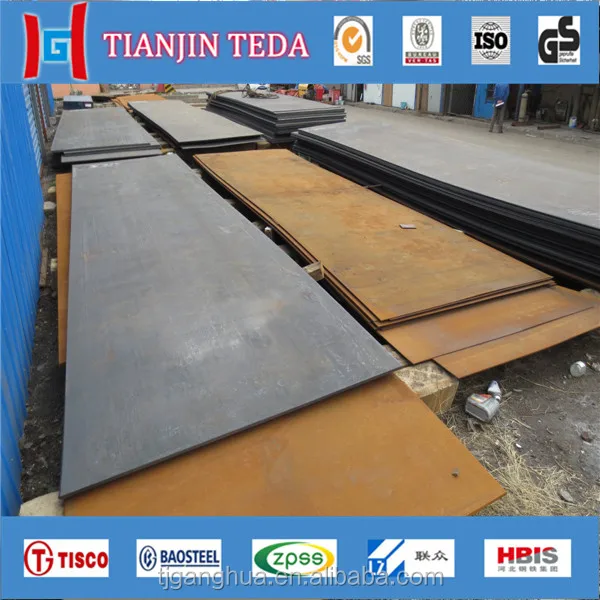

goods yard of 12-14% manganese steel mn13
Packaging & Shipping
packing and shipping
aquipment of 12-14% manganese steel mn13
Application
Wear-resistance steel for scaleboard of shot-blasting machine,scaleboard of ball crusher; ball grinder,bucket lip of grab, bridge steel plate,automobile frame steel plate, Jaws of crushers, hammers of pulverizers, cutting edges of large excavators, liner of shotblasting units, screens, shotblasting cabinets and furniture, anti-drill plate, magnetic separators and the metal. Recent years, more and more high manganese steel plates are used in maglev train, bullet-proof car, steel safe, rock drilling robot, new type tank and so on..
