Q37 double/single hanger hook shot blasting equipment machine

Product Overview

Description

                          Q37 single/double hanger shot blasting machine



 1.Purpose

This hooks shot blasting equipment applies to cleaning the surfaces of casting,forging,steel structure,car wheels and coloured metal workpieces etc.The machine mainly make use of the high-speed steel shots quantity that the high-efficiency mighty throwing the steel shots machine throws.Throwing and beating the surface and inner part of the circumgyrating workpieces,to clean the other viscous sand, rust layer, solder residues, oxide husk and etc, then the surface will be subtle and glabrous.It also can enhance the accreting power between the lacquer and the surface of the steel structures,at the same time,it can enhance the resist- fag intensity and resist- fretting ability, improve the steel structures inner quality and protract the using life-span



2.compose

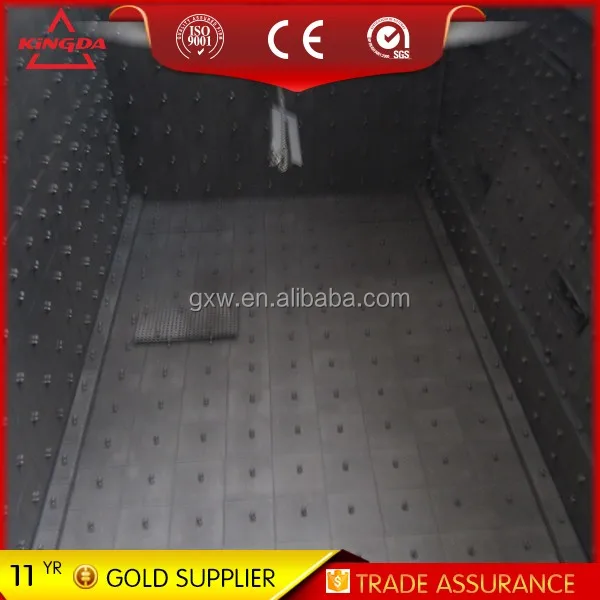

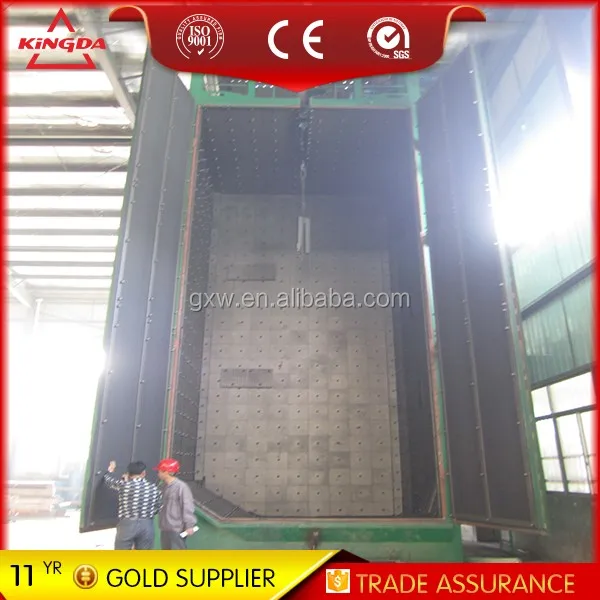

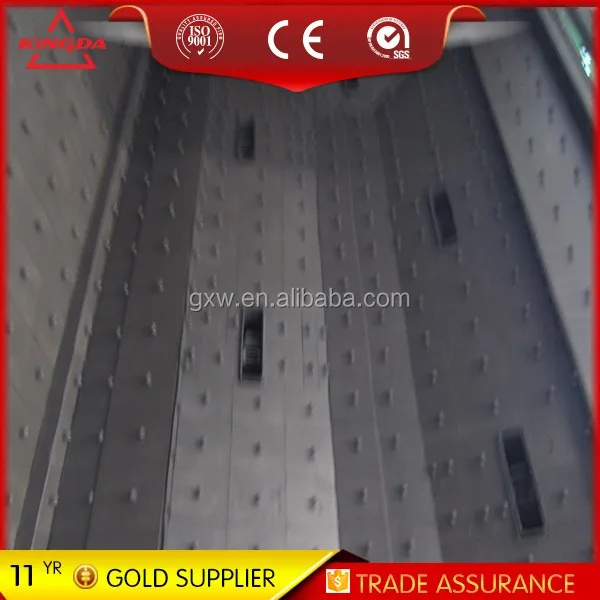

this hanger-type shot blasting machine is composed of cleaning room,blasting turbines,the bucket elevator, bottom screw helix conveyor,the steel shots seperator,dust catcher , track and hanger system and electrical control system



Q37 series hook shot blasting machine



NO	Name	model	Q376	Q378C	Q378E	Q3710	Q3720	Q3730	Q3750	Q3770
1	Size of workpiece	mm	Φ 370-1050mm	Φ800*1500 mm	Φ800*1500 mm	Φ800*1850 mm	Φ1400*2300 mm	Φ1600*2200 mm	Φ1800*2500 mm	Φ2000*3000 mm
2	Loading tonnage of the hook	Kg	1000	1000	1000	1000	2000	3000	5000	8000
3	Blasting qty	Kg/min	180*2	2*250	2*250	2*250	3*250	3*250	4*250	4*250
4	elevator capacity	t/h	15	30	30	30	45	45	60	60
5	Separator capacity	t/h	15	30	30	30	45	45	60	60
6	Are flow	m3/h	2800	8300	8300	9000	15000	15000	18000	20000
7	Power(not including dust catcher)	kw	22	37.4	39.65	36.555	61.27	64.4	78.4	81.5
8	Size of machine	mm	2500*1900*4400	4844*3850 *5500	5047*3850 *5500	5844*2742 *5716	6110*3599 *7842	7085*4650 *7200	7062*5460 *8000	8050*6400 *8526
