Large Scale Water Filter/Industrial Water Treatment Equipment
- Category: >>>
- Supplier: Hangzhou Kangqiang Water Treatment Equipment Co. Ltd.
Share on (60403159373):
Product Overview
Description
Product&Company Show

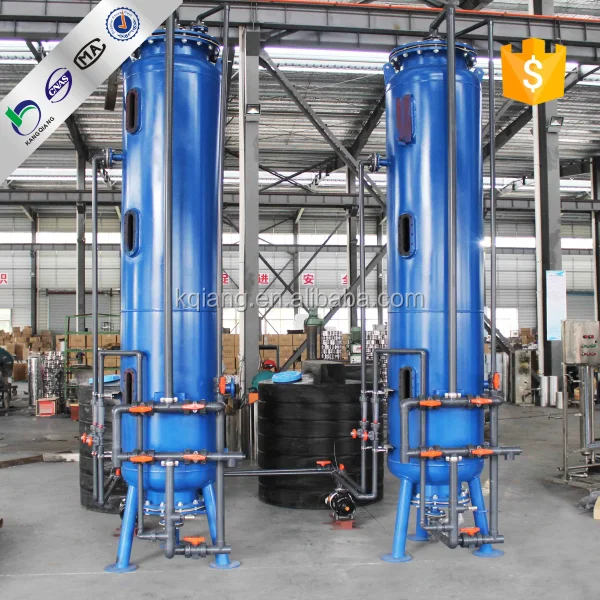

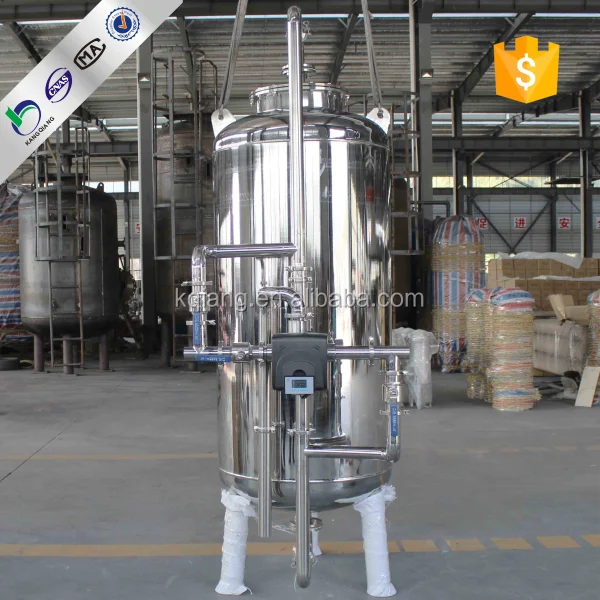

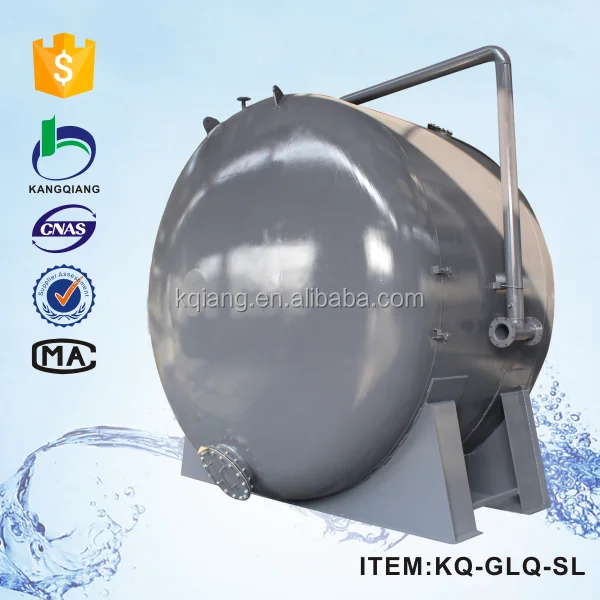

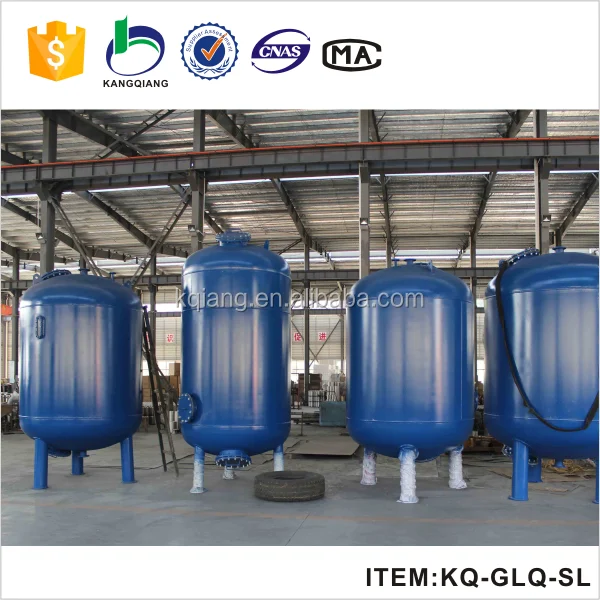

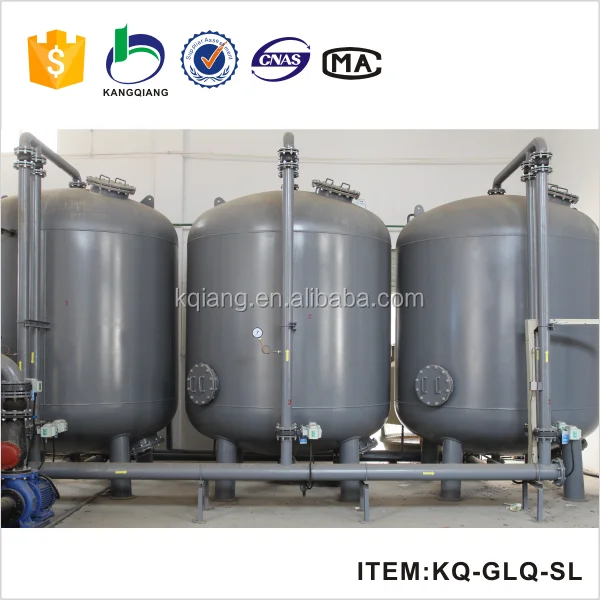

Picture of Large-Scale Water Filter/Industrial Water Treatment Equipment
Technical Parameters of Large-Scale Water Filter/Industrial Water Treatment Equipment
| Large-Scale Water Filter/Industrial Water Treatment Equipment | ||||||
| Model | B (mm) | D (mm) | H (mm) | F (mm) | In/Out | Vent |
| GLQ-1/300*1200 | 1200 | ∅300 | 1800 | 300 | 1" | 3/4" |
| GLQ-1/400*1500 | 1500 | ∅400 | 2150 | 300 | 1" | 3/4" |
| GLQ-1/500*1500 | 1500 | ∅500 | 2230 | 300 | 1-1/4" | 1" |
| GLQ-1/600*1500 | 1500 | ∅600 | 2290 | 300 | 1-1/4" | 1" |
| GLQ-1/700*1500 | 1500 | ∅700 | 2340 | 300 | 1-1/2" | 1" |
| GLQ-1/800*1500 | 1500 | ∅800 | 2390 | 300 | 1-1/2" | 1" |
| GLQ-1/900*1500 | 1500 | ∅900 | 2600 | 300 | 1-1/2" | 1" |
| GLQ-1/1000*1500 | 1500 | ∅1000 | 2750 | 400 | 1-1/2" | 1" |
| GLQ-1/1100*1500 | 1500 | ∅1100 | 2800 | 400 | 2" | 1-1/4" |
| GLQ-1/1200*1500 | 1500 | ∅1200 | 2850 | 400 | 2" | 1-1/4" |
| GLQ-1/1400*1500 | 1500 | ∅1400 | 2950 | 400 | 2" | 1-1/4" |
| GLQ-1/1500*1800 | 1800 | ∅1500 | 3360 | 400 | 2" | 1-1/4" |
| GLQ-1/1600*1800 | 1800 | ∅1000 | 3500 | 400 | 2-1/2" | 1-1/2" |
| GLQ-1/1800*1800 | 1800 | ∅1100 | 3610 | 400 | 2-1/2" | 1-1/2" |
| GLQ-1/2000*1800 | 1800 | ∅1200 | 3710 | 400 | 3" | 1-1/2" |
| GLQ-1/2200*1800 | 1800 | ∅1400 | 3810 | 400 | 3" | 1-1/2" |
| GLQ-1/2500*2000 | 2000 | ∅1500 | 3860 | 400 | 3" | 1-1/2" |
Raw water requirement:
- Iron content: ≤20mg/L;
- Manganese content: ≤3mg/L;
- Raw water turbidity: <20FTU;
- Alkalinity: ≤2mg/L;
Working Environment Parameters
- Working Temperature:5-60℃
- Working pressure: ≤0.6MPa
Operating Parameters
- Working style: pressure style
- Operating style: Current top-down
- Filter speed: 6-10m/h(remove iron),5-8m/h(remove manganese)
- Operation period: it depends on raw water condition, not less than 8 hours
Working Principle of mechanical filter housing
- Mechanical sand filter, also known as pressure filter, is an important part of the pre-pure water pretreatment and water purification systerms.Mechanical sand filter packing is mainly used to reduce water turbidity, remove the water suspended particles, organic matter, colloidal particles, microorganisms, residual chlorine and some heavy metal ions.
- The turbidity of raw water require less than 20 degrees, and it will up to 3 degrees when the filtration completed.
Application of mechanical filter housing
- Chemical, petroleum industrial, pharmaceutical, light industry, food, mineral processing, water treatment, electroplating, metallurgy, textile, dye industry.
More Products
We are honest and have good faith manufacture from China
Company show
Our Company Profile
Hangzhou Kangqiang water treatment equipment CO.,LTD, was established in 2009, The company covers an area of 20000 m2. Existing staff 80 people, including professional and technical personnel 10 people, senior engineer 2 people.
We specialized in manufacturing water treatment preprocessing filter series accessories (mechanical filter housing/precision filter housing, bag filter housing, etc.), industrial/household water purification(water softening tank/whole house water purifier, etc.), ultrafiltration filter, etc.
Our products are delivered to throughout the country, and exported to the Middle East, Africa,etc.
Our Company at the Exhibition
FAQ:
1.Are you a factory or trading company?
Yes, we are a manufacture with designing, manufacturing, marketing and exporting.
2.What products does your company offer by yourself?
We are specialized in making stainless steel filter housing, such as mechanical filter housing/pressure filter housing, precision filter housing/cartridge filter housing/security filter housing/sanitary filter housing, bag filter housing, stainless steel membrane housing, ion exchange filter housing, etc.
3.How do you usually pack the exported goods?
We usually use bubble bag, then wooden box with pallet.
4.Which machine should I choose?
It depends on your raw water quality and your requirements for permeate water.
5.What’s your warranty?
Our warranty is 1 year. But normally, our machine can work 5 years before repair.
