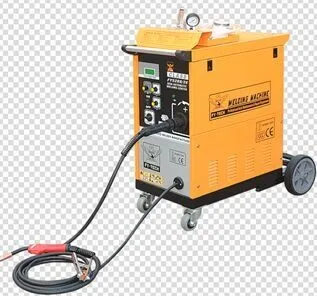

multifunctional MIG/MAG spot welding machine FY 5288

Product Overview

Description

Technical Features:



The FY series MIG semi-automatic gas shielded welding machines are suitable for all positions and for the highspeed welding of sheet metals and medium plates. These units are mainly used in the welding of ferrous metallic materials such as low carbon steel, low alloy steel, high strength low alloy steels, stainless steels, iron and nickel. With a one piece design, Pulse Width Modulation (PWM) electronic speed control provides an effective, smooth and steady wire feed during the welding process. Adjustable welding and interval times are specifically designed for easy and flexible spot welding of sheet metal. Extensively used in the welding and field operation of steel construction, oil pipelines, car production, shipyards and industrial installations.
Features:
Voltage auto-detect function
Welding gun test function
Digital display
Multi-bridge rectifier
Wire feeder with two-roll dual drive system
Complete with heated regulator
Adjustable dynamic arc characteristic
Good forming capability and quality weld appearance



Technical data:



Input Voltage: AC380-400V 3-phase
Frequency: 50/60Hz
Rated maximum supply current: 21.6A
Maximum effective supply current: 16.4A
Output current/voltage: 35A/17V-320A/30V
No-load voltage: 20-40V
Welding current range: 35-320A
Duty cycle: 35%
Insulation grade: F
Weldable wire: Low carbon Steel Solid
Wire : 0.8-1.0mm
Type: All-in-one
Voltage regulation range: 10steps
