GS TRUSS DJ truss tower , dragon goal post truss best quality
- Category: >>>
- Supplier: Shenzhen Golden Sailing Stage Equipment Co. Ltd.
Share on (60403296176):
Product Overview
Description
GS TRUSS DJ truss tower , dragon goal post truss best quality
SQF14 Model : 100mm x 100mm truss
Main tube : 20*2mm, brace tube : dia 6mm solid
Application : Fit for standard exhibition booth , Golf practice room, support for post/flag .etc
| Model | Lenth | Load table | |
| UDL ( kg/m) | CPL (kg) | ||
| GSF140050 | 0.5m | 589 | 446 |
| GSF140100 | 1.0m | 344 | 252 |
| GSF140150 | 1.5m | 268 | 230 |
| GSF140200 | 2.0m | 152 | 194 |
| GSF140250 | 2.5m | 115 | 176 |
| GSF140300 | 3.0m | 98 | 158 |
SQF24 Model : 220*220 mm truss
Main tube : 35 x 1.6mm
Brace tube : dia 8mm solid
Application : Fit for standard exhibition booth , LED frame, truss , small truss system for hanging post.
| Model | Lenth | Load table | |
| UDL ( kg/m) | CPL (kg) | ||
| GSF240100 | 1.0m | 633.8 | 633.8 |
| GSF240200 | 2.0m | 313.9 | 457.5 |
| GSF240300 | 3.0m | 200.0 | 300.5 |
| GSF240400 | 4.0m | 105.9 | 220.8 |
| GSF240500 | 5.0m | 68.2 | 171.9 |
| 6.0m | 45.5 | 138.5 |
| 7.0m | 31.8 | 113.9 |
SQF34 Model : 290*290mm truss
Main tube : 50*3mm( 50*2mm is avaliable)
Brace tube : 20*2mm
Aplication : Fit for standard exhibition booth, LED frame truss, aluminum roof truss system with lifting tower, also apply to lighting truss, tent truss
| Model | Lenth | Load table | |
| UDL ( kg/m) | CPL (kg) | ||
| GSF340100 | 1.0m | 2274.0 | 911.9 |
| GSF340200 | 2.0m | 1134.0 | 792.1 |
| GSF340300 | 3.0m | 754.0 | 700.9 |
| GSF340400 | 4.0m | 501.5 | 627 |
| GSF340500 | 5.0m | 319.2 | 567.8 |
| 6.0m | 219.0 | 518.8 |
| 7.0m | 158.0 | 477.5 |
| 8.0m | 120.0 | 442.3 |
| 9.0m | 93.0 | 411.9 | |
SQF44 Model : 400*400mm truss
Main tube : 50*3mm
Brace tube : 25*3mm
Aplication : Fit for truss tent, concert , LED frame truss, aluminum roof truss system with lifting tower, lighting truss, show truss for light hanging
| Model | Lenth | Load table | |
| UDL ( kg/m) | CPL (kg) | ||
| GSF440100 | 1.0m | 940.0 | 573.5 |
| GSF440200 | 2.0m | 800.0 | 538.0 |
| GSF440300 | 3.0m | 654.0 | 506.4 |
| GSF440400 | 4.0m | 516.0 | 478.4 |
| GSF440500 | 5.0m | 406.0 | 453.3 |
| 6.0m | 322.0 | 430.6 |
| 7.0m | 234.0 | 410.2 |
| 8.0m | 180.0 | 391.6 |
| 9.0m | 140.0 | 374.6 | |
SQF54 Model : 520*520mm truss
Main tube : 50*4mm
Brace tube : 230*3mm
Aplication : Fit for truss tent, concert , LED frame truss, aluminum roof truss system with lifting tower, lighting truss, show truss for light hanging
| Model | Lenth | Load table | |
| UDL ( kN/m) | CPL (kN) | ||
| GSF540400 | 4.0m | 12.72kN/m | 37.96kN |
| GSF540500 | 5.0m | 10.18kN/m | 30.87kN |
| 6.0m | 8.29kN/m | 25.55kN |
| 7.0m | 6.20kN/m | 21.77kN |
| 8.0m | 4.69kN/m | 18.90kN |
| 9.0m | 3.68kN/m | 16.68kN | |
| 10.0m | 2.90kN/m | 14.87kN | |
| 11.0m | 2.39kN/m | 13.10kN | |
| 12.0m | 2.00kN/m | 9.10kN | |
Packing :

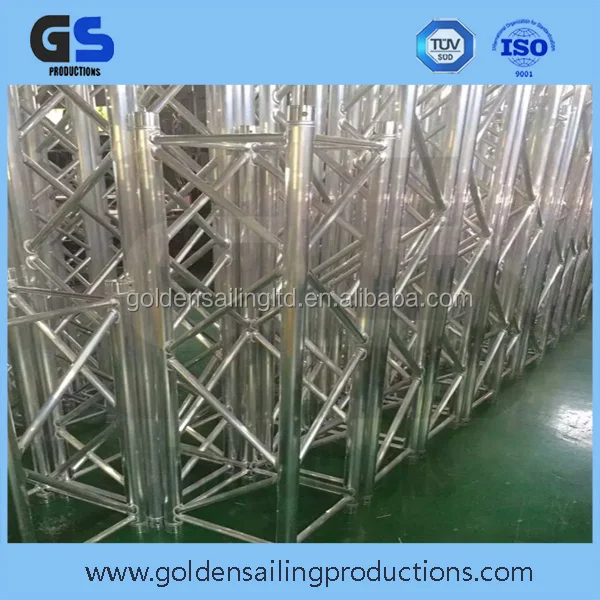

Production line display:
Our client's project :
Why choose us?
1. Competitive price guarantee and 100% quality inspection and fast delivery time
2. Instant feedback for any inquiry
3. Quality satisfaction guarantee 100% return policy
4. Sample or trial order is acceptable. Mixed order support, fast delivery time, competitive price.
5. Relative merchandise meets the standards of TUV,ISO9001 certification.
If you are interest in our production, please contact us via:
Contact person: Apple Zhang
Phone: 86-0755-23729586
Warmly Welcome to visit our factory, hope to establish long-term friendly cooperation with you !
If you want to know more information about our stage, dance floor, crowd barrier, please contact us freely!
