fullautomatic wire mesh welding machine

Product Overview

Description

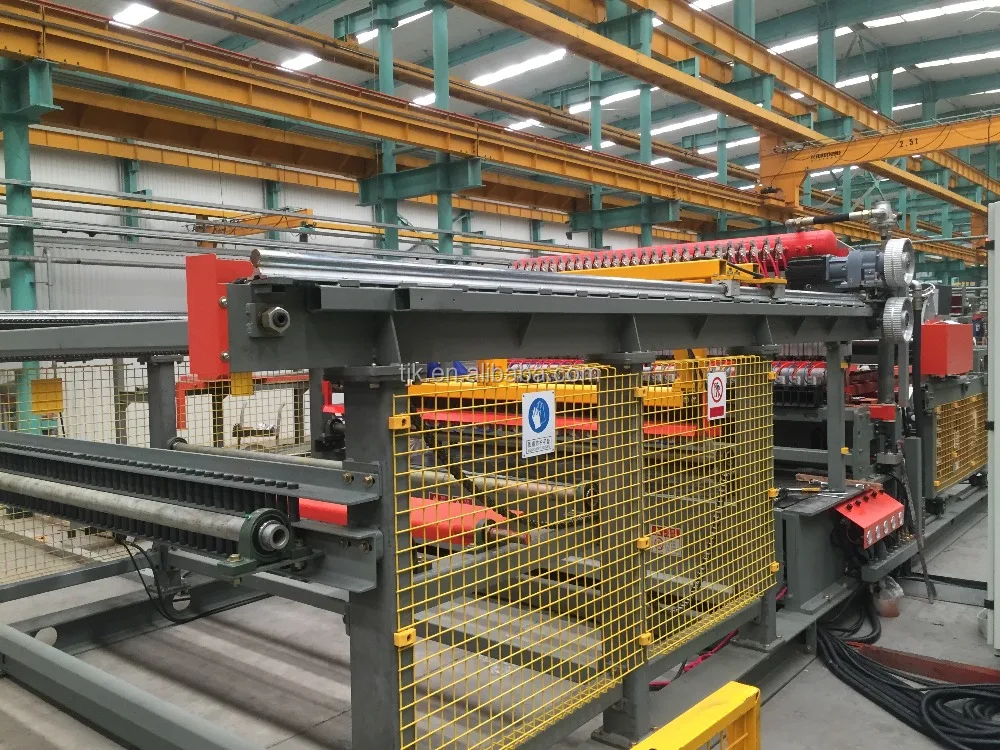

 Fullautomatic wire mesh welding machine

Products Introduction : The steel wire mesh welding line may produce livestock breeding mesh and suitable for producing small specification of mesh and small diameter of wire processing , with quickly, accurate and reliable welding.



CHARACTERISTIC



1,CNC wheel-step design to provide high accurate mesh grid (patent).

2,Electrode lift system to extend electrode life (patent).

3,Line wire loop and balance system to ensure wire mesh accuracy.

4,Line wire vertical straightening system to provide high quality (patent).

5,Unique high speed air cylinder used on welding electrode to provide high reliability.

6,Welding pressure steplessly adjustation to apply multiple wire diameter (patent).

7,High speed mesh cutting system, 120 times per min.

8,Automatically high speed cross wire feeding system(patent).

9,Automatic mesh turning, stacking and conveying system.

10,Direct circuit to enhance welding quality (patent).

11,Control systems: YASKAWA, SCHNEIDER, MOLLER.

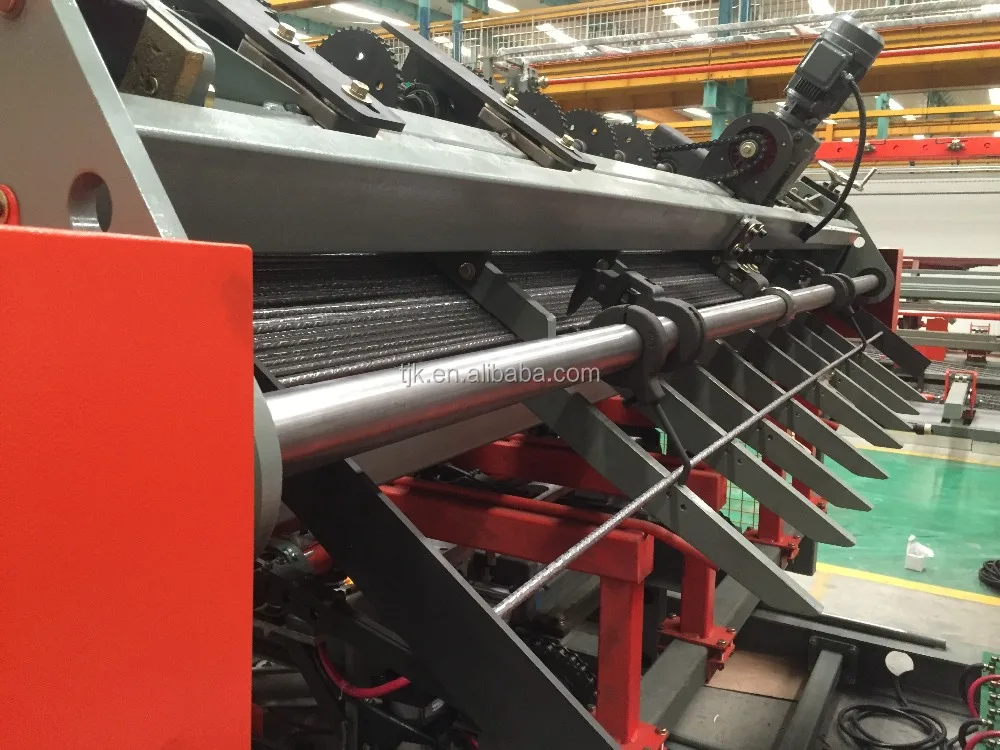

          straightening system

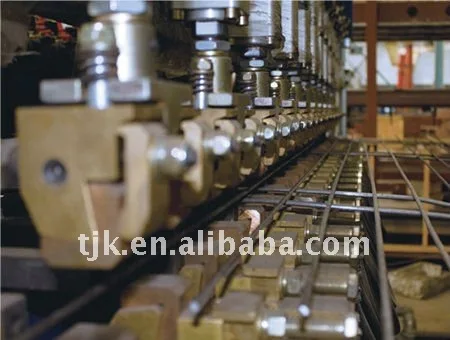

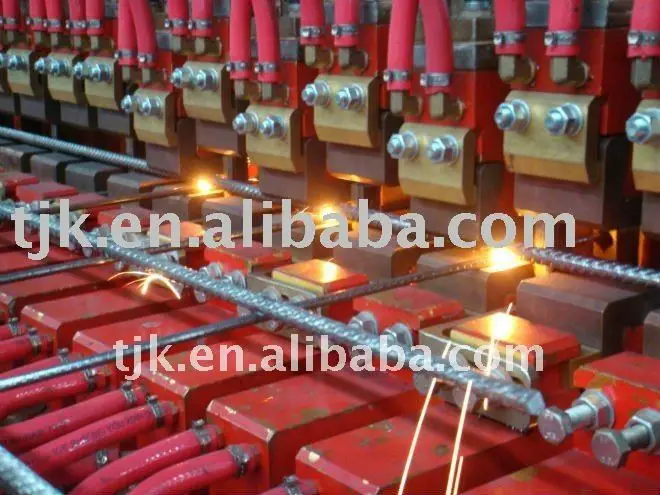

                welding system



TECHNICAL DATA



Model	GWC-900XM		GWC-1200XM		GWC-1500XM
Installed power(kva)	5*25		6*25		7*25
System coltagte(v)	380V 50Hz		380V 50Hz		380V 50Hz
Control voltage(v)	24V		24V		24V
Power cable cross-sectional area	3*70mm²+1*25mm²		3*95mm²+1*35mm²		3*120mm²+1*50mm²
Max.mesh width	900		1200		1500
Line wire spacing	≥25mm steplessly adjustable
Cross wire spacing	≥20mm steplessly adjustable
Wire diameter(mm)	1.8-3	1.8-3		1.8-3
Max.welding capacity	3+3	3+3		3+3
Max.wlding speed(time/min)	30-60	30-60		30-60
Max.welding spot nos.(group)	18	18		18
Pressed air(MPa )	≥0.5	≥0.5		≥0.5
Wire feeding method	Pre-cut/off-coil
Caterconer accutracy	≤2	≤2		≤2
Raw material	Cold drawn wire,stainless wire,galvanized wire

 TJK Machinery Co.,Ltd. is Chinese largest manufacturer in reinforcing steel and wire processing machinery ,which has passed quality certification of ISO9001-2000 system ,TUV and CE certification. Based on our industrial experiences and professional engineering team, TJK is able to provide professional solutions of reinforcement processing industry for clients .The company owns independent intellectual rights registered over 300 technical patents, which have further strengthened TJK leading position in reinforcement processing industry.

TJK is recognized as one of the most fast-growing company in reinforcement processing industry. TJK has 95% market share in China and the products are well sold in more than 70 countries and regions.
