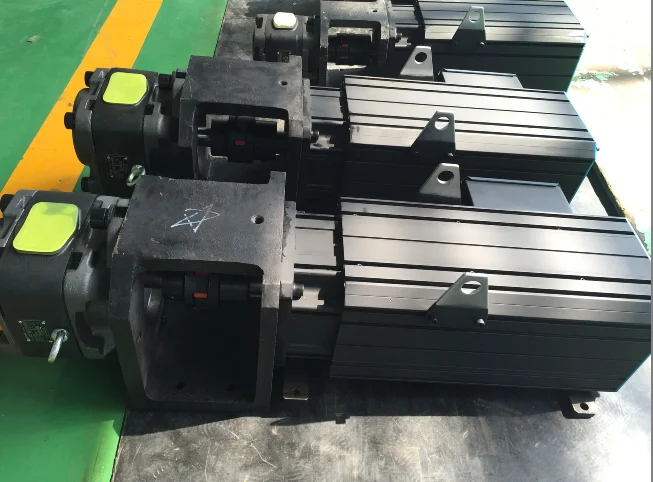

RE PMSM Servo Motor with servo drive
- Category: >>>
- Supplier: Ningbo Xingtai Technology Co. Ltd.
Share on (60403402518):
Product Overview
Description
Product Description
Brief Introduction of 380V AC Servo Motor
XingTai Servo Motor Designed for process lines and apply in sustained operation at high speed,forced cooling over frame with fan servo controlled by the motor ,overall protection grade IP 54;
The advantage of combination of permanent magnet and Magnetic reluctance are:
1.10% higher efficiency than induction motor;
2.wider speed range compared to general permanent magnet motor;
3.Slender structure make motor faster dynamic response ,lower noise;
4.Special airduct design make the motor more outstanding cooling effect.
The products are widely used in hydraulic servo industry, air compressor industry, packaging and printing industry, machine tool industry and other industrial control fields , especially injection molding machine. Xingtai Servo motor have passed CE, UL certificates.
The main characteristics of the Xingtai Motor are as follows:
1. Rated torque:20-600Nm
2. Peak torque:40-1500Nm
3. Peak speed: up to 16000rpm
4. Cooling Mode: Natural Cooling, Wind Cooling, water cooling, Oil Cooling
5. Insulation Class: F
6. Protection: IP65(Natural Cooling, water cooling, oil cooling), IP 54(Wind Cooling)
7. Brake: D10-D13 series motor can be equipped with permanent magnet brake according to customer's request; Electromagnetic brakes can be installed in D10 series, D13 series and D18 series
8. Support for various forms of position sensors, including:
1) Absolute encoders, based on the single-loop, multi-loop absolute encoders of Hydehan Endat 2.2, also support sick, Domochuan, Nikon, etc.
2) Incremental encoder, mainly Danah
3) Positive cosine encoder, Hyderham Ern 1385, Ern 1387
4) Various of Rotating transformers, such as Domogawa rotating transformer.
9. Temperature protection: Standard Motor preburied a set of 3 PTC 130 and a set of KTY84 thermistors
XT690 Series Servo Drive and Motor System for injection molding machine Specification:
| 140Bar System Pressure | |||||||||
| Servo drive | Servo motor | Pump | |||||||
| Model No. | KW | power capcity (KVA) | Input current(A) | Rated output current(A) | Model No. | KW - NM | Rated speed (rpm) | Rated current(A) | |
| XT690T045 | 10kw | 17 | 23 | 22 | D1004F.20.3 | 8.7kw - 42nm | 2000 | 18.8 | 16cc |
| XT690T045 | 10kw | 17 | 23 | 22 | D1005F.20.3 | 12kw - 58nm | 2000 | 24.3 | 25cc |
| XT690T070 | 15kw | 21 | 35 | 32 | D1005F.20.3 | 12kw - 58nm | 2000 | 24.3 | 32cc |
| XT690T070 | 15kw | 21 | 35 | 32 | D1007F.20.3 | 18.2kw - 87nm | 2000 | 36.7 | 40cc |
| XT690T085 | 22kw | 24 | 39 | 37.5 | D1008F.20.3 | 20.4kw - 95.6nm | 2000 | 40.1 | 50cc |
| XT690T130 | 30kw | 40 | 62 | 61 | D1010F.20.3 | 28.3kw - 135nm | 2000 | 60.5 | 63cc |
| XT690T170 | 37kw | 57 | 76 | 75 | D1013F.20.3 | 36.7kw - 175nm | 2000 | 73.7 | 80cc |
| XT690T210 | 45kw | 69 | 92 | 91 | D1315F.18.3 | 39kw - 196nm | 1800 | 78.81 | 100cc |
| XT690T240 | 55kw | 85 | 113 | 112 | D1320F.18.3 | 44kw - 232nm | 1800 | 96.46 | 125cc |
| XT690T320 | 75kw | 114 | 157 | 155 | D1330F.18.3 | 67kw - 357nm | 1800 | 146.5 | 160cc |
*Note:The adaptive servo motor and pump suggested on the sheet are referring to 140kg pressure systems.For others please contact us for best suggestions.
Independent R&D
Strict Quality Test
Production & Warehouse & Package
Applications

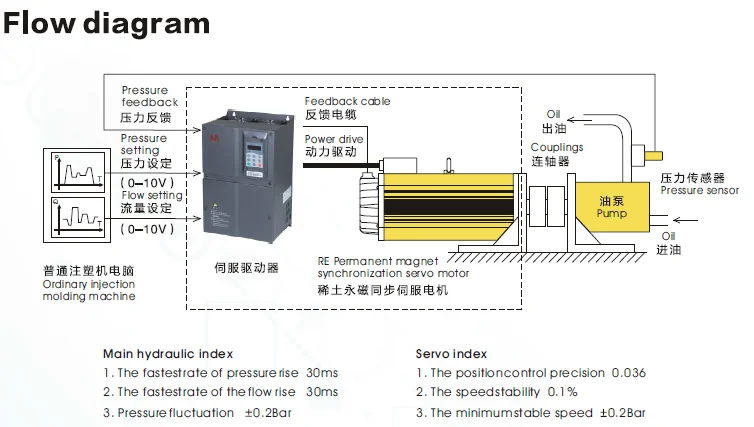

Servo Drive with PMSM Servo Motor AC motor drive for Injection molding machine
High energy saving,High performance,High precision,High response,High efficient:
Retrofit your traditional injection molding machine with Xingtai Servo not only to save energy and but also make high quality plastic products.
Company Information
Ningbo Xingtai Technology Co.,Ltd ( Brand XingTai Servo) are professional servo system solution providers for injection molding machine in China, we Concentrate on the research & development, production and sales of high performance servo drive and motors from 2002,We have strong and professional R&D expert as well as technical and sales service teams which are almost 50% of the total employee. XingTai Servo independently R&D and produce XT50 and XT690 series servo drives and its matched servo motors for injection molding machines,which could energy conservation up to 50%. XingTai servo have obtained 3 national invention patents, 16 national utility model patents, 1 appearance design patent; On the market feedback,the performance of our products are far ahead of domestic similar products and reaches the level of European top-class standards.Our XT690 Series have passed CE certificate .Until Now ,XingTai Servo have exported to South Korea, Southeast Asia, Middle east , Africa, South America .etc more than 20 countries and are all well received by our both quality and service.
FAQ
1.Do you offer complete set of servo system for injection molding machine?
Yes ,We are offering professional solutions of complete set of servo system for different tonnage injection molding machine,We offer servo drive+servo motor+pump+pressure senser+brake resist+other accessories.etc.Please inquriy us for best solutions,
2.What is your mainly delivery port?
Our factory is loacted in Ningbo city,Ningbo Port is our primary choice of delivery sea port.
3. Is there a minimum quantity request?
We does not require a minimum order for standard servo drive and motor, as we understand that some customers may only need 1 or 2 sets of our products or wish to try us out for the first time.
4.What are your packing methods?
We mostly pack into wooden cases or a combination of box and pallet.Xingtai packages will protect the servo drives well.
5.When can I except to receive my order?
Generally 3-15days after order confirmation.
6.What is your servo products quality assurance?
Our XT690 Series servo drive passed CE certificate and all servo drive and motors will be tested on injection molding machine in our factory before delivery ,You just assemble and easy debuge as per our introductions.
Generally we offer 18month warranty for our servo drive and motors,Any problems we are on the behind of you.
7.Is there any possibility to be your partner in our country?
Yes,We are looking for agent in differrent countries and areas ,Please contact one of our sales manager for more business cooperation.
