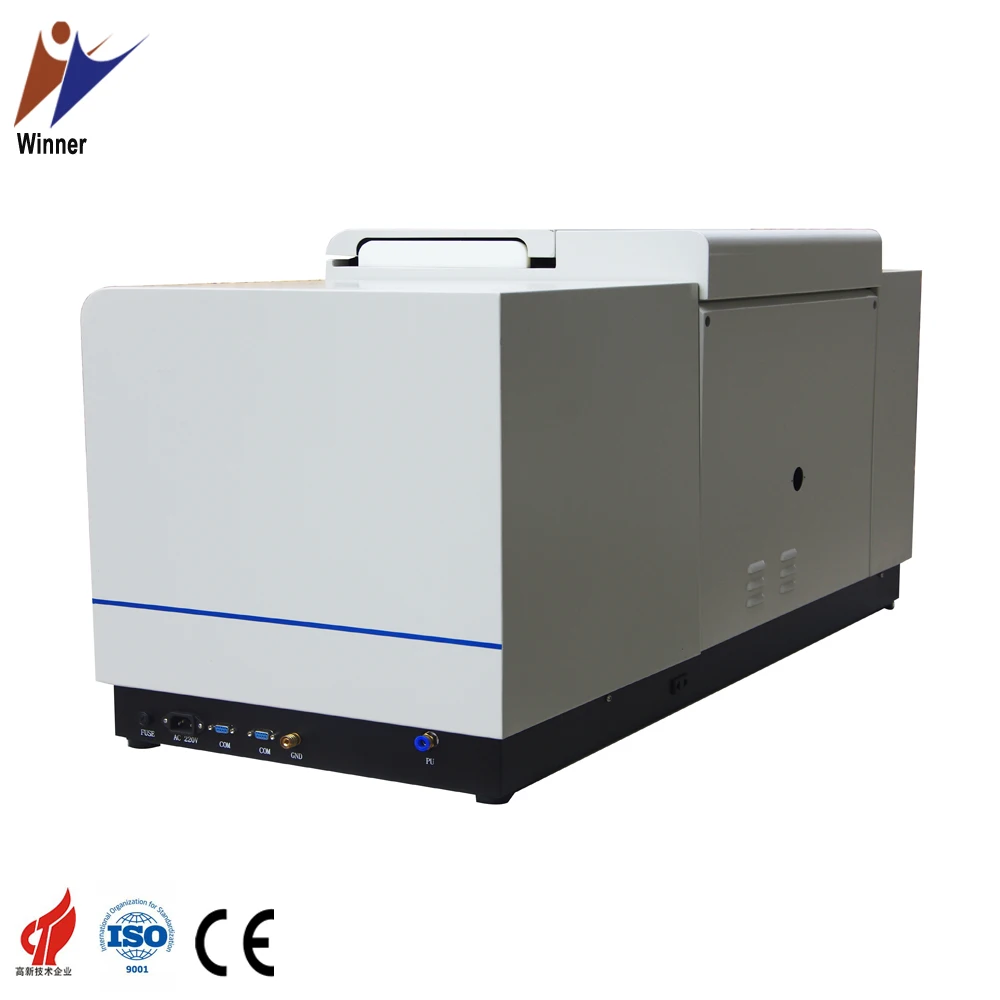

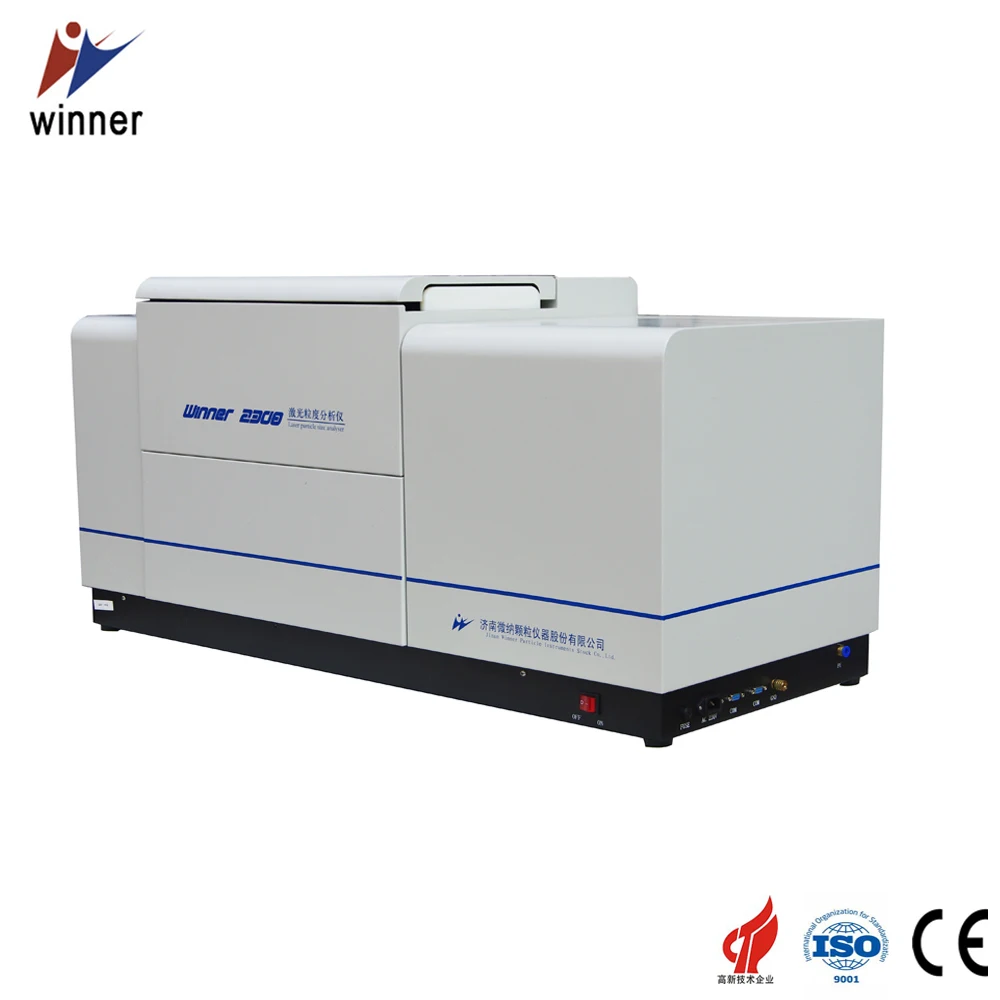

Liquid dispersion 0.01 2000um particle size distribution test Winner2008A Intelligent Laser Particle Size Analyzer
- Category: >>>
- Supplier: Jinan Winner Particle Instrument Stock Co. Ltd.
Share on (60403613742):
Product Overview
Description
Product Description
Liquid dispersion 0.01-2000um particle size distribution test Winner2008A Intelligent Laser Particle Size Analyzer
Winner2008A full automatic liquid dispersion laser particle size analyzer measure size is from 0.01 to 2000 micron, Which offer reliable and repeatable particle size analysis for a diverse range of applications.
It use dual-beam and multispectral detection systems and side light scatter test technology to significantly improve precision and performance of test, on behalfof the domestic advanced level in the field.
Main Specifications:
Model Name | Winner2008A | Winner2008D |
Standard | ISO13320-1:1999, GB/T19077.1-2008, Q/JWN001-2009 | |
Measuring Range | 0.01-2000μm | 0.01-1200μm |
Channels Number | 127 | 127 |
Accuracy error | <1% (Deviation of D50 on national standard sample) | |
Repeatability error | <1% (Deviation of D50 on national standard sample ) | |
Light source | Main: He-Ne laser (λ= 632.8nm, P>4.0MW) Auxiliary: Semiconductor laser:λ= 650nm, P>10MW | |
Sample Pool | Volume:1L | |
Ultrasonic | Frequency:40KHz Power:50W | |
Stir | Revolutions Speed: 0-3000RPM (Adjustable) | |
Circulate | Rated Flow:30L/min Rated Power:70W | |
Operation Mode | Full automatic software control | |
Optical Calibration System | Full automatic | |
Test Speed | <2mins for each time | |
Volume | L104cm×W44cm×H54cm | |
Net Weight | 58Kg | |
Main Features:

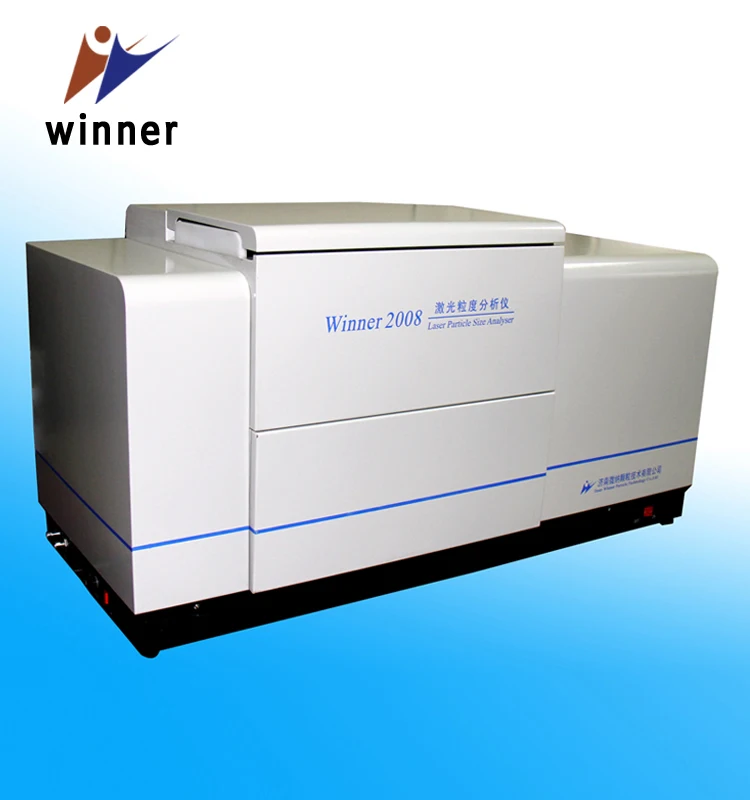

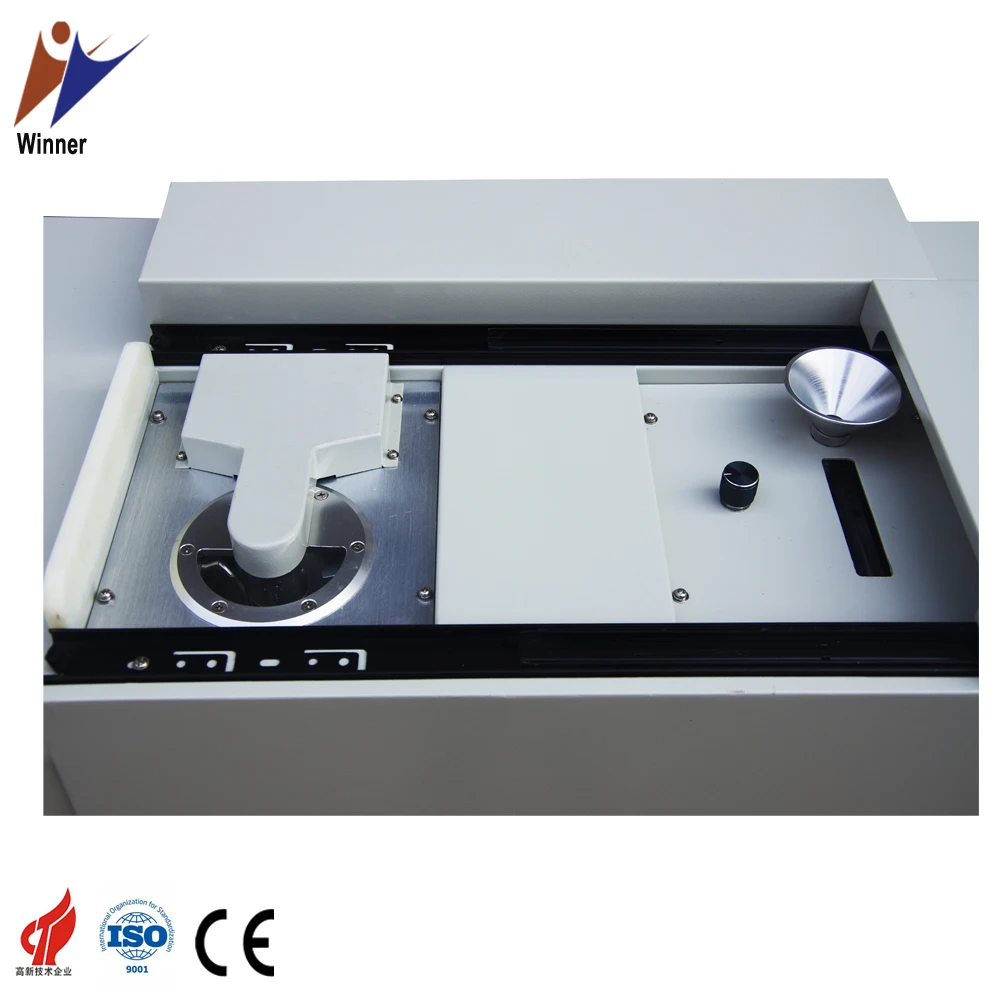

1)Winner2008 full automatic laser particle size analyzer is Full built-in dispersion system , automatic water-supply, Agitator, ultrasonic dispersion,circulation system, water supply, test and save data.
Big power-circulating pump and Optimization design of pipeline,effectively prevent large particle sediment in the pipe system, ensure good accuracy.
2) Optical Calibration System is composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level, so light path is always in a good state..
3)Analaysis software adopt Original Unconstrained free fitting technology make particle analysis not be restricted by any functions, truly reflect particles distribution.

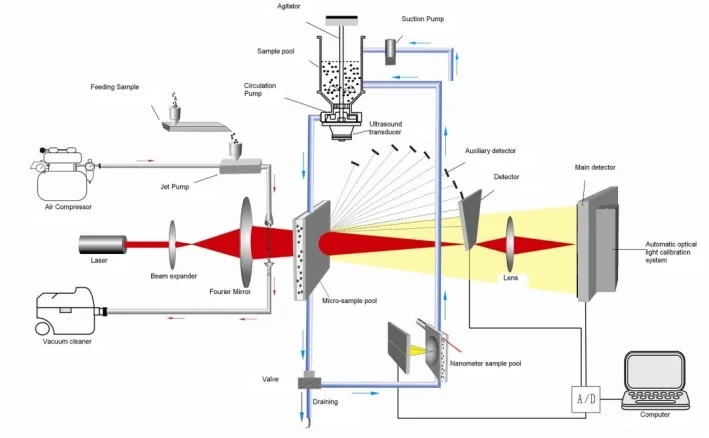

4)Optical bench:
Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture.
Double spectrum design and Dual-laser orthogonal light increase the measurement rang, and its precision achieves from 0.01 to 2000μm.

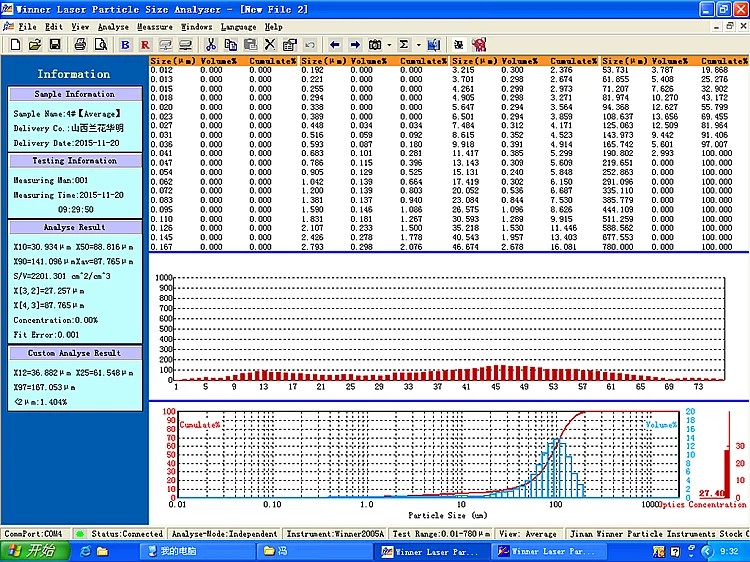

Output parameters: particle size, particle distribution etc. D10, D 50, D 90 and other customized parameters.
Packaging & Shipping
Wooden box package, G.W.:40KG.
We would ship machine by DHL, FeDex, China express, by sea and by air.
Our Services
Warranty: we will offer you free spare parts within 2 years, and technology support in all a life.
After warranty time, we will offer them at cost price, and shipping cost would be paid by customers.
Certifications
Our Exhibitions
Company Information
Jinan Winner Particle Instrument Co., Ltd. have been specialized in particle size analyzer for more than 20 years since that we take National science Project-particle size analyzer development in 1985.
High quality assurance is our task and also what we are doing now.
FAQ
1. How about the package ? Is it safe during the delivery ?
All Particle size analyzer is packed by standard strong wooden carton with foam inside.
It is safe when shipping.
2. What is the delivery way ? How many days will the machine
We will ship the particle size analyzer by DHL,FedEx, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
3. Do you provide the Warranty ? How about the after sales service ?
2 year warranty free for spare parts, Whole life technical support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
4, This machine is easy to use ? if I have no experience, I can also operate it well ?
Do you provide the user manual and operating videos to support us ?
Yes, our particle size analyzer is designed to use easily, computer control. Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.
We will provide the English user manual for free , and the operation video is available.
5, If we come to your factory, if you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
6. What is the payment way ?
We accept the payment terms: Bank transfer, Western union, Money gram, Paypal, etc.
If any question, you can send INQUIRY , or CHAT with us, we will be glad to service you !
