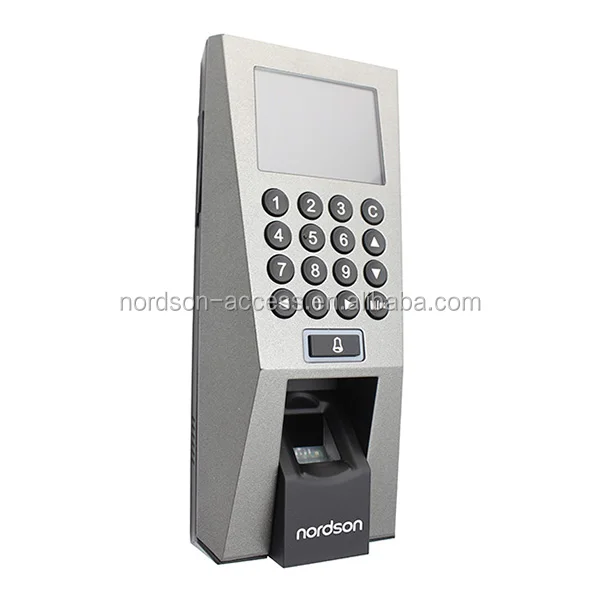

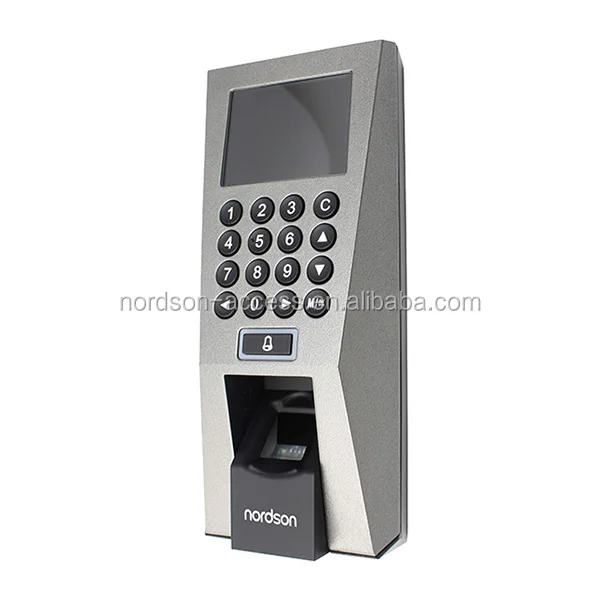

Nordson 2.4 inch TFT Screen RFID Password TCP/IP Fingerprint Scanner Access Control Time Attendance
- Category: >>>
- Supplier: Shenzhen Nordson Electronic Co. Ltd.
Share on (60403622563):
Product Overview
Description
Fingerprint attendance system a t price of biometrics fingerprint scanner
Overview

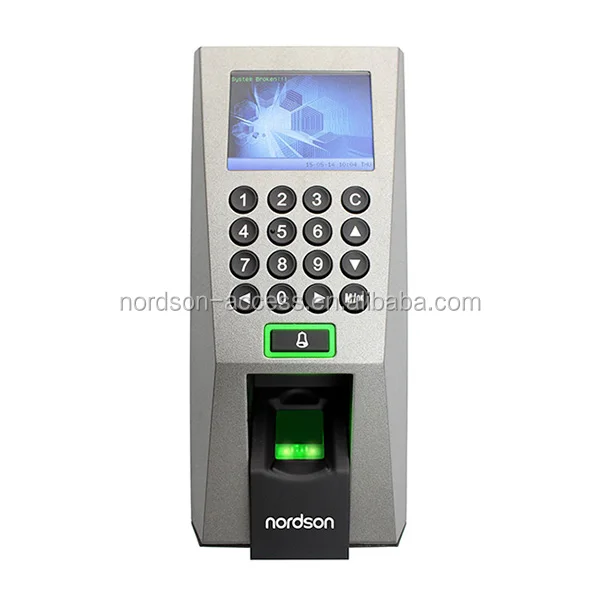

FR-F18 Fingerprint Access Control &Time Attendance Terminal is an innovative biometric fingerprint reader for access control application.The Terminal features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality infrared detection fingerprint sensor.
The device offers flexibility to be installed standalone or with any third party access control panels .that support standard Wiegand signal. All the operations can be done on the TFT-LCD color screen. The fingerprint image will be displayed on it. That will guide user to put finger on proper position and increase recognition rate. TCP/IP and RS485 are available that the device can be used in different network.
Funcation

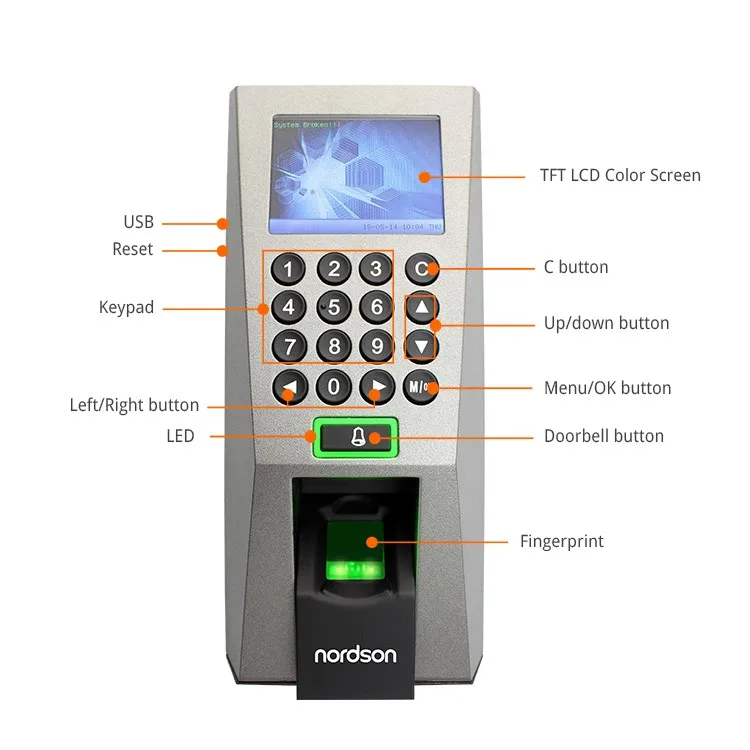

1.TFT Color Screen
Audio-visual indication for acceptance and rejection of valid/invalid fingerprints.
More simple and convenient operation.

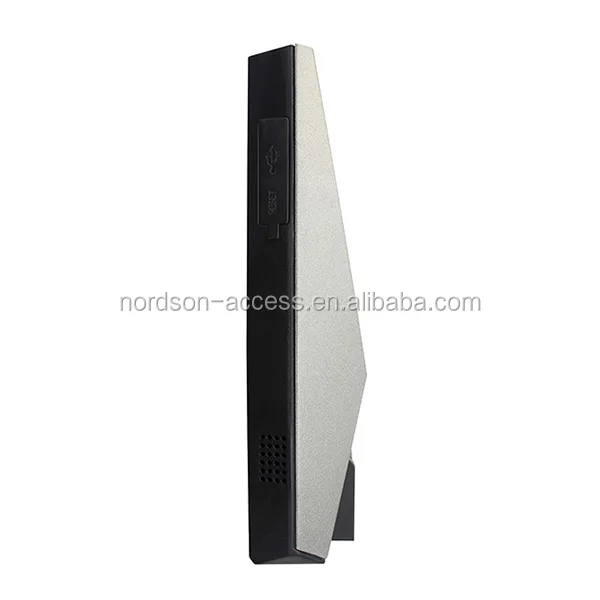

2.Slim and Elegant Design
Sleek and slim design for narrow spaces.
3.Fast and Accurate Fingerprint Algorithm
1 touch a-second user recognition.
Store 1,500 fingerprint templates, 10,000 cards and 50,000 transactions.
4.Full Access Control Features

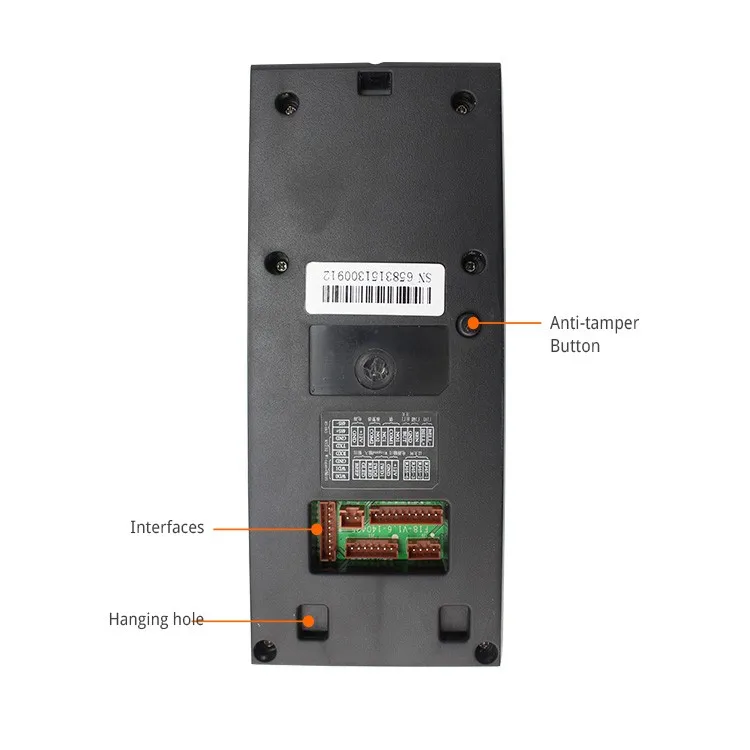

Anti-passback. Webserver. Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell

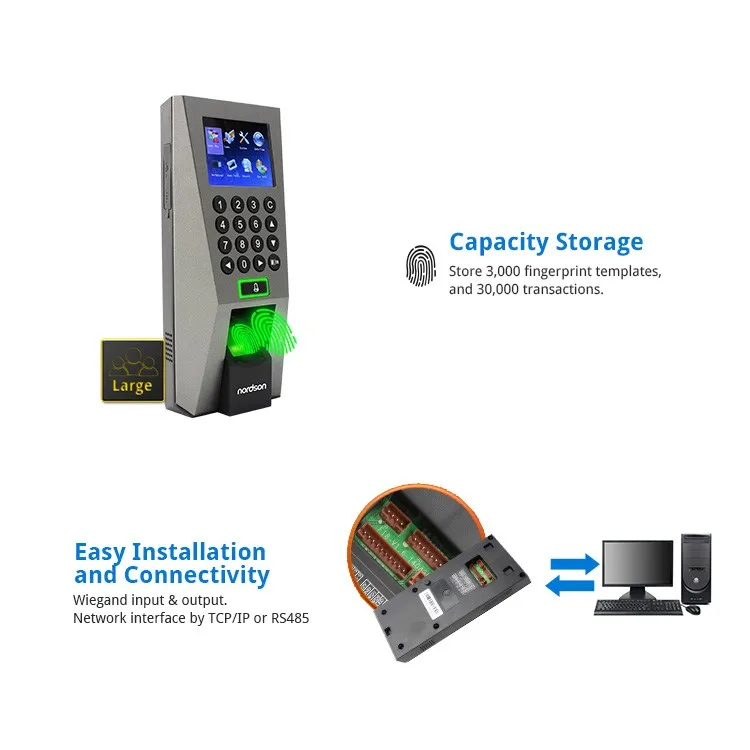

5.Easy Installation and Connectivity
Wiegand input & output.
Network interface by TCP/IP or RS485
6.Easy Operation and Management
Work without computer.

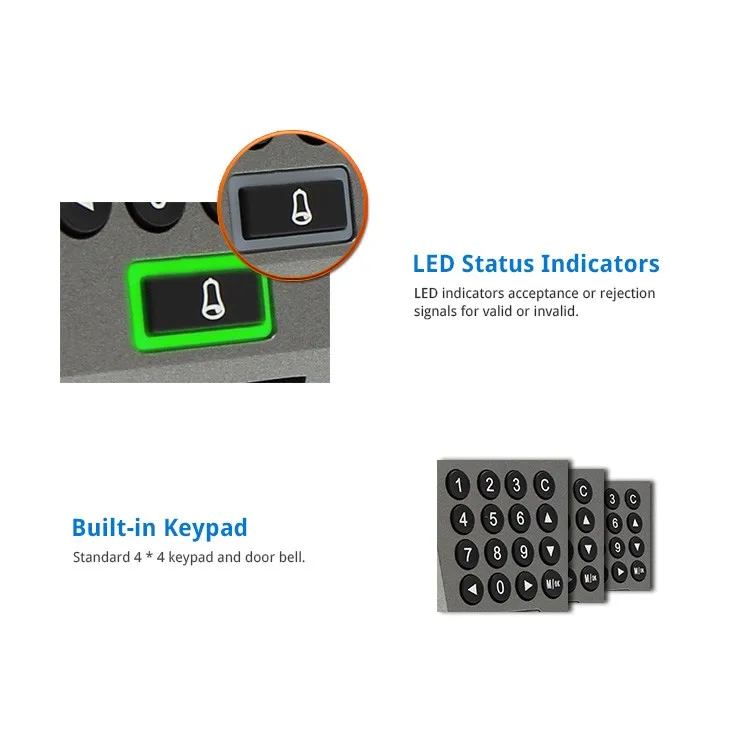

Buzzer, 4×4 keypads and door bell.
7.Built-in serial and Ethernet ports.

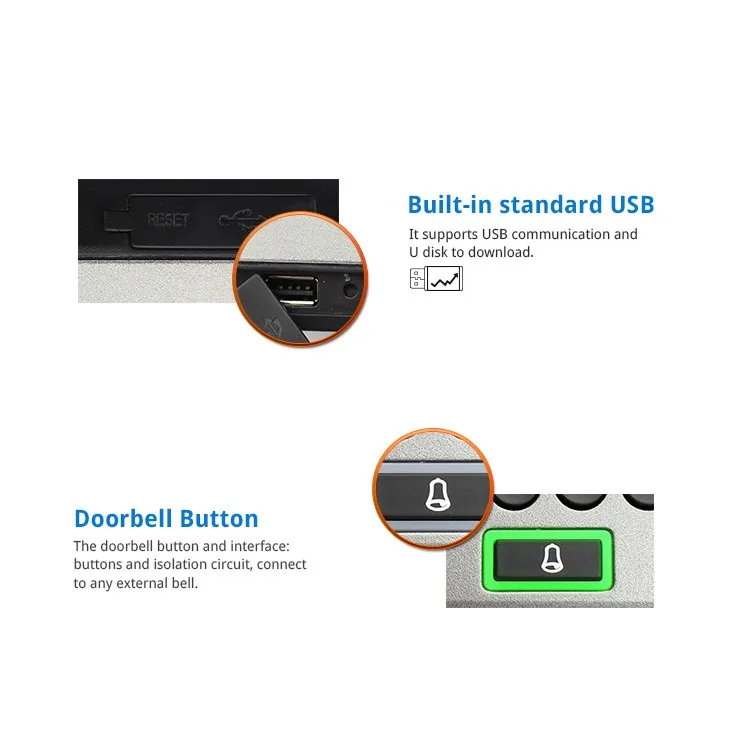

Built-in USB port allows for manual data transfer
Audio-visual indication for acceptance and rejection of valid/invalid fingerprints.
More simple and convenient operation.
2.Slim and Elegant Design
Sleek and slim design for narrow spaces.
3.Fast and Accurate Fingerprint Algorithm
1 touch a-second user recognition.
Store 1,500 fingerprint templates, 10,000 cards and 50,000 transactions.
4.Full Access Control Features
Anti-passback. Webserver. Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell
5.Easy Installation and Connectivity
Wiegand input & output.
Network interface by TCP/IP or RS485
6.Easy Operation and Management
Work without computer.
Buzzer, 4×4 keypads and door bell.
7.Built-in serial and Ethernet ports.
Built-in USB port allows for manual data transfer

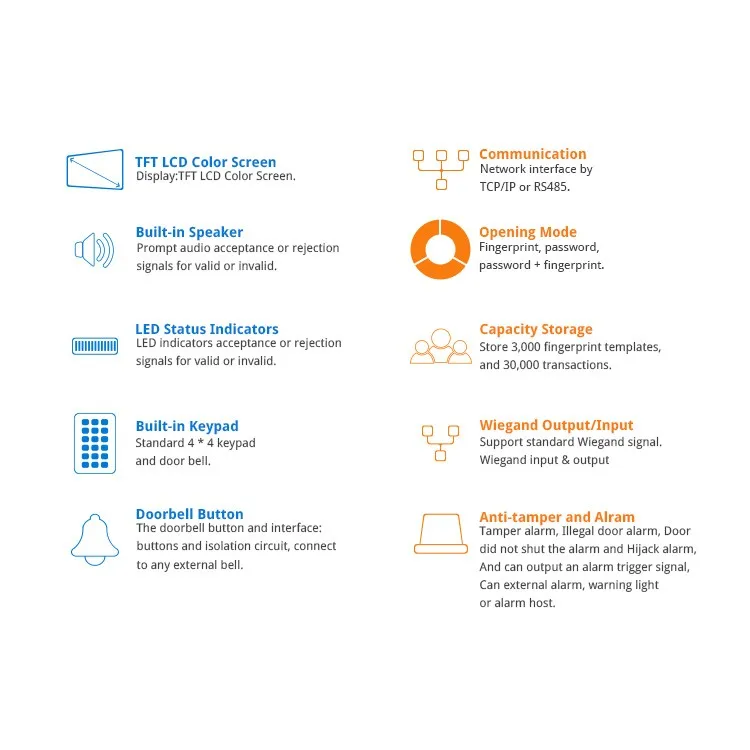

Specification
| Fingerprint Capacity | 1500 |
| Record Capacity | 50000 |
| Display | TFT LCD Color Screen |
| Communication | TCP/IP, RS232/485,USB-host |
| Access Control Functions | 3rd Party Electric Lock, Anti-passback,Door Sensor, Exit Button, Alarm, Doorbell |
| Wiegand Signal | Wiegand Input and Output |
| Optional Functions | ID/Mifare/HID, Webserver |
| Power Supply | DC 12V |
| Verification Speed | ≤0.5 sec |
| Operating Temp. | 0°C- 45°C |
| Operating Humidity | 20%-80% |
| Dimension | 183mm*80mm*42mm (Length×Width×Thickness) |
| Gross Weight | 0.82kg |

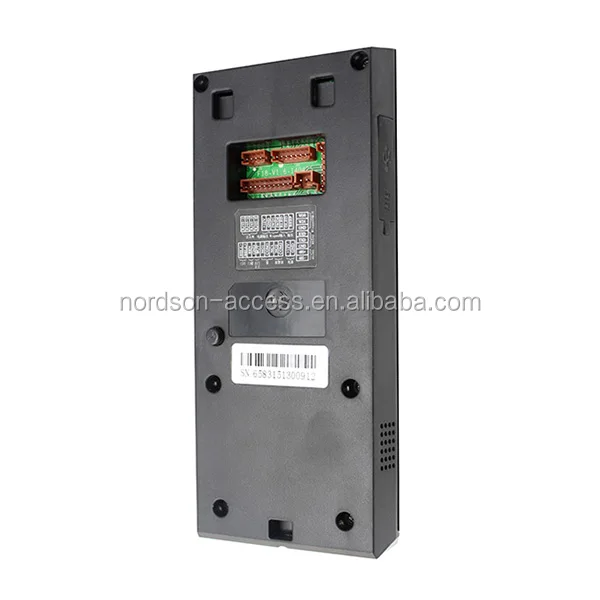

Product Details
