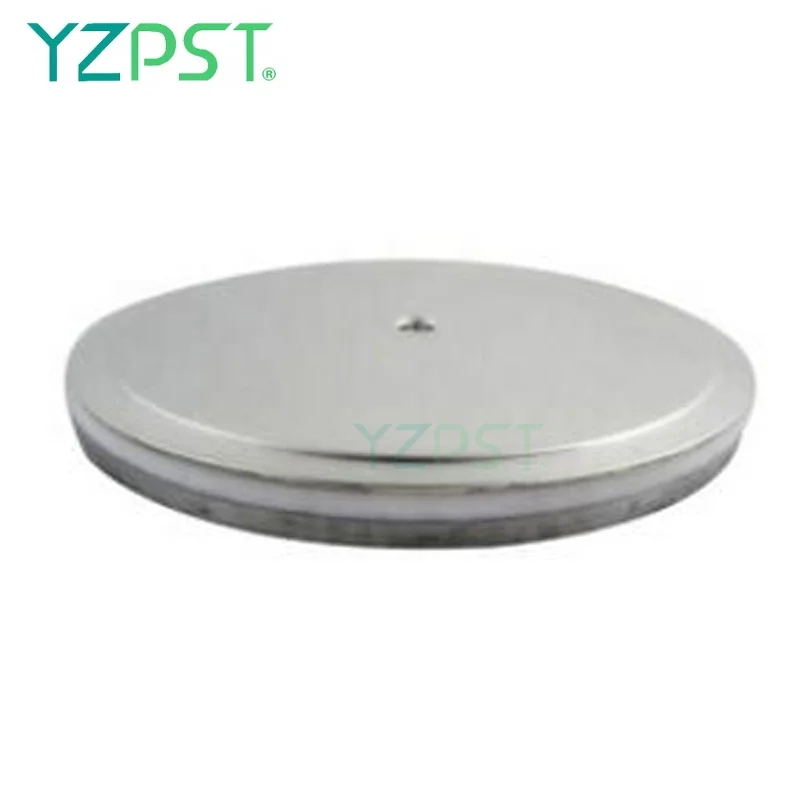

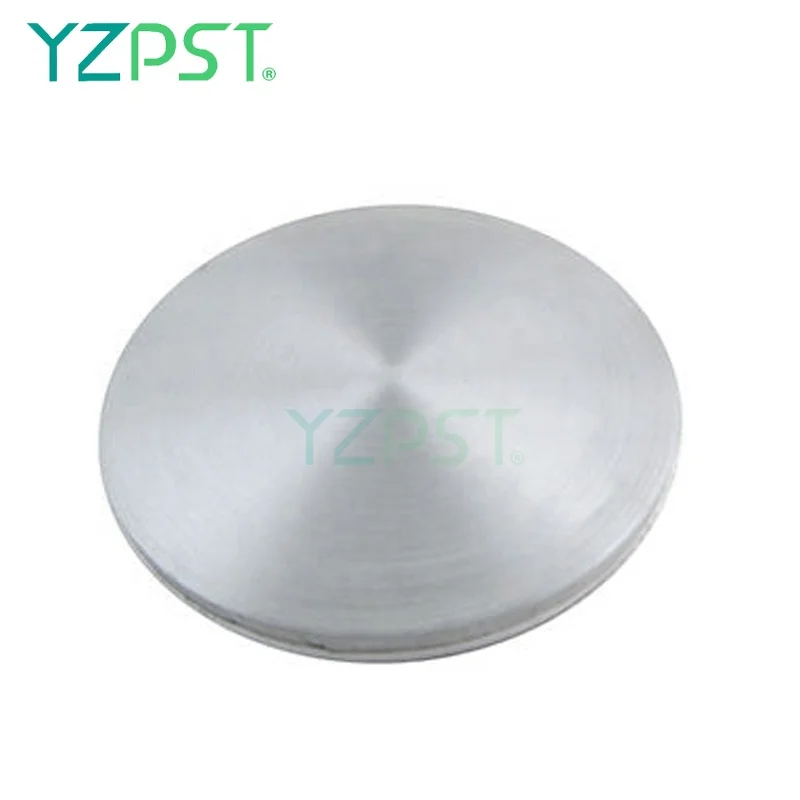

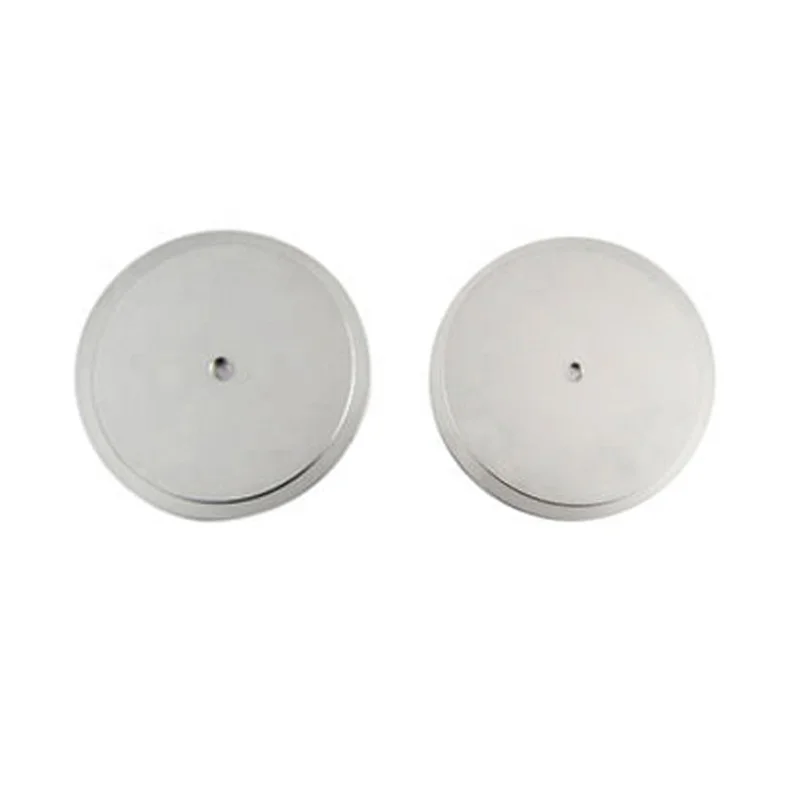

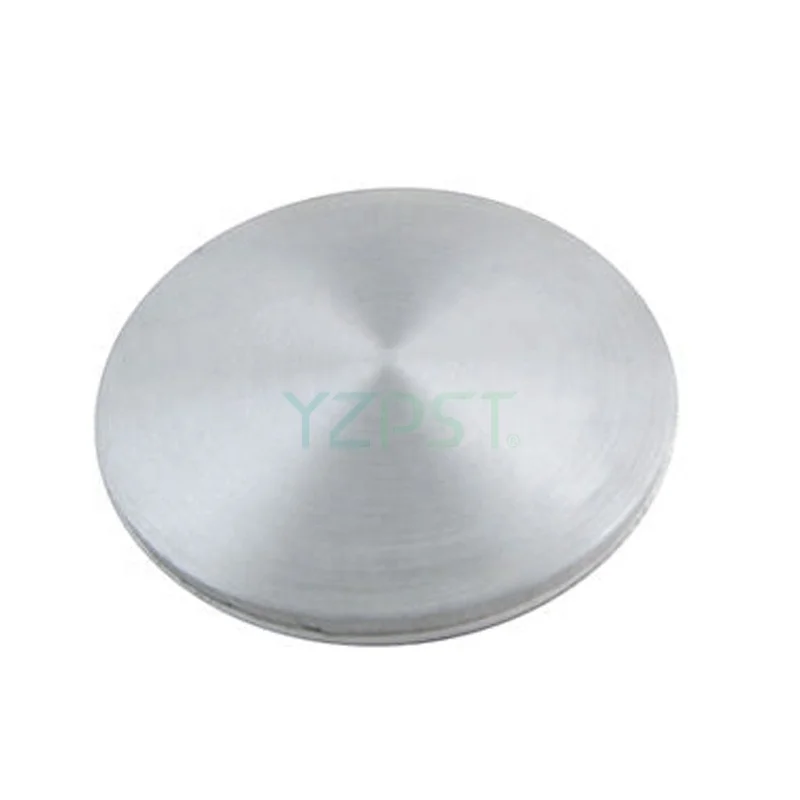

400V welding machine rectifier diode for rectifier

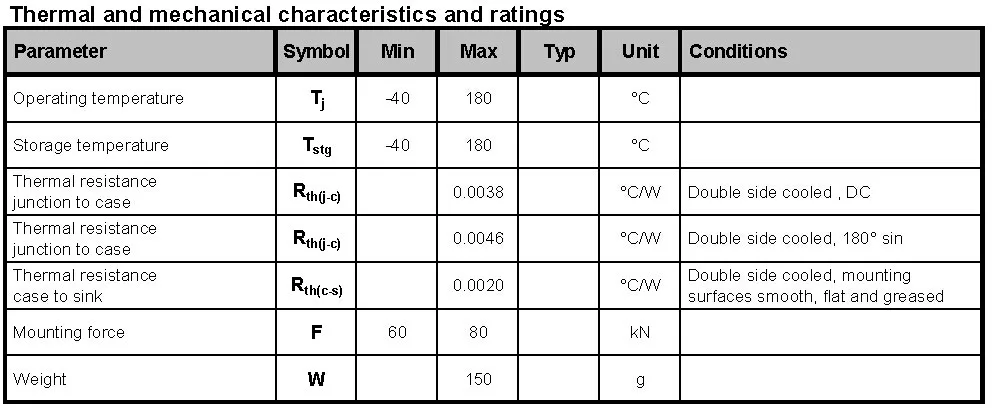

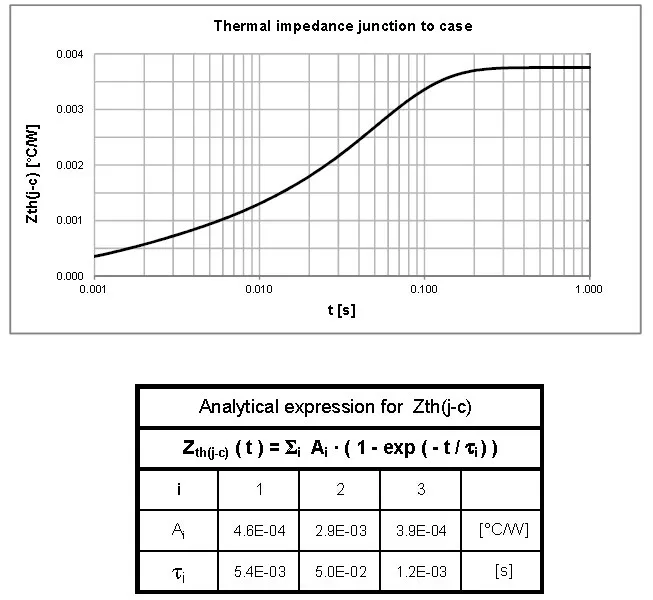

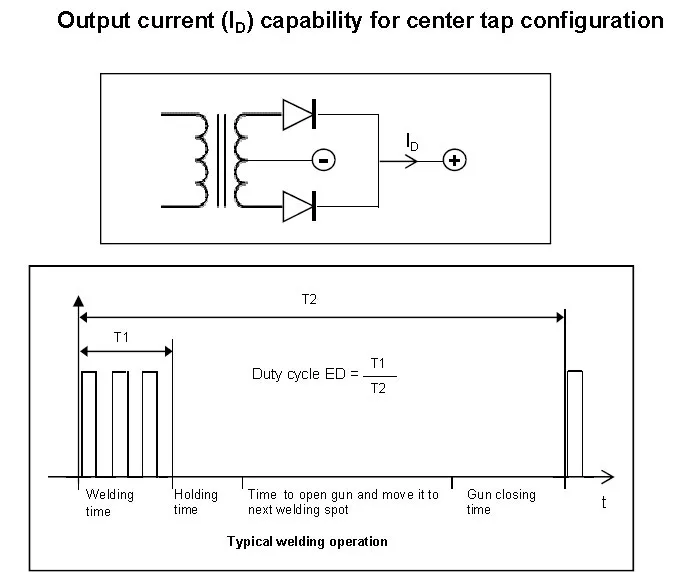

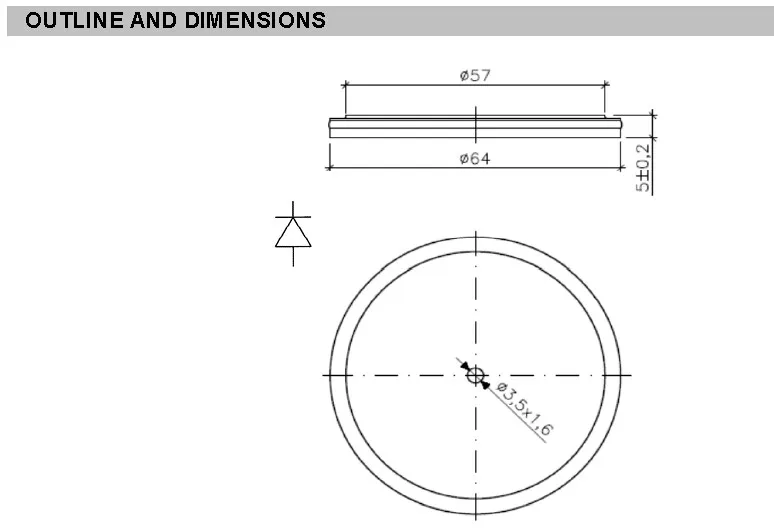

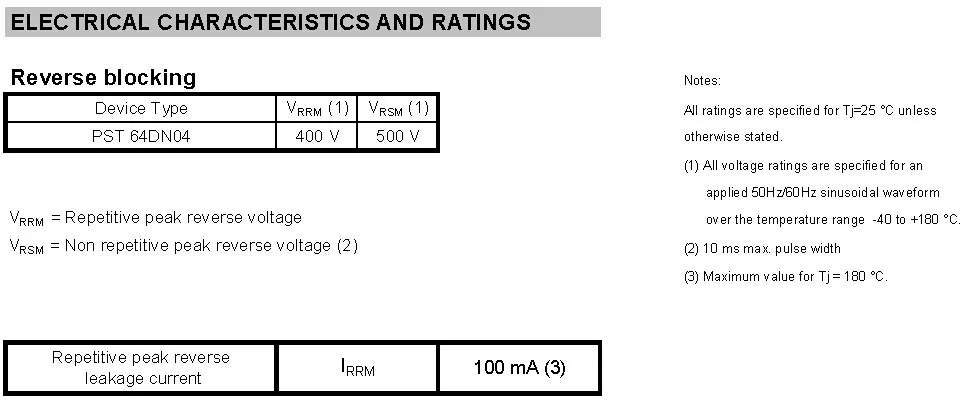

Parameter

Symbol

Min

Max

Typ

Unit

Conditions

Average value of forward current

IF(AV)

8500

A

50 Hz sinewave,180o conduction, Tc = 129 °C

RMS value of forward current

IF(RMS)

13345

A

Peak one cycle surge

(non repetitive) current

IFSM

95

kA

50 Hz sinewave,180o conduction, Tj = Tjmax, VR = 0

I square t

I2 t

45125

kA2s

Tj = Tjmax

Peak forward voltage

VFM

0.98

V

Forward current 10 kA, Tjmax

Threshold voltage

VF(TO)

0.7

V

Tj = Tjmax

Forward slope resistance

rF

0.029

mΩ

Tj = Tjmax
