Farm & Ranch Submersible Deep Well Dc Solar Water Pump Battery Farm Water Pump Generator
- Category: >>>
- Supplier: Shenzhen Beatles Energy Technology Co. Ltd.
Share on (60403649210):
Product Overview
Description
Farm & Ranch Submersible Deep Well Dc Solar Water Pump Battery Farm Water Pump Generator
Packaging & Shipping
Packaging: safety package for Solar Water Pump
Customized is available!!!
Shipping:3-15 days depend on mass order
Product Description
Specifications
Solar Submersible Pump
1.For farming irrigation.
2.with good quality.
3.Controler,solar panel, pump, wires
Product details
- The pump is close coupled with the electric motor. And runs in the water, which is safe and reliable.
- No special requirements for well pipes and lifting pipes
- This pump can adopt different installation forms : single pipe or double pipe.
- Mechanical seal adopts the latest materials. So its service life is over 8000hours.
- It fixed with an advanced heat sensor, which can protect the motor effectively
- The pump can be equipped with a liquid-level automatic control panel according to the cutommer requirements.
- Simple structure, less material demand.

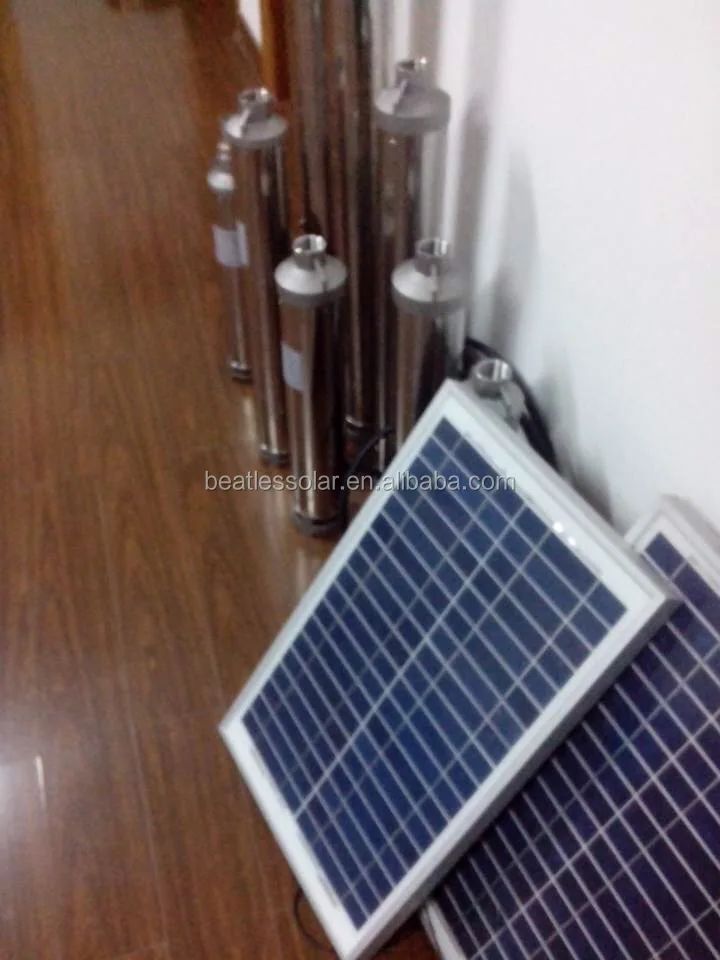

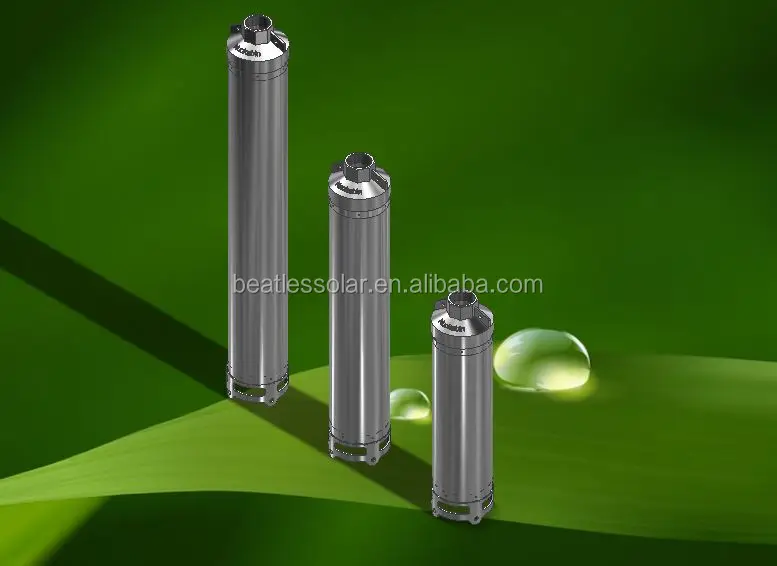

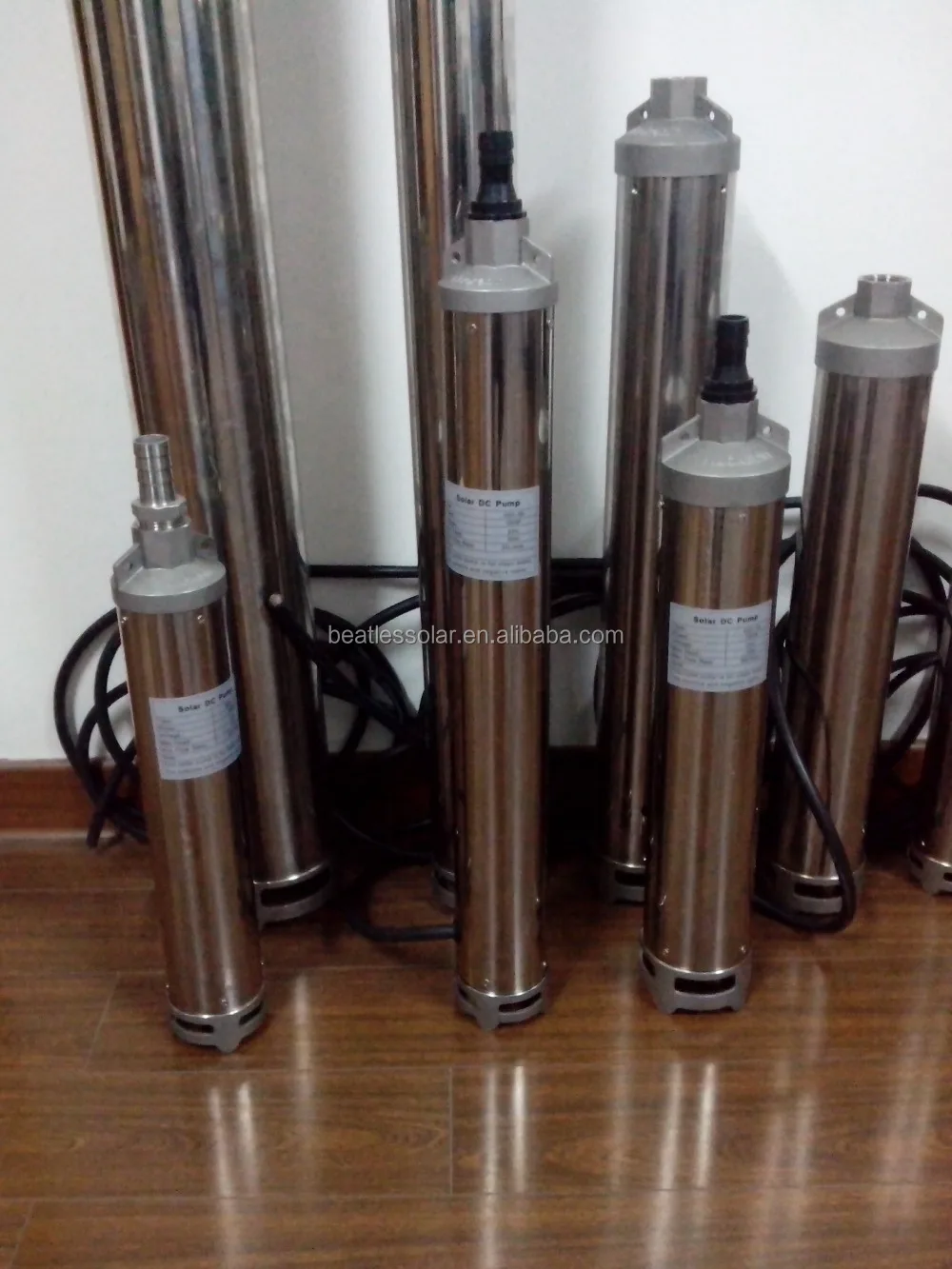

Pics Show:
Company View:
Our Services

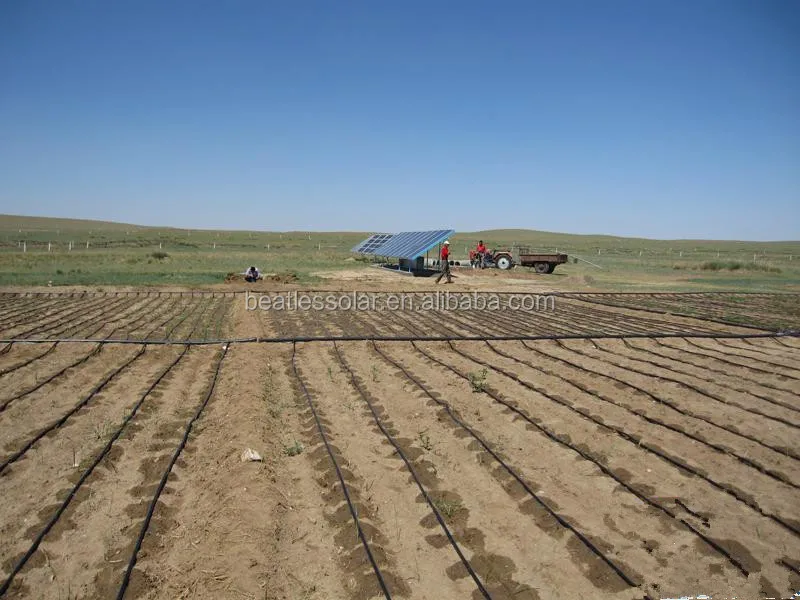

1.project case:
2. Pre-sale data calculation & model selection: experienced engineers provided scientific solutions, which could greatly lower customer comprehensive input cost.
3. Relative Pump Products as following:
| Model | Power of Pump | MPPT Voltage | Open-circuit Voltage | Rated Head | Rated Flow | Inlet | Outlet |
| KW | V | V | m | T/H | mm | inch | |
| JKC-P8S80/2 | 7.5 | 480V-540V | 750V | 25 | 80 | 180 | 5 |
| JKC-P8S80/3 | 11 | 480V-540V | 750V | 40 | 80 | 180 | 5 |
| JKC-P8S80/4 | 15 | 480V-540V | 750V | 50 | 80 | 180 | 5 |
| JKC-P8S80/5 | 18.5 | 480V-540V | 750V | 60 | 80 | 180 | 5 |
| JKC-P8S80/6 | 22 | 480V-540V | 750V | 75 | 80 | 180 | 5 |
| JKC-P8S80/7 | 30 | 480V-540V | 750V | 90 | 80 | 180 | 5 |
| JKC-P8S80/8 | 30 | 480V-540V | 750V | 100 | 80 | 180 | 5 |
| JKC-P8S80/9 | 30 | 480V-540V | 750V | 120 | 80 | 180 | 5 |
| JKC-P8S80/10 | 37 | 480V-540V | 750V | 125 | 80 | 180 | 5 |
| JKC-P8S80/11 | 37 | 480V-540V | 750V | 145 | 80 | 180 | 5 |
| JKC-P8S80/12 | 45 | 480V-540V | 750V | 150 | 80 | 180 | 5 |
| JKC-P8S80/13 | 55 | 480V-540V | 750V | 170 | 80 | 180 | 5 |
| JKC-P8S80/14 | 55 | 480V-540V | 750V | 180 | 80 | 180 | 5 |
| JKC-P8S80/15 | 55 | 480V-540V | 750V | 190 | 80 | 180 | 5 |
| JKC-P8S80/16 | 75 | 480V-540V | 750V | 205 | 80 | 180 | 5 |
| JKC-P8S80/17 | 75 | 480V-540V | 750V | 220 | 80 | 180 | 5 |
| JKC-P8S80/18 | 75 | 480V-540V | 750V | 230 | 80 | 180 | 5 |
| JKC-P8S80/19 | 75 | 480V-540V | 750V | 245 | 80 | 180 | 5 |
| JKC-P8S80/20 | 75 | 480V-540V | 750V | 255 | 80 | 180 | 5 |
| JKC-P8S80/21 | 75 | 480V-540V | 750V | 265 | 80 | 180 | 5 |
