Flared short tube with nut

    PE anti-UV film

     Outer thermal insulated material

     Copper pipe

Inner thermal insulated material

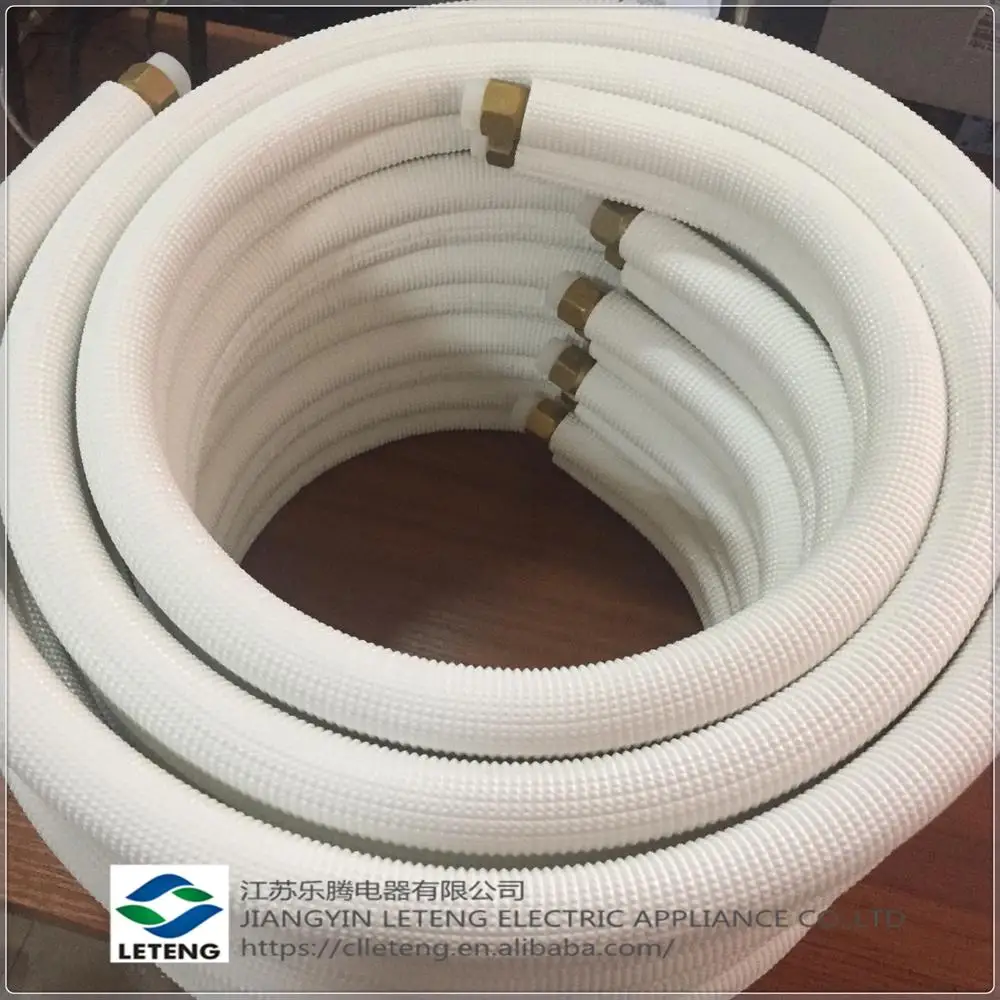

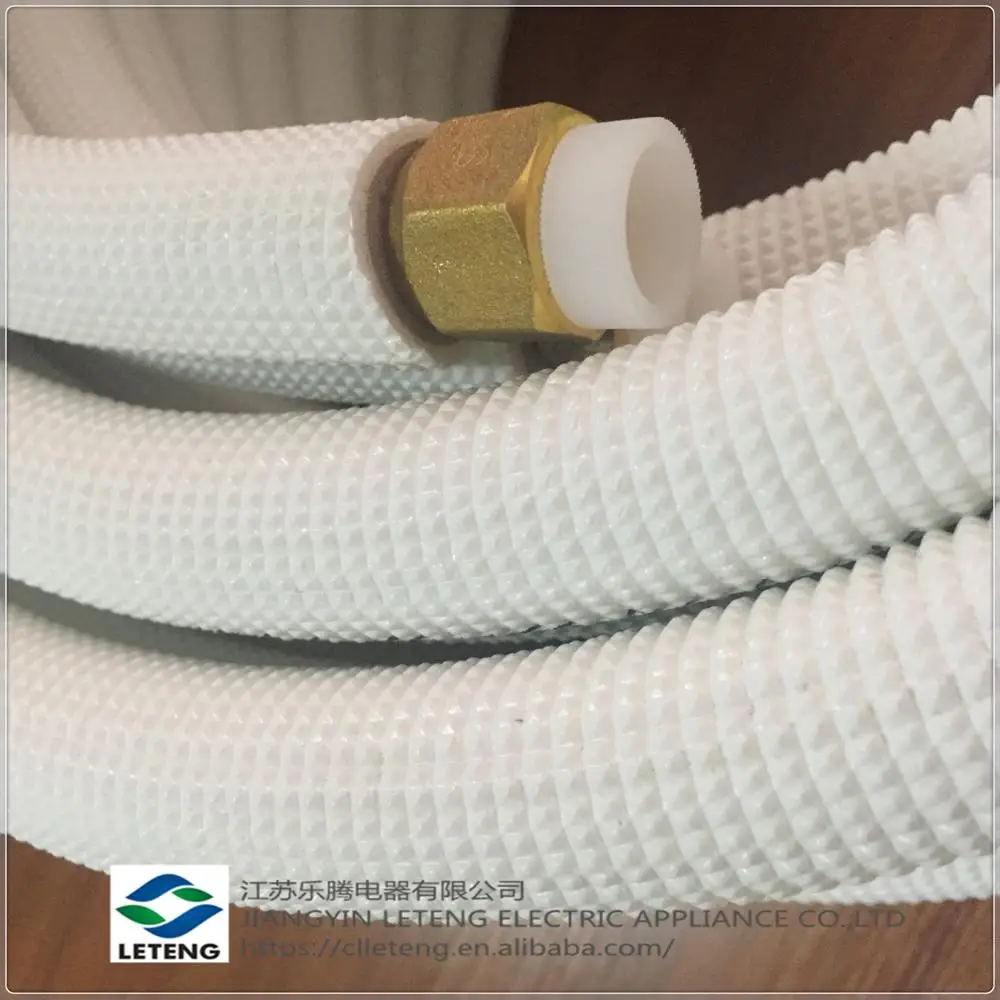

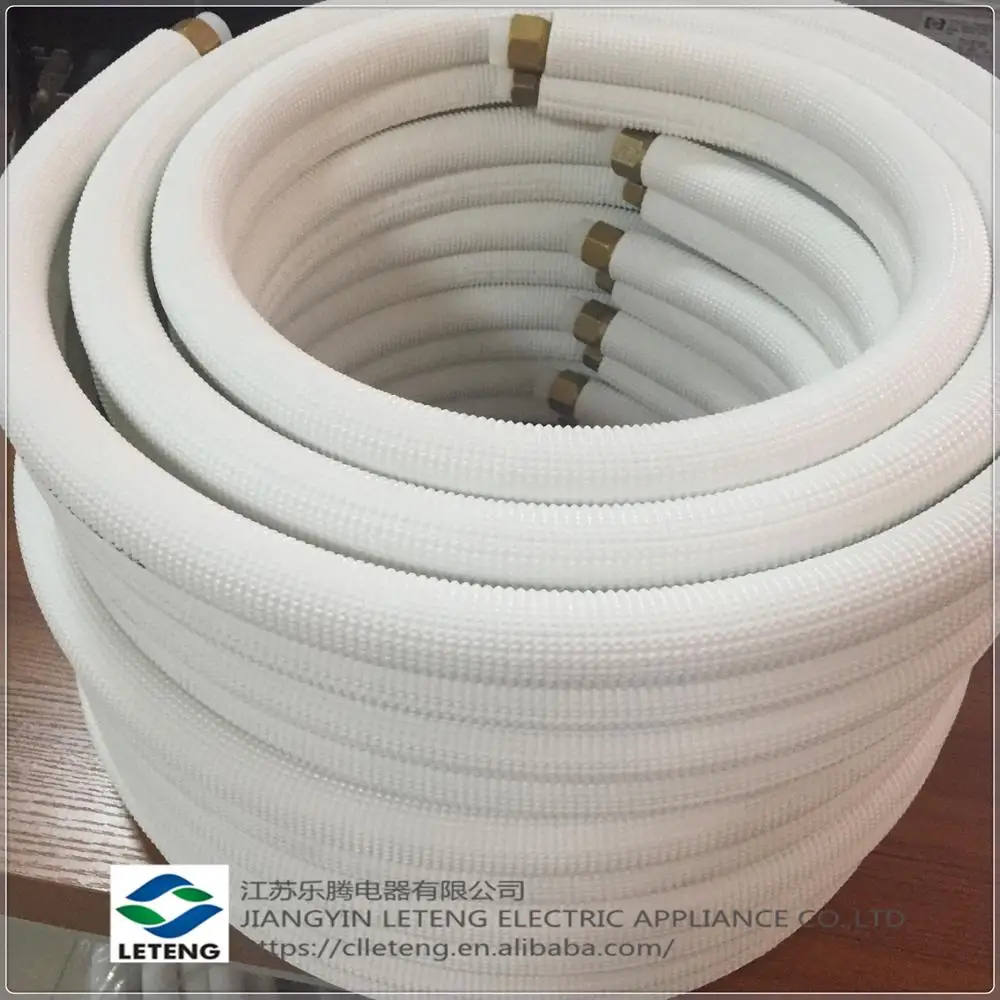

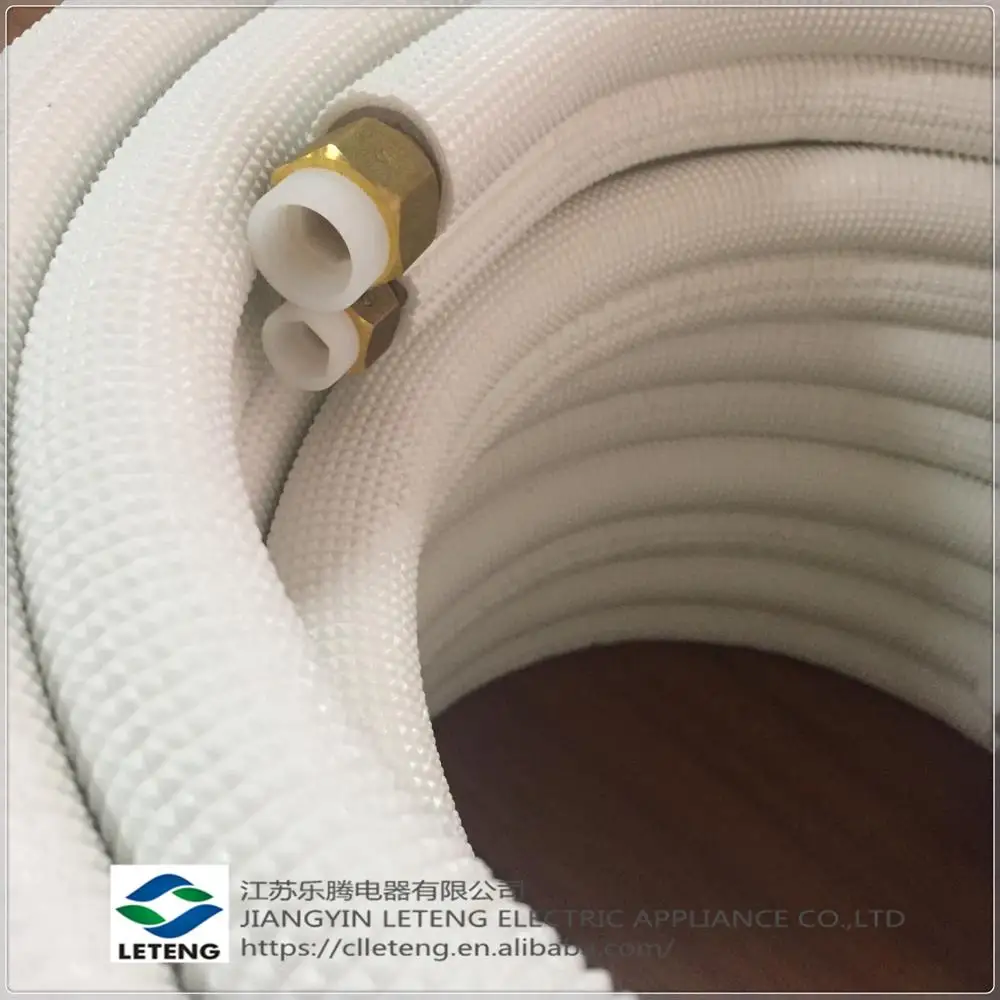

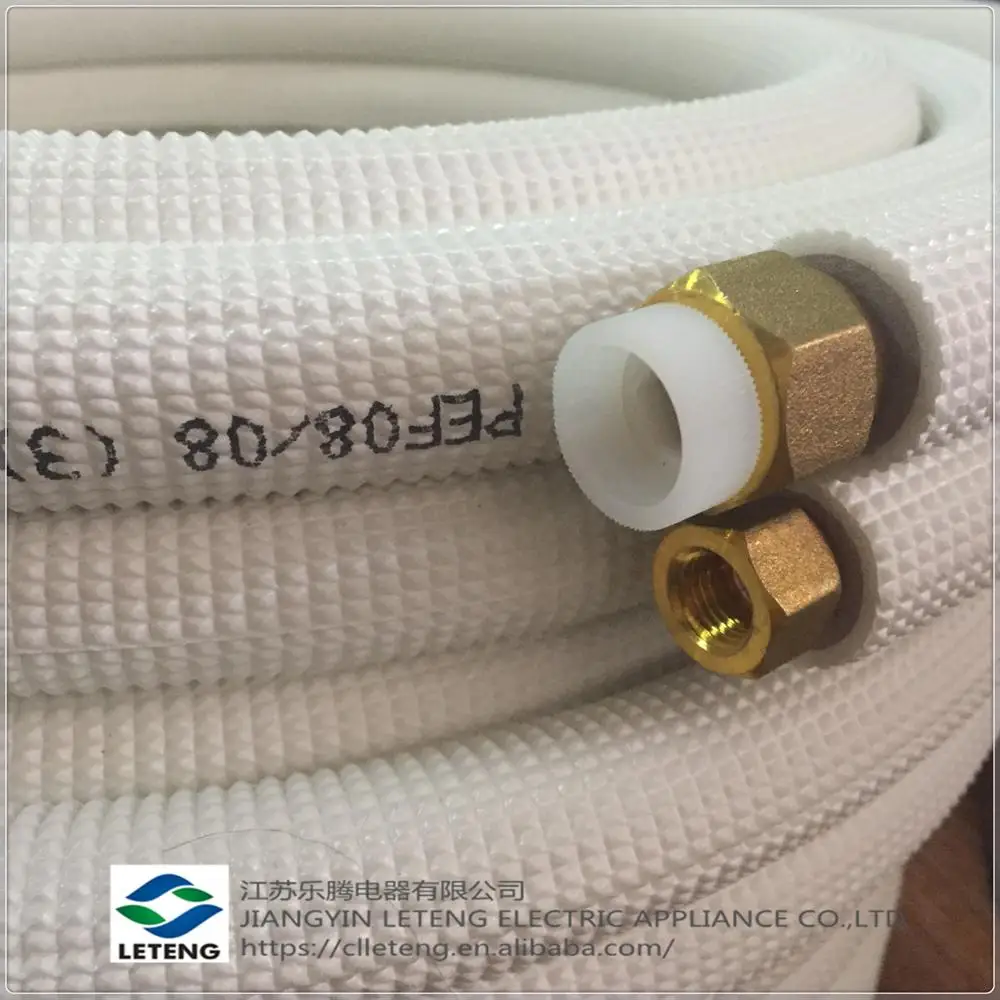

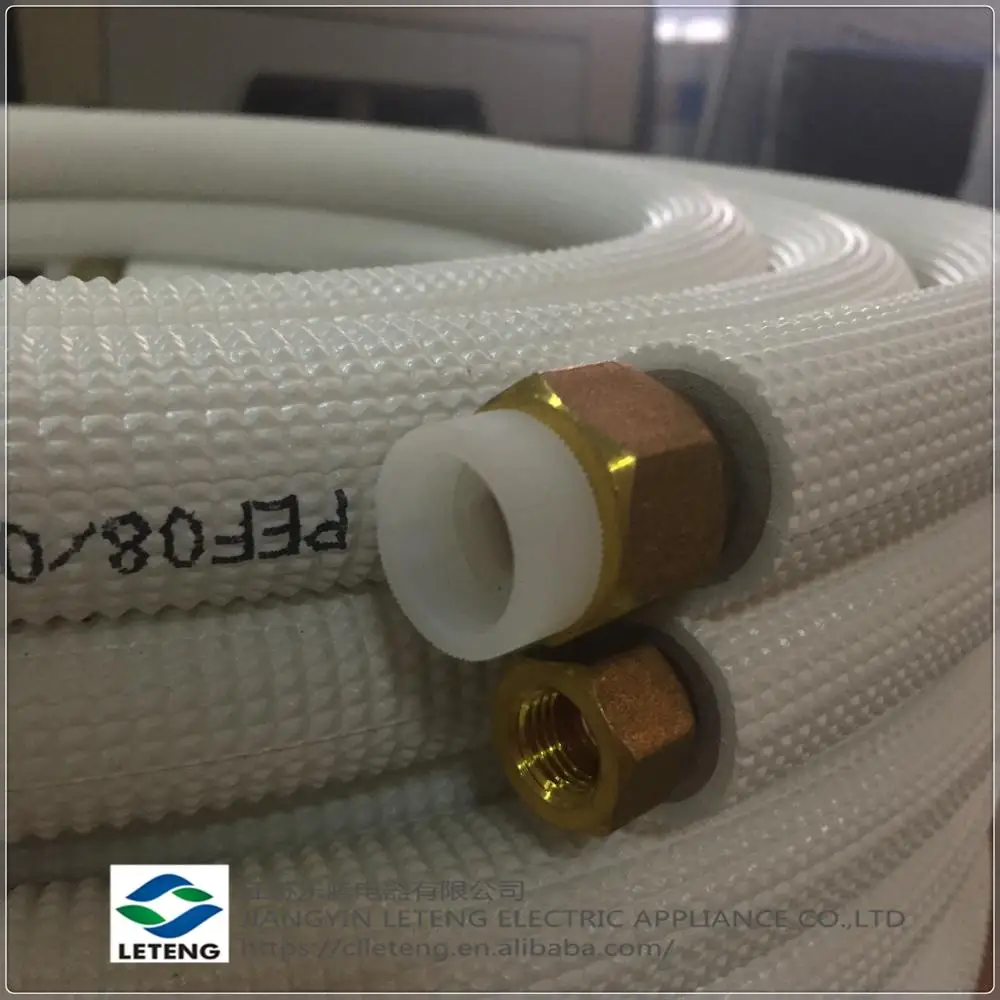

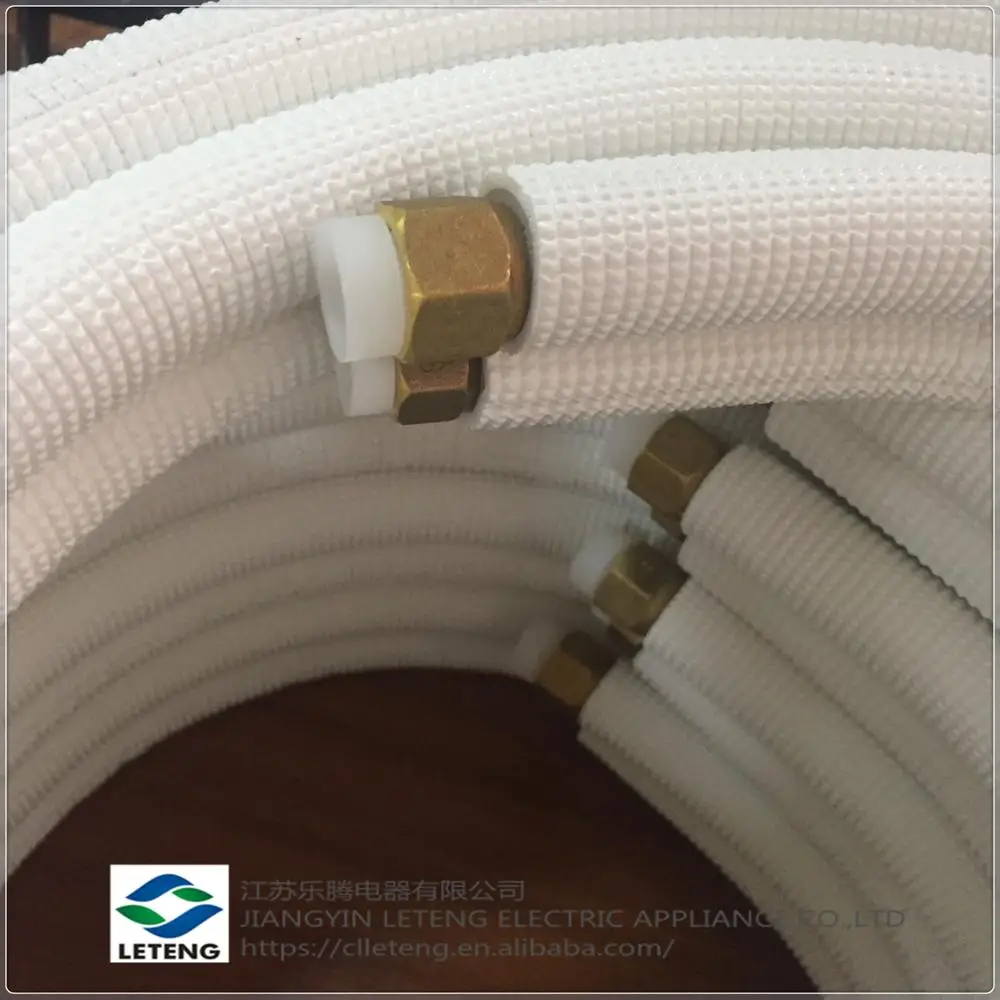

The air-conditioner coated copper pipe made of WICPE (ACC·PIPE) doesn't need to be performed with heat preservation coating engineering or flared processing on site, and its length has been fixed. This not only reduces time and labor of the project, but also has the qualities of high efficiency, energy conservation, and environmental protection. It is a kind of air-conditioner piping material that can be used for both cooling and heating. This product satisfies the air-conditioner piping requirements for families or even the large scale commercial use in high buildings.

Coated flared copper pipe   standard

Prepared component   standard 2'' × 3'' electric cable shall be prepared according to the customer's requirement;

Prepared component   standard 2'' × 4'' electric cable shall be prepared according to the customer's requirement;

Coated copper pipe   flared processing

Flared processing illustration: the port expanding size is divided into 2 types. The first type is adaptable to coolant of (R22 and R407C, etc.), and the second type is adaptable to coolant of (R410A, etc.). For the flared R410A piping, its processing shall be corresponding to the second type of processing size.

Copper pipe material and characteristics JIS H3300: 2006 C1220T

Thermal insulated heat preservation tube material and characteristics JIS A9511: PE-C-P2 Standard

Curve of moisture condensation of heat preservation material

Relative humidity outside the tube (%)   inside the tube 5℃   temperature outside the tube (℃)   range of condensation of moisture
