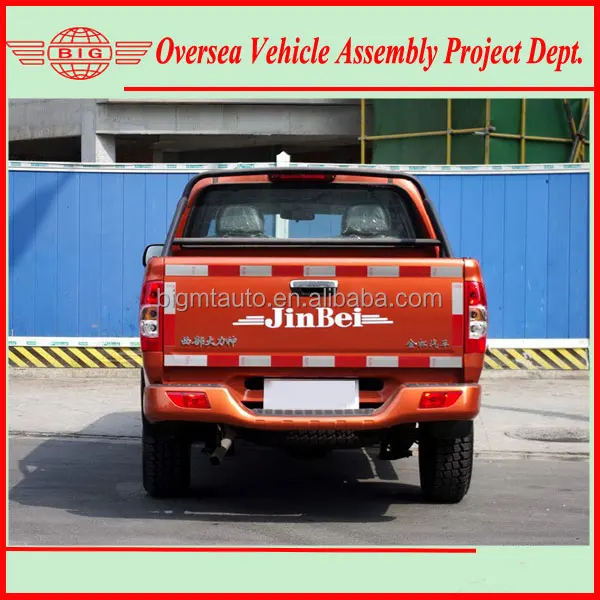

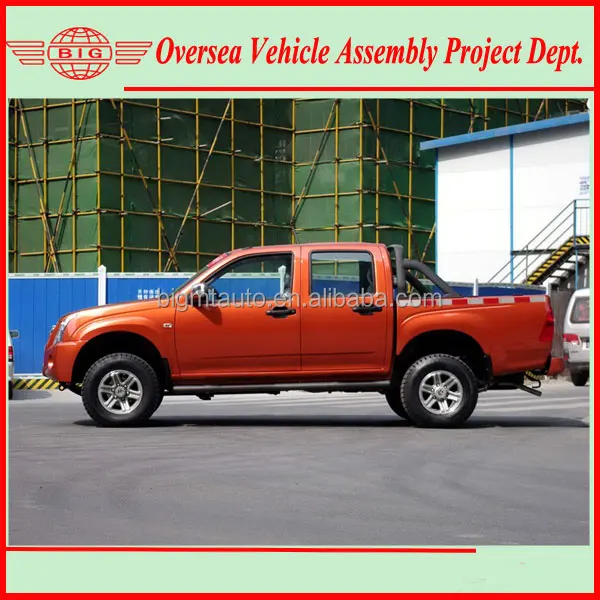

Chinese 2wd 4wd double cabin SY1028 mini pickup truck
- Category: >>>
- Supplier: Chongqing Big Technology Co. Ltd.
Share on (60403912280):
Product Overview
Description
Chinese 4wd double cabin SY1028 mini pickup truck
We are searching partner for cooperating to assemble pickup truck plant in developing countries. Two cooperation models are available: Turn Key Project and Joint Venture.
Partner requirements of joint venture term:
1, have some economic strength, the investment capacity over one million dollars.
2, have over 3000M2 workshop + over 10000M land.
3, have car sales channel web or car garage/remanufacturing second-hand car, or with the car related business
4, Your country import tariff policy nice, CBU (completely assembly automobile) import tariff is difference over auto spare part CKD(completely knocked down) 30%. such as import tariff CBU term 35%,CKD term 5% only.
With CKD, you can save importing duty and freight cost, if you are interested in our products for operation by CKD, we may supply training, technology and engineer to help set up mini Pickup truck assembling factory. We wish to cooperate with you and set up long term business relationship with each other.
| Euro III Standard 2WD Jinbei SY1028 Double Cabin Mini Pickup Truck Specifications | ||
Model | SY1028HQ42 | SY1028HC33 |
| Overall Dimension(L×W×H)(mm) | 5015x1725x1690 | 5015x1725x1690 |
| Cargo body inside dimension (L×W×H)(mm) | 1380x1465x475 | 1380x1465x475 |
| Wheel Base(mm) | 3025 | 3025 |
| Tire Specifications | 225/75 R15 | 225/75 R15 |
| Wheel Track(front/rear)(mm) | 1465/1460 | 1465/1460 |
| Maximum gross mass(kg) | 2405 | 2325 |
| Kerb Mass(kg) | 1580 | 1500 |
| Loading Mass(kg) | 500 | 500 |
| Seats | 2+3 | 2+3 |
| Approach/Departure Angles(°) | 28/20 | 28/20 |
| Front overhang/ rear overhang (mm) | 770/1220 | 770/1220 |
| Max. Speed(km/h) | 130 | 130 |
| Engine Model | JM491Q-ME | D22A |
| Fuel kind | Gasoline | Diesel |
| Engine Displacement(ml) | 2.237 | 2.184 |
| Rated Power(kW) | 76/4200~4600 | 75 |
| Max.Torque(N.W)/rpm | 193/2800~3200 | 225/2000~2600 |
| Emission | Euro III | Euro III |
| Min. ground clearance(mm) | 200 | 200 |
We not only have double cabin mini pickup trucks for sale, but also single cabin pickup, mini van, bus, SUV, moke car and so on.
CHINCHINA BIG SCIENCE & TECHNOLOGY DEVELOPMENT(GROUP)CO., LIMITED
ADD: 18F ZHONGXIN BANK MANSION HONGQIHEGOU JIANGBEI DISTRICT
CHONGQING CHINA
TEL: +86-23-67635049 FAX: +86-23-67635036
