PCB Board Milling CNC Machine Price in India
- Category: >>>
- Supplier: Shenzhen Chikin Automation Equipment Co. Ltd.
Share on (60404044991):
Product Overview
Description

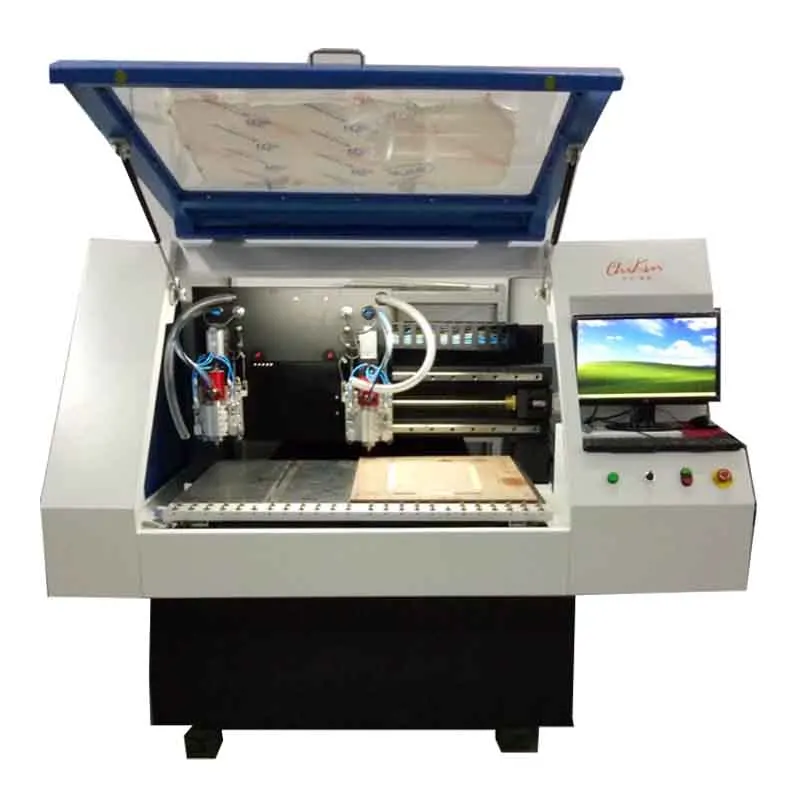

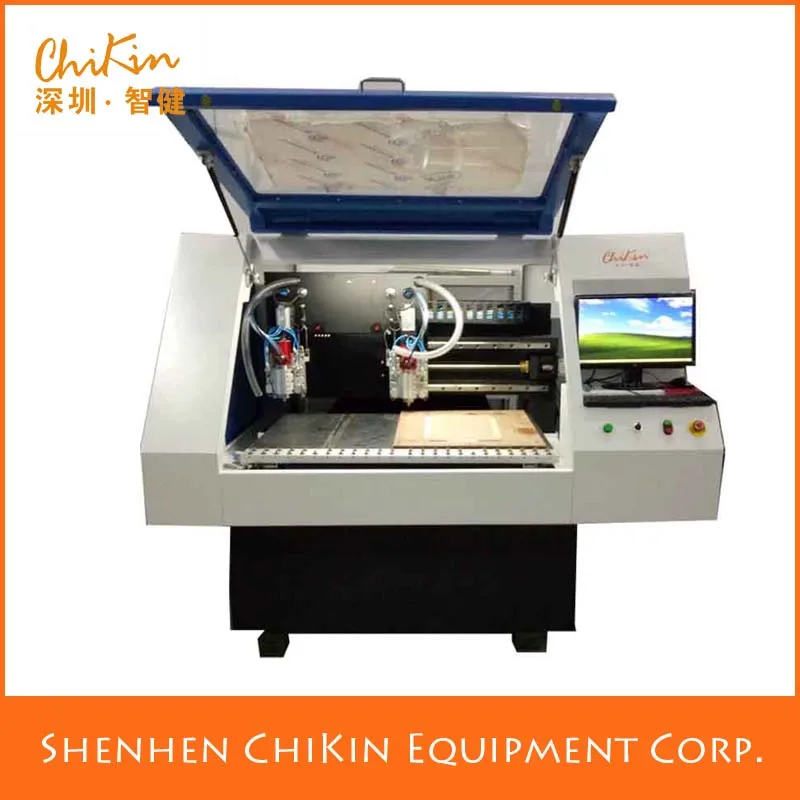

PCB Board Milling CNC Machine Price in India
01Product informatio
WHAT THE SPECIFICATION OF PCB BOARD MILLING CNC MACHINE?
| High Speed Automated CNC 4 Spindles Multi Layer PCB Drilling Machine | |
| Model | CK-02R |
| Spindle | 2 |
| Spindle Specification | High Speed Ball Bearing Spindle (60000 rpm) |
| Drive System | Imported AC Servo Motor |
| Transmission Mechanism | Imported High Precision Linear Guide with Ballscrew |
| Moving Speed | 15-30m/min |
| Working Area | 480mm x 580mm, 560mm x 680mm |
| Tool Change | Automatic Tool Change |
| Tool Detection | Included (Lenght Detection) |
| Processing Accuracy | + / - 0.05mm |
| Positioning Accuracy | + / - 0.005mm |
| Drill Bit Size | Φ0.6mm - 6.0mm |
| Rout Bit Size | Φ0.6mm - 3.175mm |
| Power | AC 380V 3PH 10KVA |
| Air Supply | 6 - 8 par |
| Machine Size | 2100mm x 1850mm x 1700mm |
| Machine Weight | 2800KG |
| Machine Controller System | Self-Develop Drill System, Also can be updated to Sieb & Meyer System |

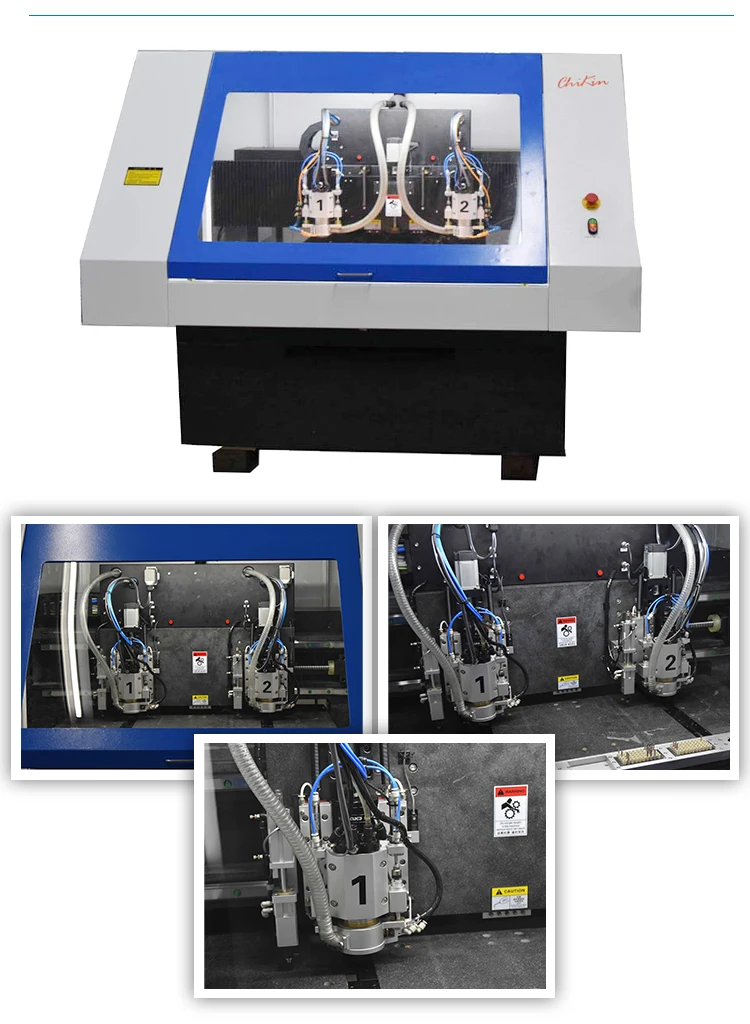

CNC PCB ROUTING MACHINE
Its rugged design & high quality spindle ensures fast PCB drilling without compromising on production quality.Designed with precision, our offered products are well known for excellent finishing and effectiveness with long functional life. We quality test these products under various parameters for ensuring performance and durability as per latest industrial norms.
02Product accessory
03Applicable materia
04Our services
06About us
07Deliver goods
08FAQ
Q: How many layers does this machine can process?
A: This machine can process single-sided pcb, double-sided pcb and multi-layer pcb.
Q: What kind of program format can this machine identify?
A: This machine can identify EXCELLON format, Gerber format and NC format.
Q: Is there only 2 spindle machine?
A: Our standard is 2 spindle and 4 spindle machine, also can custom single spindle, 3 spindle machine in accordance with customer requirement.
Q: What is the warranty of this machine?
A: 1 year from the date of machine installation in customer place.
Q: What is the traning way of machine operation?
A: There are 2 options for customer as below
Option 1: Customer pre- buy off the machine and finish the traning in our factory, and we will bare the fee of accomodation for customer's engineer (1-2 person)
Option 2 : Our engineers available to service machinery oversea in customer place, with bare the fee of accomodation by customer side.
