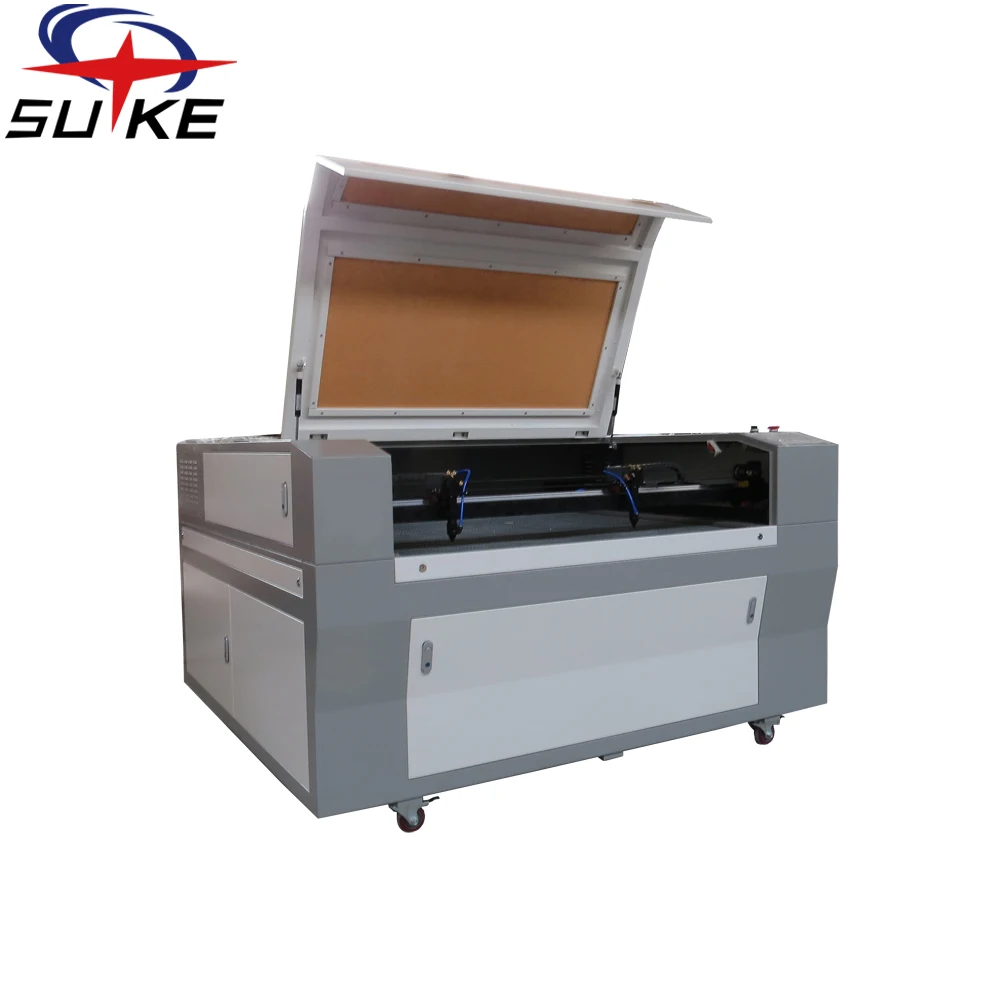

Maquinas De Grabado Laser De Co2 Para Madera Mdf Vidrio Acrilico
- Category: >>>
- Supplier: Jinan Suke Science & Technology Co. Ltd.
Share on (60404099005):
Product Overview
Description
Technical parameter:
Model | 9060 laser engraving machine with lift table laser cutter |
Working area | 900*600mm |
Laser tube power | 80W S2 Reci tube / 100w/130w/150w/180w Optional |
Laser tube type | Sealed CO2 laser tube, water-cooling, 10.6um |
Life of laser tube | 10000 hours lifespan, 10 months for Reci tube 6000 hours lifespan, 6 months for EFR brand tube |
Max Engraving speed | 0-60000mm/min |
Cutting speed | 0-30000mm/min |
Cutting thickness | 1-20mm acrylic (others determined by the material ) |
Resolution ratio | <0.01mm |
Location precision | <0.01mm |
Min shaping character | Chinese 2*2mm,English1*1mm |
Support graphic format | DST, PLT, BMP.HPGL,DXP and AI |
Software supported | CorelDraw, AutoCAD, Photoshop |
Power supply | AC110-220V 50-60HZ |
Operating temperature | 0– 40 centigrade degrees |
Operating humidity | 5%-95% Free of condensed water |
Interface | USB |
Assistant equipment | Exhuast-fans, water pump, air pump |
Driving system | stepper |
Control system | DSP |
Consuming power | <1,500W |
Net weight | 300kgs |
Gross weight | 380kgs |
Package size | 187*112*130cm |

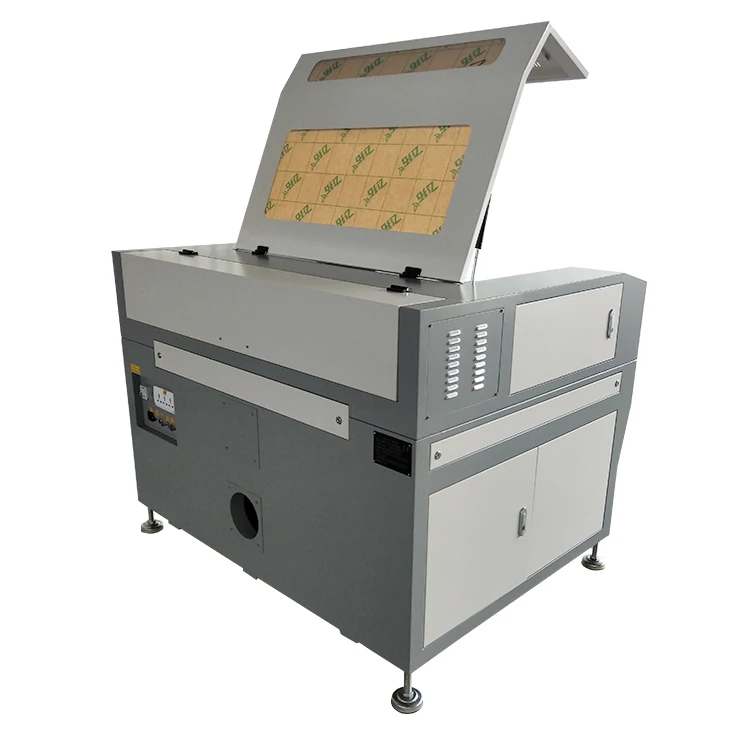

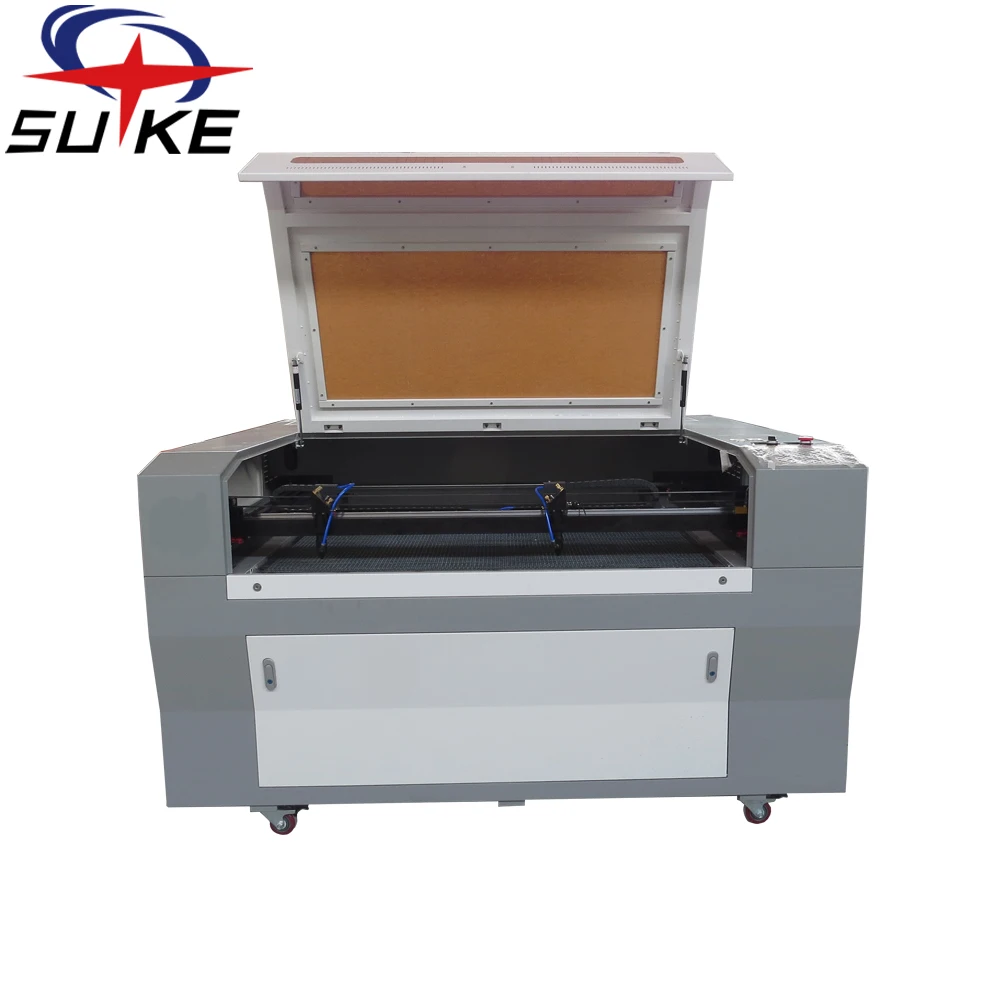

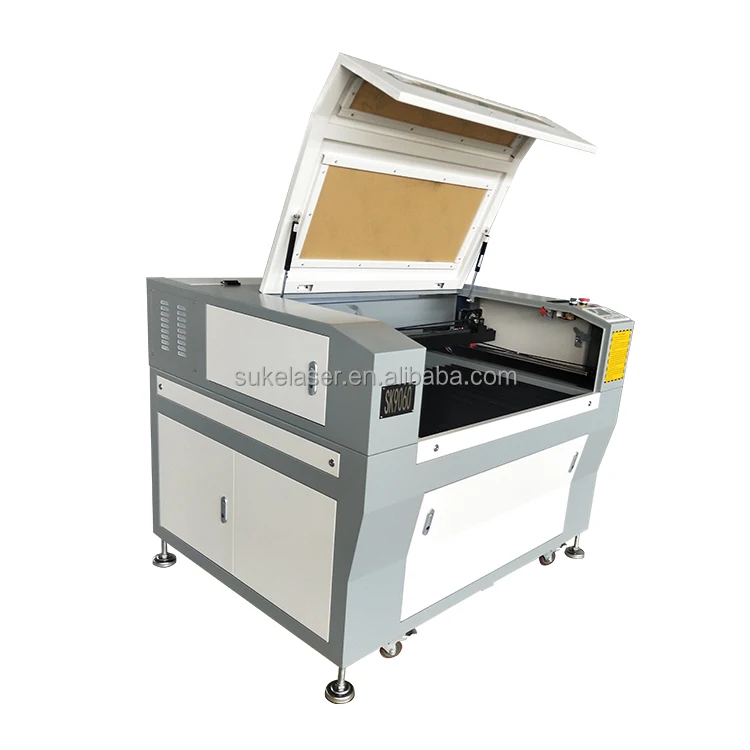

Machine picture:
Exact materials
Cutting | Engraving | |
Wood | √ | √ |
Melamine | √ | √ |
Matte Board | √ | √ |
Wood veneer | √ | √ |
Cork | √ | √ |
Corian | √ | √ |
Anodized Aluminum | √ | |
Painted metals | √ | |
Metal | √(1.5mm) | √ |
Plastic | √ | √ |
Fiberglass | √ | √ |
Acrylic | √ | √ |
Fabric | √ | √ |
Glass | √ | |
Coated metal | √ | |
Ceramic | √ | |
Delrin | √ | √ |
Cloth | √ | √ |
Mylar | √ | √ |
pressboard | √ | √ |
Leather | √ | √ |
Rubber | √ | √ |
Marble | √ |

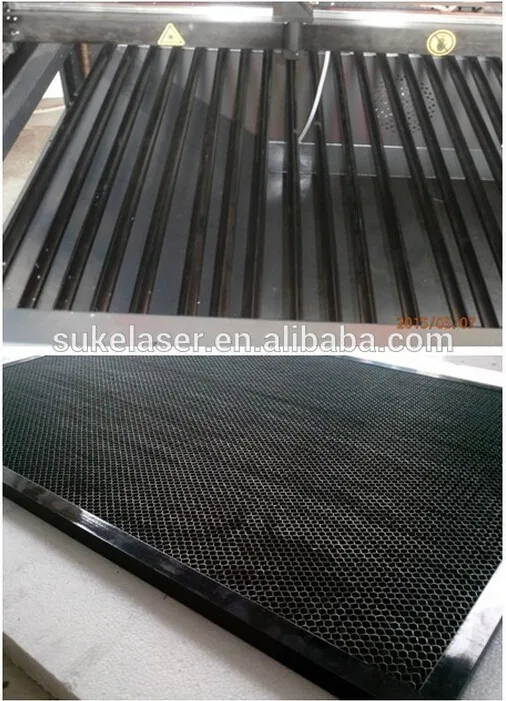

Table of laser machine:

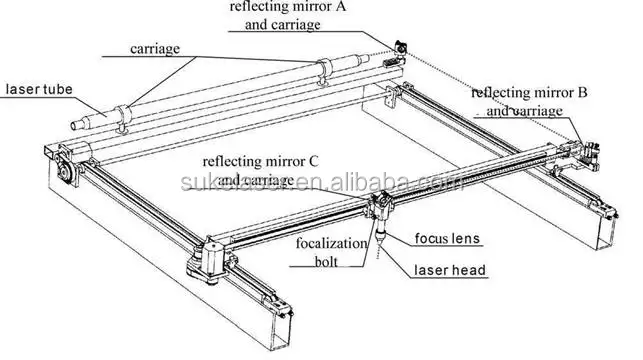

Machine structure:

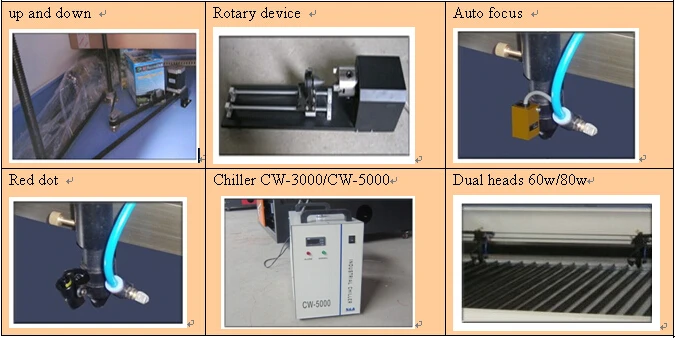

Some of optional spart parts in laser machine:
1. Dual heads ------------------------to improve the efficency of working
2. Lift table---------------------------to deal with more thinkness materials
3. Rotary------------------------------to engrave cylinder object
4. Chiller----------------------------- to cool laser tube better
5. Auto focus-------------------------to adjust the focal length automatically
6. Red dot pointer-------------------to see the site of the laser

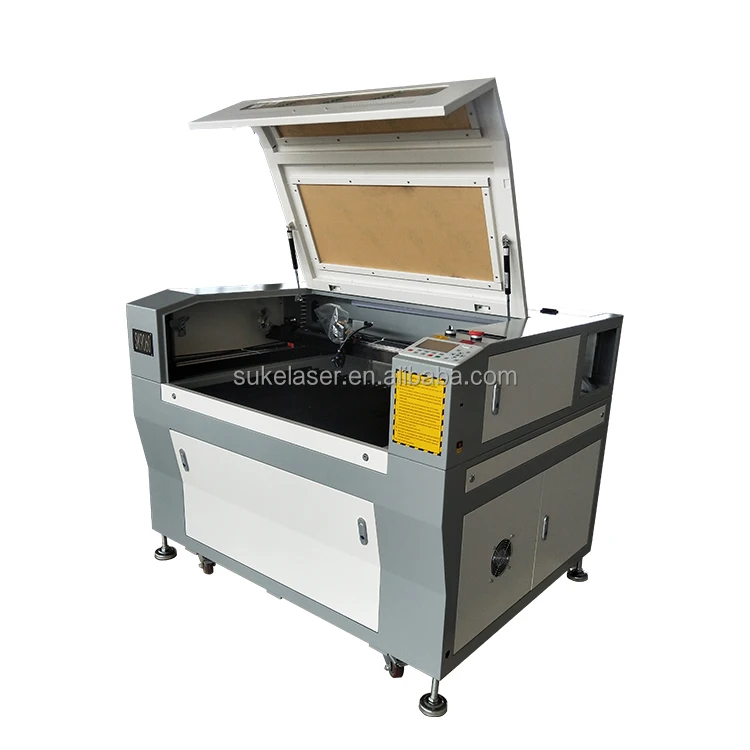

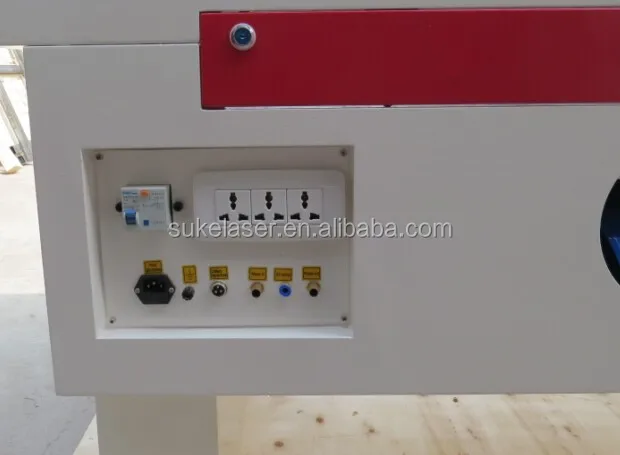

Machine detailed photos:
Sample of laser machine show:
