Extendable belt conveyor Loading and unloading belt conveyor Model EI

Product Overview

Description

Extendable belt conveyor   Loading and unloading belt  Model  EI

  The extendable belt conveyor is an ordinary belt conveyor with an increase of the extendable mechanism, so that the belt conveyor can be freely retractable in length. Users can according to their own requirements through the handle and locking device, at any time to control the length of the conveyor.

  Extendable belt conveyor is mainly used in the vehicle loading and unloading and the expansion of the requirements of the material transmission system. It greatly shortens the distance between the manual and the handling of materials, shorten the loading time, reduce labor intensity, reduce the damage of goods, reduce the loading and unloading costs, improve work efficiency.

  Extendable belt conveyor capable of bidirectional operation of conveying material.

  The extendable belt conveyor can be matched with other conveying equipment and material sorting system, and can realize the automatic production of materials out of storage or the loading and unloading of vehicles, especially in the tobacco industry.



 >>Product specifications:

 1, conveyor section number: two, three, four, but also according to customer requirements design and manufacture

 2, conveyor belt width: 500, 600, 700, 800, 1000, 1200mm.

 3, belt speed can choose: speed or speed.

 4, belt conveyor direction can be selected: one-way or two-way delivery of materials.

 5, conveying speed: <30 M / min.

 6, conveyor capacity: <50 kg / m.

 7, about the frame adopts aluminum alloy conveyor frame, realize the extendable belt conveyor through the handle and slide

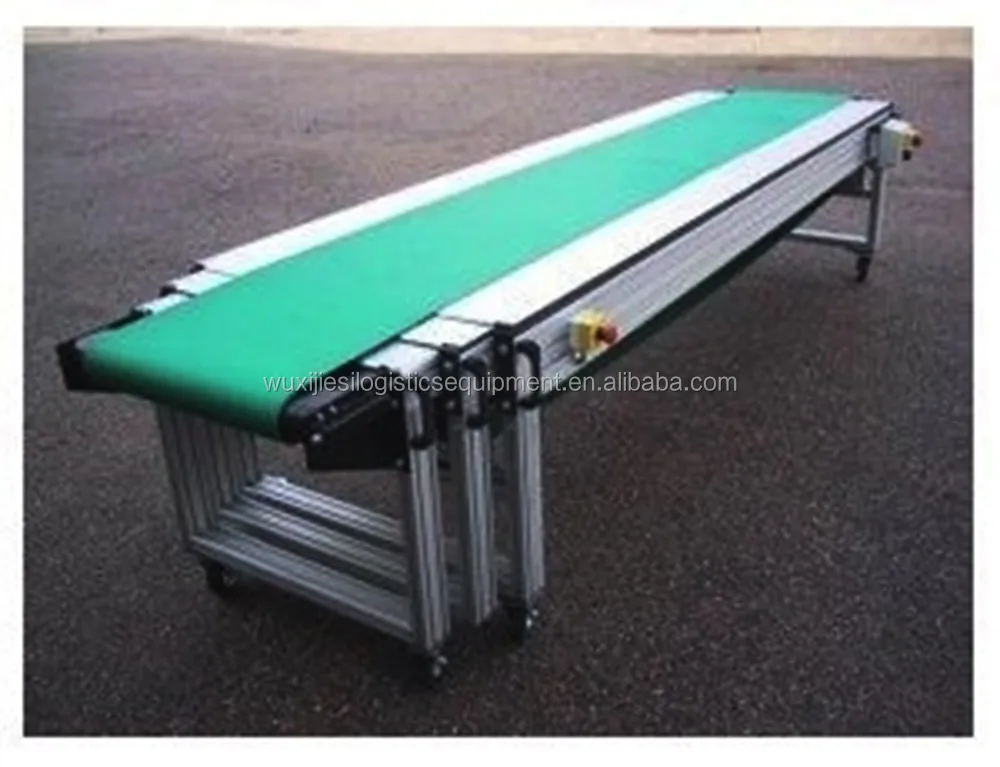

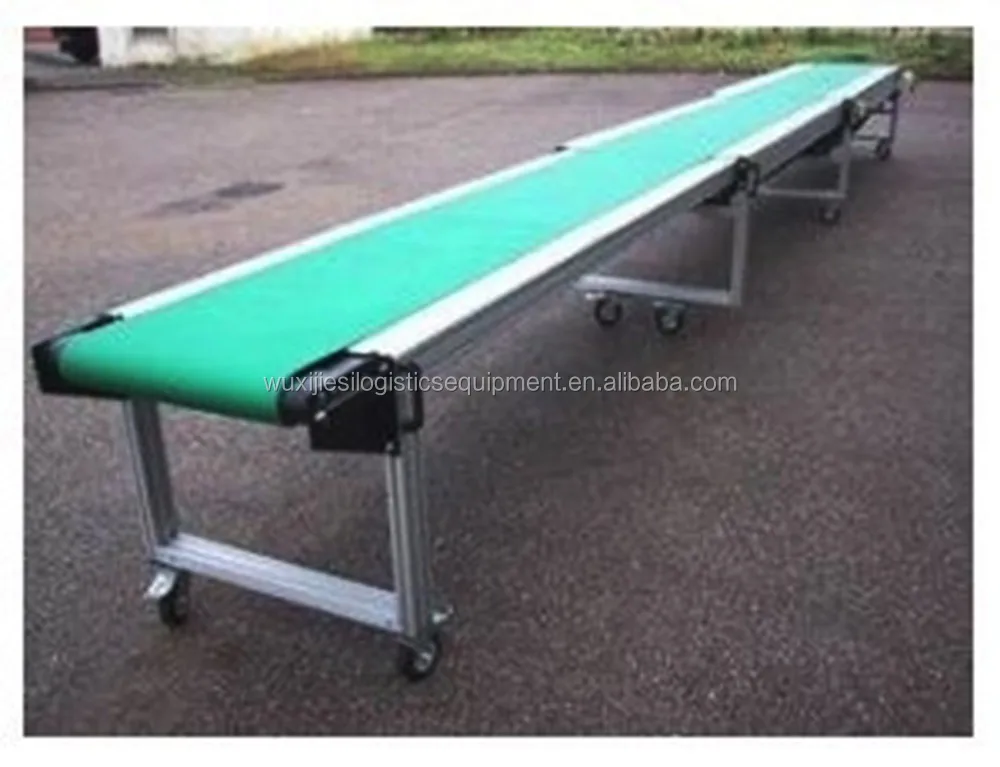

 >>Pictures:

 >>How to choose:



1) belt conveyor size : belt width,conveyor length-level length and inclined length



2) conveyor speed : constant speed or variable speed.



3) conveyor leg is optional,if you need,please let us know the height range as your request.



If you need any information, please feel free to contact me promptly.
