white blue green electro luminescent sheet backlight panel
Product Description
| Specification of el backlight | |||||||
| Name | EL Backlihgt | ||||||
| Components | el panel + inverter + power cord | ||||||
| EL Panel | Material | ITO, phosphor, barium powder, silver paste, UV and so on | |||||
| Color | White on pink off,white on white off, white on blue off, white on blue-green off, red, blue, green, yellow etc. | ||||||
| Mode | Constant light; on, slow blink, fast blink and off; dimming | ||||||
| Size | Standard sise are A0-A6, and other custom size | ||||||
| Brightness | 90-150CD/m2 | ||||||
| Thickness | 0.2-0.5mm | ||||||
| Life span | 8,000-10,000hrs | ||||||

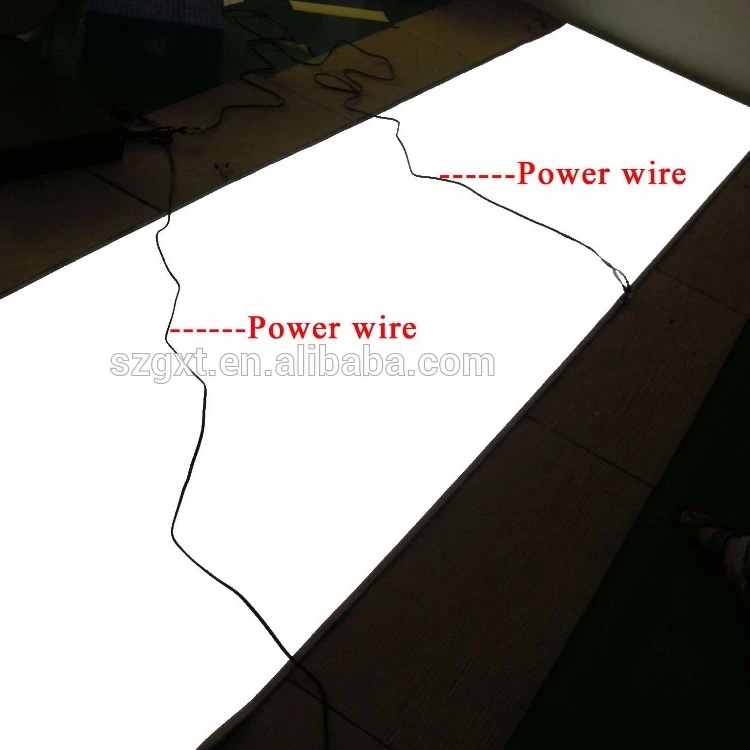

| Outlet of wire | On the back of el panel Or the edge of el panel | ||||||
| Inverter | Input rating | Output rating | |||||
| DC12V | DC12V, 50/60HZ | AC90V-AC130V, 700HZ-1000HZ | |||||
| AC | AC85V-250V, 50/60HZ | AC90V-AC130V, 700HZ-1000HZ | |||||
| Power cord | European 2pin Plug(plug of any standard can be provided) | ||||||
| Certificates | CE&ROHS | ||||||
| Installation | Use plastic skcer Or doulble-side adhesive tape | ||||||

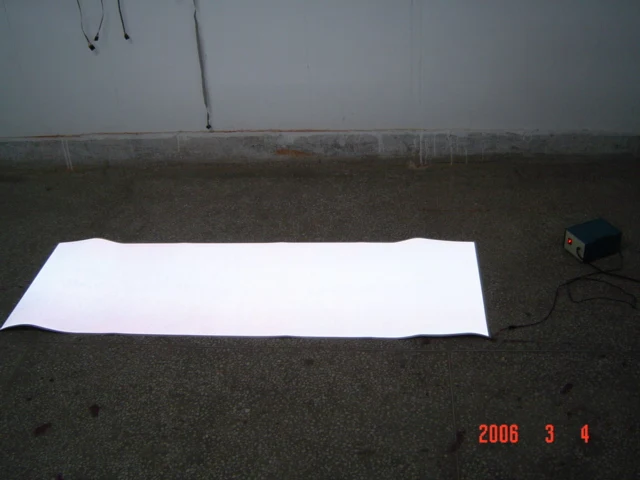

| Connect inverter with el panel and power cord; Power cord to connect electricity; Open inverter's switch and then works(as pictures show below). | |||||||
| Warranty | 6 months | ||||||
| Optional Items | Water and UV proof | ||||||
| Add frame to el backlight | |||||||

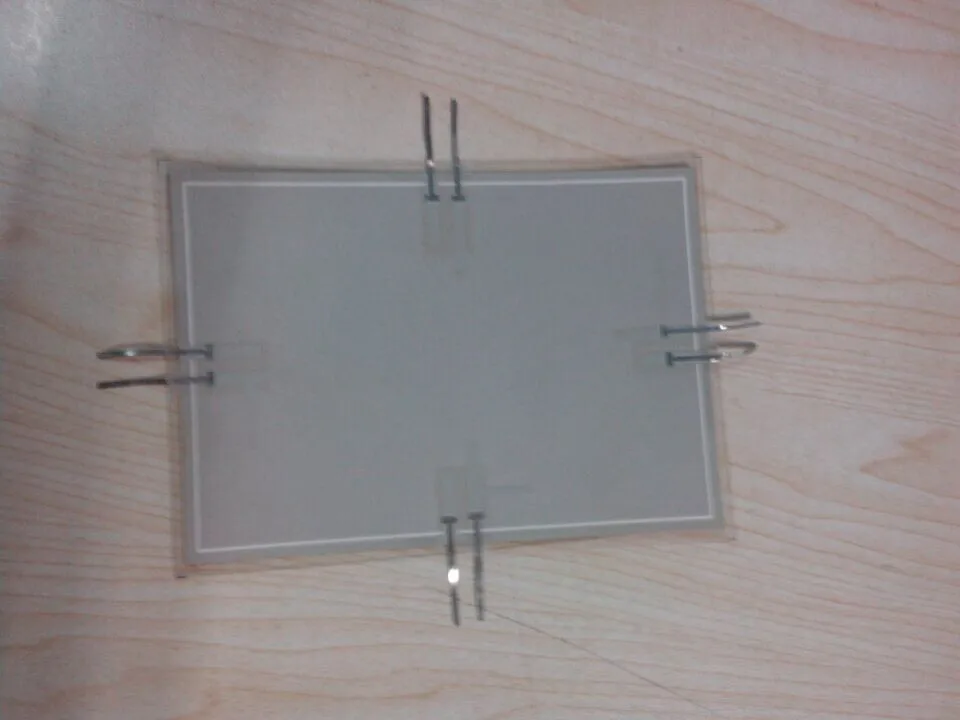

| Cuttable | |||||||
Any size according to customer’s request

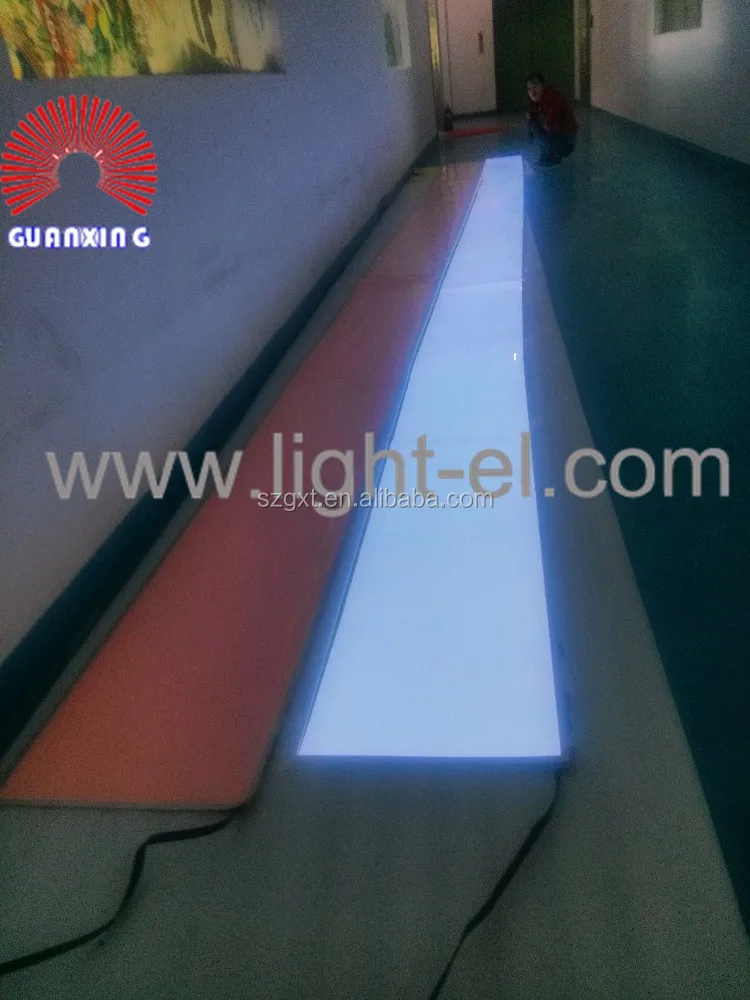

Maximum size in one pcs we currently make is 1mX2m,we can also connect different
Panels together to make larger size.The largest panel we currently make is 4mX8m. We usually have A0,A1,A2,A3,A4,A5,A6 size in stock.
| EL panel / EL backlight Standard Size | ||
| Size | width (cm) | l length (cm) |
A0 | 84.1 | 118.9 |
| A1 | 59.4 | 84.1 |
| A2 | 42 | 59.4 |
| A3 | 29.7 | 42 |
| A4 | 21 | 29.7 |
| A5 | 14.8 | 21 |
| A6 | 10.5 | 14.8 |
if need customize design like:10*10cm,30cm round ,irregular shaped,please contact us for details.
Related Products
Inverters for el backlight:
Small Panels/round sheets/cuttable backlight
Company Information
Introduction of Our Company
Name | Shenzhen Guanxing Technoloty Co.,Ltd |
Address | 4th floor, D building, Zhunyu Industry Park, Lingwu Industrial Zone, Junzibu, Guanlan Town, Shenzhen China |
Website | www.light-el.com |
Status |
|
Products |
|
Scale |
|
Department | 1. Independent manufacturing department 2. R&D department. 3. OC department. 4. Market service department. |
Advantages |
|
For more information about el backlight/el panel/el sheet/electroluminescent sheet panels,el foil,el foile,el pannels,electro luminescent panels/luminous panels,please feel free to contact us.
FAQ
Voltage:
AC90V/AC240V, or DC12V according to customer’s request.Different plugs available to meet different countries’ demand.
Color (Emitting color),
Standard color are :White,Blue,Green and Blue green.
For other colors,we need to paint a layer of printing ink.
A complete product includes following coponents,
(1) Thin EL panel
(2) EL inverter ,which is to supply power to EL panel
(3) Frames, With or without frames can be determined
By customers.Aluminium frame
Acrylic frames
PVC board frames
Designs,
For customized design,we can make any shape .Customers only need to clarify the correct size and shape of the panel they want to make.The rest will be finished by ourside.
Unit price,
The price depends on the size of the panel.Normally,for EL backlight,the lighting area is made to 100% lighting.If you don’t need it 100% lighting ,it’s also ok.
Moulding cost,
Moulding cost should be charged for samples and small order for customized design. For large orders,moulding cost will be free.
