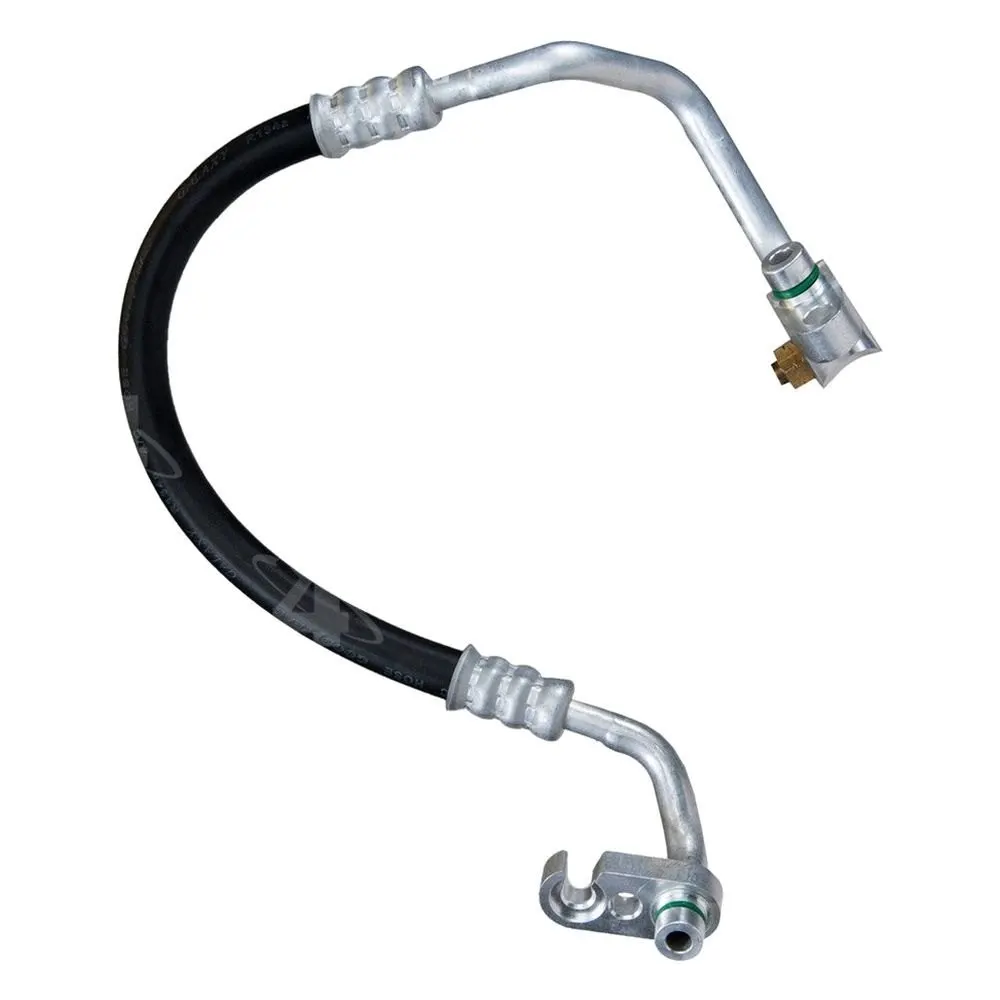

Peugeot Auto R134a Air Conditioning Hose Assembly
- Category: >>>
- Supplier: Hebei Qiruite Rubber & Plastic Products Co. Ltd.
Share on (60404416728):
Product Overview
Description
Product Descrioption
Product Description
SAE J2064 Type E Air Conditioning Hose
Hose Construction:
Barrier: Nylon alloy
Buffer:EPDM/NBR
Reinforcement: PVA
Cover: EPDM
Application temperature: -40°C ~ +135°C
Certificate: ISO/TS 16949:2009
Refrigerant applied: R12, R134a, R404a
Features: Pulse resistance, aging resistance, ozone resistance, shock resistance, and low permeability.
Application:Air Conditioning Hose is widely used in the air conditioning system of vehicles, cars, and domestic air conditioning.
| Specification | I.D. | O.D. | Working Pressure | Burst Pressure | |||
| Dimension mm | inch | mm | mm | Mpa | Mpa | ||
| 8.2 | 5/16'' | 8.2±0.4 | 18.7±0.5 | 3.5 | 20 | ||
| 10.5 | 13/32'' | 10.5±0.4 | 22.5±0.5 | 3.5 | 23 | ||
| 13 | 1/2'' | 13±0.4 | 23±0.5 | 3.5 | 22 | ||
| 16 | 5/8'' | 16±0.4 | 28±0.5 | 3.5 | 21 | ||
| 8.2 | 5/16'' | 8.2±0.4 | 15.2±0.5 | 3.5 | 23 | ||
| 10 | 13/32'' | 10.2±0.4 | 17.2±0.5 | 3.5 | 22 | ||
| 10.5 | 13/32'' | 10.5±0.4 | 18.7±0.5 | 3.5 | 22 | ||
| 11.5 | 7/16'' | 11.5±0.4 | 18.5±0.5 | 3.5 | 23 | ||
| 13 | 1/2'' | 13±0.4 | 20.6±0.5 | 3.5 | 22 | ||
| 13.2 | 1/2'' | 13.2±0.4 | 20.8±0.5 | 3.5 | 22 | ||
| 15.2 | 5/8'' | 15.2±0.4 | 22.8±0.5 | 3.5 | 20 | ||
| 15.5 | 5/8'' | 15.5±0.4 | 23.5±0.5 | 3.5 | 20 | ||
| 19 | 3/4'' | 19±0.4 | 28.5±0.6 | 3.5 | 18 | ||
Note: Above Specification Just for your reference. We can produce the OEM Size for you.
