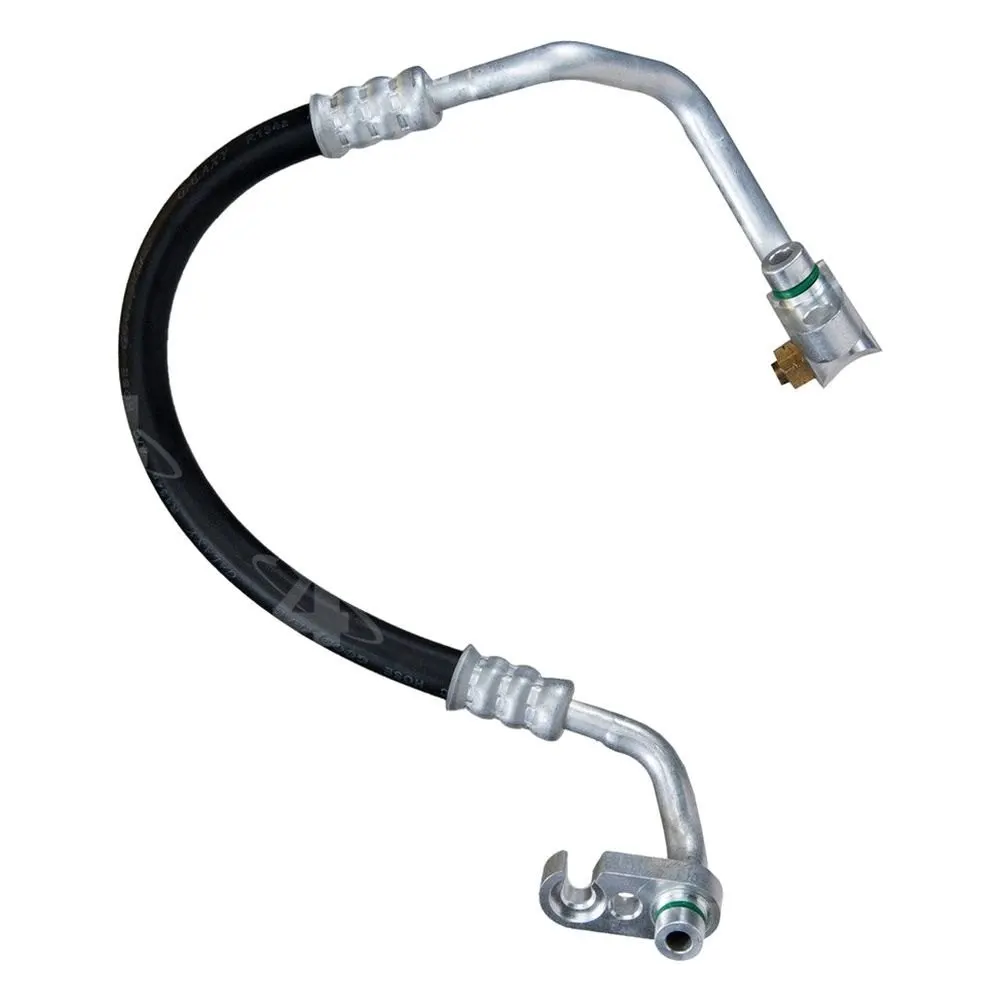

AC HOSES/AC Air Conditioning Hose Assembly
- Category: >>>
- Supplier: Hebei Qiruite Rubber & Plastic Products Co. Ltd.
Share on (60404424401):
Product Overview
Description
Product Description
SAE J2064 Type C Air Conditioning Hose
Hose Construction:
Tube: CSM/EPDM
Barrier: Nylon alloy
Buffer:EPDM/NBR
Reinforcement: PVA
Cover: EPDM
Application temperature: -40°C ~ +135°C
Length: 50m or as requested
Certificate: ISO/TS 16949:2009
Refrigerant applied: R12,R134a
Features: Pulse resistance, aging resistance, ozone resistance, shock resistance, and low permeability.
Application:Air Conditioning Hose is widely used in the air conditioning system of vehicles, cars, and domestic air conditioning.
| Air Conditioning Hose(A10) | |||||||
| Specification | I.D. | O.D. | Working Pressure | Burst Pressure | |||
| Size | inch | mm | mm | Mpa | Mpa | ||
| #6 | 5/16'' | 8.2±0.4 | 15.2±0.5 | 3.5 | 23 | ||
| #8 | 7/16'' | 11.5±0.4 | 18.4±0.5 | 3.5 | 22 | ||
| #10 | 1/2'' | 13±0.4 | 21±0.5 | 3.5 | 20 | ||
| #12 | 5/8'' | 15.5±0.4 | 23±0.5 | 3.5 | 21 | ||
| R134a Air Conditioning Hose (A20) | |||||||
| Item | I.D. | O.D. | Working Pressure | Burst Pressure | |||
| Size | inch | mm | mm | Mpa | Mpa | ||
| #6 | 5/16'' | 8.2±0.4 | 19±0.5 | 3.5 | 21 | ||
| #8 | 13/32'' | 10±0.4 | 23±0.5 | 3.5 | 21 | ||
| #10 | 1/2'' | 13±0.4 | 25.4±0.5 | 3.5 | 22 | ||
| #12 | 5/8'' | 16±0.4 | 28.6±0.5 | 3.5 | 18 | ||
Note: Above Specification Just for your reference. We can produce the OEM Size for you.
