Product Overview

Description

Environmental Multi-Purpose Crusher

is applicable for both radial tire and bias tire. This device is designed to crusher tires into blocks of 50*50 cm for further processing. It is formed with in feed funnel, motor, gear transmission system, crushing chamber, classifier, main body, etc.

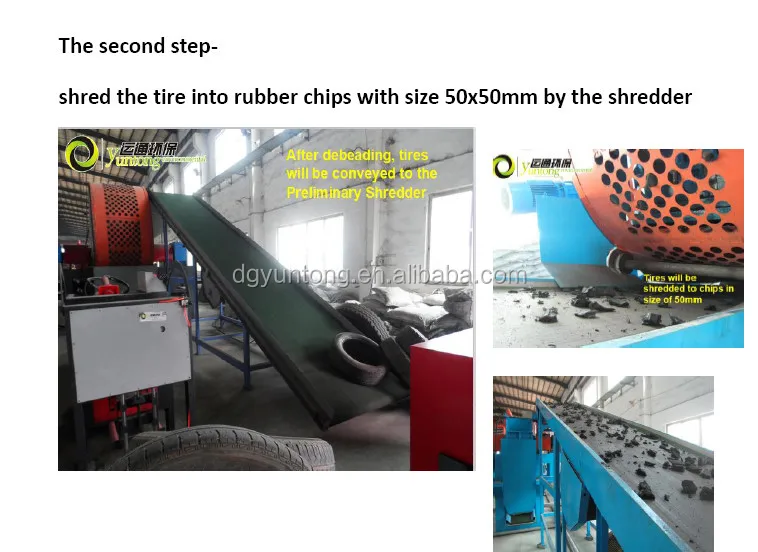

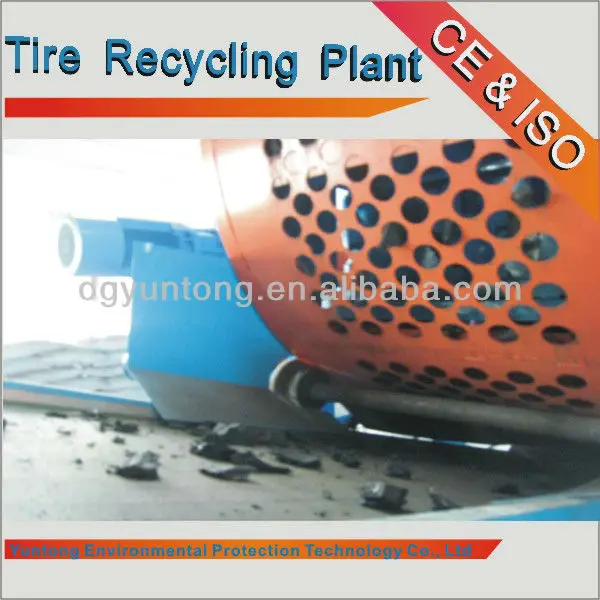

Working principle: the blades in the crushing chamber are driven turning by the main motor to shear the tires with outer diameter less than 1.2m from the in feed funnel. During the shearing process, blocks less than or equal to 50*50mm are filtered out through the screen, bigger size will be send back for crush again until smaller than the above mentioned size.





Advantages:

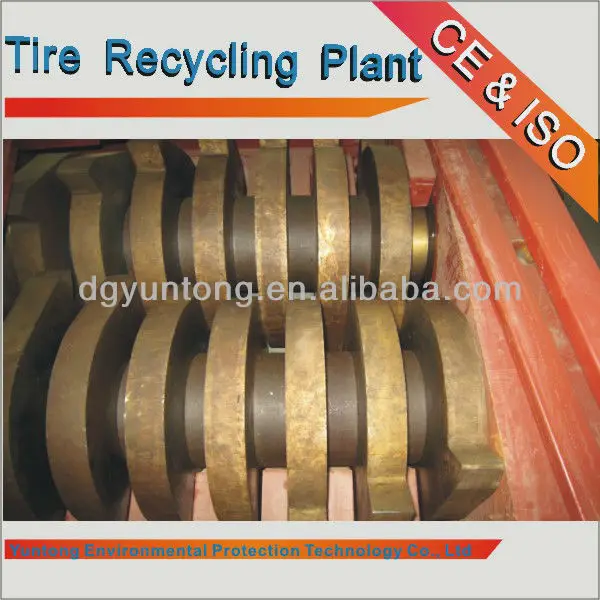

  1. Double shaft shearing method optimizes the drive force and avoids jam and mean while reduces the moment of overturning
  2. Cycloidal-pin gear speed reducer planetary reducer features high working capacity, high efficiency, low noise, low volume and long lifetime.
  3. Horny alloy blade edge can be shaped several times to ensure long lifetime for blade.
  4. Easy shaft replacement and maintenance.

Technical Parameter



No

Equipment Type

TPS1200

TPS800

TPS600

1

Motor power(kW)

(18.5-37)×2

(15-30)×2

(15-22) ×2

2

Blades(PCS)

22

22

22

3

Revolution speed of main shaft(r/min)

5-14

5-14

5-14

4

Crushing room length(mm)

1200

800

600

5

Round-screen hole diameter(mm)

Φ50-Φ90

Φ50-Φ90

Φ50-Φ90

6

Inlet Specification(mm)

≤Φ1200

≤Φ800

≤Φ750

7

Outlet Specification(mm)

40-90

30-90

20-90

8

Capacity (with filter screen)(kg/h)

≤3500

≤2000

≤1000

9

Capacity (without filter screen)(kg/h)

≤8000

≤6000

≤3000

10

Dimension(L×W×H)

6310×3670×2850

4400×2200×3100

3700×2100×3100

11

Weight(kg)

14

12

9








Product Description

Scrap tire recycling machine

Using scrap tire make clean fine crumb rubber at ambient temperation

waste tire recycling machine.jpg

Overlook-Yuntong Environmental Machinery

waste tire recycling (4).jpg
pictures of workshop (7).jpg
tire recycling machine.jpg


Sample production line in workshop

waste tire recycling (7).jpg

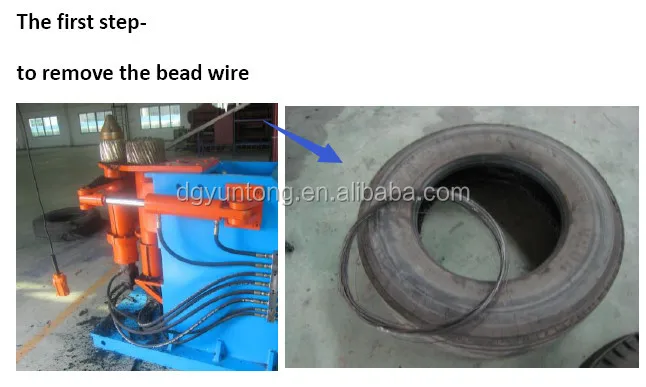

1/input:1 tons tire per hour,tire size less than 1200mm

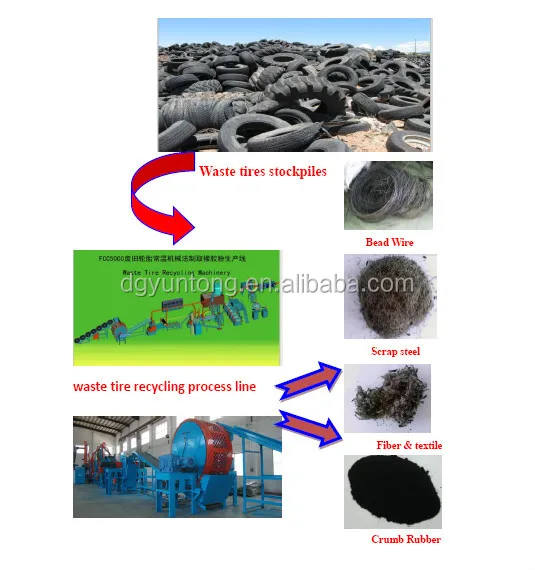

2/output:700kg 20-80mesh crumb rubber,the scrap steel and textile is separated clearly and collected, the dust and ash is removed clearly,smoke and smell is absorbed.

3/Power needed:302KW(3 phase ,380V/50HZ )

4/Covering area:50x7x8m

5/Total weight:approx 46tons

7/Cooling method:Circular cooling water syste,Water tank needed:4x1.8x2m

8/PLC fully automatic controller ,3 workers needed

Application of crumb rubber

waste tire crum rubber.jpg
Packaging & Shipping

Packaging of our machine:

1/wrapped well with plastic film

2/then packed tightly with customized woodcases

waste tire machine packaging.jpg
